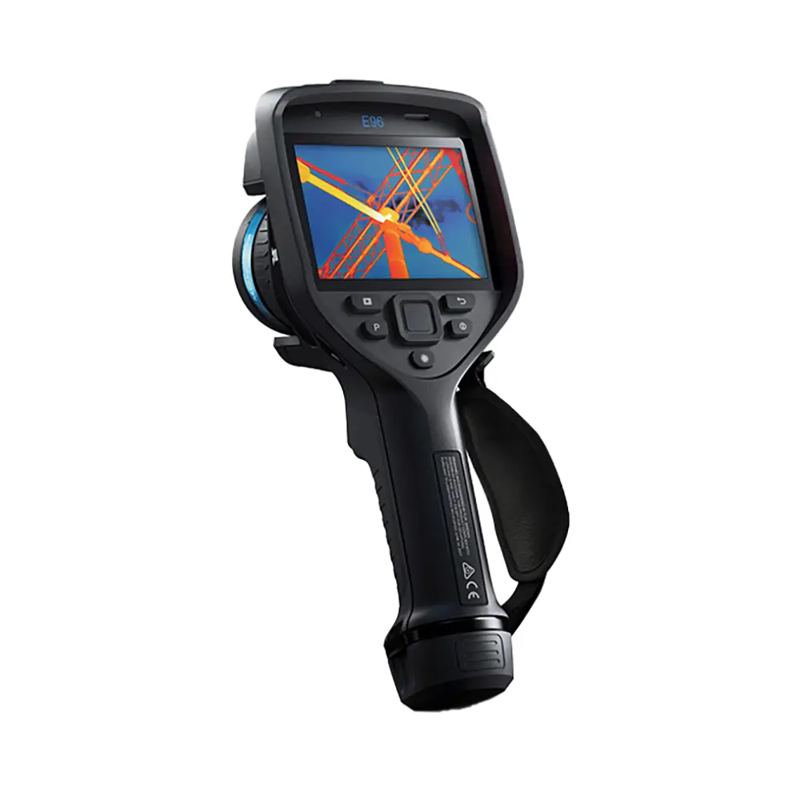

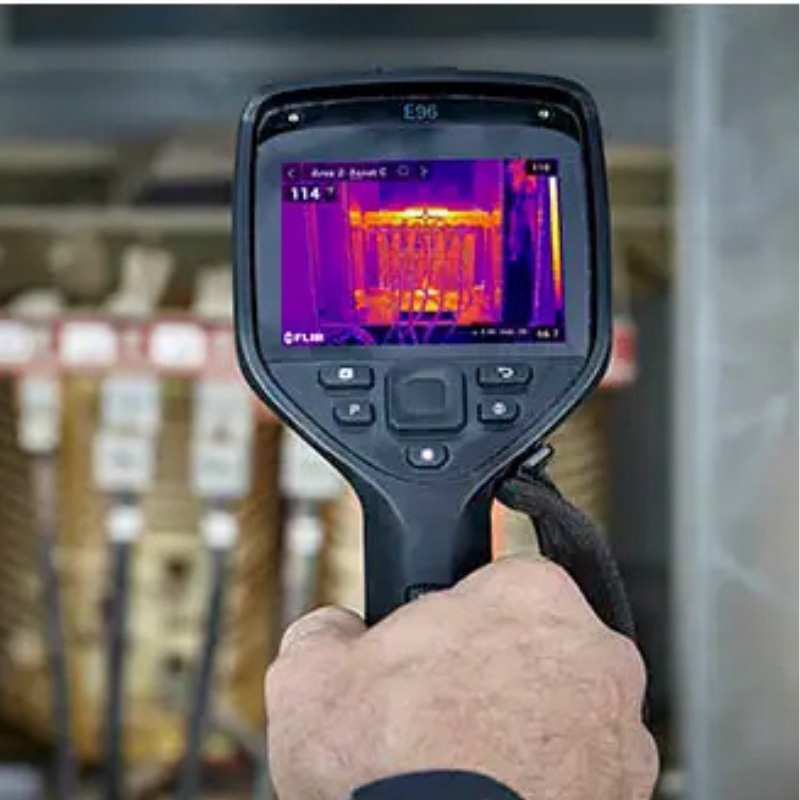

Unlock professional-grade thermal imaging with this advanced handheld camera built for precision and reliability across electrical, mechanical, and building inspections. Its 640 x 480 uncooled microbolometer sensor delivers sharp thermal images enhanced by FLIR’s UltraMax super-resolution and MSX image overlay for unmatched clarity.
Switch effortlessly between wide (80°), standard (24°), and telephoto (14°/42°) AutoCal lenses, or use FlexView technology to instantly toggle fields of view—no manual lens changes needed. The rugged IP54-rated design withstands tough conditions, while the laser-assisted autofocus and distance meter ensure accurate measurements from a safe distance. It supports a wide temperature range from -20°C to 1500°C.

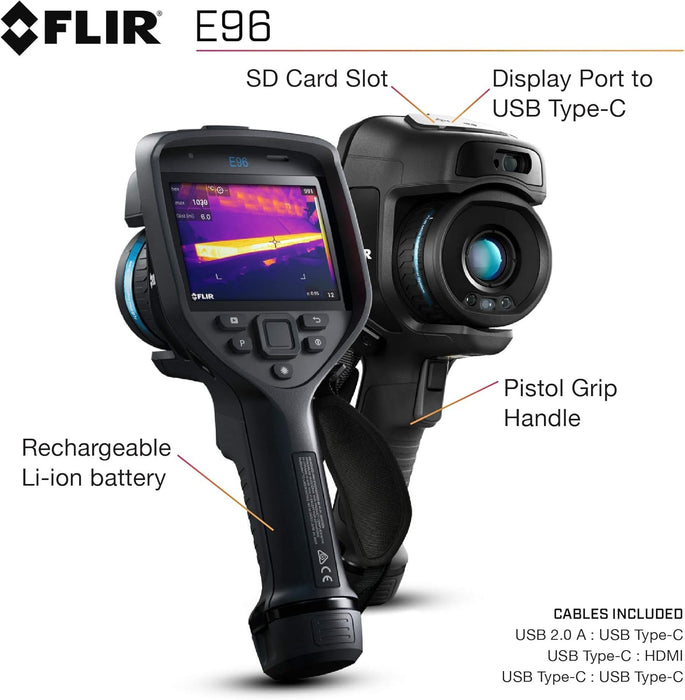

A 4-inch touchscreen, smart measurement tools, and FLIR Inspection Route software streamline inspections and reporting. Stay connected with USB, Wi-Fi, Bluetooth, and DisplayPort for live streaming and remote access. Videos and images are stored on SD cards and synced with the FLIR Ignite cloud platform. Includes Thermal Studio Pro or Starter software for advanced image analysis and reporting.
What's Included:
Teledyne FLIR E96 Thermal Camera
Rechargeable Li-ion Batteries
Battery Charger
Protective Carrying Case
NIST Calibration (optional)
USB Cables
Lens Caps
Shoulder and Wrist Straps
Documentation and Quick Start Guide
Features

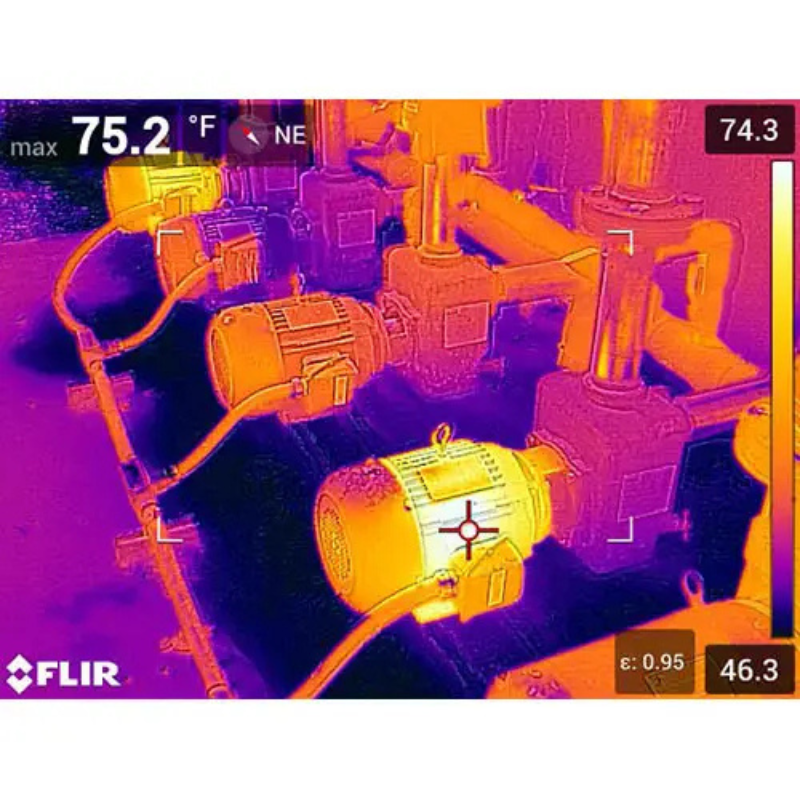

High-Resolution Thermal Sensor 640 x 480 uncooled microbolometer delivers clear, detailed thermal imagery for professional diagnostics.

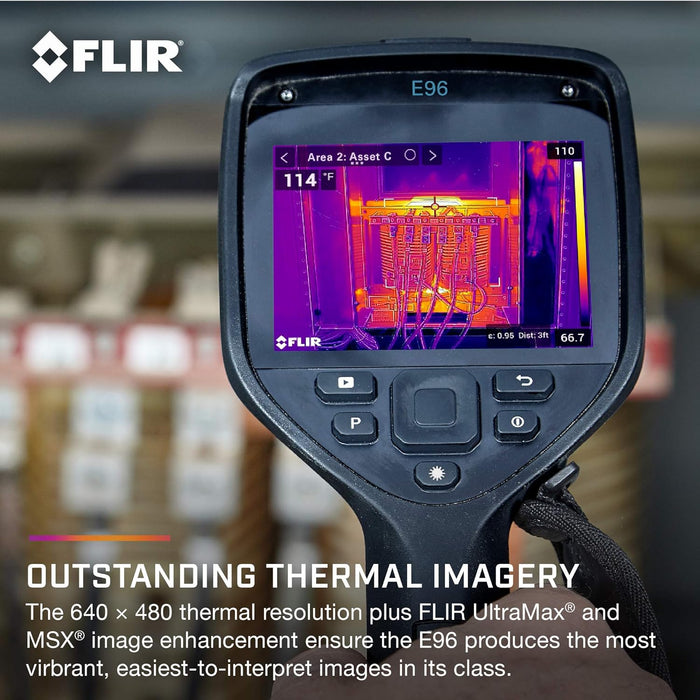

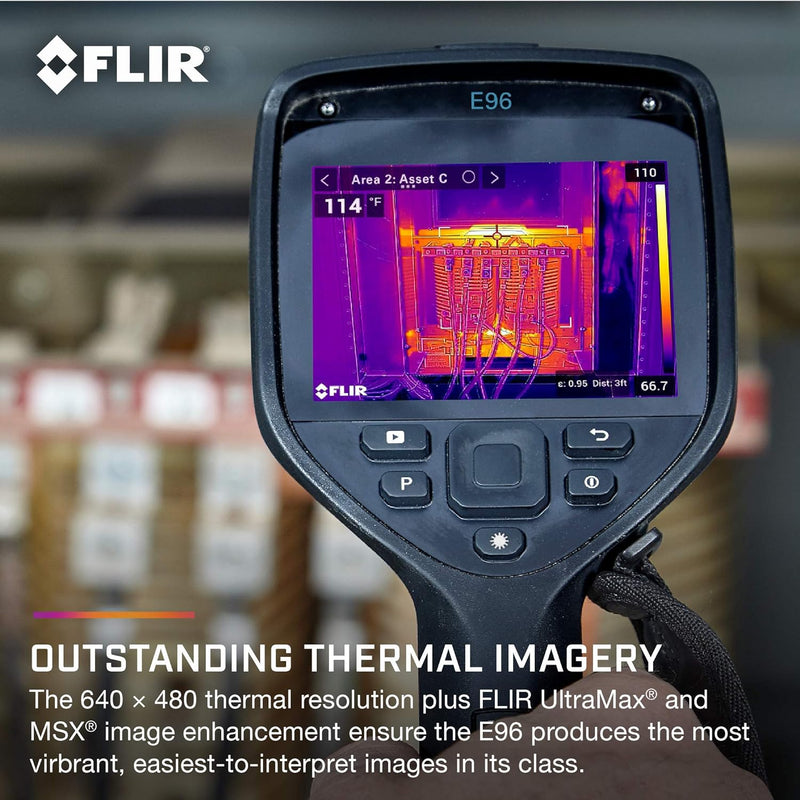

UltraMax and MSX Imaging Enhancements Combines super-resolution and multispectral image enhancement for sharper, context-rich visuals.

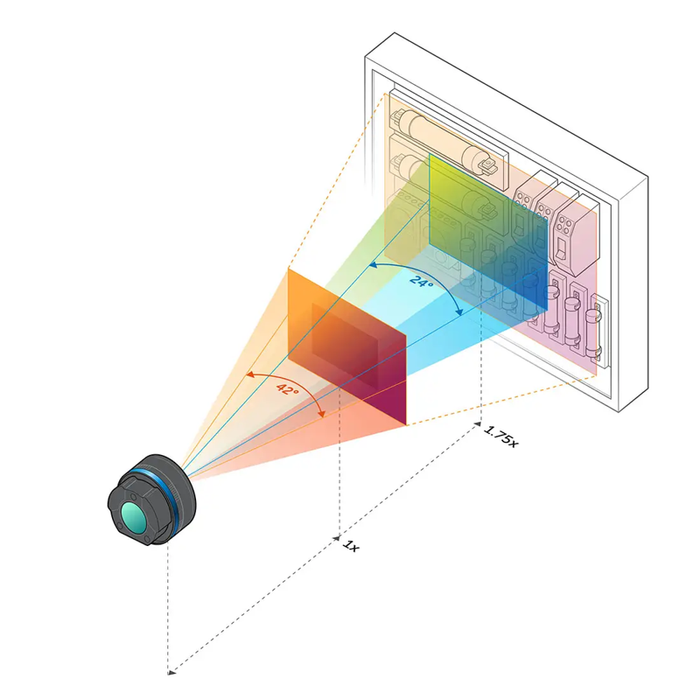

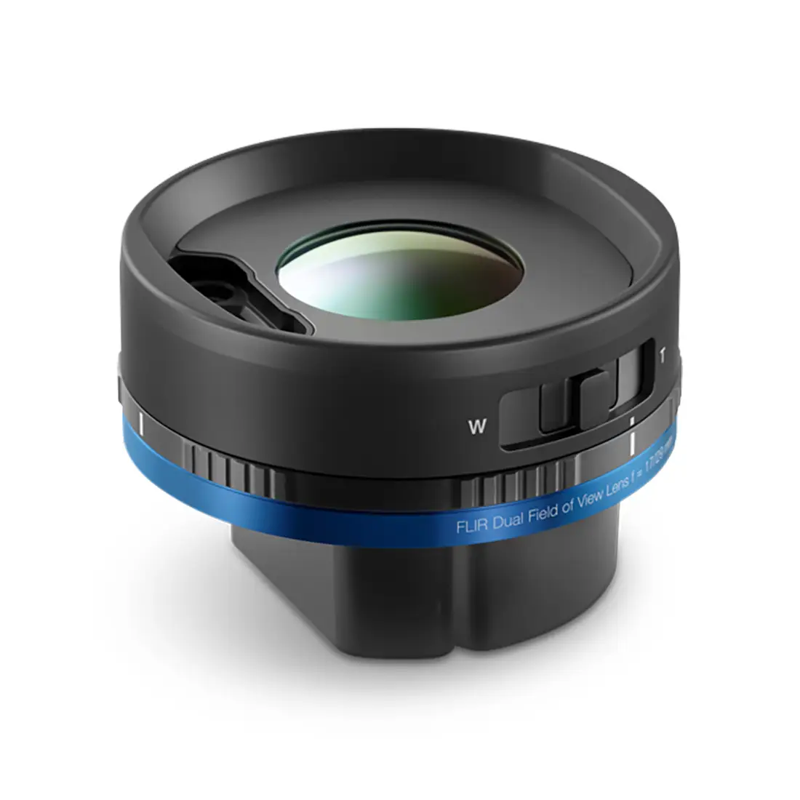

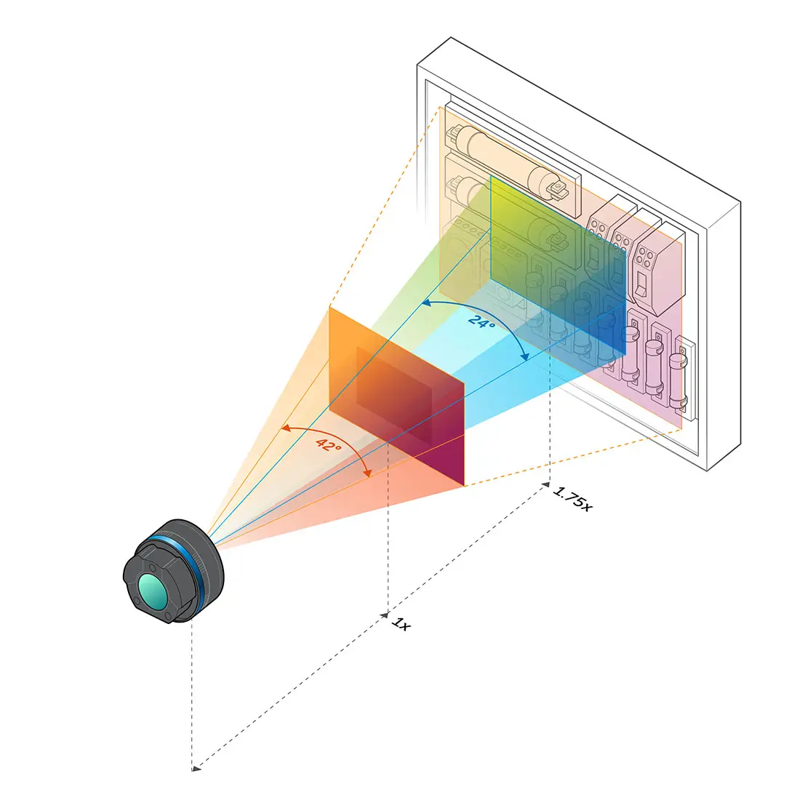

FlexView Dual Field-of-View Switches between wide and narrow perspectives instantly without changing lenses manually.

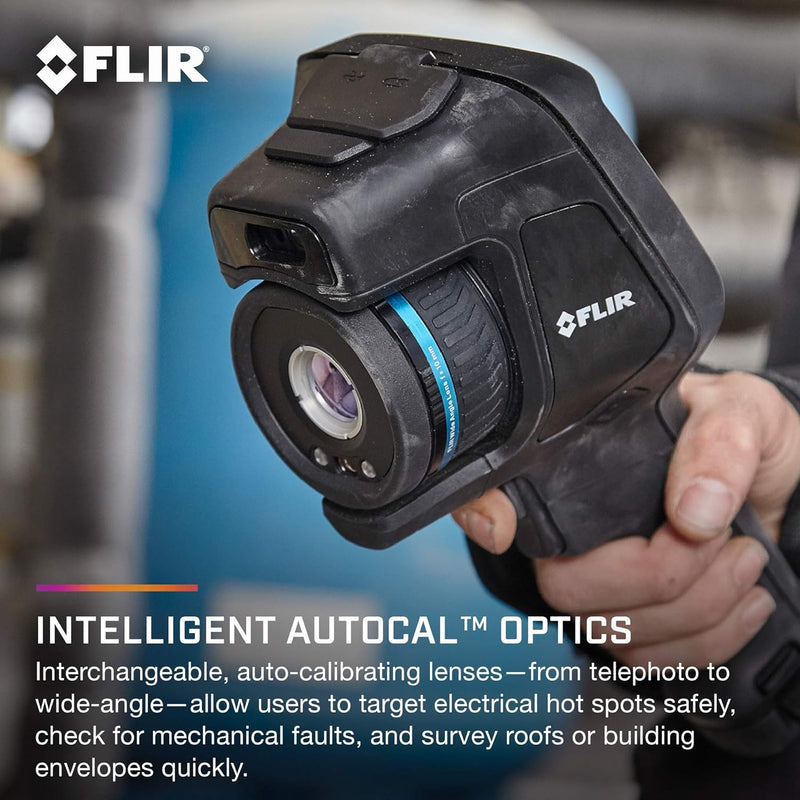

Multiple AutoCal Lenses Compatible with 14°, 24°, 42°, and 80° lenses for versatile inspection ranges and angles.
Rugged and Weather-Resistant IP54-rated housing resists dust, moisture, vibration, and shock for dependable outdoor and industrial use.
Laser-Assisted Focusing Built-in laser distance meter ensures pinpoint accuracy and optimal focus from a safe distance.
Broad Temperature Range Captures thermal readings from -20°C (-4°F) to 1500°C (2732°F), suitable for high-heat applications.

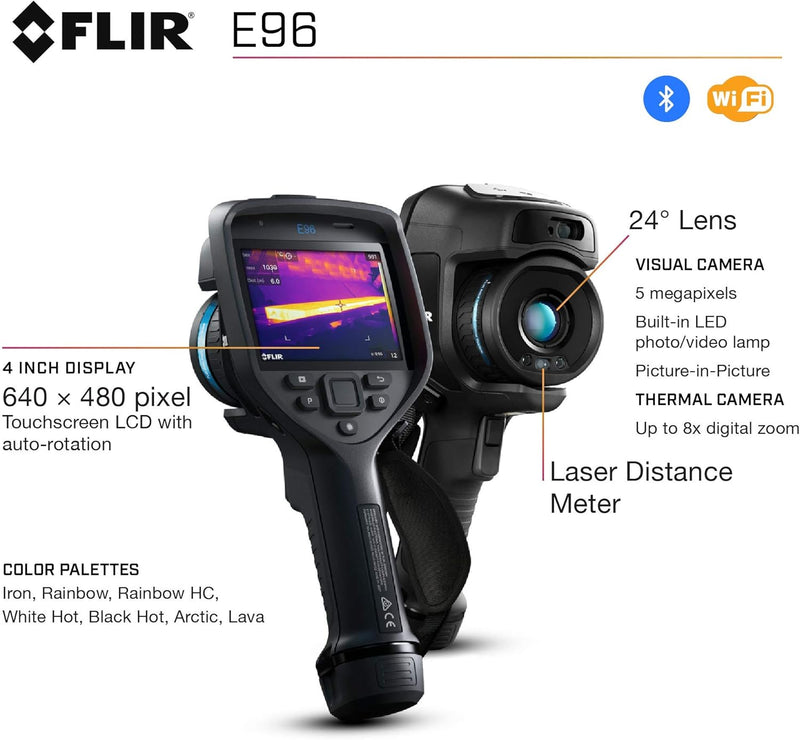

Touchscreen Interface 4-inch 640 x 480 LCD with auto-rotation allows intuitive control and fast image review.
Advanced Measurement Tools Includes spot meters, area boxes, sketch/voice annotations, and customizable buttons for streamlined reporting.

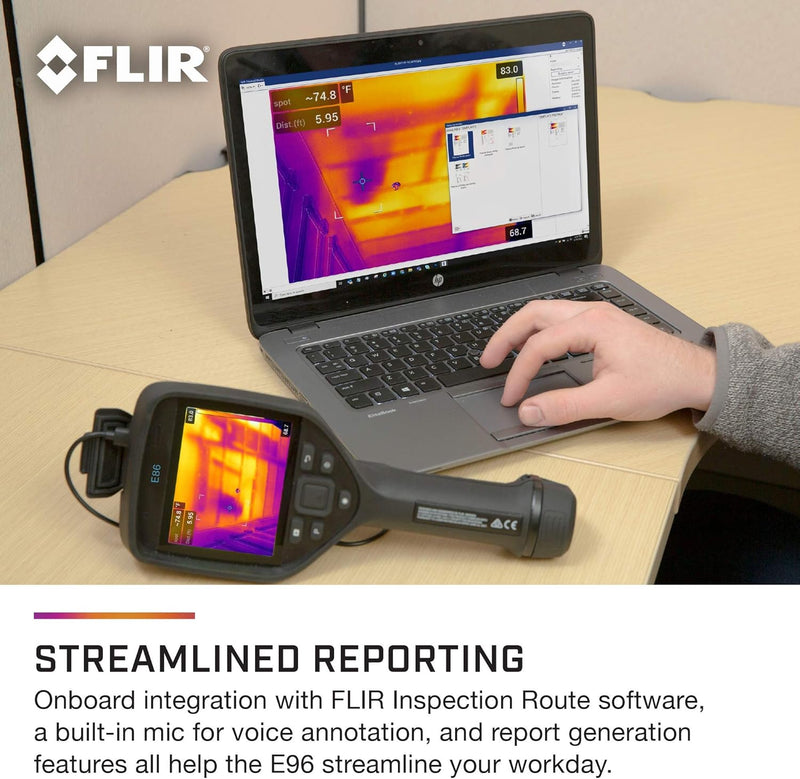

Integrated FLIR Inspection Route Supports structured workflows to increase consistency and reduce user training needs.
Flexible Connectivity Supports USB 2.0, USB-C, Wi-Fi, Bluetooth, and DisplayPort for live streaming, remote access, and file sharing.
Radiometric Video Support Records and streams in .csq, H.264, and MPEG-4 formats for detailed thermal analysis.
Cloud Integration Automatic file uploads to FLIR Ignite platform simplify storage and access.
Professional Analysis Software Includes Thermal Studio Pro or Starter for advanced reporting and desktop image analysis.
What's Included
Included with Your Purchase:
Teledyne FLIR E96 Thermal Camera
Rechargeable Li-ion Batteries
Battery Charger
Protective Carrying Case
NIST Calibration (optional)
USB Cables
Lens Caps
Shoulder and Wrist Straps
Documentation and Quick Start Guide
Specifications
Thermal Sensor Resolution: 640 x 480
Imaging Enhancements: UltraMax and MSX
Lens Options: AutoCal 14°, 24°, 42°, 80°
Field-of-View Switching: FlexView Dual FOV

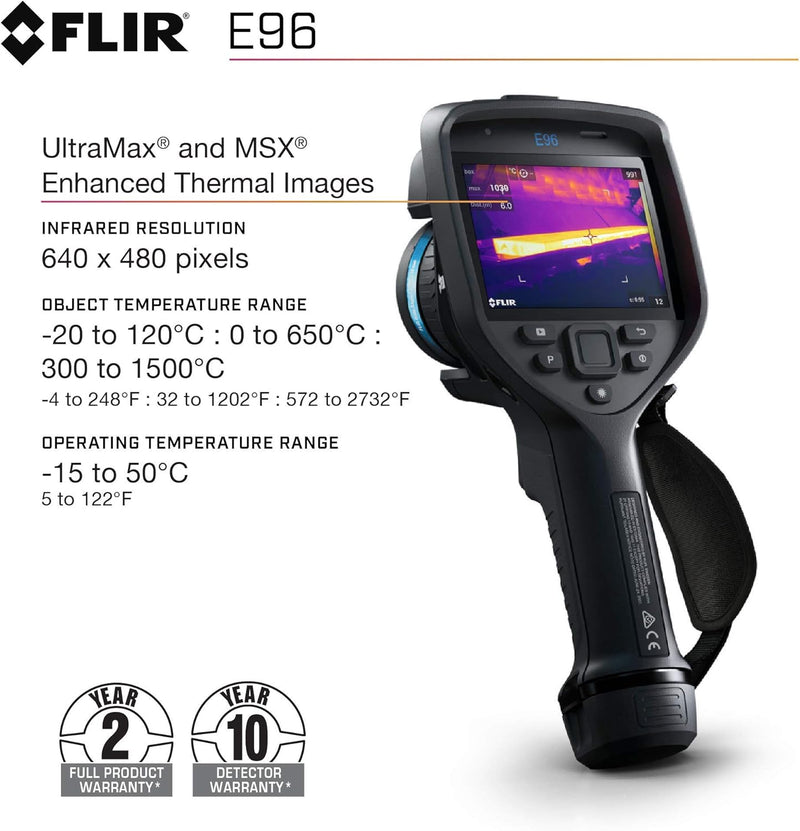

Temperature Range: -20°C to 1500°C (-4°F to 2732°F)
Display: 4" Touchscreen LCD, 640 x 480 resolution
Ingress Protection: IP54
Focus System: Laser-assisted autofocus

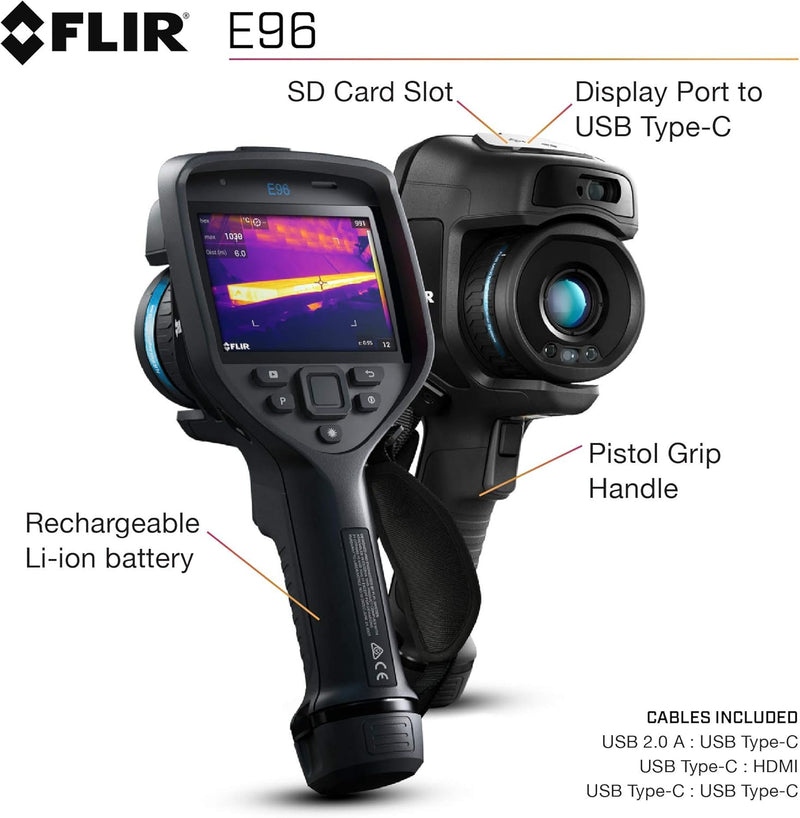

Connectivity: USB 2.0, USB-C, Bluetooth, Wi-Fi, DisplayPort
Video Formats: .csq, H.264, MPEG-4
Data Storage: Removable SD card with FLIR Ignite cloud sync
Software Included: Thermal Studio Pro or Thermal Studio Starter
FAQ
Q: Can I switch lenses during use? A: Yes, AutoCal lenses allow seamless switching without manual calibration, and FlexView provides instant FOV changes.
Q: How is image clarity enhanced? A: UltraMax increases pixel density while MSX overlays visual detail onto thermal images for greater clarity.
Q: Is this camera suitable for high-heat environments? A: Yes, it supports measurements up to 1500°C (2732°F), making it ideal for industrial and high-temperature applications.
Q: Can I stream live video from this device? A: Absolutely, the camera supports live video streaming via Wi-Fi, USB-C, or DisplayPort.
Q: Does it support cloud storage? A: Yes, it automatically uploads files to the FLIR Ignite platform for secure, remote access.
