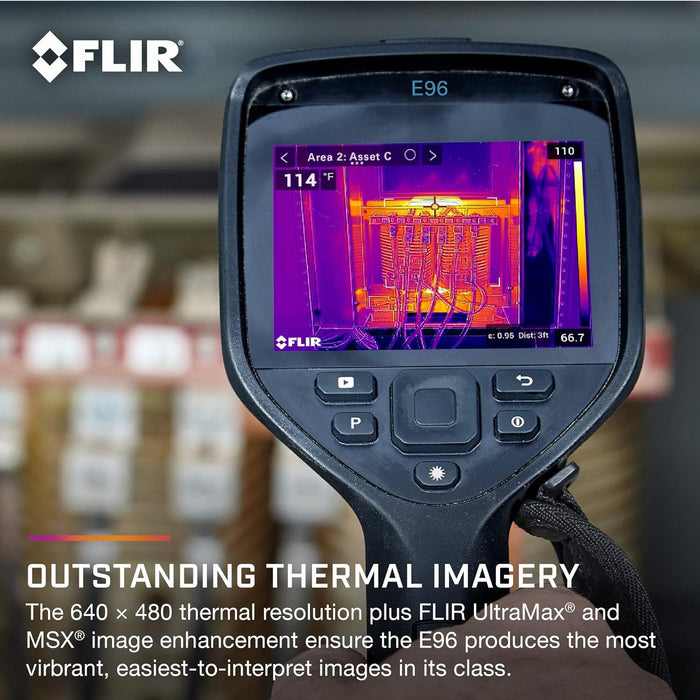

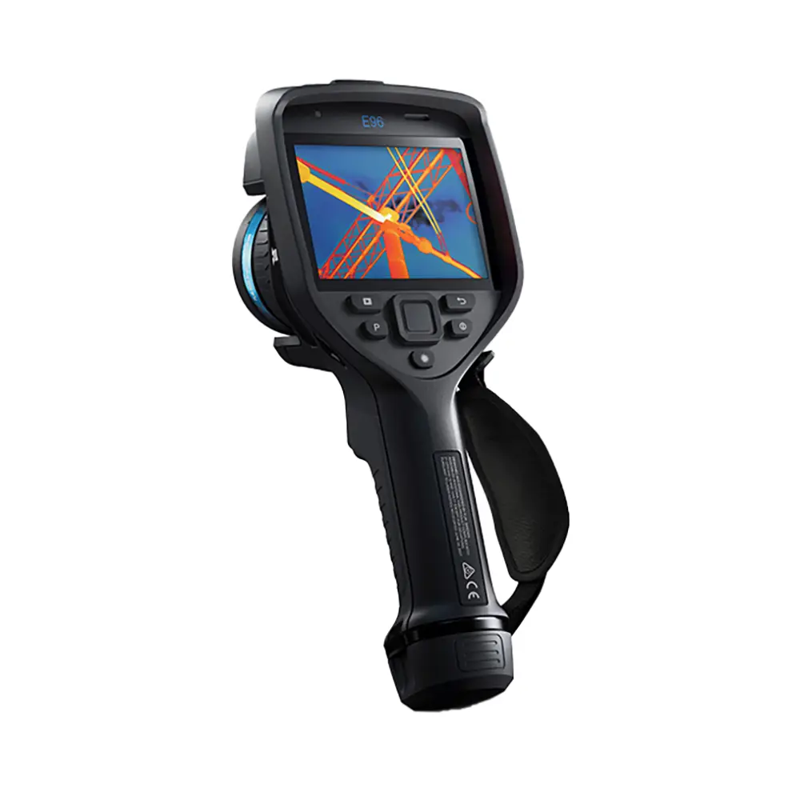

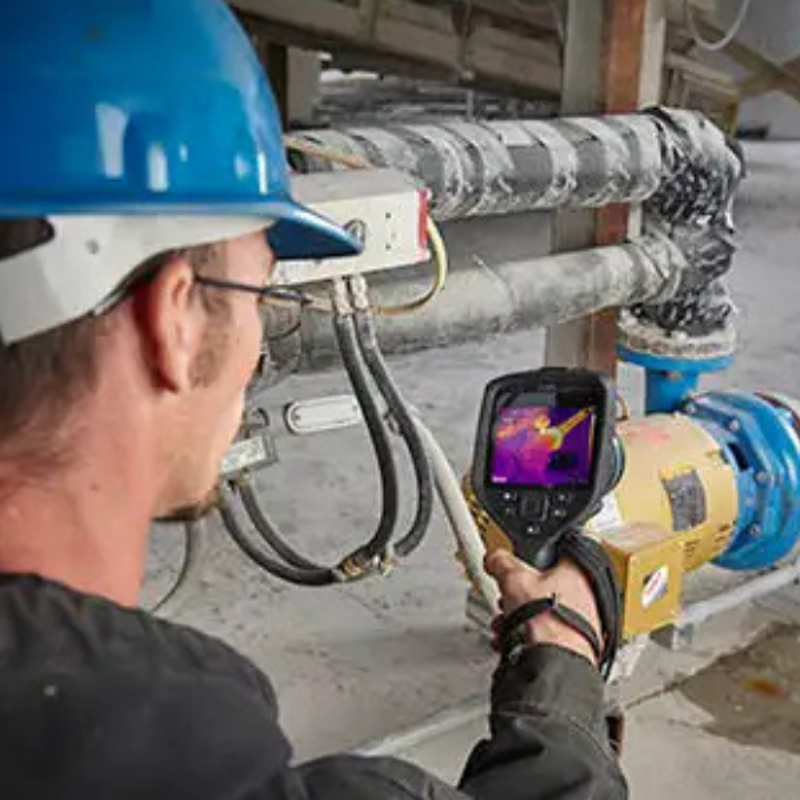

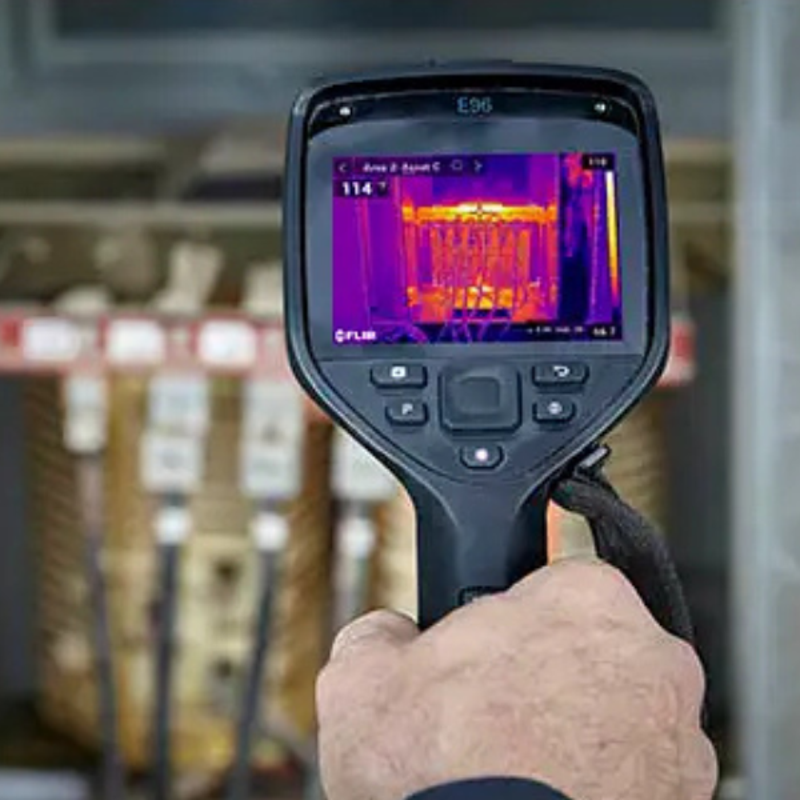

Get professional-grade thermal imaging with this advanced pistol-grip camera featuring a 640 × 480 infrared detector. Ideal for electrical, mechanical, and building inspections, it delivers sharp, precise thermal images using patented MSX and UltraMax technologies—blending visible-light detail with thermal data for enhanced clarity and fault detection.

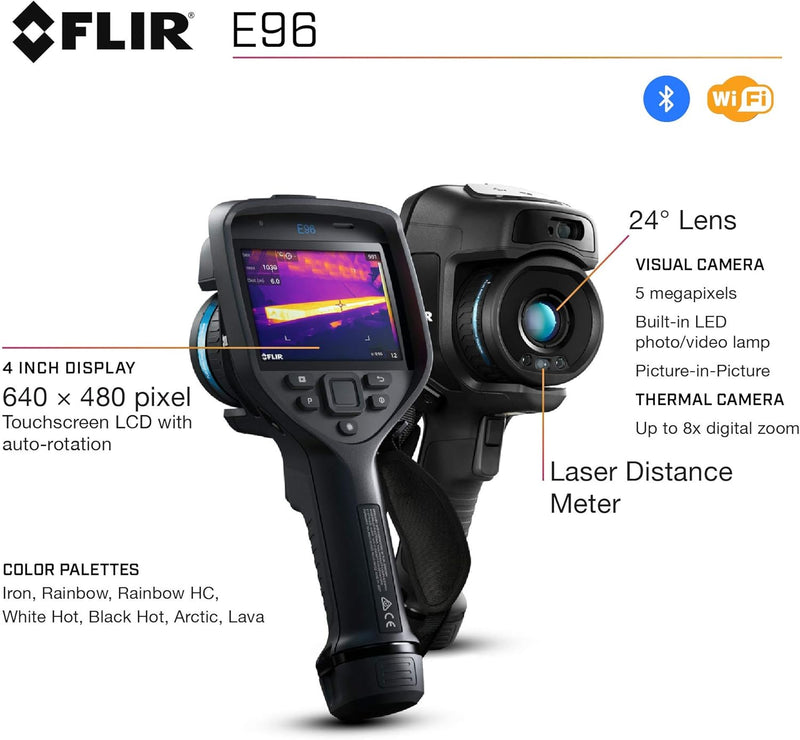

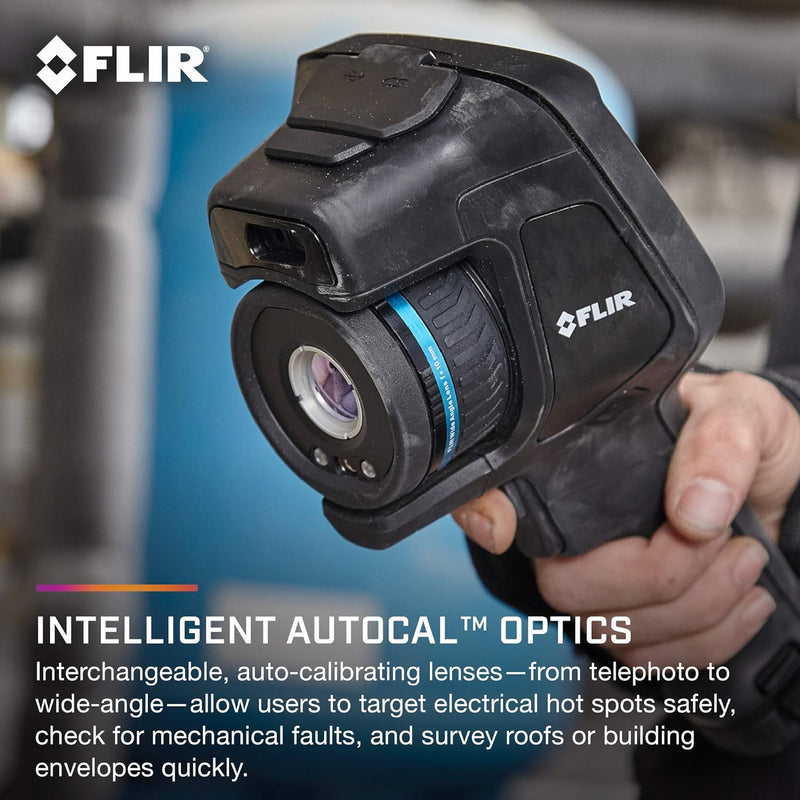

The camera includes interchangeable AutoCal lenses (14°, 24°, 42°) that auto-recognize and calibrate for seamless switching between wide, standard, and telephoto views. A built-in laser distance meter ensures accurate autofocus, while the 4-inch high-contrast LCD touchscreen with auto-rotation provides intuitive operation in the field.

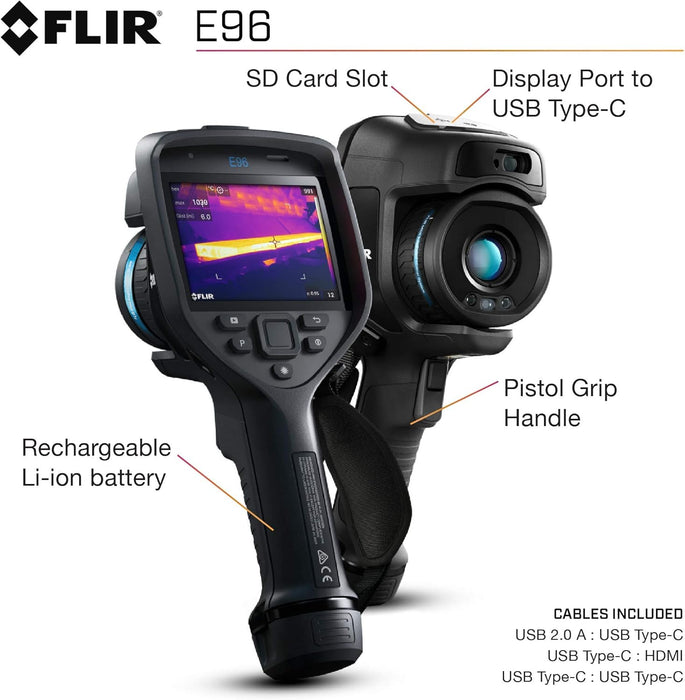

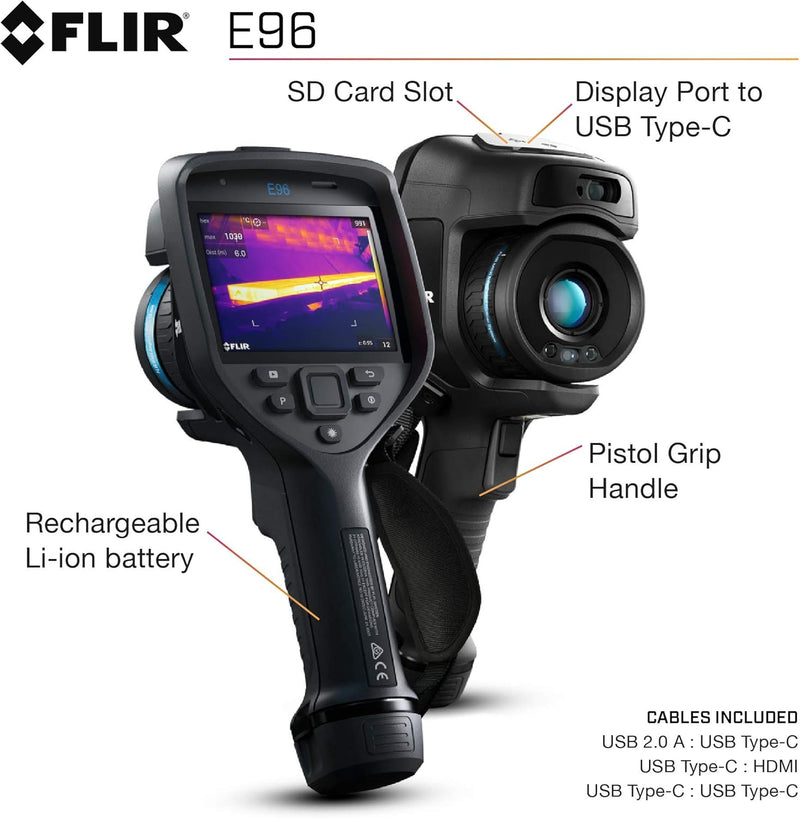

Robust documentation tools include 60-second voice notes, text input, GPS tagging, and touchscreen sketching. It integrates with FLIR’s Thermal Studio Pro and Inspection Route Creator for streamlined inspections and report generation. USB 2.0, USB-C DisplayPort, Wi-Fi, and Bluetooth enable fast data transfer and remote control.
Built tough with an IP54-rated enclosure and tested to IEC 60068 standards, this imager operates from -15°C to 50°C. It stores radiometric JPEGs on removable SD cards and measures -20°C to 1500°C with ±2°C or ±2% accuracy. Multiple color palettes like Iron, Rainbow, White Hot, and Black Hot support diverse visual analysis.
What's Included:
Thermal camera with 640 × 480 infrared detector
AutoCal lens set (14°, 24°, 42°)
Laser distance meter
4" touchscreen LCD display
Removable SD card
USB 2.0 and USB-C cables
FLIR Thermal Studio Pro software with Inspection Route Creator plugin
Protective carrying case
Features

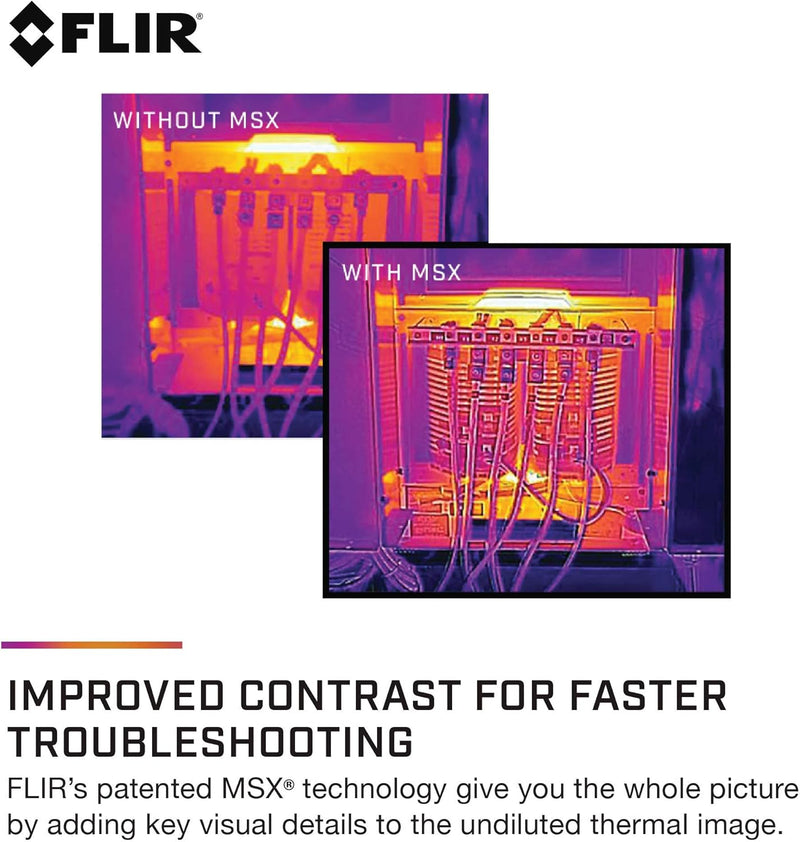

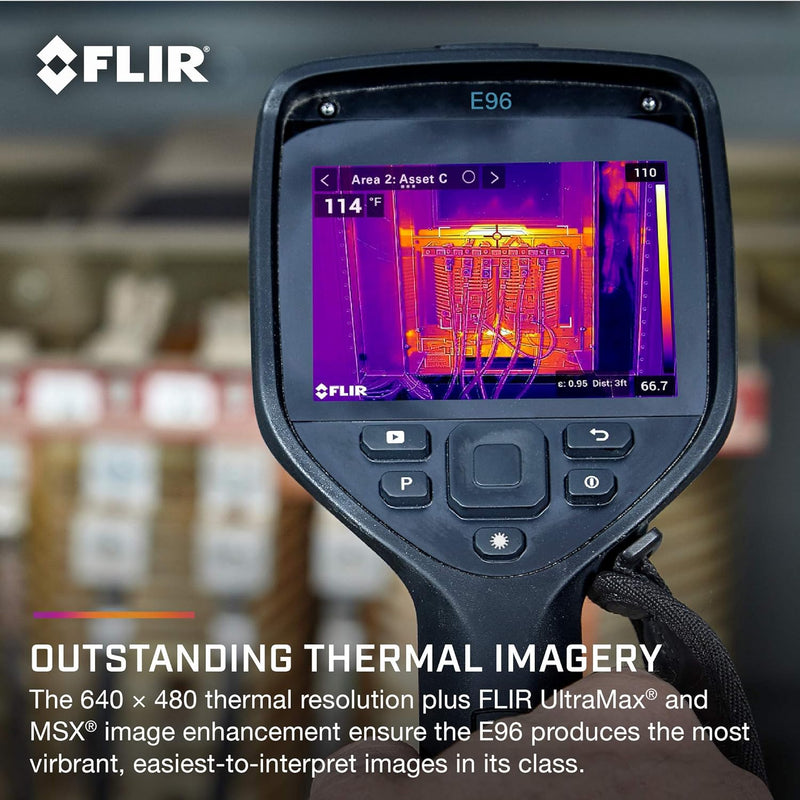

High-Resolution Thermal Imaging Equipped with a 640 × 480 thermal detector enhanced by MSX and UltraMax, delivering detailed, contrast-rich thermal visuals.
Interchangeable AutoCal Lenses Switch effortlessly between 14°, 24°, and 42° lenses with automatic recognition and calibration—no need for service interruptions.
Laser Distance Meter Enables precise autofocus and ensures accurate spot temperature readings for reliable diagnostics.
Intuitive Touchscreen Display Features a 4-inch LCD with high contrast and auto-rotation for easy operation in various field settings.
Comprehensive Documentation Tools Supports voice annotations, text notes, GPS tagging, and touchscreen sketching for thorough reporting.

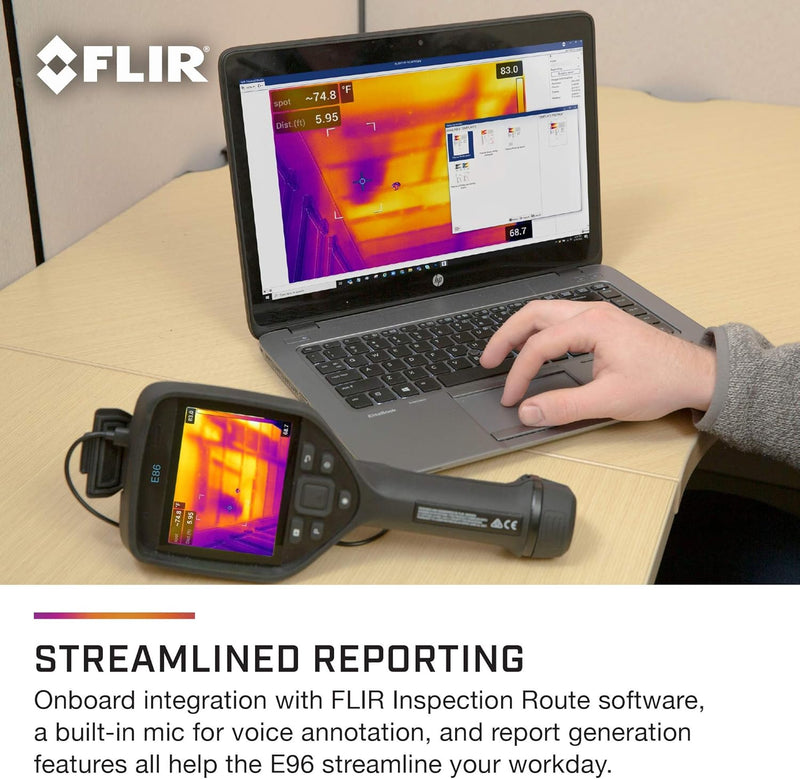

Advanced Software Integration Works with FLIR Thermal Studio Pro and Inspection Route Creator to optimize inspection workflows and reporting.
Robust Connectivity Offers USB 2.0, USB-C DisplayPort, Wi-Fi, and Bluetooth for fast transfers, streaming, and remote use.
Durable and Rugged Design IP54-rated build withstands harsh environments with shock and vibration resistance.
Broad Temperature Range Measures temperatures from -20°C to 1500°C across three ranges with ±2°C or ±2% accuracy.
Versatile Visualization Options Includes multiple thermal color palettes like Iron, Rainbow, White Hot, and Black Hot for flexible image interpretation.
What's Included
Included with Your Purchase:
Thermal camera with 640 × 480 infrared detector
AutoCal lens set (14°, 24°, 42°)
Laser distance meter
4" touchscreen LCD display
Removable SD card
USB 2.0 and USB-C cables
FLIR Thermal Studio Pro software with Inspection Route Creator plugin
Protective carrying case
Specifications

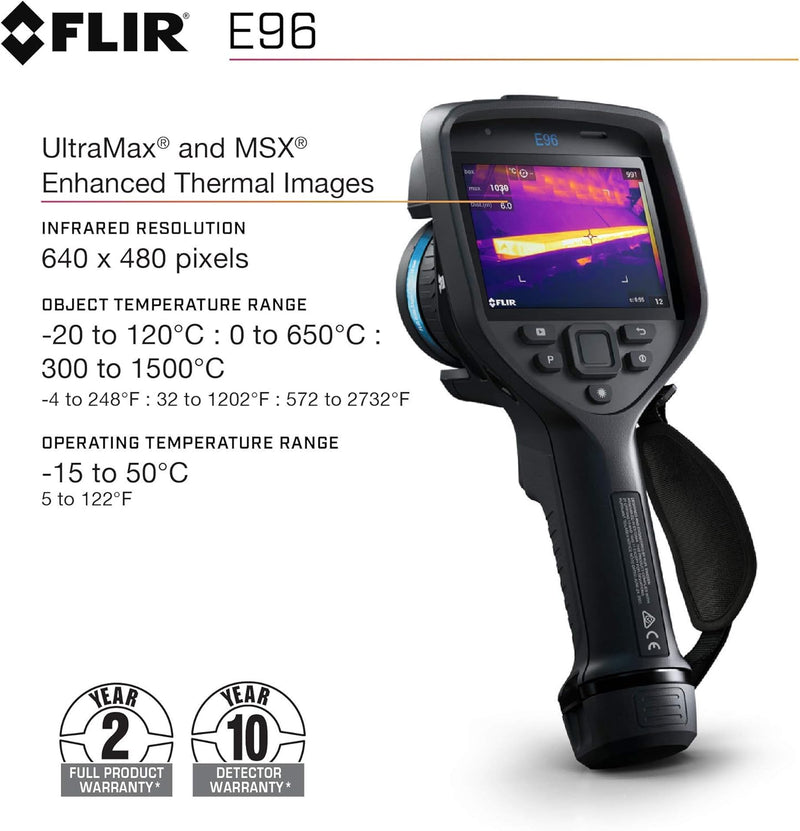

Thermal Resolution: 640 × 480 pixels
Lens Options: 14°, 24°, and 42° AutoCal interchangeable lenses
Display: 4-inch high-contrast LCD with auto-rotation
Focus: Laser distance meter-assisted autofocus
Image Storage: Removable SD card with radiometric JPEG format
Temperature Measurement Range: -20°C to 1500°C
Accuracy: ±2°C or ±2%
Connectivity: USB 2.0, USB-C DisplayPort, Wi-Fi, Bluetooth
Video: Radiometric and non-radiometric recording and streaming
Software Compatibility: FLIR Thermal Studio Pro, Inspection Route Creator
Operating Temperature: -15°C to 50°C
Enclosure Rating: IP54
Compliance: Shock and vibration tested to IEC 60068
Color Palettes: Iron, Rainbow, White Hot, Black Hot
FAQ
Q: Can the camera automatically calibrate lenses during field swaps? A: Yes, AutoCal lenses automatically calibrate upon attachment without requiring manual setup.
Q: How do I record and tag inspection data? A: Use built-in voice notes, text input, GPS tagging, and screen sketching for detailed documentation.
Q: What is the operating temperature range of the camera? A: The device functions reliably from -15°C to 50°C.
Q: Is the camera software included with purchase? A: Yes, FLIR Thermal Studio Pro and the Inspection Route Creator plugin are included.
Q: How is image data stored? A: Images are saved to an SD card in JPEG format with embedded radiometric data.
