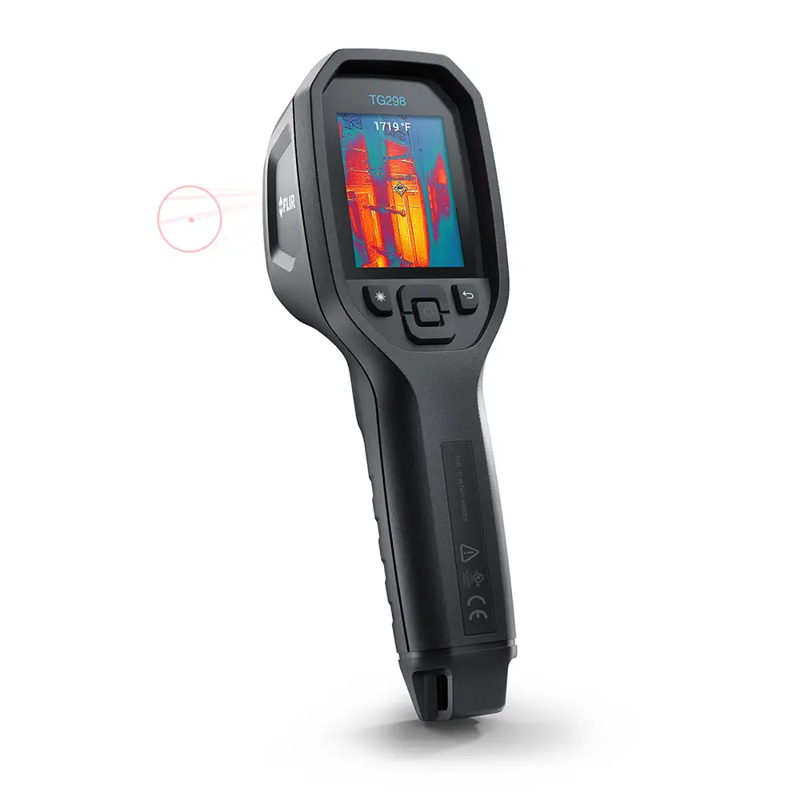

The Teledyne FLIR TG298 High-Temperature Spot Infrared Thermal Camera allows users to accurately measure objects with temperatures up to 1976°F (1080°C) with a 30:1 spot size ratio. The bullseye laser pointer visually highlights the measurement area so that temperatures can be more accurately measured at their center. Directly on the camera, users are provided with alarms and can perform timelapse image capture, trending, or logging.

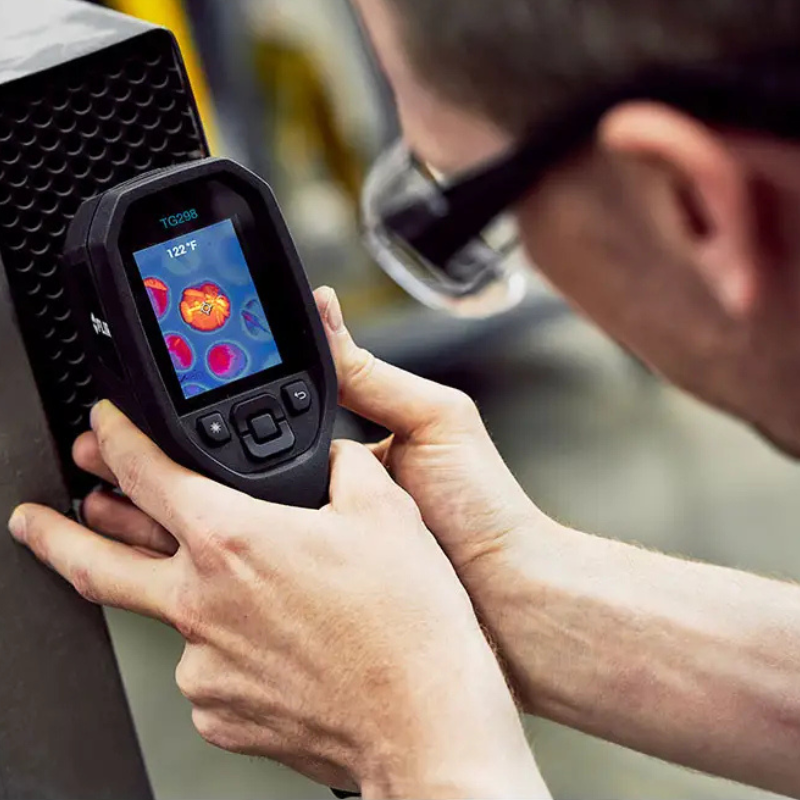

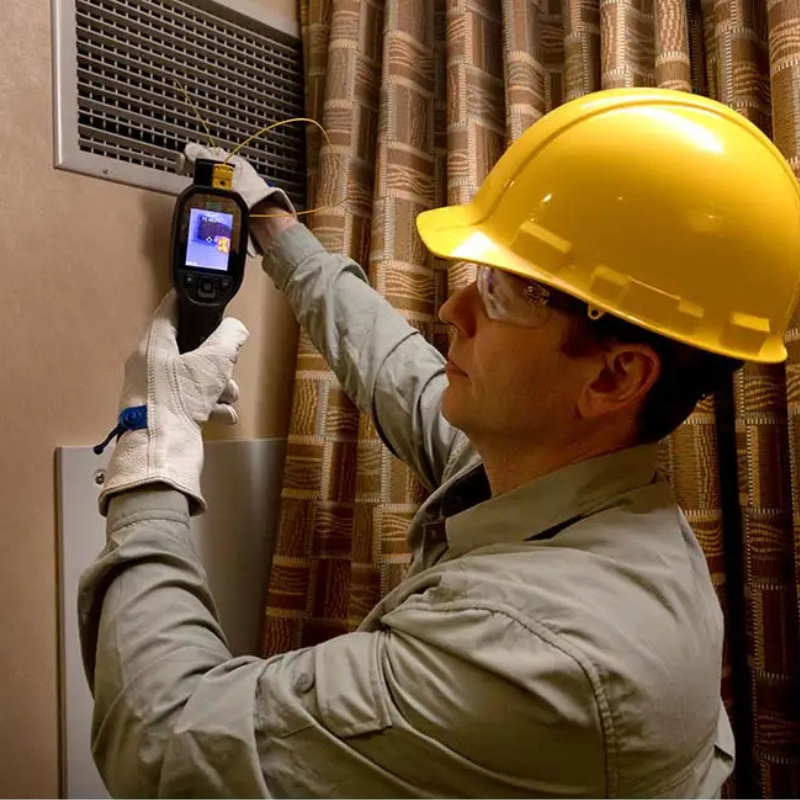

The TG298 aids users within manufacturing, building, facility, and automotive settings troubleshoot equipment, perform diagnostics, and ensure temperature consistency. Users can monitor equipment for signs of degradation before it fails and becomes a costly problem. Areas where energy efficiency can be improved upon can be easily spotted and quality assurance checks can be performed at a safe distance.

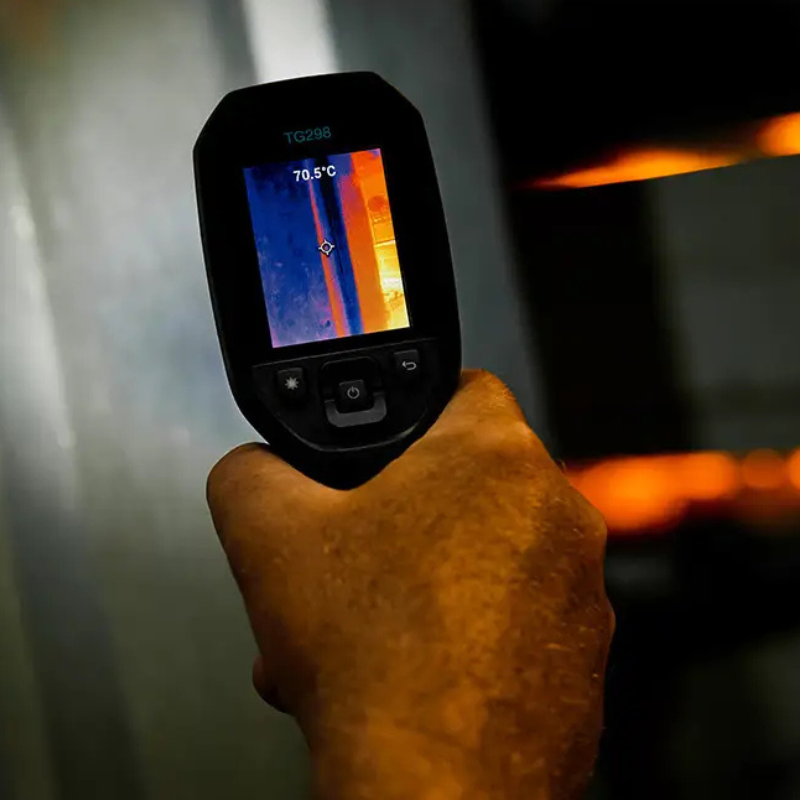

Quickly locate and diagnose problems faster with FLIR MSX image enhancement technology for added detail. While the infrared resolution offers a 160 x 120 quality, the super resolution upscales thermal images to 320 x 240. A quick boot-up time of six seconds ensures that the instrument is ready at all times. This rugged six-foot drop-tested instrument features an IP54 rating and a bright LED flashlight for use in darker areas.
The camera captures readings, images, and videos for analysis and sharing with the FLIR METERLiNK app. The METERLiNK app allows users to remotely record or monitor data, store up to 100 log files, and perform visual trending or logging. Users are provided with a live view of the instrument's data readings and can set user-defined alarm thresholds.
What's Included:
- High-Temperature Spot Infrared Thermal Camera (TG298)
- Wrist Strap Lanyard
- Pouch
- USB Type-C Cable
- Documentation
Features
Dual Range Temperature Measurement
Accurately captures temperature measurements with dual range capability to diagnose issues faster and more efficiently.
Spotmeter and Bullseye Laser
Measures temperatures precisely at the center of the image, visually highlighted by the laser pointer.
MSX Image Enhancement
Adds extra details to thermal images, aiding in faster troubleshooting and problem identification.
Super Resolution Technology
Upscales thermal images to 320 x 240 resolution, providing sharper and more detailed images.
Timelapse and Data Logging
Performs timelapse image capture, trending, logging, and alarm setting directly on the camera.
Rugged and Durable Design

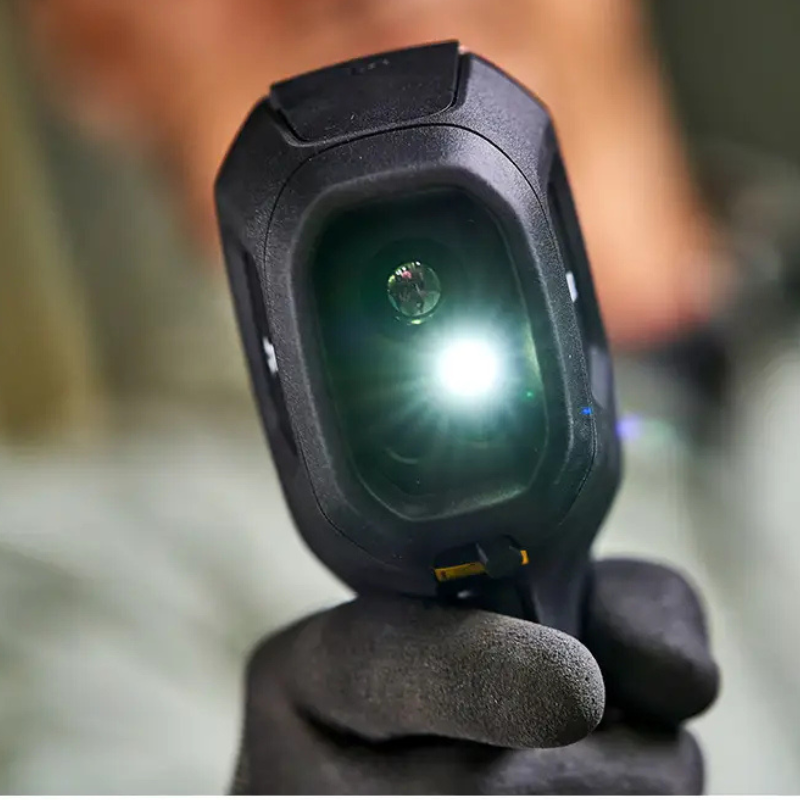

IP54 rated and drop tested from 6 feet with a bright built-in LED flashlight for use in dark environments.
Quick Boot-Up
Starts up in just 6 seconds, ensuring the tool is ready whenever needed.
Connectivity with FLIR METERLiNK App
Captures and shares readings, images, and videos while enabling remote monitoring and recording through the app.
Advanced App Features
The METERLiNK app allows data storage of up to 100 log files and supports visual trending and monitoring.
What's Included
Included with Your Purchase:
- High-Temperature Spot Infrared Thermal Camera (TG298)
- Wrist Strap Lanyard
- Pouch
- USB Type-C Cable
- Documentation
Specifications
-
IR Resolution: 160 x 120
-
Super Resolution: 320 x 240
-
Thermal Sensitivity/NETD: < 50 mK or < 0.09°F (0.05°C)
-
Field of View (H x V): 44° x 57°
-
Distance/Spot Size Ratio: 30:1
-
Color Palettes: Iron, Rainbow, White Hot, Black Hot, Arctic, Lava
-
Display: 2.4 in. color LCD, 20 x 240 px
-
Spectral Range: 7.5 µm to 14 µm
-
Object Temperature Range: -13°F to 1976°F (-25°C to 1080°C)
-
Minimum Focus Distance: 1.6 ft. (0.5m)
-
Minimum Measurement Distance: 0.85 ft. (0.26m)
-
Emissivity Correction: 0.1 to 0.99, 4x pre-set levels
-
Battery Type: Rechargeable li-ion battery
-
Battery Operating Time: 5 hours (continuous scanning), 4.5 hours (laser ON)
-
Operating Temperature Range: 14°F to 113°F (-10°C to 45°C)
-
Certifications: CE, CB, RCM, IEC60825-1, FDA, UL, CEC, NRCan
FAQ
Q: What is the maximum temperature the FLIR TG298 can measure?
A: It can measure temperatures up to 1976°F (1080°C).
Q: How fast does the TG298 boot up?
A: It boots up in just 6 seconds for immediate readiness.
Q: Can the camera capture video recordings?
A: Yes, the TG298 can capture readings, images, and videos.
Q: What app can I use to connect with the camera?
A: You can use the FLIR METERLiNK app to monitor, record, and log data remotely.
Q: How durable is the TG298?
A: It has an IP54 rating and has been drop tested up to 6 feet for rugged use.
