The Teledyne FLIR K45 High-Performance Thermal Imaging Camera (3-Button) Kit for Firefighters, 240 x 180, 60 Hz allows firefighters to see more clearly in the harshest environments, maneuver more strategically, stay better oriented, and find victims faster. This camera features Teledyne FLIR's proprietary FSX Flexible Scene Enhancement technology, producing ultra-sharp, finer textured images that show subtler details.
With Teledyne FLIR TICs, first responders can quickly and confidently find their way through the darkest environments, identify targets in extreme temperature settings, and make better decisions when seconds count.
What's Included:
- 1 - High-Performance Thermal Imaging Camera (3-Button) for Firefighters, 240 x 180, 60 Hz
- 2 - Batteries
- 1 - Battery Charger
- 1 - Carabiner Strap
- 1 - Hard Transport Case
- 1 - Power Supply/Adapter
- 1 - Retractable Lanyard, 16 N (58 oz)
- 1 - USB Cable
- 1 - User Manual
Features

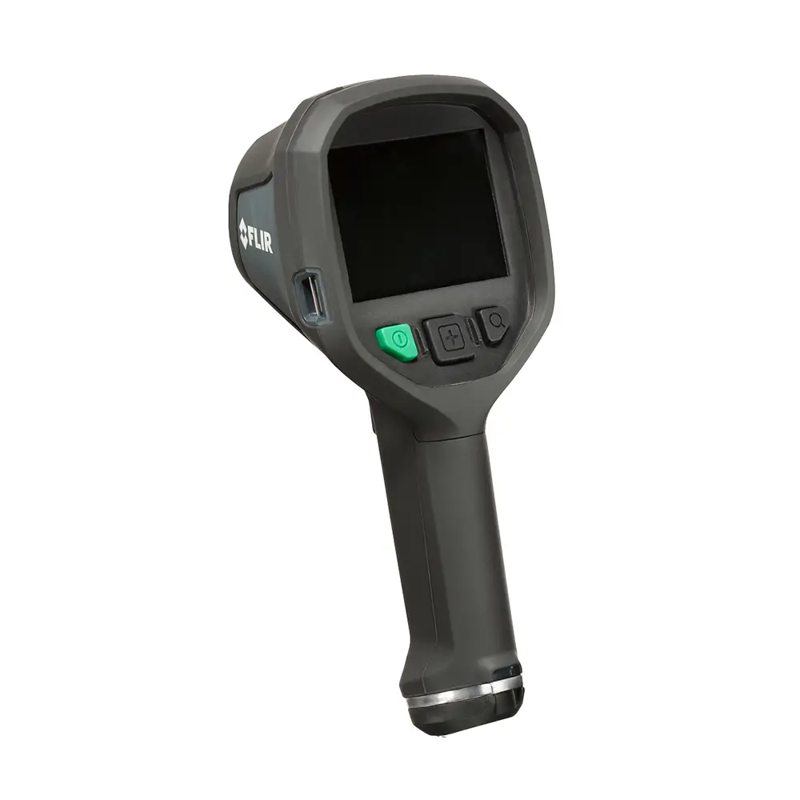

Glove-Friendly Three-Button Design
Easy to operate even when wearing heavy-duty firefighter gloves.
Lightweight and Compact
Designed to be easily carried or attached to gear without adding significant bulk.
Rugged and Water-Resistant
IP67 rated and withstands drops from up to 2 meters onto concrete.
High-Temperature Tolerance
Fully operational at temperatures up to 500°F (260°C) for a maximum of 5 minutes.

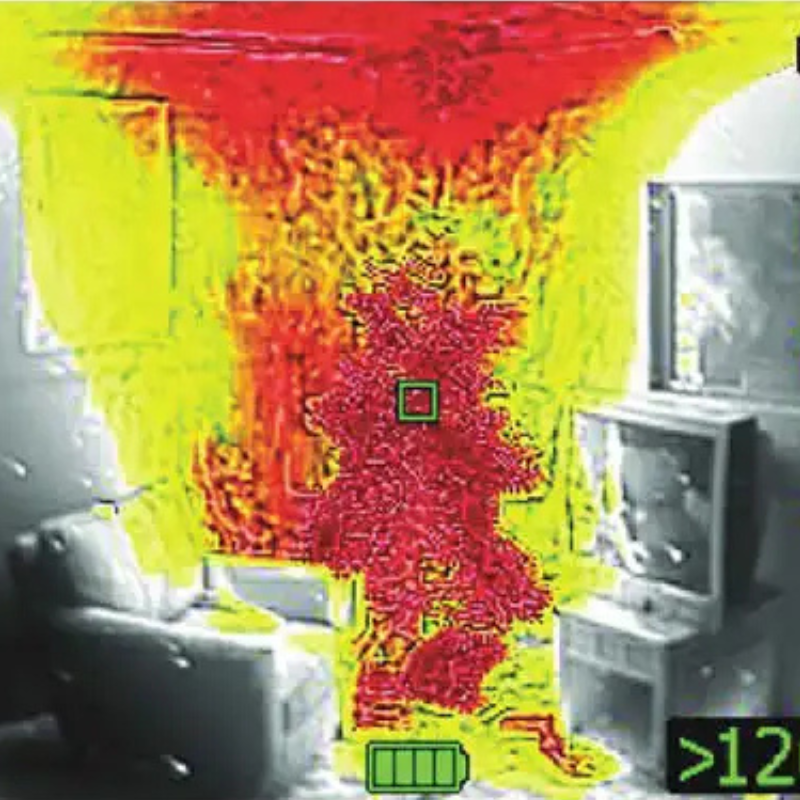

Detail-Rich Thermal Imaging
Enables clear vision and safer navigation in dense smoke conditions.
High-Resolution Display
240 x 180 (43,200 pixels) resolution provides sharp images even in smoky environments.
Fast Refresh Rate
60 Hz refresh rate enhances scene orientation for rapid decision-making.
FSX Flexible Scene Enhancement
Digital processing enhances edge detail for greater visual perspective and navigation.
Reliable Tactical Information
Delivers the clarity needed for life-saving decisions in critical moments.
Fixed Temperature Scale with TI Basic Mode
Allows rapid interpretation without distracting auto-scaling.
Image Storage
Capture and store up to 200 images for review and analysis.
Exceptional Thermal Sensitivity
Less than 40mK NETD ensures even subtle temperature differences are visible.
Wide Field of View
51° x 38° field of view captures a broad scene for comprehensive awareness.
Advanced Focal Plane Array
Uncooled microbolometer operating between 7.5 to 13 μm for precise imaging.
Reliable Power Source
3.6V rechargeable Li-ion battery supports up to 4 hours of operation.
Quick Charging Battery
Reaches 85% capacity in just 2 hours for rapid redeployment.
What's Included
Included with Your Purchase:
- 1 - High-Performance Thermal Imaging Camera (3-Button) for Firefighters, 240 x 180, 60 Hz
- 2 - Batteries
- 1 - Battery Charger
- 1 - Carabiner Strap
- 1 - Hard Transport Case
- 1 - Power Supply/Adapter
- 1 - Retractable Lanyard, 16 N (58 oz)
- 1 - USB Cable
- 1 - User Manual
Specifications
-
Infrared Resolution: 240 x 180 pixels
-
Refresh Rate: 60 Hz
-
Thermal Sensitivity (NETD): <40mK @86°F (30°C)
-
Field of View (FOV): 51° x 38°
-
Focal Plane Array: Uncooled microbolometer, 7.5 - 13 μm
-
Battery Type and Voltage: Li-ion, 3.6V rechargeable
-
Battery Operating Time: Approximately 4 hours at 77°F (25°C) with typical use
-
Battery Charging Time: 2 hours to 85% capacity
-
Operating Temperature Range: Up to 500°F (260°C) for a maximum of 5 minutes
-
Object Temperature Range: -4°F to 302°F / 32°F to 1202°F
-
Image Storage: Stores up to 200 images
FAQ
Q: Can the FLIR K45 operate in extremely high temperatures?
A: Yes, it remains fully operational up to 500°F (260°C) for up to 5 minutes.
Q: How long can the camera operate on a single charge?
A: It can operate for approximately 4 hours under typical conditions at 77°F (25°C).
Q: What happens if I drop the camera?
A: The camera is rugged enough to survive drops from up to 2 meters (6.6 ft) onto concrete.
Q: Does the camera store images?
A: Yes, it can capture and store up to 200 images for later review and assessment.
Q: How fast is the image refresh rate?
A: The camera has a rapid 60 Hz refresh rate for smooth and accurate scene updates.
