The Teledyne FLIR T1010-12 HD Thermal Imaging Camera is a top-tier solution designed for professionals who require unparalleled thermal precision and clarity. Built upon decades of infrared expertise, it delivers sharp, detailed imagery using a 1024 x 768 detector resolution and advanced image processing technologies like MSX and UltraMax. These technologies enhance image detail and accuracy, helping users pinpoint thermal anomalies with ease.

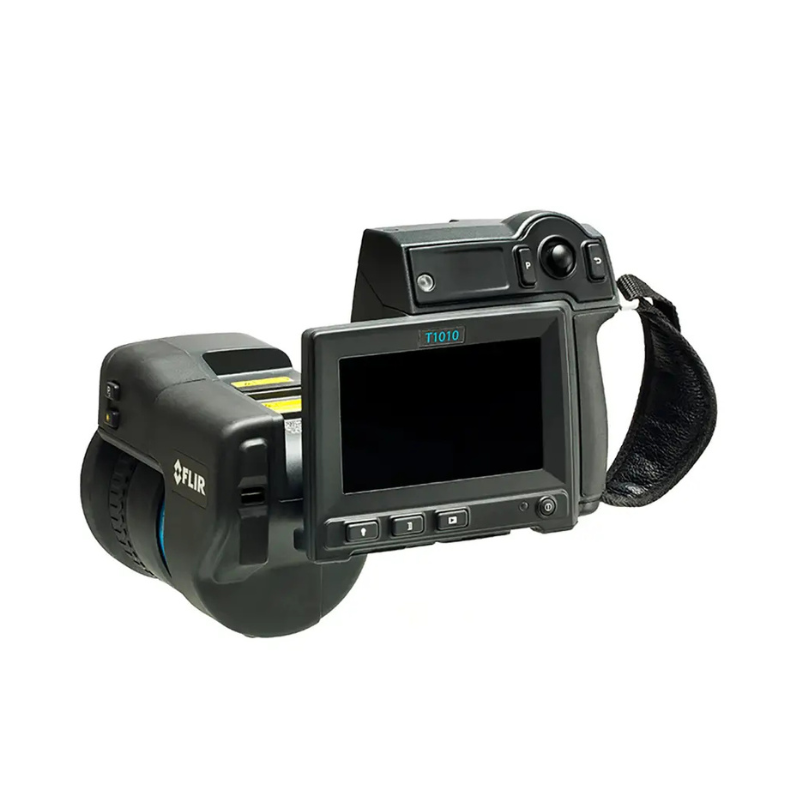

Equipped with a 12° lens and an ergonomic, rugged design, the T1010-12 is made for extensive fieldwork. Its rotating optical block and dynamic auto-focus make it ideal for hard-to-reach inspections, reducing fatigue during long hours of use. The responsive graphical user interface ensures efficient navigation and quick access to tools.
MSX technology overlays visible light details onto thermal images, clarifying object outlines and text within IR visuals, eliminating the need for separate reference images. UltraMax, meanwhile, boosts pixel resolution by combining multiple frames, yielding sharper, higher-resolution results with enhanced measurement accuracy. With FLIR Tools+ software included, professionals can easily analyze images and generate insightful reports.
What's Included:
- Teledyne FLIR T1010-12 HD Thermal Imaging Camera with 12° lens
- FLIR Tools+ Software
Features
High-Resolution Imaging
Features a 1024 x 768 detector resolution and supports UltraMax to deliver up to 3.14 MP enhanced images.
MSX Image Enhancement
MSX technology adds visible spectrum detail for clearer, more informative thermal images.
UltraMax Super Resolution
Combines multiple images into one enhanced image with quadruple pixel count and full radiometric data.
OSX Precision HDIR Optics
Provides unmatched clarity and detail, even from long distances using the high-fidelity 12° HD lens.
Advanced Temperature Analysis
Accurately detects temperatures ranging from -40 °C to 650 °C with ±2 °C or ±2% accuracy.
Teledyne FLIR Vision Processing
Delivers low-noise, smooth thermal images with proprietary adaptive filtering algorithms.
Intuitive User Interface
Easy-to-navigate GUI with customizable work folders and responsive touch controls.
1-Touch Level/Span
Allows fast image adjustments and improved measurement accuracy on the go.
Compact and Ergonomic Design
Rotating optical block and rugged form factor ease use in complex environments.
FLIR Tools+ Software
Analyze, enhance, and report thermal data efficiently with included professional software.
What's Included
Included with Your Purchase:
- Teledyne FLIR T1010-12 HD Thermal Imaging Camera with 12° lens
- FLIR Tools+ Software
Specifications
-
IR Resolution: 1024 x 768 (786,432 pixels)
-
UltraMax Resolution: 3.14 MP
-
Thermal Sensitivity (NETD): Less than 25 mK @ 30°C
-
Field of View: 12° x 9° (83 mm lens)
-
Temperature Ranges: -40 °C to 150 °C; 0 °C to 650 °C
-
Accuracy: ±2 °C or ±2% of reading at 25 °C
-
Spotmeter: 1
-
Area Measurement: 1 box with max/min/avg
-
Frame Rate: 30 Hz
FAQ
Q: What is the resolution of the T1010-12 camera?
A: It features a native resolution of 1024 x 768, enhanced up to 3.14 MP with UltraMax.
Q: How does MSX improve thermal imaging?
A: MSX overlays edge detail from the visible spectrum onto thermal images, making labels and structural details clearer.
Q: Can this camera measure high-temperature industrial environments?
A: Yes, it supports temperature readings up to 650 °C.
Q: Is the FLIR Tools+ software included?
A: Yes, it is included to assist with image analysis and reporting.
Q: How does UltraMax differ from standard interpolation?
A: UltraMax combines real image data from multiple frames to enhance resolution, whereas interpolation only estimates pixels.
