The Teledyne FLIR T1010-45 HD Thermal Imaging Camera offers cutting-edge infrared imaging performance tailored for professionals who demand accuracy, detail, and usability. Engineered with five decades of infrared expertise, this camera is built for exceptional results in demanding environments.
Featuring the OSX Precision HDIR optical system, the T1010-45 ensures superior image clarity and temperature measurement accuracy across a wide range of applications. Its ergonomic design and rotating optical block make it effortless to inspect hard-to-reach areas without strain. Intuitive controls, responsive user interface, and a rugged build mean the camera is ready for all-day operation in the field.
The integrated MSX (Multi-Spectral Dynamic Imaging) technology enhances thermal images by overlaying visible-light details, making labels and objects easier to identify. UltraMax super-resolution technology captures and synthesizes multiple thermal images to generate a higher resolution, reduced-noise output—ideal for pinpointing tiny anomalies with precision.
What's Included:

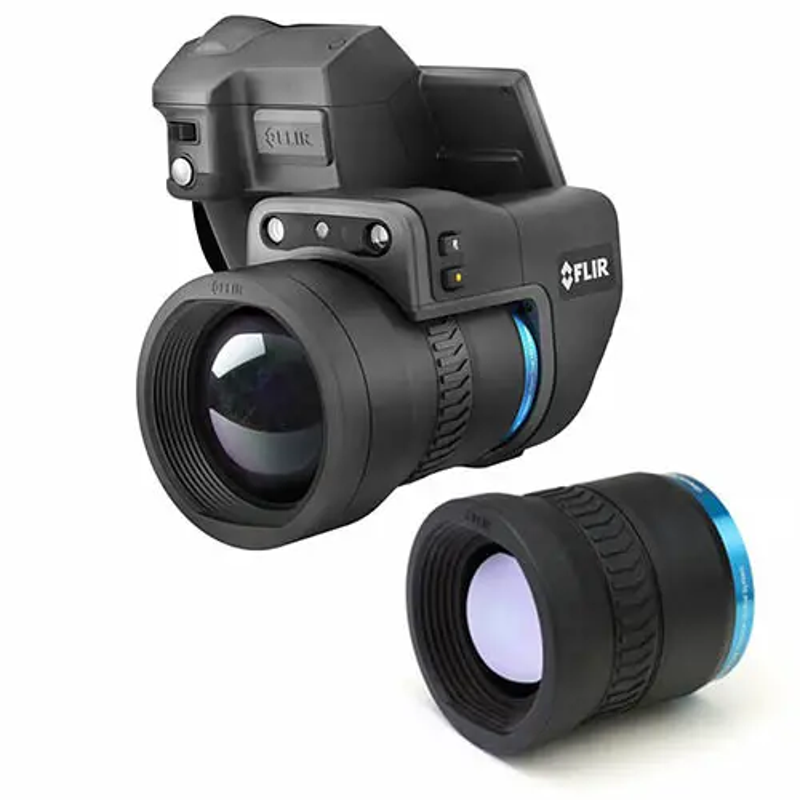

- Teledyne FLIR T1010-45 HD Thermal Imaging Camera
- 45° OSX Precision HDIR Lens
- Teledyne FLIR Tools+ Software
Features
Ultra High IR Resolution
Capture rich thermal detail with a resolution of 1024 x 768, offering over 786,000 pixels for precise imaging.
Enhanced Super Resolution with UltraMax
Improves clarity and accuracy by combining multiple frames to produce 3.1 MP images with smaller spot sizes.
Thermal Sensitivity
Detects minute temperature changes with a sensitivity of less than 25 mK at 30°C for high-contrast imagery.
Wide Field of View
45° x 34° field of view ensures large area coverage with the included 21 mm lens, reducing the number of shots needed.
Accurate Temperature Range
Measures from -40 °C to 650 °C, with ±2 °C or ±2% accuracy, ideal for electrical, mechanical, and building diagnostics.

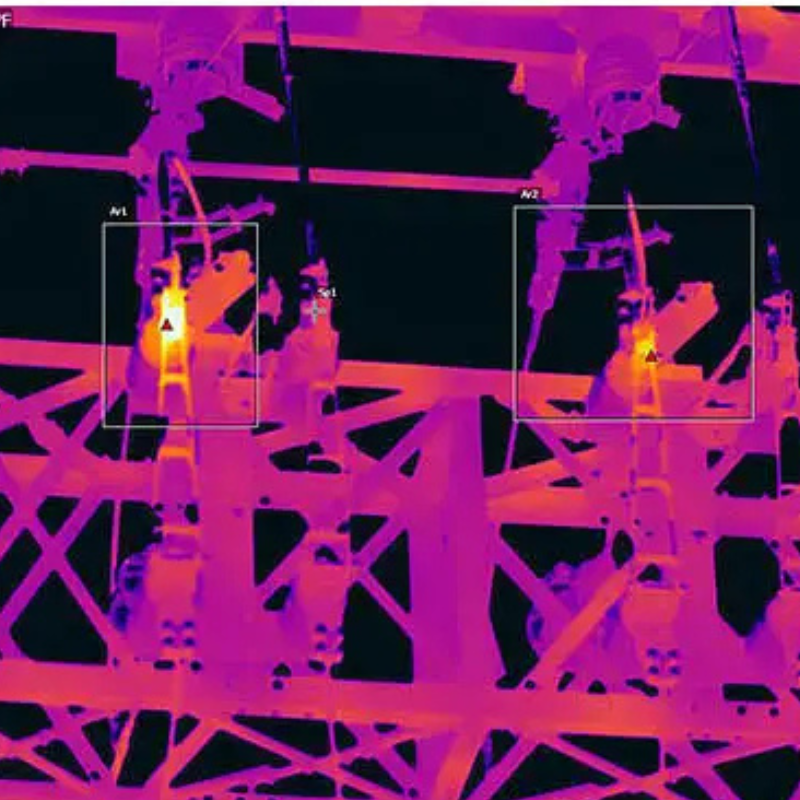

Advanced Spot and Area Analysis
Includes 1 spotmeter and 1 area box with min, max, and average readings for comprehensive analysis.
MSX Technology
Adds sharp edge detail from visible light images to thermal overlays, improving interpretability and usability.
OSX Precision HDIR Lenses
Delivers high-fidelity imaging from a distance, optimizing focus and precision with dynamic autofocus.
User-Friendly Interface
Navigate settings and data easily with a responsive graphical user interface and streamlined folder setup.
Teledyne FLIR Tools+ Software
Analyze, annotate, and generate reports directly from your thermal captures using professional-grade software.
What's Included
Included with Your Purchase:
- Teledyne FLIR T1010-45 HD Thermal Imaging Camera
- 45° OSX Precision HDIR Lens
- Teledyne FLIR Tools+ Software
Specifications
-
IR Resolution: 1024 x 768 (786,432 pixels)
-
UltraMax Resolution: 3.14 Mpixels
-
Thermal Sensitivity/NETD: Less than 25 mK @ 30°C
-
Field of View: 45° x 34° (21 mm lens)
-
Object Temperature Ranges: -40 °C to 150 °C and 0 °C to 650 °C
-
Accuracy: ±2 °C or ±2% of reading at 25 °C
-
Spotmeter: 1
-
Area Analysis: 1 box with max/min/avg
-
Frame Rate: 30 Hz
-
Software Included: Teledyne FLIR Tools+
FAQ
Q: What makes UltraMax different from standard resolution enhancements?
A: UltraMax combines multiple images to create a single high-resolution image with reduced noise, unlike interpolation which only scales existing data.
Q: Can I view enhanced UltraMax images directly on the camera?
A: While the camera stores the combined image, enhanced resolution is enabled via Teledyne FLIR Tools+ software.
Q: Is the lens replaceable or upgradable?
A: Yes, the T1010-45 is compatible with other OSX Precision HDIR lenses for varied fields of view.
Q: What software is included for analysis and reporting?
A: Teledyne FLIR Tools+ is included, offering advanced analysis and report generation features.
