The Teledyne FLIR T530-42-14 Thermal Imaging Camera is engineered for advanced thermographers and IR service consultants working in the power generation, electrical, and industrial sectors. With a high-resolution 320 x 240 detector, 14° and 42° lenses, and powerful processing features like MSX and UltraMax, this camera delivers clarity and accuracy across a wide temperature spectrum of -4 to 1202°F. Its ergonomic 180° rotating optical block, intuitive touchscreen controls, and laser-assisted autofocus enable precise, comfortable inspections even in hard-to-reach areas.
The T530's FLIR Vision Processing integrates MSX, UltraMax, and advanced filtering to provide crisp thermal imagery and reliable measurements. Built-in GPS, voice annotation, and METERLiNK compatibility enhance documentation and efficiency, while AutoCal optics allow for flexible lens sharing across your camera fleet. A scratch-resistant 4-inch LCD screen, rapid menu access, and intelligent storage make this a powerful tool for any thermography professional.

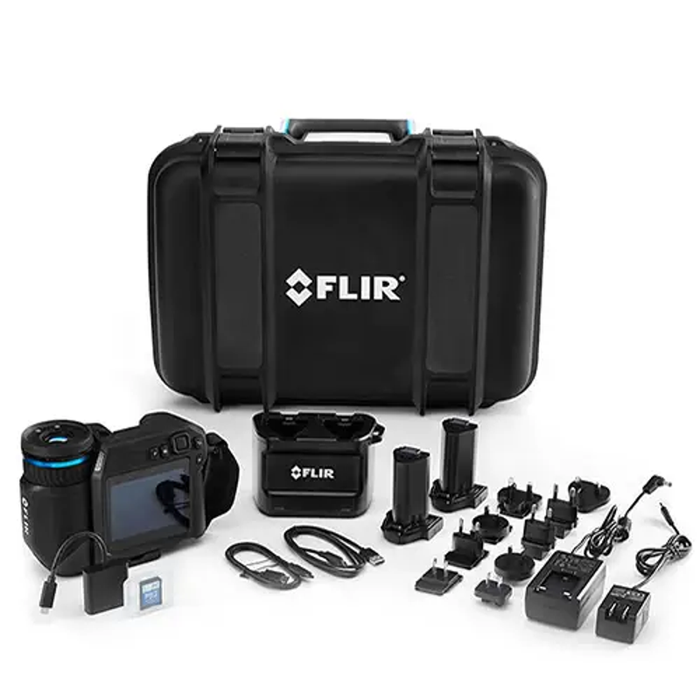

What's Included:
- Teledyne FLIR T530 Thermal Imaging Camera
- 14° and 42° AutoCal Interchangeable Lenses
- Rechargeable Battery
- Battery Charger
- USB 2.0A to USB Type-C Cable
- Carrying Case
- FLIR Thermal Studio Software (License)
- User Documentation
Features
Dual Field-of-View Lenses
Includes 14° and 42° lenses with 320 x 240 resolution for wide-area and detailed inspections.
Expanded Temperature Range
Measures from -4 to 1202°F with optional high-temp range upgrade for extreme environments.
Laser-Assisted Autofocus
Ensures sharp thermal images and accurate spot readings without manual focusing.
FLIR Vision Processing
Combines MSX, UltraMax, and adaptive filtering for vivid and data-rich images.
Flexible Ergonomics
180° rotating optical block minimizes physical strain when imaging at awkward angles.
Efficient Area Scanning
Captures up to 161,472 temperature data points safely from a distance.
Interchangeable AutoCal Optics
AutoCal lenses can be shared and auto-calibrated across multiple compatible FLIR cameras.
Laser Distance Measurement
On-screen targeting laser helps determine repair accessibility with one touch.

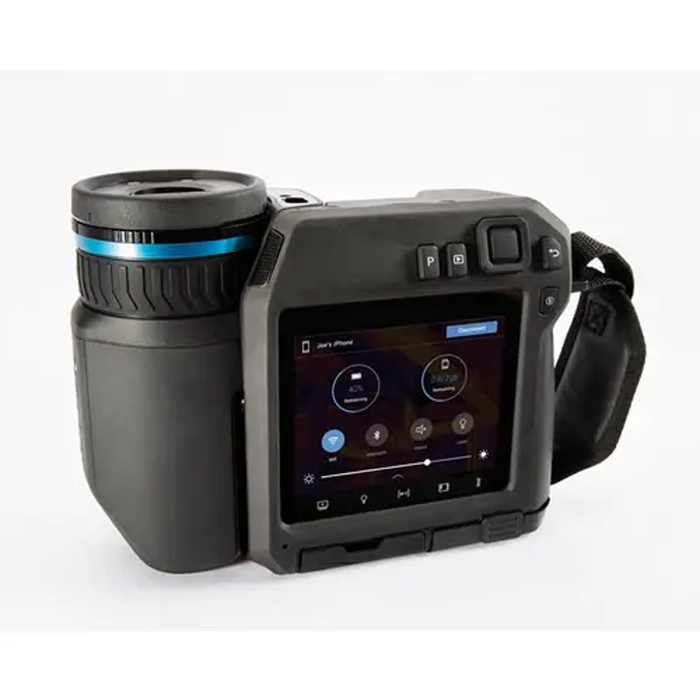

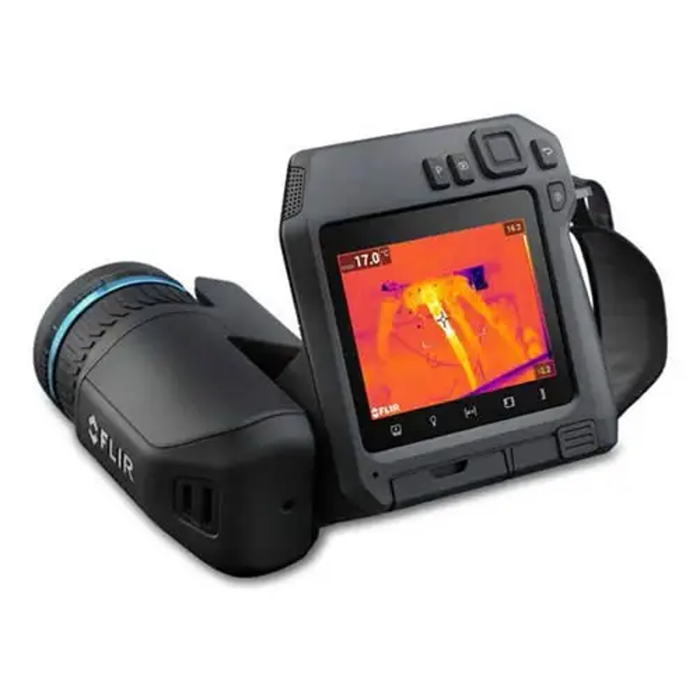

4-Inch Scratch-Resistant LCD
Large display enhances visibility and usability even in harsh environments.
Streamlined User Interface
Rapid-response touchscreen and programmable buttons speed up workflow and control.
Advanced Reporting Tools
Voice annotation, image sketching, and text input with auto-fill simplify documentation.
Embedded GPS and METERLiNK
Geolocation and tool-integrated data logging improve context and traceability.
What's Included
Included with Your Purchase:
- Teledyne FLIR T530 Thermal Imaging Camera
- 14° and 42° AutoCal Interchangeable Lenses
- Rechargeable Battery
- Battery Charger
- USB 2.0A to USB Type-C Cable
- Carrying Case
- FLIR Thermal Studio Software (License)
- User Documentation
Specifications
-
Detector Resolution: 320 x 240
-
Lens Options: 14° and 42° AutoCal
-
Temperature Range: -4°F to 1202°F (with upgrade)
-
Image Processing: MSX, UltraMax, Adaptive Filtering
-
Zoom: 1 – 4x continuous
-
Display: 4-inch scratch-resistant LCD
-
Autofocus: Laser-assisted
-
Rotating Optical Block: 180°
-
Distance Measurement: On-screen laser and area calculation
-
Voice Annotation: Built-in microphone
-
Connectivity: USB Type-C, METERLiNK
-
Image Storage: Custom work folders, GPS-embedded
-
Battery Type: Rechargeable (T199300ACC)
-
Software: FLIR Thermal Studio (T300083 License)
FAQ
Q: Can I switch between lenses in the field?
A: Yes, the 14° and 42° AutoCal lenses are interchangeable and automatically calibrated.
Q: Is this camera suitable for high-temperature environments?
A: With the optional T199616 upgrade, it can measure up to 1202°F.
Q: How do I ensure my images are in focus?
A: The T530 features laser-assisted autofocus for crisp, accurate images.
Q: What kind of reporting features does it have?
A: The camera includes voice annotations, text input, image sketching, and embedded GPS.
Q: Can I use the same lenses on other FLIR cameras?
A: Yes, thanks to AutoCal technology, the lenses are shareable across your fleet.
