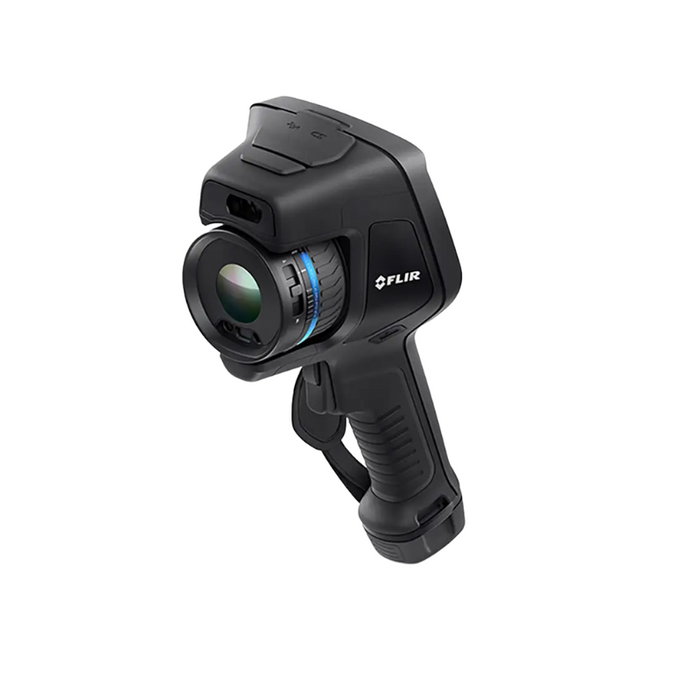

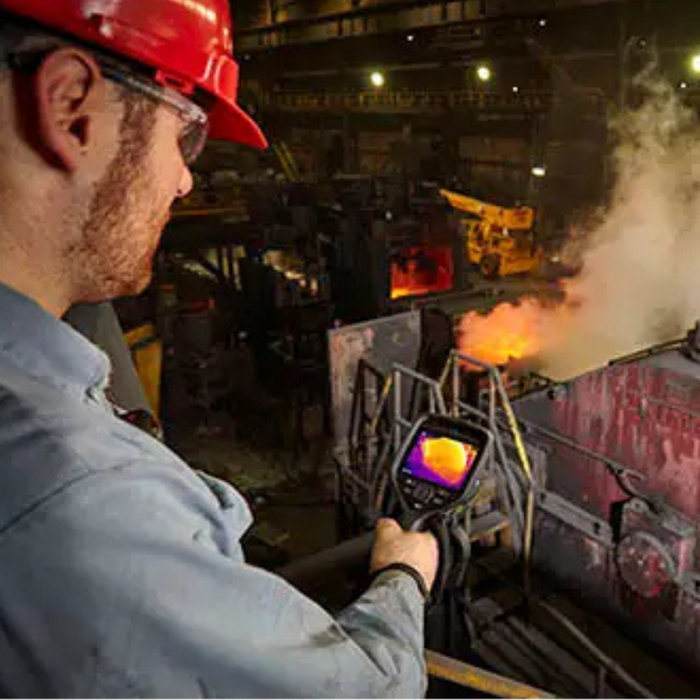

The Teledyne FLIR T530-24 Thermal Imaging Camera delivers advanced infrared imaging and analysis capabilities tailored for professionals in power generation, electrical distribution, and manufacturing. Featuring a 320 x 240 resolution with a 24° lens, this high-performance device captures detailed thermal data even in challenging or obstructed environments.
Its 180° rotating optical block, 4-inch scratch-resistant LCD touchscreen, and ergonomic design significantly reduce operator strain during full-day inspections. The camera incorporates MSX technology to overlay visual image details onto thermal images and UltraMax technology to quadruple thermal pixel density for clearer, more precise analysis. AutoCal interchangeable lenses, laser-assisted autofocus, and embedded laser distance measurement enable precise diagnostics, even at a distance. Streamlined workflows are achieved through features like GPS tagging, voice annotations, customizable folders, and compatibility with METERLiNK-enabled tools.
What's Included:
- FLIR T530 Thermal Imaging Camera with 24° lens
- Battery (T199300ACC)
- Battery Charger (T199610)
- USB 2.0A-to-USB Type-C Cable (T911631ACC)
- FLIR Thermal Studio Software License (T300083)
Features
High-Resolution Thermal Imaging
Features a 320 x 240 resolution with a 24° lens, capturing 161,472 non-contact temperature measurement points.
Extended Temperature Range
Measures from -4 to 1202°F with the optional T199616 upgrade for high-temperature inspections.

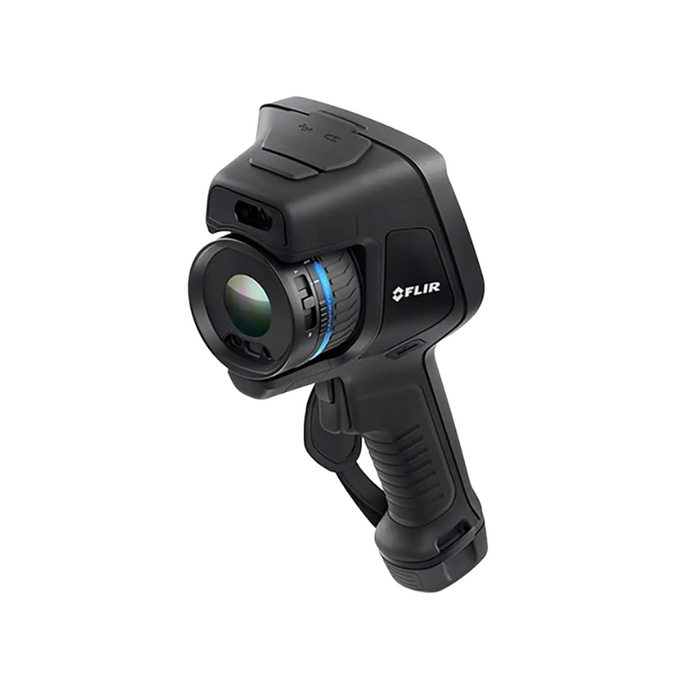

Ergonomic 180° Optical Block
Rotating lens design enables effortless inspection of hard-to-reach areas above or below eye level.

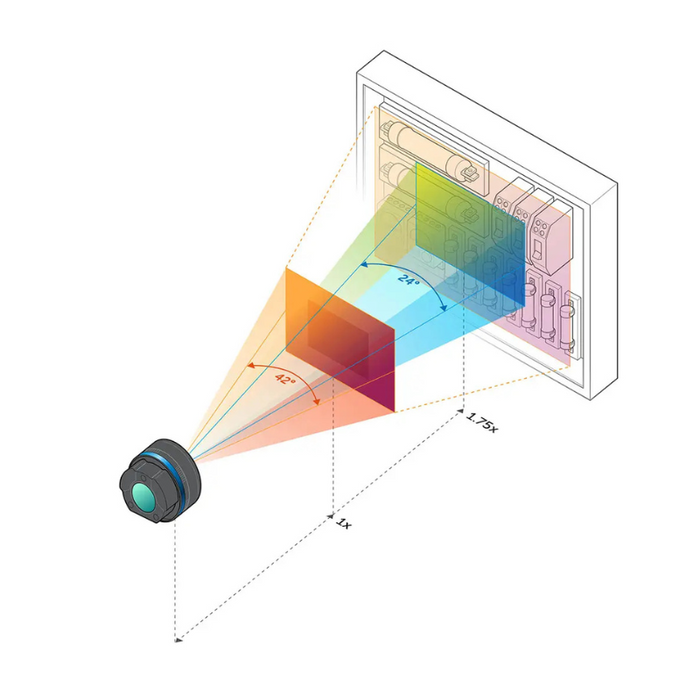

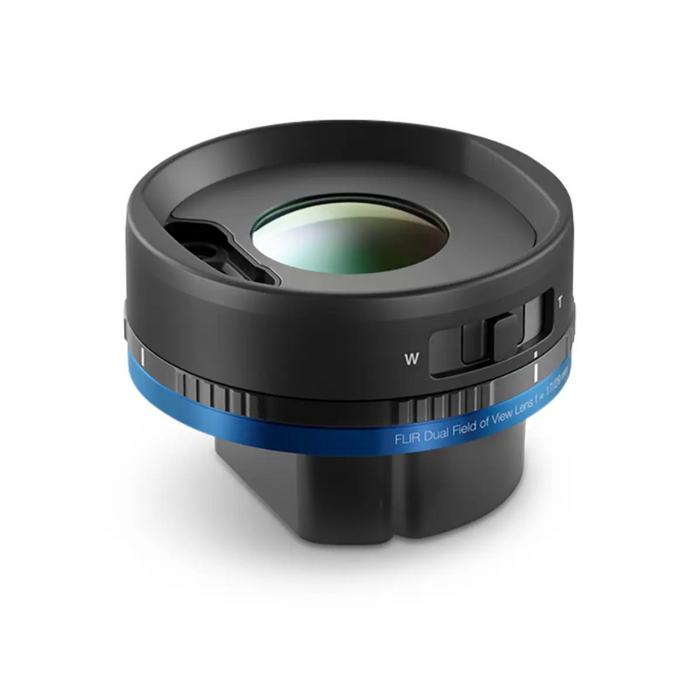

AutoCal Interchangeable Optics
Allows sharing of lenses across multiple FLIR cameras, supporting wide-angle and telephoto options.

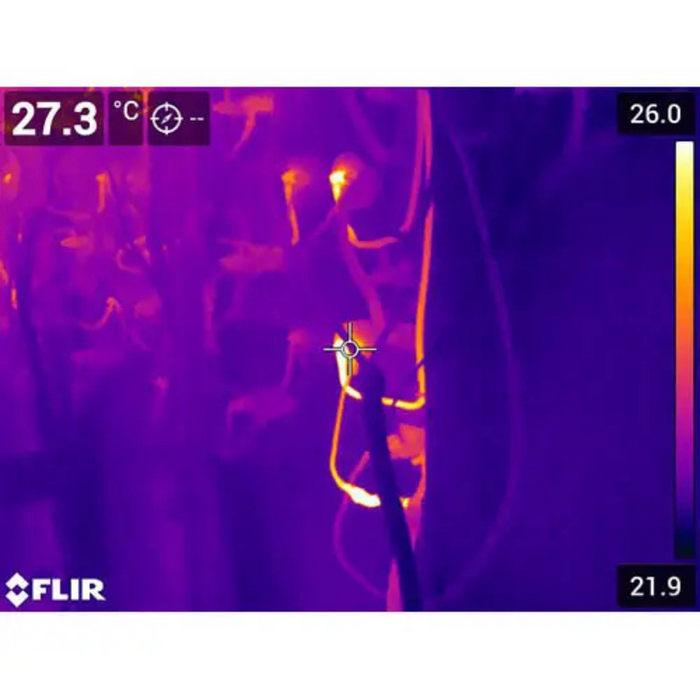

MSX and UltraMax Image Enhancement
Combines visible light details and multiple thermal images for clarity and higher resolution.
Laser-Assisted Autofocus
Ensures sharp focus and accurate temperature readings for improved diagnostics.
Intuitive Touchscreen Interface
4-inch LCD screen with rapid-response controls and two programmable buttons for easy operation.
On-Screen Measurement Tools
Laser distance and area measurement tools help determine repair accessibility.
Advanced Reporting Capabilities
Includes GPS data, voice annotation, image sketching, and text comments with auto-fill for streamlined reporting.
Rugged and Professional Design
Durable construction with scratch-resistant screen suitable for fieldwork.
What's Included
Included with Your Purchase:
- FLIR T530 Thermal Imaging Camera with 24° lens
- Battery (T199300ACC)
- Battery Charger (T199610)
- USB 2.0A-to-USB Type-C Cable (T911631ACC)
- FLIR Thermal Studio Software License (T300083)
Specifications
-
Thermal Resolution: 320 x 240 pixels
-
Lens Field of View: 24°
-
Temperature Range: -4 to 1202°F (with upgrade)
-
Zoom: 1x to 4x continuous
-
Display: 4-inch LCD, scratch-resistant
-
Image Enhancement: MSX and UltraMax
-
Autofocus: Laser-assisted
-
Measurement Tools: On-screen laser distance and area measurement
-
Connectivity: METERLiNK compatible
-
Lens Compatibility: AutoCal interchangeable optics
-
Controls: Touchscreen with two programmable buttons
FAQ
Q: Can the camera handle high-temperature inspections?
A: Yes, with the optional T199616 upgrade, it can measure up to 1202°F.
Q: Is the lens interchangeable?
A: Yes, it uses AutoCal lenses that are interchangeable across compatible FLIR models.
Q: How does UltraMax improve image quality?
A: It captures multiple thermal images and combines them into one high-resolution image for greater clarity and measurement precision.
Q: What’s the benefit of the MSX feature?
A: MSX adds visual image details to thermal images, enhancing edge clarity and readability of labels and text within the IR image.
