The Teledyne FLIR T530-24-14-NIST Thermal Imaging Camera is engineered for advanced thermographers and IR service professionals who require high performance, flexibility, and precision in demanding environments. With 24° and 14° lenses delivering 320 x 240 resolution, this camera allows for accurate inspections across a wide temperature range from -4 to 1202°F. The innovative 180° rotating optical block provides unmatched viewing flexibility when imaging hard-to-reach targets, enhancing comfort and efficiency during full-day use.
Equipped with MSX and UltraMax technologies, the T530-24-14-NIST produces thermal images with exceptional clarity and resolution. MSX enhances image detail by overlaying visible spectrum edges, while UltraMax quadruples thermal pixels for finer analysis. The laser-assisted autofocus ensures sharp thermal imagery, and the intuitive touchscreen and programmable buttons streamline operation. Smart features like embedded GPS, METERLiNK compatibility, and laser-based distance measurements allow for comprehensive documentation and analysis.
What's Included:
- Teledyne FLIR T530-24-14-NIST Thermal Imaging Camera
- 24° and 14° AutoCal lenses
- NIST Calibration Certificate
- Hard carrying case
- Battery pack
- Battery charger
- USB cable
- Power supply
- Software license
- User documentation
Features
Dual-Lens Configuration
Includes both 24° and 14° lenses to support wide and detailed inspections with a 320 x 240 resolution.
High Temperature Range
Measures from -4 to 1202°F with upgrade support for expanded thermal range.
Rotating Optical Block
180° rotating lens module provides ergonomic imaging of targets overhead, below, or at awkward angles.
Massive Data Collection
Delivers 161,472 non-contact temperature points for scanning large areas safely and quickly.
AutoCal Lens Sharing
Interchangeable lenses are automatically calibrated for use across your camera fleet.
Laser-Assisted Autofocus
Ensures consistently sharp thermal images and precise temperature readings.
FLIR Vision Processing
Combines MSX, UltraMax, and adaptive filtering for unmatched image quality and detail.
Laser Distance Measurement
Allows users to assess repair access with a single touch using on-screen laser measurements.

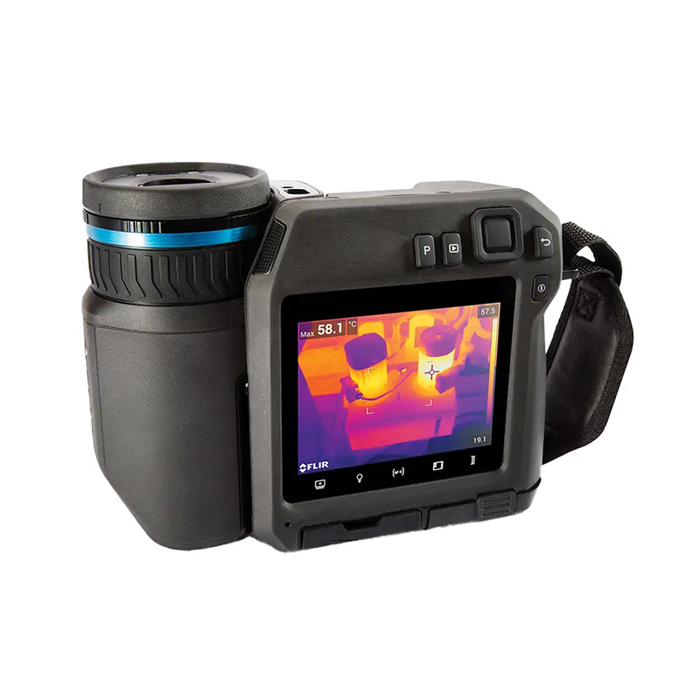

Durable Display
Scratch-resistant 4-inch LCD offers clear viewing in challenging conditions.

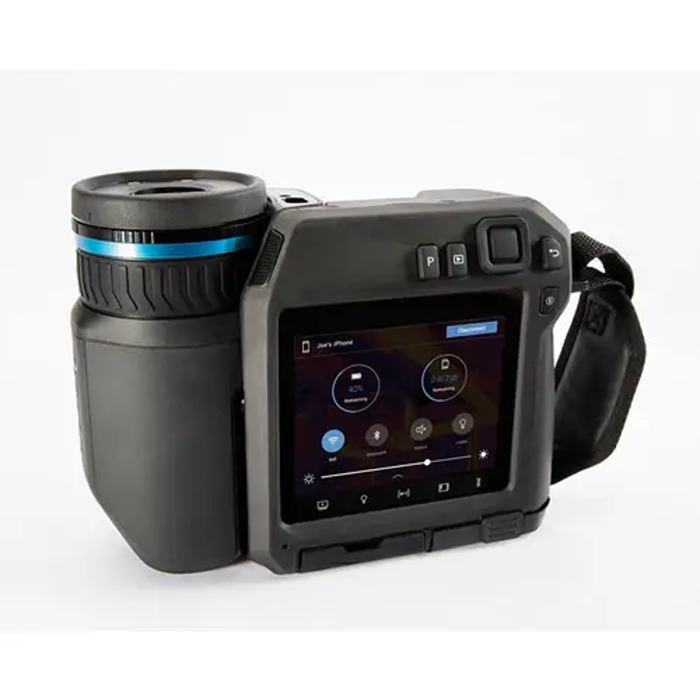

Intuitive Operation
Touchscreen and programmable buttons provide fast, streamlined access to camera features.
Efficient Reporting Tools
Supports voice annotation, text auto-fill, and image sketching directly on device.
Integrated GPS and METERLiNK
Captures location and external measurement data for precise analysis and reports.
Custom Work Organization
Create and manage customizable folders for easier workflow management.
Complete Calibration Support
NIST calibration and Teledyne FLIR’s 12-point inspection ensure accuracy and reliability.
What's Included

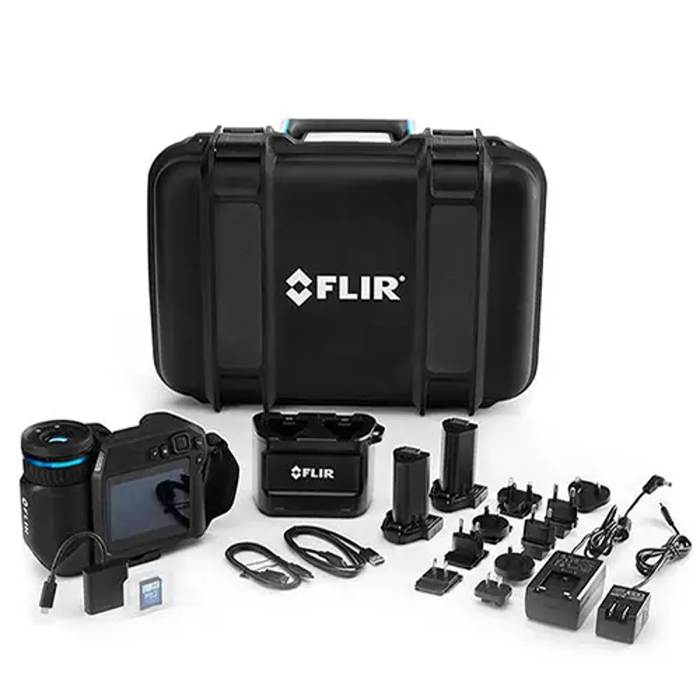

Included with Your Purchase:
- Teledyne FLIR T530-24-14-NIST Thermal Imaging Camera
- 24° and 14° AutoCal lenses
- NIST Calibration Certificate
- Hard carrying case
- Battery pack
- Battery charger
- USB cable
- Power supply
- Software license
- User documentation
Specifications
-
Thermal Resolution: 320 x 240 pixels
-
Lens Options: 24° and 14° included
-
Temperature Range: -4 to 1202°F
-
Zoom: 1–4x continuous
-
Frame Rate: 30 Hz
-
Display: 4-inch LCD touchscreen
-
Autofocus: Laser-assisted
-
Image Enhancement: MSX and UltraMax
-
Measurement Points: 161,472 non-contact points
-
Distance Measurement: Laser-based on-screen functionality
-
Calibration: NIST traceable, 12-point program
-
Connectivity: USB, GPS, METERLiNK-enabled
-
Controls: Touchscreen and two programmable buttons
FAQ
Q: What is the advantage of having both 24° and 14° lenses?
A: The 24° lens covers wider areas while the 14° lens is ideal for distant or detailed inspections, providing flexibility for various scenarios.
Q: How does UltraMax improve thermal imaging?
A: UltraMax combines multiple frames to increase resolution and reduce noise, resulting in clearer and more detailed thermal images.
Q: Is the camera suitable for continuous use in the field?
A: Yes, with its rotating lens, ergonomic design, and long battery life, it supports full-day inspections with minimal fatigue.
Q: What does the NIST certificate include?
A: It includes calibration and conformity based on a 12-point inspection aligned with national measurement standards.
