The Teledyne FLIR T540-24-14-42 Thermal Imaging Camera is engineered to elevate thermographic inspections with its advanced optical system, ergonomic design, and powerful image enhancement technologies. Designed for professionals in electrical distribution, manufacturing, and power generation, this model offers unmatched clarity, versatility, and precision.
Equipped with MSX (Multi-Spectral Dynamic Imaging) and UltraMax technology, the T540 merges visible and thermal imaging to enhance detail and accuracy. UltraMax processes multiple image captures into one high-resolution thermal image, improving analysis and minimizing noise.

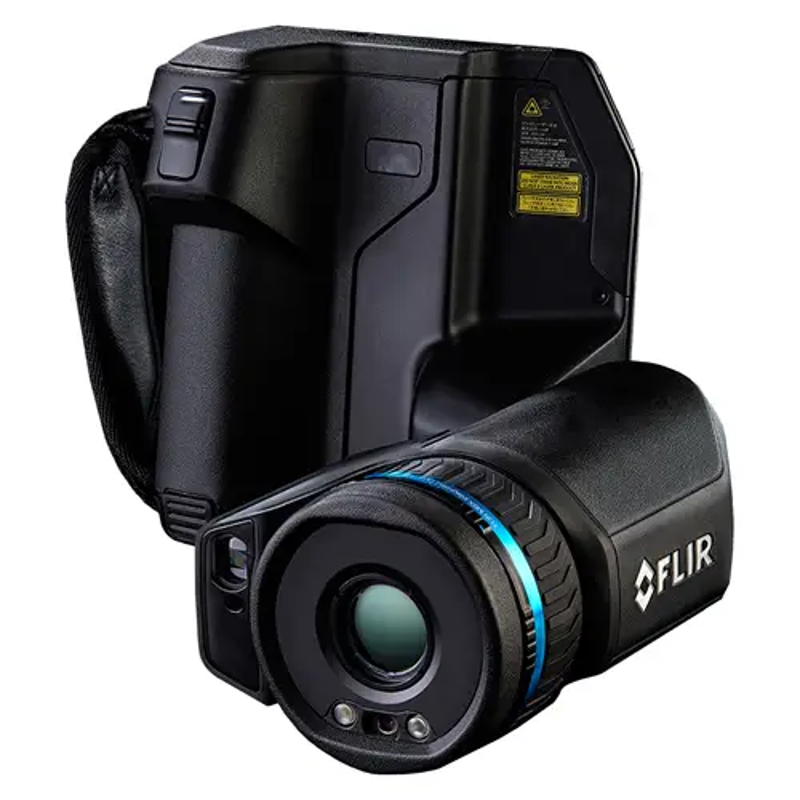

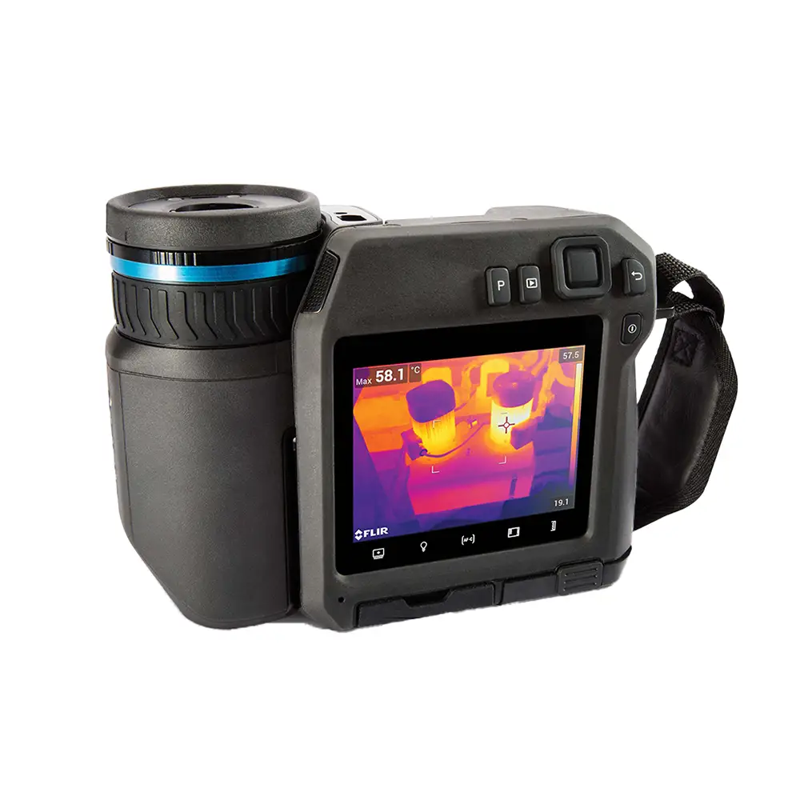

The 180° rotating optical block simplifies inspections of hard-to-reach areas, while a 4-inch LCD touchscreen and user-friendly controls streamline on-site operation. With intelligent AutoCal lenses and laser-assisted autofocus, users can seamlessly switch between lenses while ensuring optimal focus and clarity.

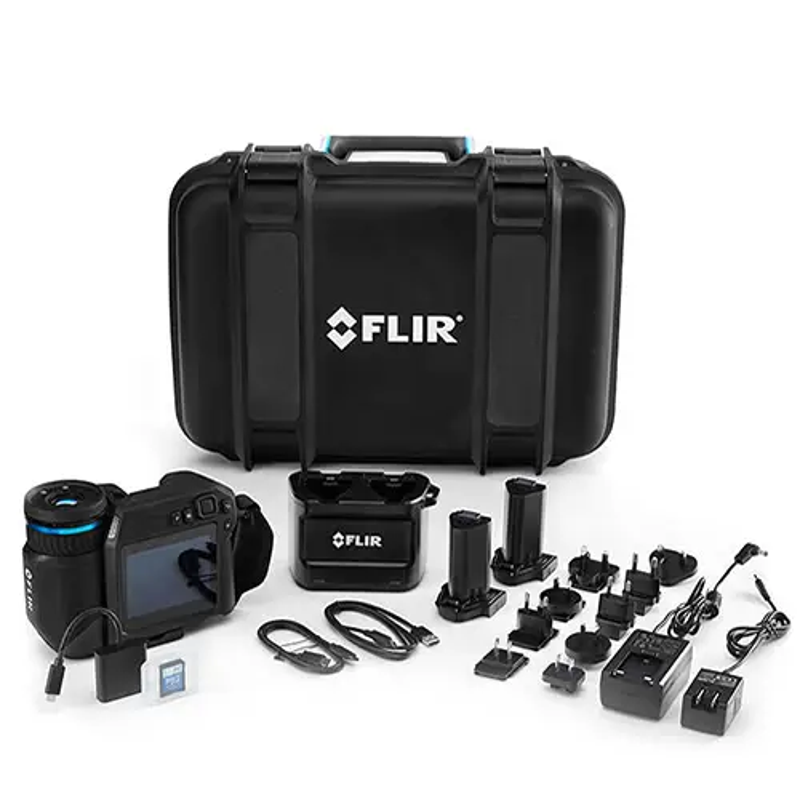

What's Included:
- Teledyne FLIR T540 Thermal Imaging Camera
- 14°, 24°, and 42° AutoCal lenses
- Laser distance measurement module
- Battery and intelligent charger
- Carrying case
- FLIR software license (Thermal Studio)
- USB Type-C communication cable
Features
Multiple Lenses with High Resolution
Comes with 14°, 24°, and 42° lenses supporting 464 x 348 resolution for flexible field-of-view options.
Wide Temperature Range
Measures object temperatures from -4°F to 2732°F, suitable for industrial and electrical applications.
Rotating Optical Block
180° rotating lens assembly makes it easier to inspect overhead, below, or awkwardly placed targets.
FLIR Vision Processing
Combines MSX, UltraMax, and adaptive filtering for sharp, clear images and reliable readings.
Laser-Assisted Autofocus
Ensures pinpoint focus on the target area for improved temperature measurement accuracy.
One-Touch Laser Distance Measurement
Quickly gauges accessibility and size of components on-screen with a single activation.
Streamlined Controls

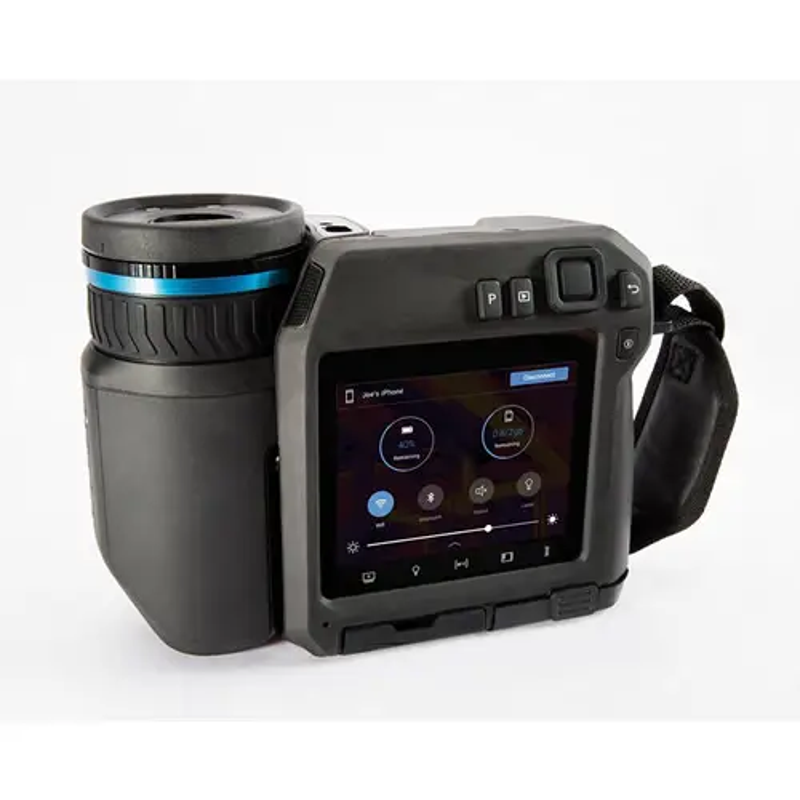

Rapid-response touchscreen and programmable buttons provide quick access to menus and settings.
Efficient Workflow Tools
Includes voice annotations, image sketching, and auto-fill text comments for comprehensive reporting.
GPS and METERLiNK Integration
Embeds location and external sensor data into reports for robust documentation.
Shared AutoCal Optics
Lenses can be shared among FLIR cameras without recalibration thanks to intelligent AutoCal design.
What's Included
Included with Your Purchase:
- Teledyne FLIR T540 Thermal Imaging Camera
- 14°, 24°, and 42° AutoCal lenses
- Laser distance measurement module
- Battery and intelligent charger
- Carrying case
- FLIR software license (Thermal Studio)
- USB Type-C communication cable
Specifications
-
Detector Resolution: 464 x 348 pixels
-
Lenses Included: 14°, 24°, and 42° AutoCal
-
Temperature Range: -4°F to 2732°F
-
Zoom: 1 to 6x continuous
-
Display: 4-inch scratch-resistant LCD touchscreen
-
Focus: Laser-assisted
-
Image Enhancement: MSX, UltraMax, Adaptive Filtering
-
Distance Measurement: On-screen laser and area measurement
-
GPS: Embedded location tagging
-
Voice and Text Notes: Supported with auto-fill options
-
Connectivity: USB Type-C, METERLiNK
-
Software: FLIR Thermal Studio
FAQ
Q: What is MSX and how does it enhance imaging?
A: MSX overlays visual image edges onto thermal images for greater detail, making text and structural outlines clearly visible.
Q: What is UltraMax and what are its benefits?
A: UltraMax captures 16 images in one second and combines them to produce a clearer, higher-resolution image with more precise temperature data.
Q: Are the included lenses interchangeable with other FLIR models?
A: Yes, the AutoCal lenses are intelligent and can be used across compatible FLIR cameras without recalibration.
Q: Can this camera be used in high-heat industrial environments?
A: Yes, its measurement range extends up to 2732°F, ideal for heavy-duty applications in power and manufacturing sectors.
