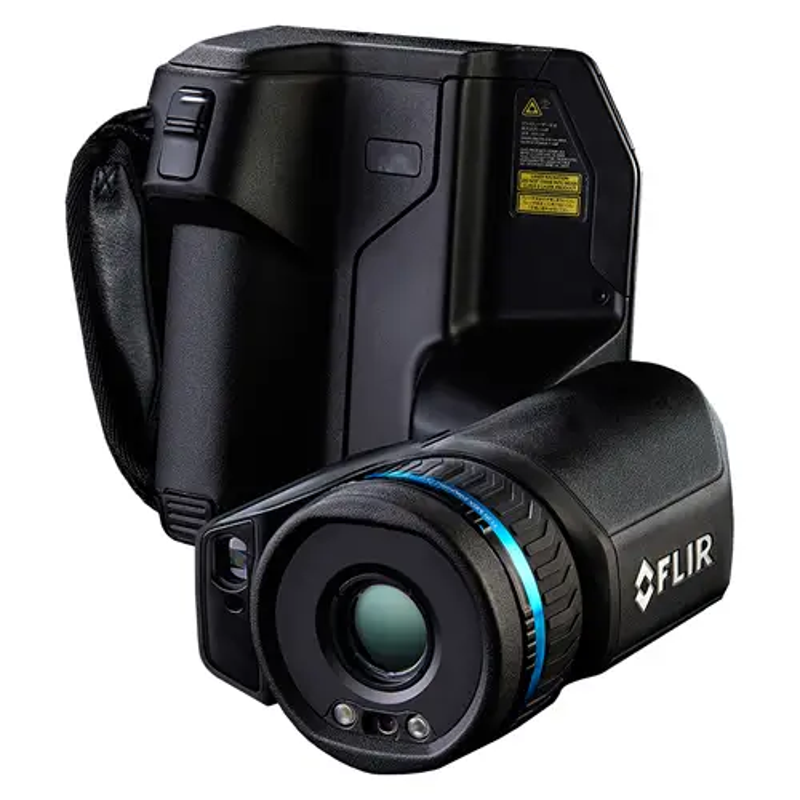

The Teledyne FLIR T540-24 Thermal Imaging Camera is a robust and precise tool designed for professionals in power generation, electrical distribution, and manufacturing industries. With its 464 x 348 thermal resolution and a temperature detection range from -4°F to 2732°F, this camera delivers accurate diagnostics even in the most demanding environments.

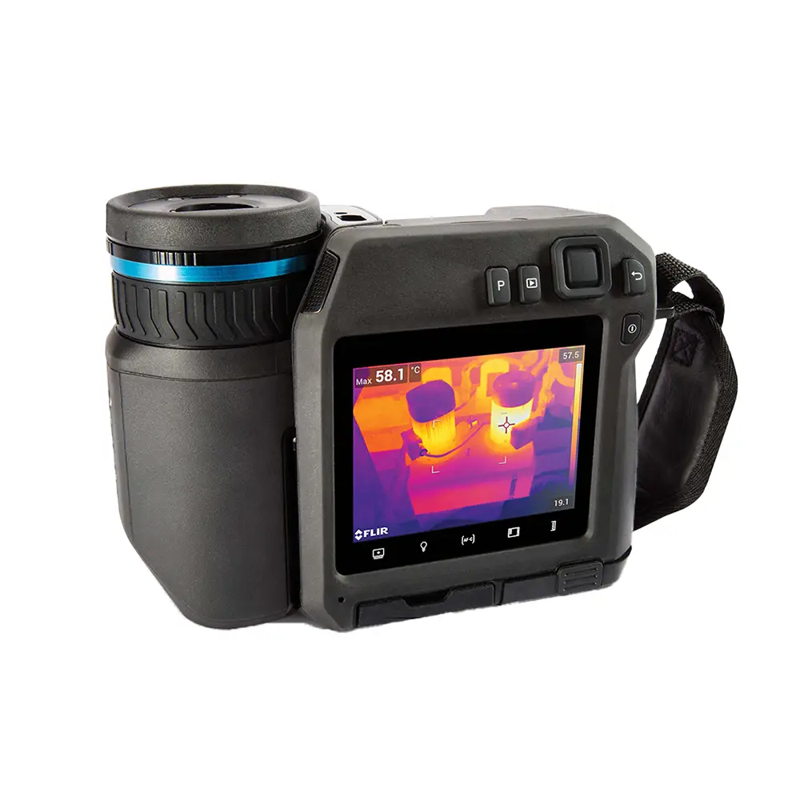

The T540-24 features a 24° lens and advanced MSX technology, which enhances image detail by overlaying visible light outlines onto thermal images. The integrated UltraMax feature captures multiple thermal frames to increase resolution and measurement precision. Its 180° rotating optical block and scratch-resistant 4-inch LCD screen make it easy to inspect hard-to-reach targets with ergonomic ease.
Operators benefit from intuitive controls, customizable folders, and laser-assisted autofocus for reliable temperature readings. Built-in voice and text annotation, GPS tagging, and compatibility with METERLiNK-enabled devices streamline reporting and enhance field productivity.

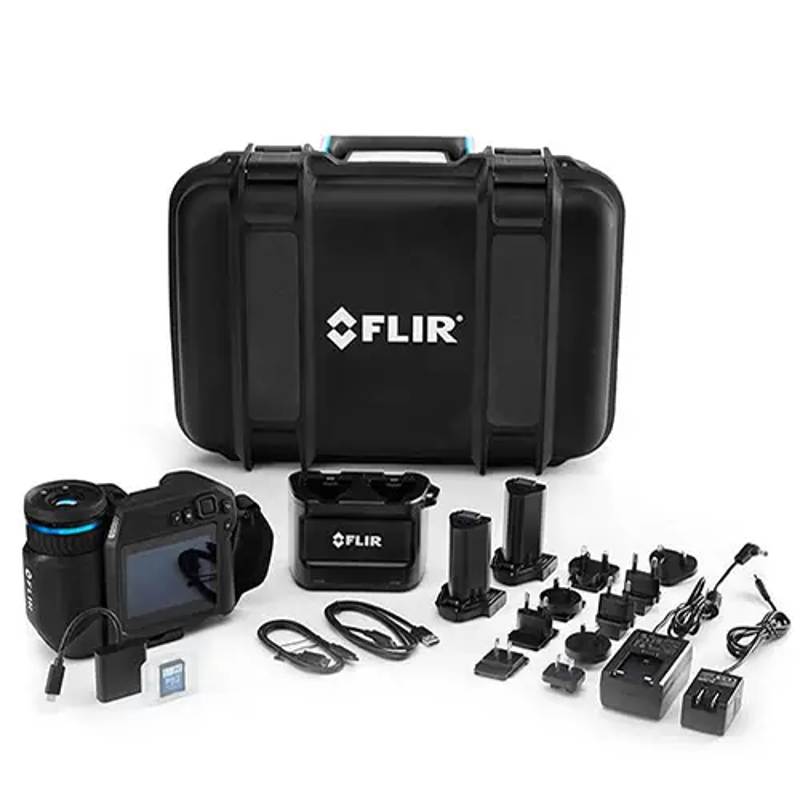

What's Included:
- FLIR T540 Thermal Camera with 24° Lens
- Rechargeable Battery
- Battery Charger
- USB Type-C Communication Cable
- Documentation Kit
- Hard Carrying Case
Features
High-Resolution Thermal Imaging
Offers 464 x 348 resolution through a 24° lens, delivering crisp thermal images across 161,472 temperature measurement points.
Wide Temperature Range
Measures temperatures from -4°F to 2732°F, suitable for a broad array of industrial applications.
UltraMax SuperResolution
Combines data from multiple thermal images to produce a clearer, high-resolution final image with improved detail and accuracy.
MSX Enhancement
Multi-Spectral Dynamic Imaging overlays visual details onto thermal images to increase clarity and context without additional equipment.
Ergonomic Rotating Block
180° rotating optical block allows for flexible imaging of difficult-to-access components above or below the user.
Laser-Assisted Autofocus
Ensures sharp focus and accurate temperature readings with the help of integrated laser targeting.

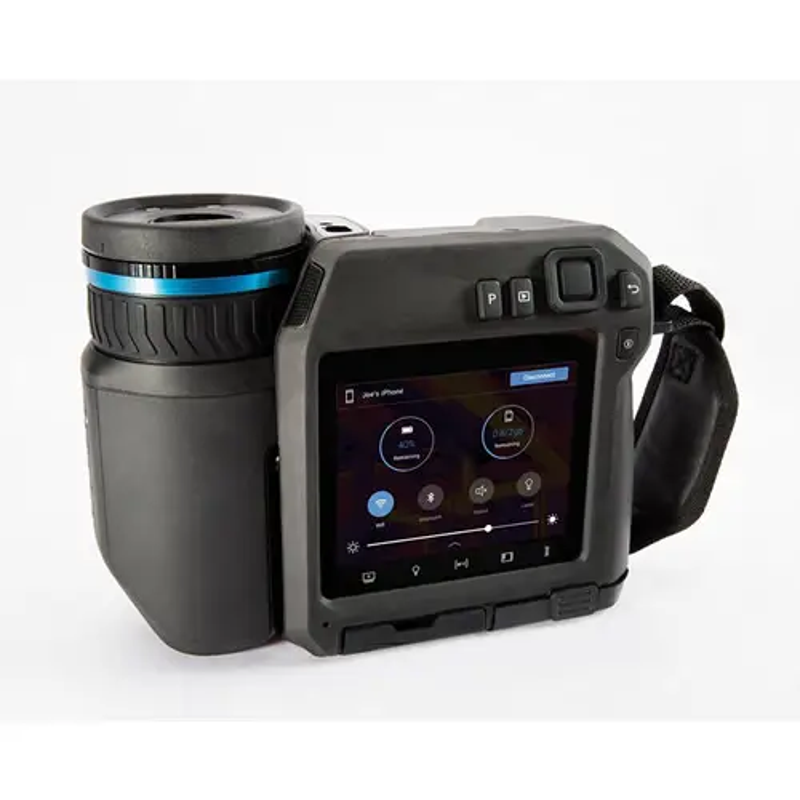

Responsive Touchscreen Interface
4-inch LCD screen is scratch-resistant and paired with intuitive touchscreen controls and programmable buttons.
Efficient Workflow Tools
Voice and text annotation, image sketching, and folder organization improve reporting and inspection efficiency.
Interchangeable AutoCal Lenses
Compatible with a range of FLIR lenses for customized field applications, ensuring optimal performance and fleet versatility.
On-Screen Laser Measurements
Provides precise distance and area calculations directly from the display, aiding in assessment and documentation.
What's Included
Included with Your Purchase:
- FLIR T540 Thermal Camera with 24° Lens
- Rechargeable Battery
- Battery Charger
- USB Type-C Communication Cable
- Documentation Kit
- Hard Carrying Case
Specifications
-
Thermal Resolution: 464 x 348
-
Lens Field of View: 24°
-
Temperature Range: -4°F to 2732°F
-
Image Frequency: 30 Hz
-
Zoom: 1–6x continuous digital zoom
-
Display: 4-inch scratch-resistant LCD
-
Focus: Laser-assisted autofocus
-
Technology: MSX, UltraMax, FLIR Vision Processing
-
Rotating Optical Block: 180°
-
Measurement Points: 161,472
-
Data Capture: Voice annotations, GPS, METERLiNK
-
Controls: Touchscreen and programmable buttons
-
Lens System: AutoCal Interchangeable
FAQ
Q: What is the main advantage of the UltraMax feature?
A: UltraMax enhances image resolution and measurement accuracy by combining multiple thermal frames into a single high-detail image.
Q: Can the lenses be shared across other FLIR cameras?
A: Yes, the T540 uses AutoCal lenses that are compatible with other FLIR systems, allowing flexibility across camera fleets.
Q: How does MSX improve image quality?
A: MSX overlays visual image contours onto thermal images, making text and object edges more distinguishable.
Q: Is the camera suited for overhead inspections?
A: Yes, the 180° rotating lens block is ideal for inspecting equipment above or below eye level.
