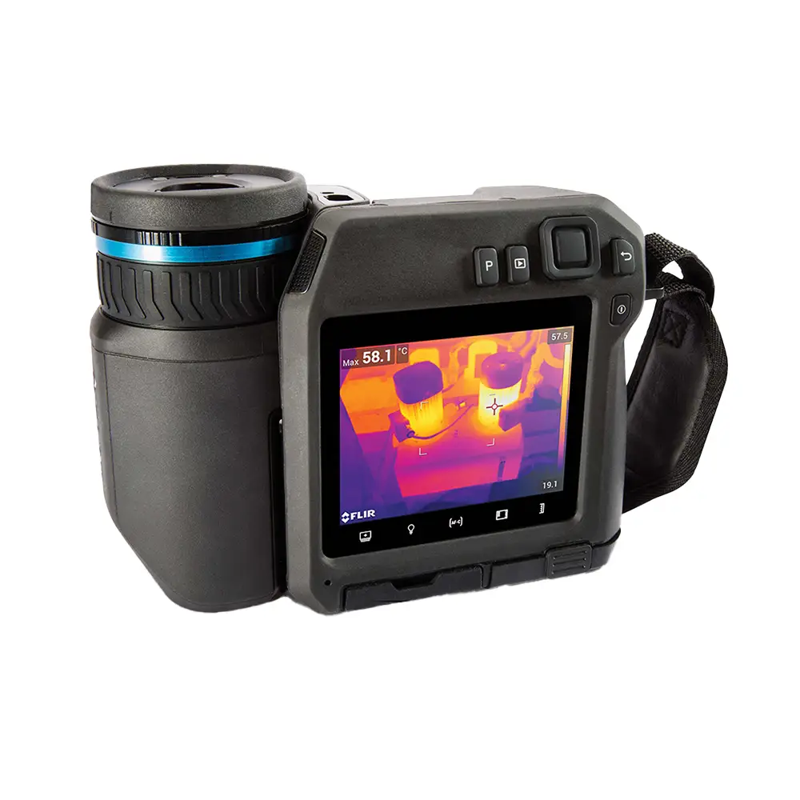

The Teledyne FLIR T560-14 Professional Thermal Imaging Camera delivers the high-resolution clarity and advanced features professionals need to diagnose hot spots, verify repairs, and detect faults in power generation, electrical systems, and manufacturing environments. Its ergonomic 180° rotating lens and bright 4-inch LCD screen enhance usability in hard-to-reach places, while advanced features like laser-assisted autofocus and 1-Touch Level/Span simplify capturing accurate thermal measurements.
MSX Technology enhances thermal images with visible-light details for clearer identification of labels and object outlines, reducing the need to cross-reference visual photos. UltraMax image enhancement combines multiple thermal frames into one high-resolution image for better clarity and more precise measurements. With Teledyne FLIR Thermal Studio Pro software, users can manage and analyze large image datasets efficiently and streamline inspections with route planning and automation.
What's Included:
- Teledyne FLIR T560-14 Thermal Imaging Camera with 14° lens
- Li-ion Rechargeable Battery
- Battery Charger
- USB Cable
- SD Card
- Carrying Case
- FLIR Thermal Studio Pro Software License
- User Documentation
Features
Advanced Imaging Technology
Utilizes FLIR MSX, UltraMax, and adaptive filtering for industry-leading image clarity and detail.
High Thermal Resolution
640 x 480 IR resolution provides 307,200 temperature measurement points for accurate scanning from a safe distance.
Laser Distance Measurement
Determine repair accessibility with on-screen laser-assisted distance readings at the press of a button.
Ergonomic 180° Rotating Lens
Offers flexible viewing angles and improved comfort when targeting overhead components.
AutoCal Interchangeable Lenses
Swap lenses easily across a fleet of FLIR cameras without manual recalibration.
Precision Autofocus
Laser-assisted focus combined with 1-Touch Level/Span ensures reliable and repeatable measurements.
Enhanced LCD Display
Features a 33% brighter display with 4x the resolution of comparable models for easier analysis in the field.
Integrated Workflow Tools

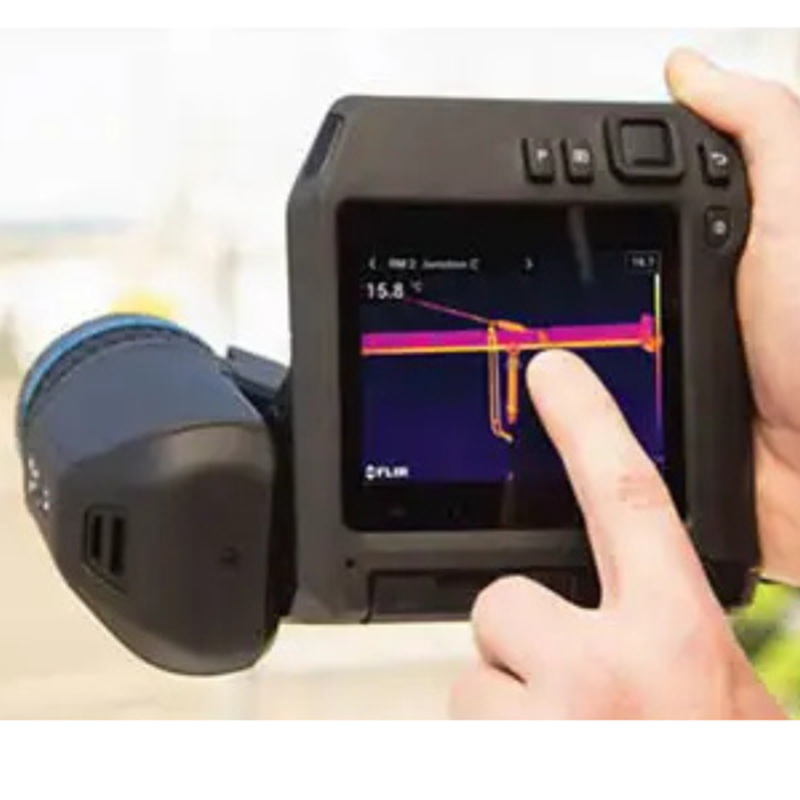

Includes built-in navigation, report creation, and touchscreen controls for efficient in-field operations.
Inspection Route Compatibility
Download and run survey plans from FLIR Thermal Studio Pro to automate inspections and improve reporting.
Comprehensive Documentation Tools
Capture voice notes, on-screen sketches, and GPS-tagged images for robust reporting and traceability.
What's Included
Included with Your Purchase:
- Teledyne FLIR T560-14 Thermal Imaging Camera with 14° lens
- Li-ion Rechargeable Battery
- Battery Charger
- USB Cable
- SD Card
- Carrying Case
- FLIR Thermal Studio Pro Software License
- User Documentation
Specifications
-
IR Resolution: 640 x 480 (307,200 pixels)
-
UltraMax Resolution: 1.2 MP
-
Detector Pitch: 12 μm
-
Thermal Sensitivity/NETD: <30 mK @ 30°C (86°F)
-
Spectral Range: 7.5 - 14.0 μm
-
Image Frequency: 30 Hz
-
F-number: f/1.4 (14° lens)
-
Focus: Laser, continuous, contrast, manual
-
Digital Zoom: 1–8x continuous
-
Temperature Range: -4°F to 2732°F (-20°C to 1500°C)
-
Accuracy: ±2°C or ±2% of reading
-
Storage Media: Removable SD Card
-
Video Output: DisplayPort over USB Type-C
-
Battery Life: Over 4 hours at 77°F (25°C)
-
Operating Temperature: 5°F to 122°F (-15°C to 50°C)
-
GPS and METERLiNK: Integrated
FAQ
Q: What is the benefit of MSX and UltraMax?
A: MSX adds visible detail to thermal images, while UltraMax increases resolution and reduces noise by combining multiple frames into a single enhanced image.
Q: Can the camera record video?
A: Yes, it supports radiometric and non-radiometric video recording and streaming.
Q: Does the T560-14 support GPS tagging?
A: Yes, it automatically adds location data to still images and video frames.
Q: Is the lens interchangeable?
A: Yes, it features AutoCal technology for sharing lenses across compatible FLIR cameras without recalibration.
