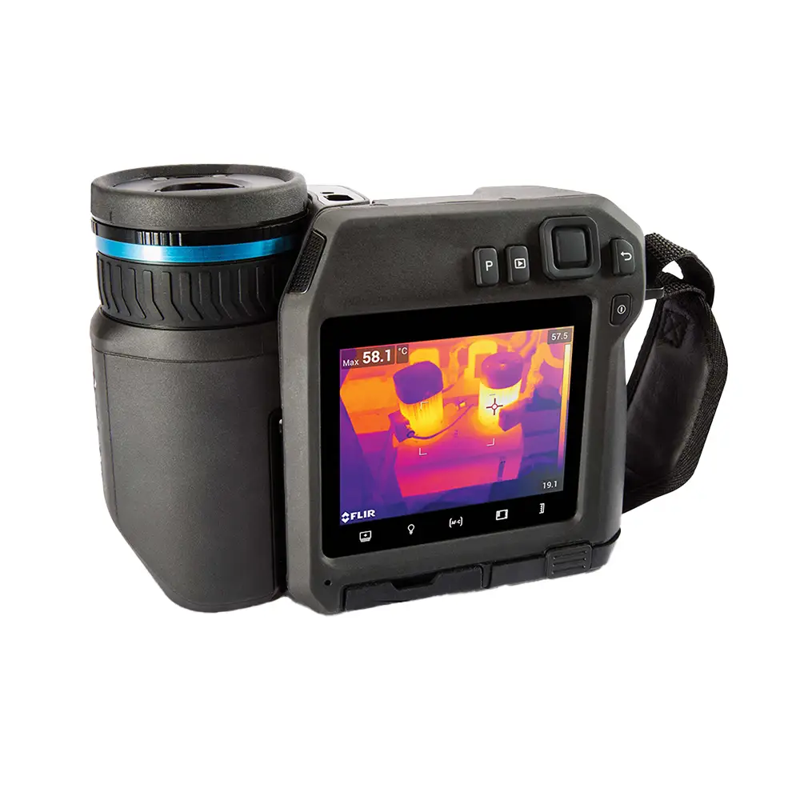

The Teledyne FLIR T560-24-14-42 Professional Thermal Imaging Camera is designed for professionals who demand precision and efficiency in thermal diagnostics. With a high-resolution 640 x 480 detector, MSX® enhancement, and UltraMax® superresolution technology, this handheld camera captures crisp, detailed thermal images to help identify faults and confirm repairs in electrical, mechanical, and industrial systems. Its 180° rotating optical block and 4" high-resolution LCD offer exceptional viewing flexibility in hard-to-access locations.
Laser-assisted autofocus, 1-Touch Level/Span, and integrated GPS ensure every image is clear and well-documented. With Thermal Studio Pro and optional inspection route software, this camera supports streamlined, automated surveys, reporting, and data management for optimal maintenance and troubleshooting workflows.
What's Included:
- FLIR T560 Camera Body
- 24°, 14°, and 42° Interchangeable Lenses
- Li-ion Rechargeable Battery
- Battery Charger
- SD Card
- USB-C Cable
- Carrying Case
- FLIR Thermal Studio Pro Software (license may vary)
Features
Advanced Imaging Technology
Combines FLIR MSX®, UltraMax®, and adaptive filtering for superior clarity and thermal accuracy.
Laser Distance Measurement
Measures and displays the distance to the target directly on-screen for quick accessibility evaluation.
High-Resolution Thermal Detection
640 x 480 detector offers 307,200 temperature points for detailed analysis from a safe distance.
Ergonomic 180° Rotating Lens
Adjustable optical block allows users to capture overhead or low-angle shots with less strain.
AutoCal™ Interchangeable Lenses
Share wide-angle to telephoto lenses across T-Series cameras without recalibration.
Laser-Assisted Autofocus
Ensures precise thermal focus and accurate temperature readings with minimal effort.
Enhanced LCD Display
4" screen is 33% brighter and 4x sharper than standard cameras for easy viewing in all conditions.
Built-in GPS and METERLiNK®
Embeds location and electrical measurement data directly into images and videos.

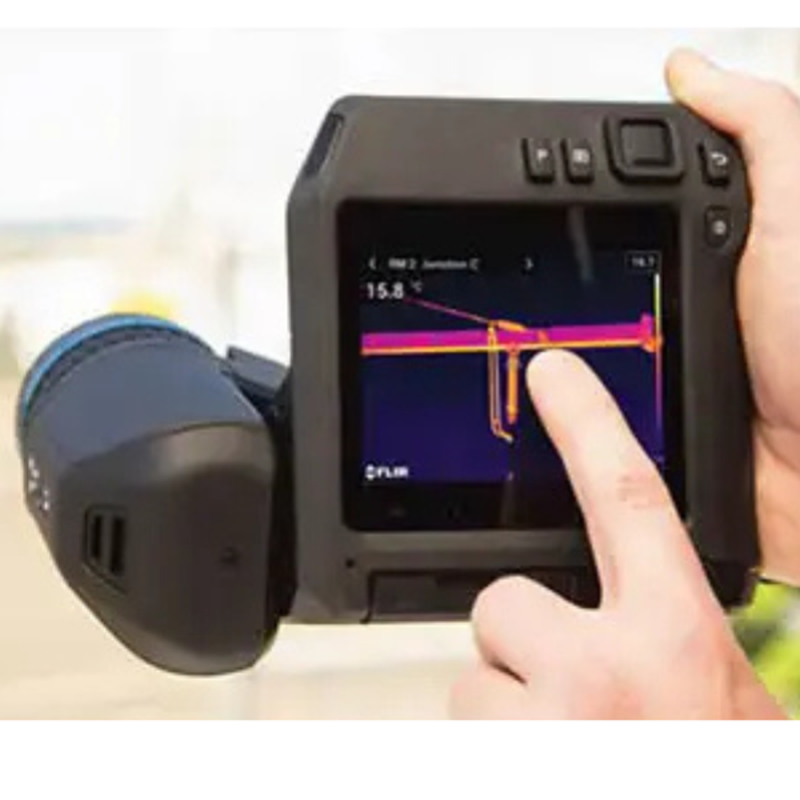

Touchscreen and Dual Programmable Buttons
Intuitive controls streamline navigation, image capture, and settings adjustment in the field.
Inspection Route Capability
Works with FLIR Thermal Studio Pro to automate and manage inspections using predefined routes.
What's Included
Included with Your Purchase:
- FLIR T560 Camera Body
- 24°, 14°, and 42° Interchangeable Lenses
- Li-ion Rechargeable Battery
- Battery Charger
- SD Card
- USB-C Cable
- Carrying Case
- FLIR Thermal Studio Pro Software (license may vary)
Specifications
-
IR Resolution: 640 x 480 (307,200 pixels)
-
UltraMax Resolution: 1.2 MP
-
Detector Pitch: 12 µm
-
Thermal Sensitivity/NETD: <30 mK @ 30°C (42° lens)
-
Spectral Range: 7.5 - 14.0 µm
-
Detector Type: Uncooled microbolometer
-
Image Frequency: 30 Hz
-
Focus: Continuous, laser-assisted, one-shot, manual
-
Digital Zoom: 1–8x continuous
-
Temperature Range: -4°F to 2732°F (-20°C to 1500°C)
-
Accuracy: ±2°C or ±2% of reading
-
Storage Media: Removable SD card
-
Image Format: JPEG with radiometric data
-
Battery Life: >4 hours typical use
-
Operating Temperature: 5°F to 122°F (-15°C to 50°C)
-
Laser Pointer: Class 2
-
Video Streaming: Radiometric and non-radiometric via USB or Wi-Fi
FAQ
Q: What makes the T560 ideal for professional diagnostics?
A: Its combination of high-resolution thermal imaging, MSX and UltraMax enhancements, and robust measurement tools ensures precise and reliable diagnostics.
Q: Can I swap lenses on this model?
A: Yes, the T560 supports interchangeable AutoCal™ lenses without needing recalibration.
Q: Is this camera compatible with FLIR Thermal Studio Pro?
A: Absolutely, it integrates seamlessly and supports inspection route automation via Route Creator.
Q: How long does the battery last?
A: The rechargeable battery typically provides over 4 hours of operating time.
Q: Does the camera record video?
A: Yes, it supports radiometric and non-radiometric video recording and streaming.
