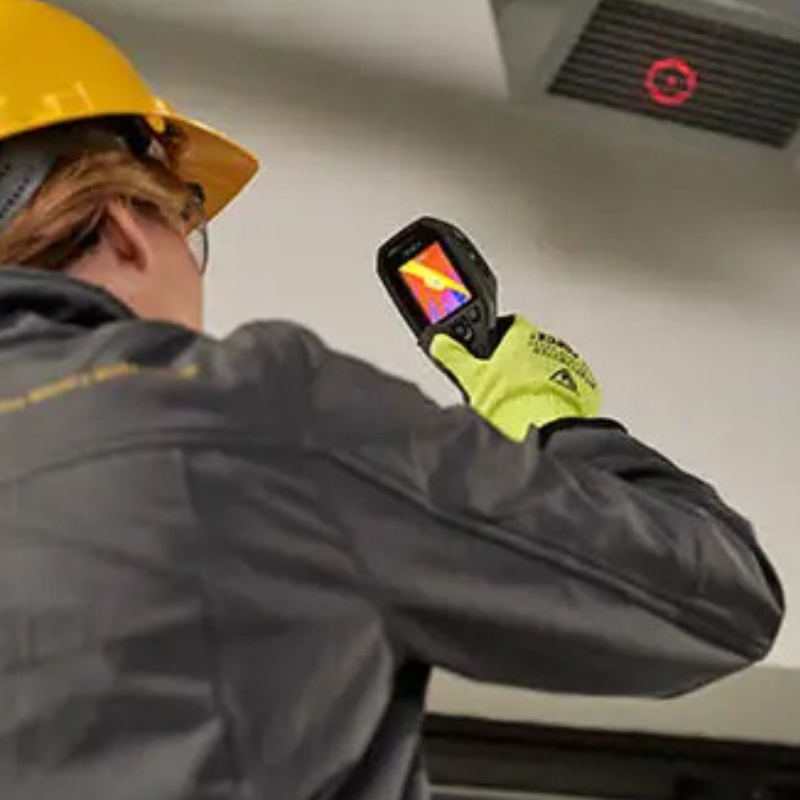

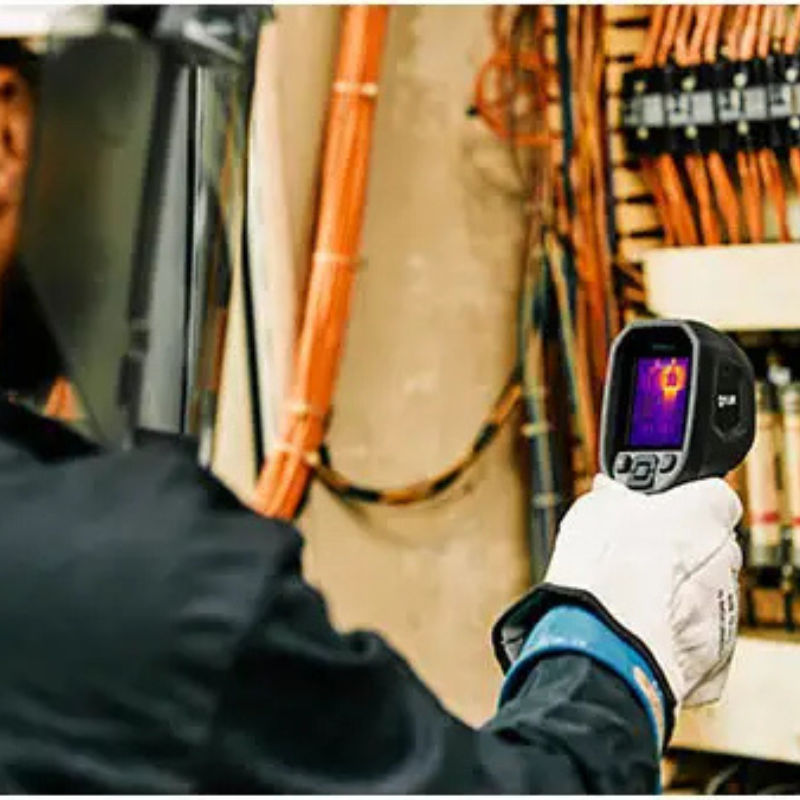

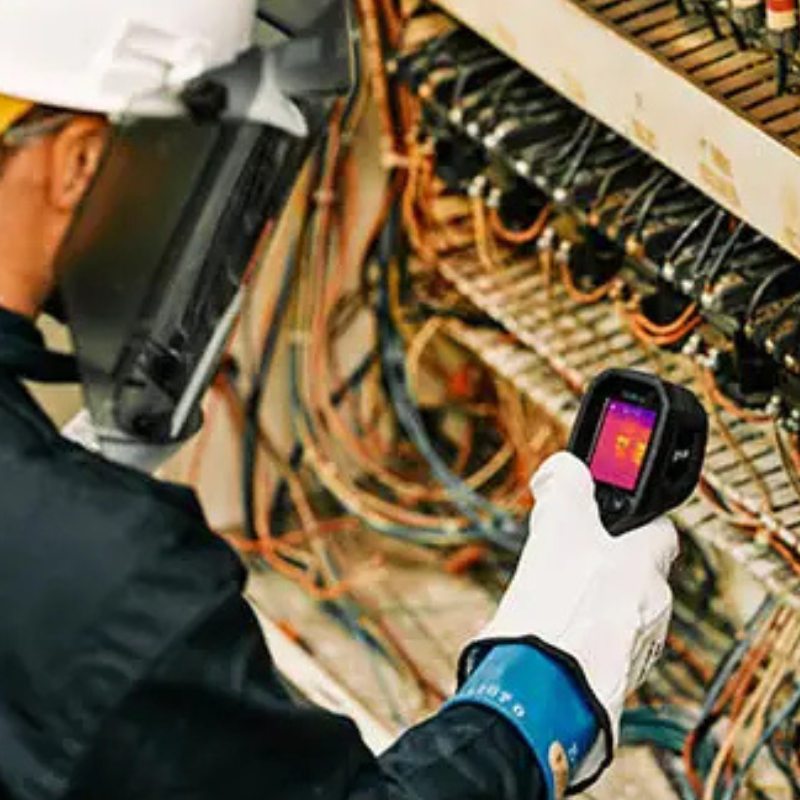

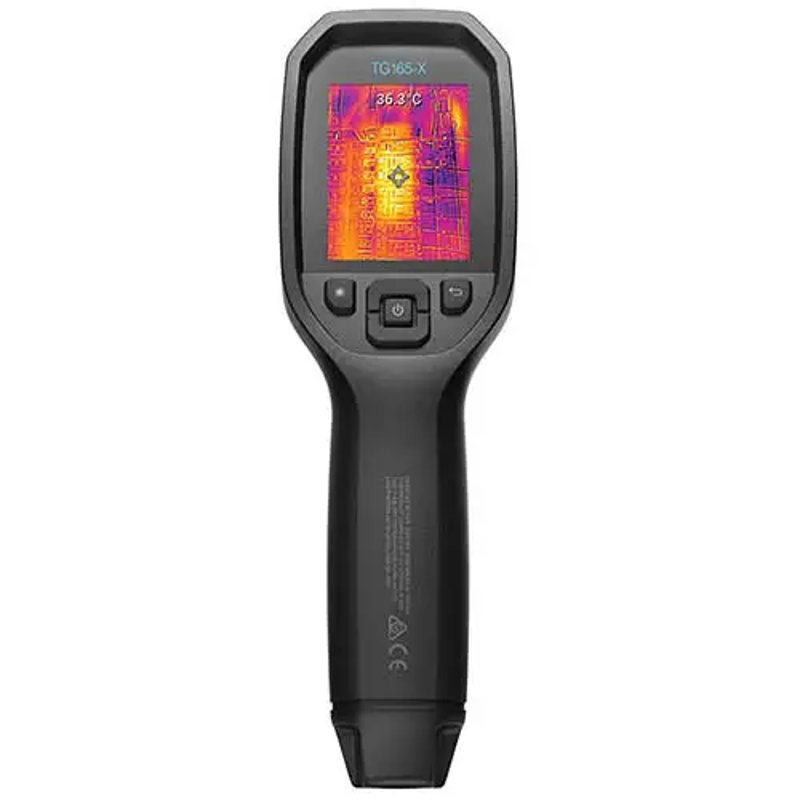

The Teledyne FLIR TG165-X 8.7 Hz/80 x 60 MSX Spot Thermal Camera dramatically reduces inspection and diagnostic time by visually pinpointing sources of electrical, mechanical, and HVAC/R system faults. Unlike single-spot IR thermometers, this non-contact imaging tool provides a full thermal picture of your target, highlighting hot spots and cold zones that could indicate issues.
With patented MSX image enhancement technology, you can clearly see wires, components, and labels by adding visual details to thermal images. The bullseye laser pointer ensures you're measuring the exact component you aim at, while the rugged, drop-tested design and intuitive controls simplify your work. Featuring internal storage for up to 50,000 images and a rechargeable Li-ion battery, the Teledyne FLIR TG165-X is ready for immediate use on the jobsite.
What's Included:
- 1 - TG165-X Thermal Imager
- 1 - Wrist Strap Lanyard
- 1 - USB Type C Cable
- 1 - Pouch
- 1 - Printed Documentation
Features
Visual and Thermal Imaging
Capture and display a visual image with temperature readings for faster inspections.
Patented MSX Image Enhancement
Adds visible light details to thermal images, making components and labels clearer.

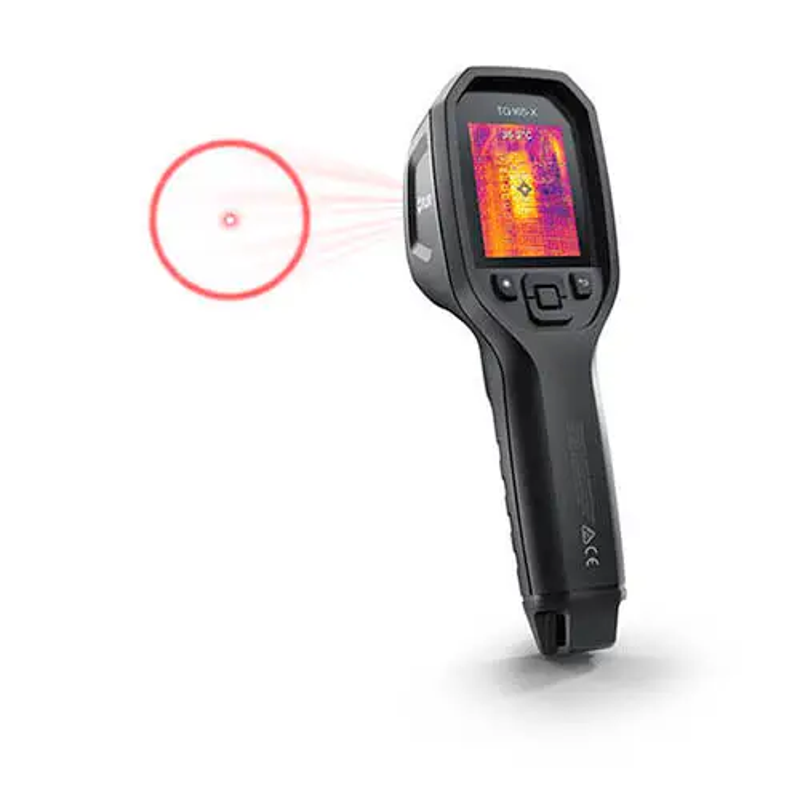

Bullseye Laser Pointer
Helps target the exact spot for accurate temperature measurements.
JPEG Image Storage
Save non-radiometric images easily as JPEG files.
High-Capacity Internal Storage
Store up to 50,000 images for extended project documentation.
Multiple Color Palettes
Choose from six color palettes to suit different applications.
Durable Construction
Built to survive drops from up to 2 meters for rugged field use.

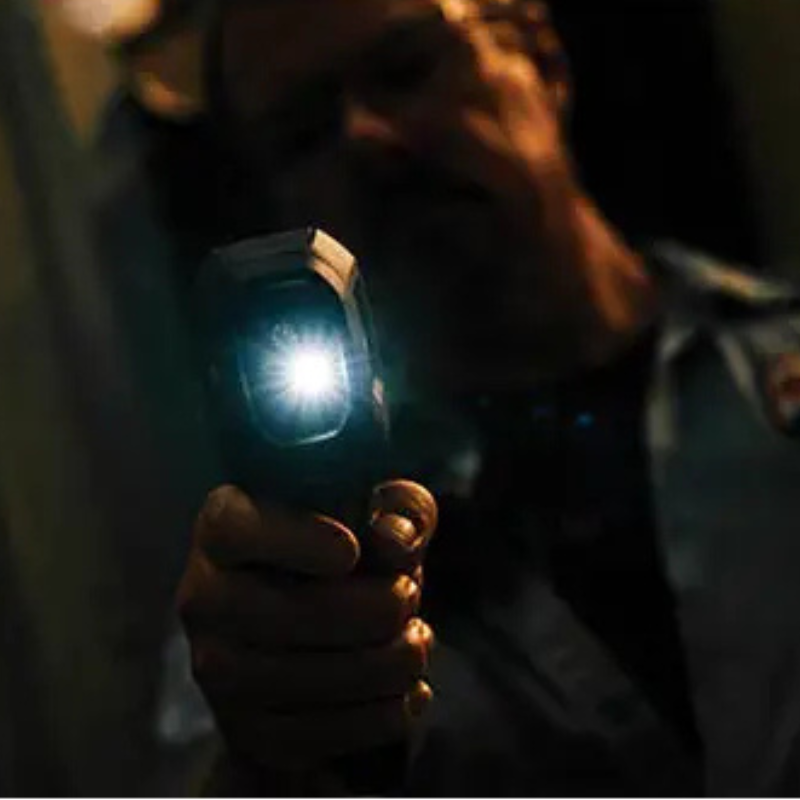

Bright LED Worklight
Improves visibility in dark environments.

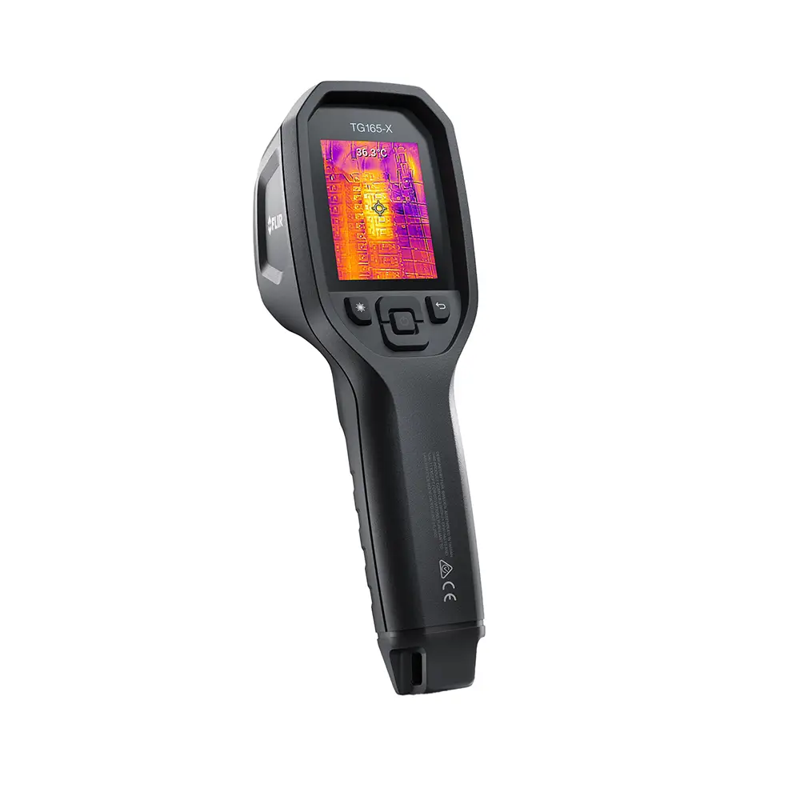

Large Display
Features a 2.4-inch screen for clear and easy image viewing.
What's Included
Included with Your Purchase:
- 1 - TG165-X Thermal Imager
- 1 - Wrist Strap Lanyard
- 1 - USB Type C Cable
- 1 - Pouch
- 1 - Printed Documentation
Specifications
-
IR Resolution: 80 x 60 pixels
-
Image Frequency: 8.7 Hz
-
Field of View (FOV): 51° x 66°
-
Temperature Range: -13°F to 572°F
-
Display Size: 2.4 inches
-
Internal Storage Capacity: Up to 50,000 images
-
Color Palettes: 6 options
-
Worklight: Built-in LED
-
Drop Test Rating: 2 meters
-
Battery Type: Rechargeable Li-ion
-
Image Format: JPEG (non-radiometric)
-
Catalog Number: 87501-0101
-
Vendor Alias: TG165-X
-
Condition: New
-
UPC: 845188019570
FAQ
Q: What is the advantage of MSX technology?
A: MSX enhances thermal images with visible details, making it easier to identify objects and read labels.
Q: How many images can the TG165-X store internally?
A: The device can store up to 50,000 images internally.
Q: Is the TG165-X durable enough for field use?
A: Yes, it is drop-tested to withstand falls from up to 2 meters.
Q: What is the temperature range the TG165-X can measure?
A: The thermal camera can measure temperatures from -13°F to 572°F.
Q: Does the camera come with a battery?
A: Yes, it includes a rechargeable Li-ion battery ready for immediate use.
