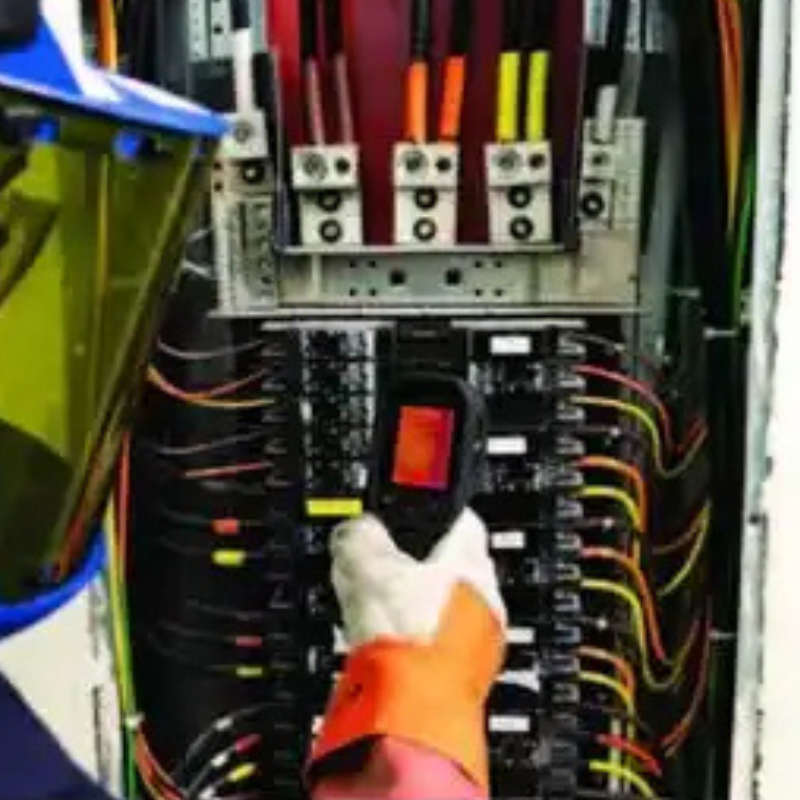

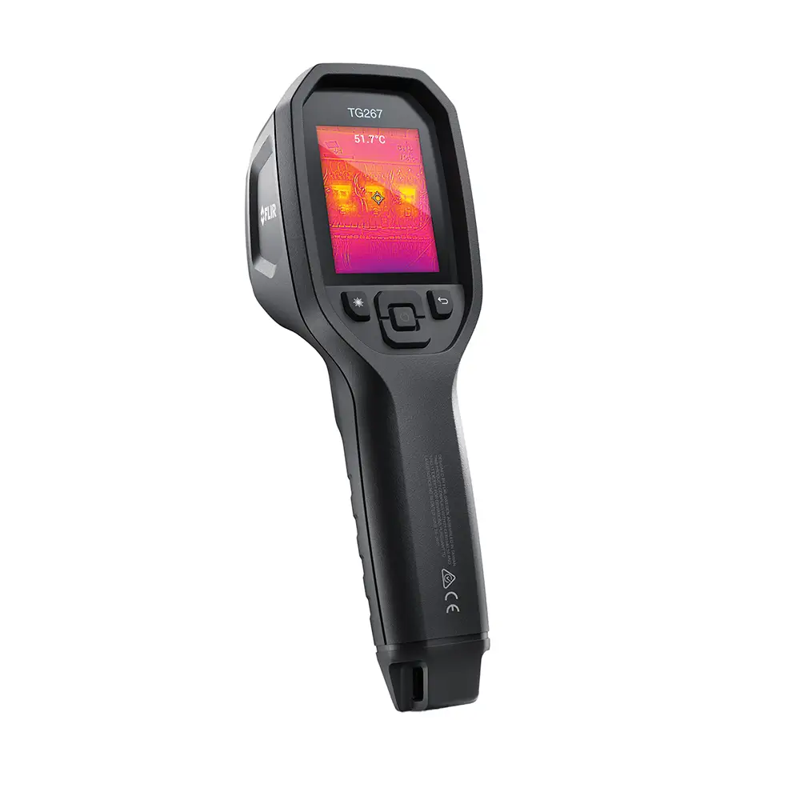

The Teledyne FLIR TG267 Spot Thermal Camera, 160 x 120, -13°F to 716°F, 9Hz takes you beyond the limitations of single-spot IR thermometers, allowing you to see the hot and cold spots that can indicate serious issues. Examine everything from electrical connections to mechanical breakdowns quickly and accurately. This handheld thermal camera reduces diagnostic time while simplifying reporting and long-term monitoring of equipment and systems throughout a facility.
Teledyne FLIR MSX (Multi-Spectral Dynamic Imaging) improves image clarity by embossing visual scene details on thermal images, providing added context to help you accurately target potential faults and troubleshoot repairs. Record images to monitor maintenance history and reassure your customer that problems have been resolved. With a simple user interface, Bluetooth connectivity, storage for up to 50,000 images, and rechargeable Li-ion battery, the Teledyne FLIR TG267 is ready to go out of the box.
What's Included:
- 1 - Spot Thermal Camera (TG267)
- 1 - Wrist Strap lanyard
- 1 - USB Cable
- 1 - Pouch
- 1 - Thermocouple
- 1 - User Manual
Features
True 160 x 120 IR Resolution
Experience detailed imaging with 19,200 pixels for accurate problem detection and analysis.
Wide Temperature Measurement Range
Measure from -13°F to 716°F, ideal for a broad range of applications.
Contact Measurement Capability
Add precise readings with the included Type-K thermocouple that measures up to 500°F.
Bullseye Laser Pointer
Identify exact areas you are measuring for more accurate targeting.

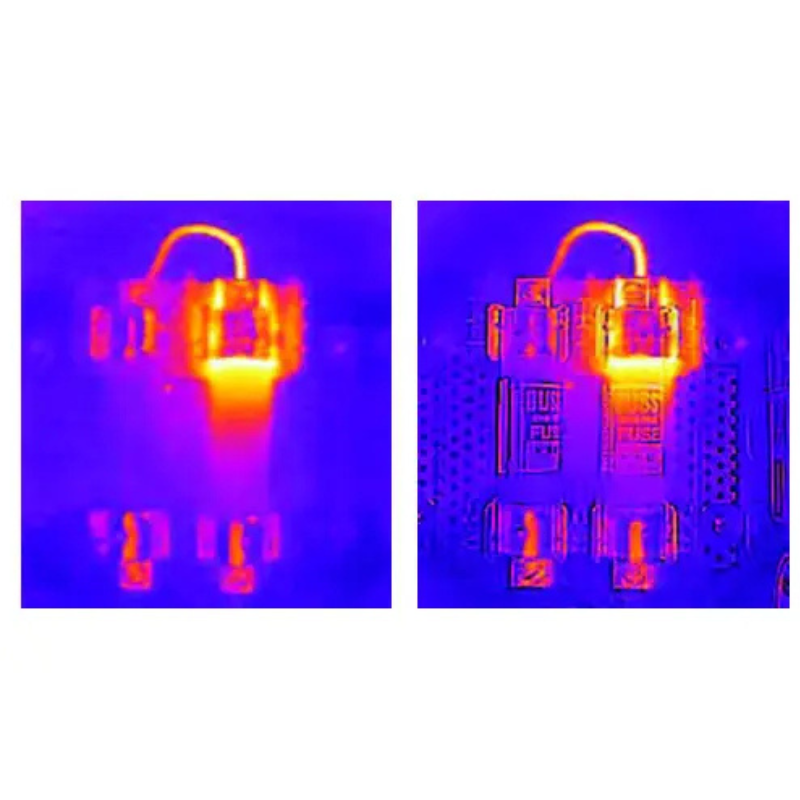

FLIR MSX Image Enhancement
Enhances thermal images with visible light details for faster fault identification.
Visual and Thermal Imaging
Display and capture both types of images with embedded temperature readings.
2.4-Inch Color Display
Bright screen with multiple color palettes for easy image review.
Durable and Portable Design
Built to IP54 standards and withstands drops up to 2 meters.
Integrated LED Flashlight
Illuminates dark or hard-to-reach inspection areas.
Long Battery Life
Operates up to 5 hours continuously and charges to 90% in just 4 hours.
Secure Warranty Coverage
Protected by FLIR’s world-class 2-10 warranty for added peace of mind.
Thermal Sensitivity
Features <70mK NETD for precise thermal detection.
Wide Field of View
Offers a broad 57° x 44° perspective for comprehensive scene capture.
Efficient Distance to Spot Ratio
High 24:1 ratio for safe distance measurements without losing accuracy.
What's Included
Included with Your Purchase:
- 1 - Spot Thermal Camera (TG267)
- 1 - Wrist Strap lanyard
- 1 - USB Cable
- 1 - Pouch
- 1 - Thermocouple
- 1 - User Manual
Specifications
-
IR Resolution: 160 x 120 pixels
-
Temperature Range: -13°F to 716°F
-
Thermal Sensitivity/NETD: <70mK
-
Field of View (FOV): 57° x 44°
-
Distance to Spot Ratio: 24:1
-
Image Frequency: 9 Hz (8.7 Hz)
-
Detector Pitch: 12 μm
-
Display: 2.4-inch color LCD
-
Battery Type: Rechargeable 3.7 V Li-ion battery
-
Battery Operating Time: 5 hours scanning
-
Battery Charging Time: 4 hours to 90%
-
Enclosure Rating: IP54
-
Drop Test: 2 meters
-
Storage Capacity: Up to 50,000 images
-
Connectivity: Bluetooth
FAQ
Q: Can the TG267 measure contact temperatures?
A: Yes, it comes with a Type-K thermocouple for contact measurements up to 500°F.
Q: How long does the battery last on a full charge?
A: The battery lasts up to 5 hours of continuous scanning.
Q: Is the camera durable enough for industrial environments?
A: Yes, it is rated IP54 for dust and water protection and can withstand a 2-meter drop.
Q: How much storage does the TG267 offer?
A: It can store up to 50,000 images internally.
Q: What is MSX technology?
A: MSX (Multi-Spectral Dynamic Imaging) overlays visual scene details onto thermal images for improved clarity and easier diagnostics.
