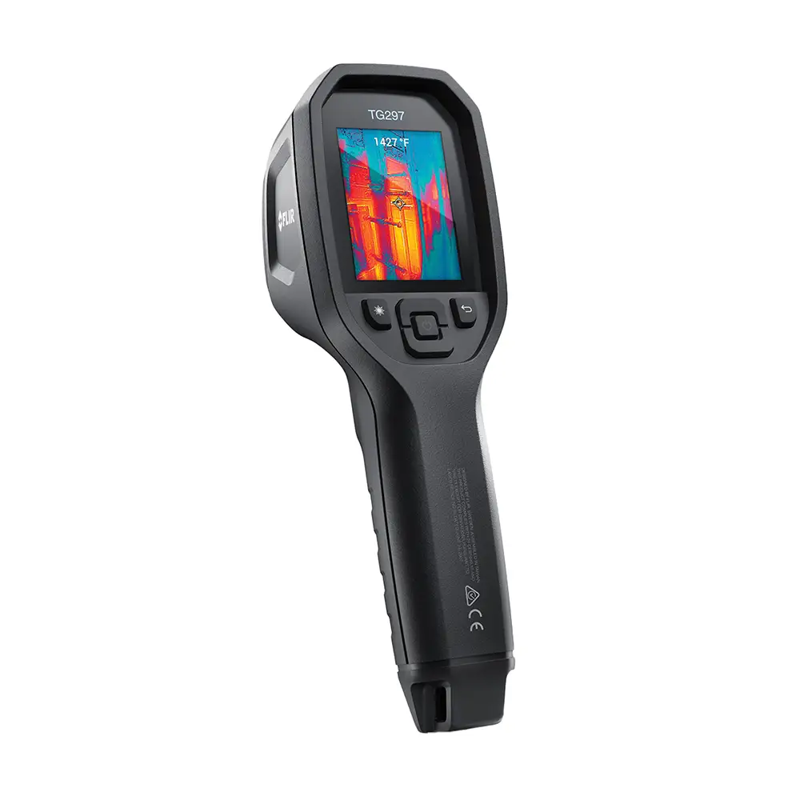

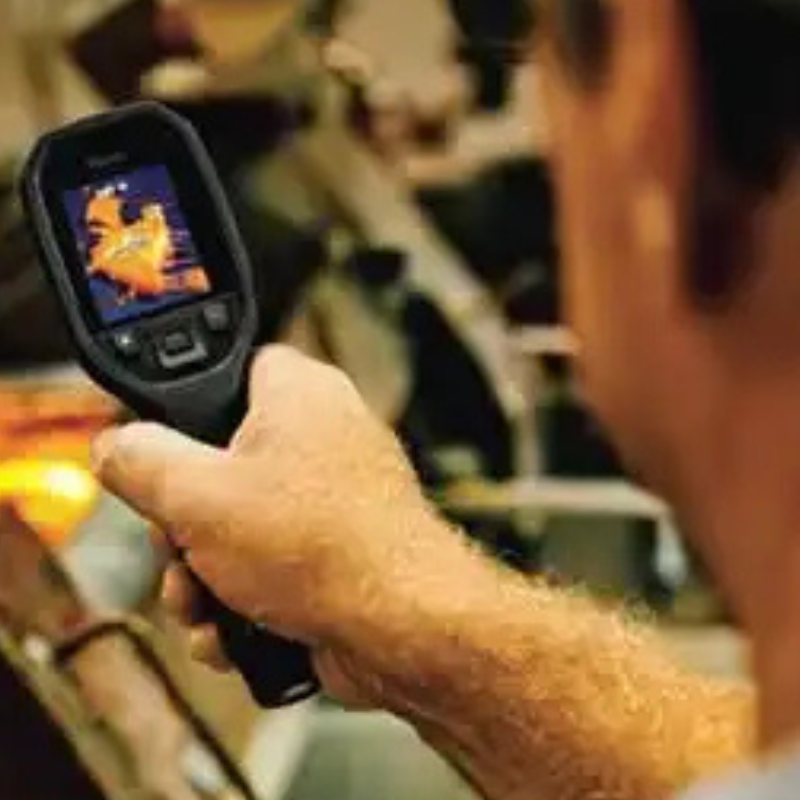

The Teledyne FLIR TG297 Industrial High Temperature Spot Thermal Camera, 160 x 120, -13°F to 1886°F, 9Hz combines precise non-contact temperature measurement with high-quality thermal imaging in one durable, easy-to-use device. This tool allows you to quickly identify issues in electrical and mechanical systems, diagnose failures, and verify manufacturing processes even at extreme temperatures.
Equipped with Teledyne FLIR's MSX Technology, the TG297 overlays critical visual scene details onto thermal images for exceptional clarity and context. This feature enables faster fault detection and efficient troubleshooting. A simple user interface, Bluetooth connectivity, 50,000-image storage capacity, and a rechargeable Li-ion battery make the TG297 ready for rugged industrial use.
What's Included:
- 1 - Industrial High Temperature Spot Thermal Camera (TG297)
- 1 - Wrist Strap lanyard
- 1 - USB Cable
- 1 - Pouch
- 1 - Thermocouple
- 1 - User Manual
Features
Powerful Dual Functionality
Combines non-contact temperature measurement and thermal imaging for complete diagnostics.
High-Resolution Imaging
True 160 x 120 IR pixel imager delivers detailed 19,200-pixel thermal images.
Extreme Temperature Measurement
High-temperature filter measures temperatures up to 1030°C (1886°F).
Long-Distance Targeting
30:1 spot ratio allows accurate temperature readings from safer distances.
Bullseye Laser Pointer
Pinpoints exact measurement areas for greater accuracy.
Enhanced Detail with MSX Technology
FLIR's MSX enhancement overlays visual details onto thermal images for superior clarity.
Flexible Image Capture

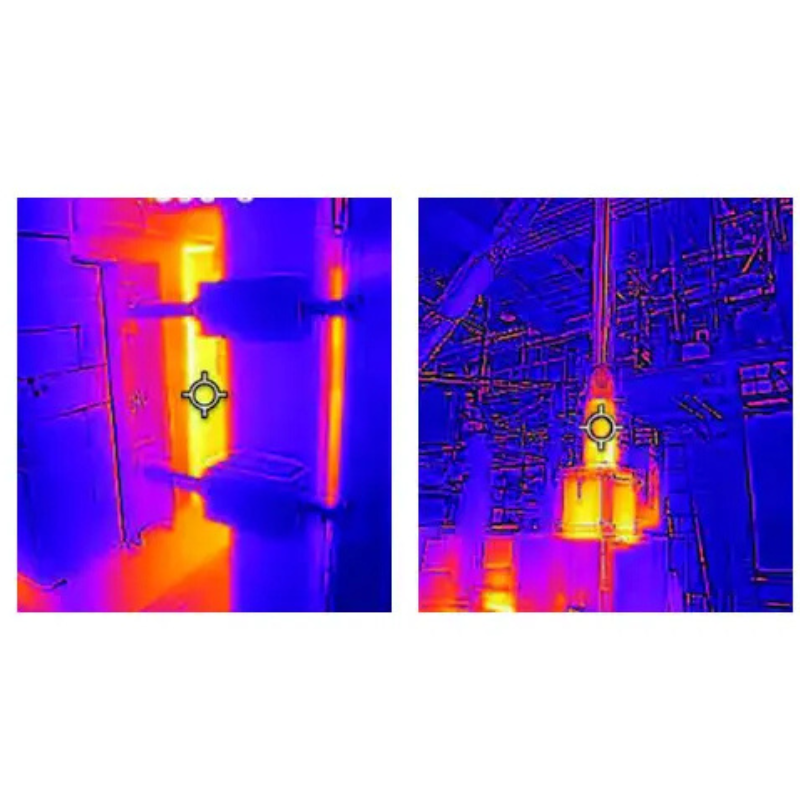

Display and save thermal and visual images with embedded temperature readings.
Before-and-After Comparisons
Document and demonstrate issues and solutions with stored image comparisons.
Bright and Clear Display
2.4-inch color display with selectable color palettes enhances viewing in any environment.
Rugged and Portable Design
Durable IP54-rated enclosure withstands tough conditions and 2-meter drops.

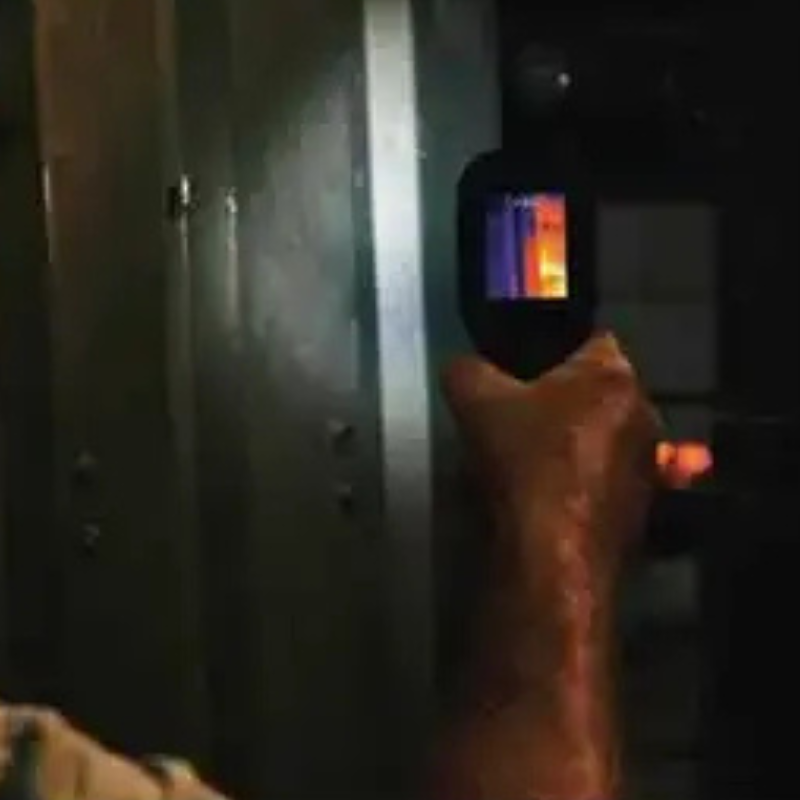

Integrated LED Flashlight
Illuminates dark or hard-to-reach areas for improved visibility.
Ergonomic Handle
Easy-to-grip design ensures quick retrieval from a crowded tool bag.
Long Battery Life
Rechargeable Li-ion battery provides up to 5 hours of scanning time.
Reliable Warranty
Protected by Teledyne FLIR’s trusted 2-10 warranty coverage.
What's Included
Included with Your Purchase:
- 1 - Industrial High Temperature Spot Thermal Camera (TG297)
- 1 - Wrist Strap lanyard
- 1 - USB Cable
- 1 - Pouch
- 1 - Thermocouple
- 1 - User Manual
Specifications
-
IR Resolution: 160 x 120 pixels
-
Temperature Range: -13°F to 1886°F
-
Thermal Sensitivity/NETD: <70 mK
-
Field of View (FOV): 57° x 44°
-
Distance to Spot Ratio: 30:1
-
Image Frequency: Approx. 9 Hz (8.7 Hz)
-
Detector Pitch: 12 μm
-
Display: 2.4-inch color screen
-
Battery Type: Rechargeable 3.7V Li-ion battery
-
Battery Operating Time: 5 hours scanning
-
Battery Charging Time: 4 hours to 90%
-
Enclosure Rating: IP54
-
Drop Test: 2-meter drop resistance
-
Storage Capacity: Up to 50,000 images
FAQ
Q: What makes the MSX technology different from standard thermal imaging?
A: MSX technology overlays visual scene details onto thermal images for sharper, more informative visuals without losing thermal data.
Q: How far can I measure temperatures with the TG297?
A: Thanks to the 30:1 spot ratio, you can measure from a safe distance while maintaining accuracy.
Q: Is the Teledyne FLIR TG297 durable for industrial environments?
A: Yes, it features an IP54-rated enclosure and can survive a 2-meter drop.
Q: How long does the battery last on a full charge?
A: The rechargeable battery provides up to 5 hours of continuous scanning time.
Q: Can I store images directly on the device?
A: Yes, the TG297 can store up to 50,000 images internally.
