The Teledyne FLIR T530-24-14-42 Thermal Imaging Camera is engineered for professionals who demand high performance, ergonomic flexibility, and advanced imaging capabilities. With 14°, 24°, and 42° lenses included, it delivers a 320 x 240 thermal resolution for a wide range of inspection scenarios. Its 180° rotating optical block, vivid 4-inch LCD touchscreen, and laser-assisted autofocus streamline inspections, even in hard-to-reach or obstructed areas.
Equipped with FLIR’s exclusive MSX and UltraMax technologies, this camera enhances image clarity and detail, enabling more accurate diagnostics. MSX overlays visible light details onto infrared imagery, while UltraMax quadruples thermal resolution through advanced image enhancement. The T530 also supports laser distance measurement, embedded GPS, customizable workflows, and compatibility with METERLiNK-enabled devices for comprehensive data integration.

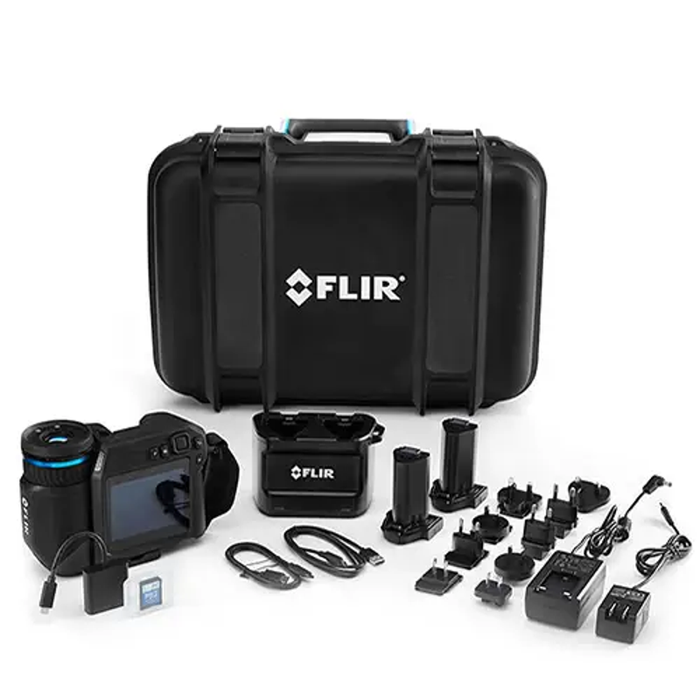

What's Included:
- FLIR T530 Thermal Imaging Camera
- 14°, 24°, and 42° AutoCal lenses
- Battery pack
- Battery charger
- USB Type-C cable
- Hard carrying case
- Wrist strap
- Power supply
- Documentation and software access
Features
Versatile Lens Options
Comes with 14°, 24°, and 42° AutoCal lenses for wide to telephoto imaging with 320 x 240 resolution.
Wide Temperature Range
Detects temperatures from -4 to 1202°F when upgraded with the T199616 module.

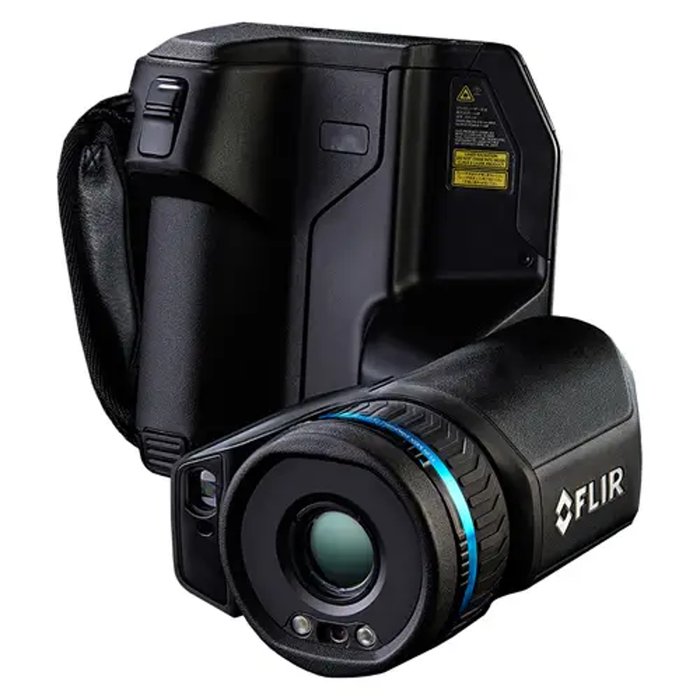

Rotating Optical Block
180° flexibility makes inspections of overhead or low-positioned targets more comfortable.
Advanced FLIR Vision Processing
Combines MSX, UltraMax, and adaptive filtering for superior image quality and diagnostic clarity.
Laser-Assisted Autofocus
Delivers precise focus and sharp thermal images for accurate measurements.
Built-In Laser Distance Measurement
Measures target distance directly from the screen to help assess accessibility.

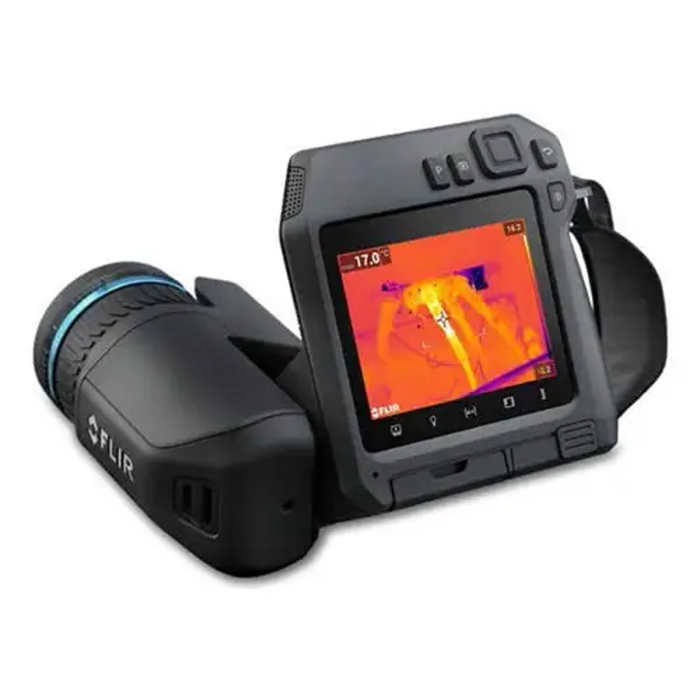

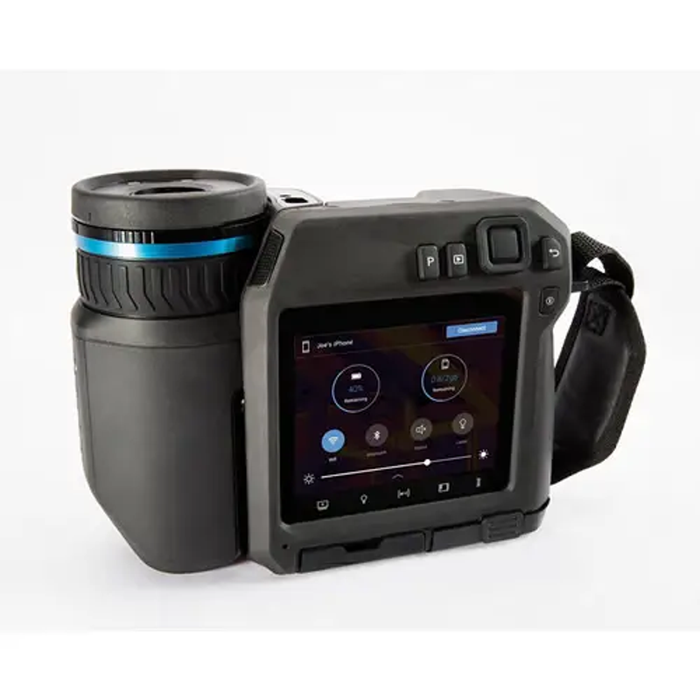

Robust LCD Touchscreen
4" scratch-resistant display with intuitive navigation and two programmable buttons.
Streamlined Reporting Tools
Features voice annotation, text comments with autofill, and on-image sketch for faster documentation.
METERLiNK Compatibility
Integrates with FLIR clamp meters and multimeters for complete measurement data.
Smart Data Organization
Supports customizable work folders for efficient data sorting and access.
High-Volume Scanning
Captures 161,472 temperature points from a safe distance for large-area analysis.
Universal Lens Sharing
AutoCal lenses can be used across other FLIR T-series models for flexibility in field use.
What's Included
Included with Your Purchase:
- FLIR T530 Thermal Imaging Camera
- 14°, 24°, and 42° AutoCal lenses
- Battery pack
- Battery charger
- USB Type-C cable
- Hard carrying case
- Wrist strap
- Power supply
- Documentation and software access
Specifications
-
Thermal Resolution: 320 x 240
-
Lens Options: 14°, 24°, 42° (AutoCal)
-
Temperature Range: -4 to 1202°F (with T199616 upgrade)
-
Zoom: 1–4x continuous
-
Display: 4 in. LCD touchscreen
-
Image Enhancements: MSX, UltraMax, FLIR Vision Processing
-
Laser Distance Measurement: Yes
-
Voice/Text Annotation: Yes
-
GPS: Embedded
-
Connectivity: USB-C, METERLiNK
-
Frame Rate: 30 Hz
-
Work Folders: Customizable
-
Interchangeable Optics: AutoCal supported
FAQ
Q: What is the purpose of the MSX feature?
A: MSX overlays visual image outlines onto thermal imagery for enhanced detail and label visibility.
Q: Can this camera measure long-distance temperatures?
A: Yes, with telephoto lenses and laser-assisted autofocus, it can safely capture distant measurements.
Q: Is the T530 compatible with other FLIR lenses?
A: Yes, it supports AutoCal lenses, which are interchangeable across compatible FLIR models.
Q: How does UltraMax improve image quality?
A: UltraMax compiles multiple images into a single higher-resolution frame with reduced noise and enhanced clarity.
