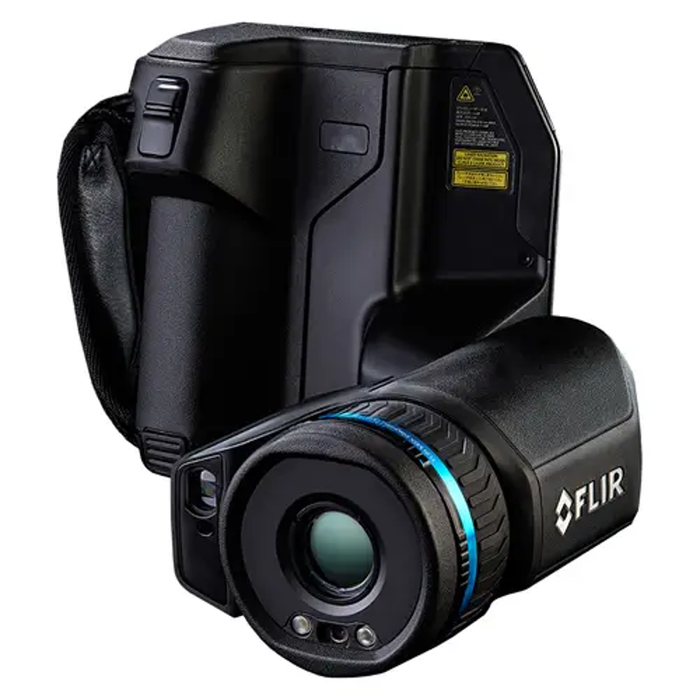

The Teledyne FLIR T530-14-NIST Thermal Imaging Camera is built for advanced thermography and industrial inspection, offering high performance and ergonomic flexibility. Designed with a 14° lens and a 320 x 240 resolution detector, it provides accurate non-contact temperature readings from -4 to 1202 °F, making it ideal for power generation, manufacturing, and electrical distribution applications.
Its standout 180° rotating optical block simplifies overhead and low-angle inspections, while the scratch-resistant 4-inch LCD screen ensures clarity even in challenging environments. MSX technology overlays visual details on thermal images for sharper, context-rich results. Paired with UltraMax image enhancement, the T530 captures and combines multiple images into one higher-resolution composite for detailed analysis of small targets.
Inspectors can optimize efficiency using intelligent AutoCal lenses, laser-assisted autofocus, and real-time laser distance measurements. With built-in voice annotation, GPS tagging, and streamlined reporting features, the T530-14-NIST is equipped for seamless field documentation.

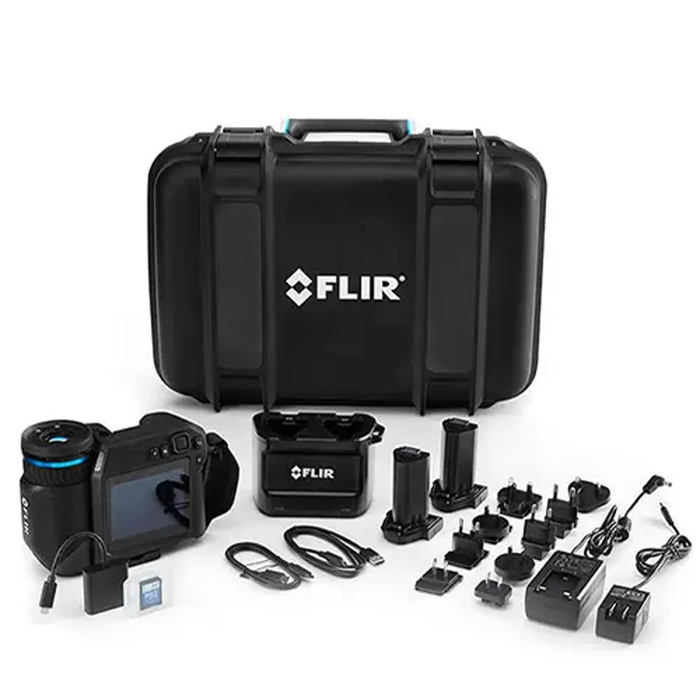

What's Included:
- Teledyne FLIR T530 Thermal Imaging Camera with 14° Lens
- NIST Calibration Certificate
- Battery
- Battery Charger
- USB Cable
- Carrying Case
- User Manual
Features
14° Lens with 320 x 240 Resolution
Provides high-precision imaging with 161,472 temperature measurement points for detailed inspections.
Wide Temperature Range
Measures from -4 to 1202 °F, ideal for a broad range of industrial and electrical environments.
180° Rotating Optical Block
Allows flexible inspection angles to reduce operator strain and improve target visibility.
AutoCal Interchangeable Lenses
Use a variety of lens options across your camera fleet with seamless calibration.
MSX and UltraMax Image Enhancement
Enhances image detail and resolution by blending visual and thermal images or combining multiple frames.
Laser-Assisted Autofocus
Delivers sharp, reliable thermal images quickly and accurately.
Laser Distance Measurement
Measures target distance with on-screen feedback to determine repair accessibility.

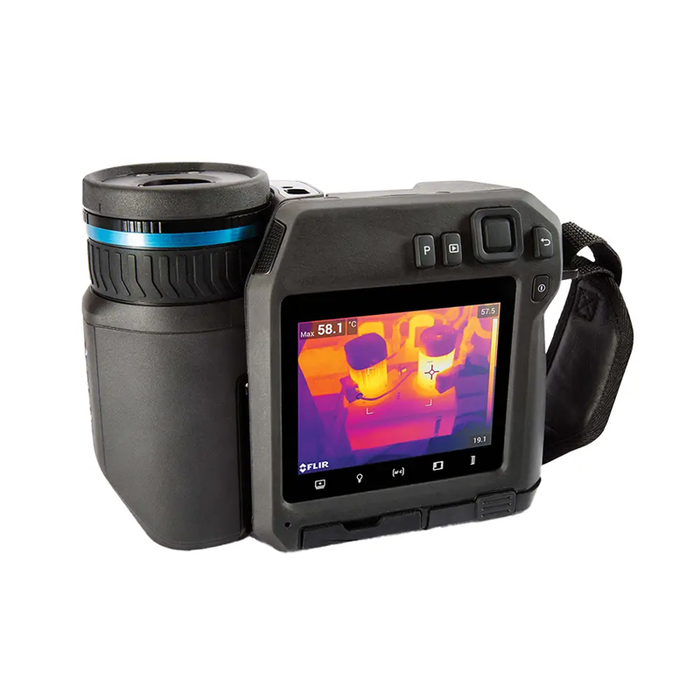

High-Resolution LCD Display

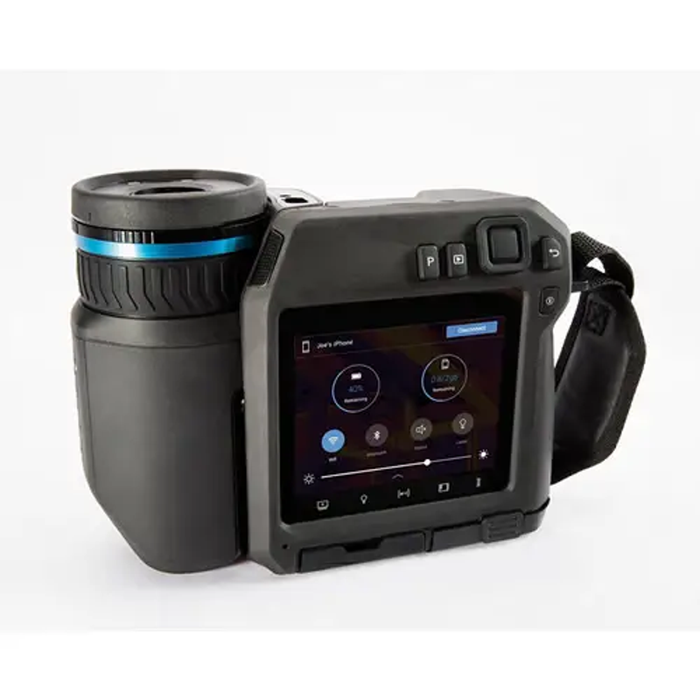

Scratch-resistant 4" touchscreen with intuitive controls for clear image viewing and operation.
Smart Workflow Tools
Voice notes, auto-fill text comments, GPS tagging, and image sketch features improve reporting efficiency.
METERLiNK Integration
Captures and syncs data from compatible FLIR clamp meters and multimeters for enhanced diagnostics.
What's Included
Included with Your Purchase:
- Teledyne FLIR T530 Thermal Imaging Camera with 14° Lens
- NIST Calibration Certificate
- Battery
- Battery Charger
- USB Cable
- Carrying Case
- User Manual
Specifications
-
Infrared Resolution: 320 x 240 pixels
-
Lens Field of View: 14°
-
Object Temperature Range: -4 to 1202 °F (with optional high-temp upgrade)
-
Zoom: 1–4x continuous
-
Frame Rate: 30 Hz
-
Display: 4" LCD touchscreen
-
Autofocus: Laser-assisted
-
Measurement Accuracy: ±2°C or ±2%
-
Image Enhancement: MSX, UltraMax, Adaptive Filtering
-
Focus System: Manual, autofocus, and continuous
-
Rotating Optical Block: 180°
-
Storage Format: JPEG with full radiometric data
-
Connectivity: USB, Wi-Fi, Bluetooth
-
GPS: Built-in
-
Voice Annotation: Yes
-
Software Compatibility: FLIR Thermal Studio
FAQ
Q: What is the benefit of the 14° lens?
A: It provides a narrow field of view ideal for capturing distant targets with more thermal detail.
Q: Does the camera come calibrated?
A: Yes, it includes NIST calibration for certified measurement accuracy.
Q: Can I change lenses on this model?
A: Yes, it supports intelligent AutoCal interchangeable lenses.
Q: What is UltraMax and how does it improve images?
A: UltraMax combines multiple frames to create a higher resolution, clearer thermal image.
Q: Is the screen usable in bright light?
A: Yes, the 4-inch display is bright and scratch-resistant for use in the field.
