The Teledyne FLIR T540-42-14 Thermal Imaging Camera is designed to meet the demanding needs of advanced thermographers and service consultants across power generation, manufacturing, and electrical sectors. Featuring both 14° and 42° lenses, this camera captures high-resolution thermal images at 464 x 348, delivering over 161,000 non-contact temperature data points. Its intuitive 180° rotating optical block simplifies inspections in difficult or overhead areas, minimizing user strain and enhancing accessibility in tight environments.
Equipped with MSX technology, the T540 overlays visual detail onto infrared imagery for sharper diagnostics, while UltraMax enhances resolution by combining multiple frames for superior pixel density. These features, along with laser-assisted autofocus and a vivid 4-inch LCD, enable pinpoint accuracy and ease of analysis in high-stakes inspection tasks. Smart reporting tools such as voice annotations, GPS-tagging, and METERLiNK integration streamline post-capture documentation, ensuring users can make informed decisions with efficiency and confidence.

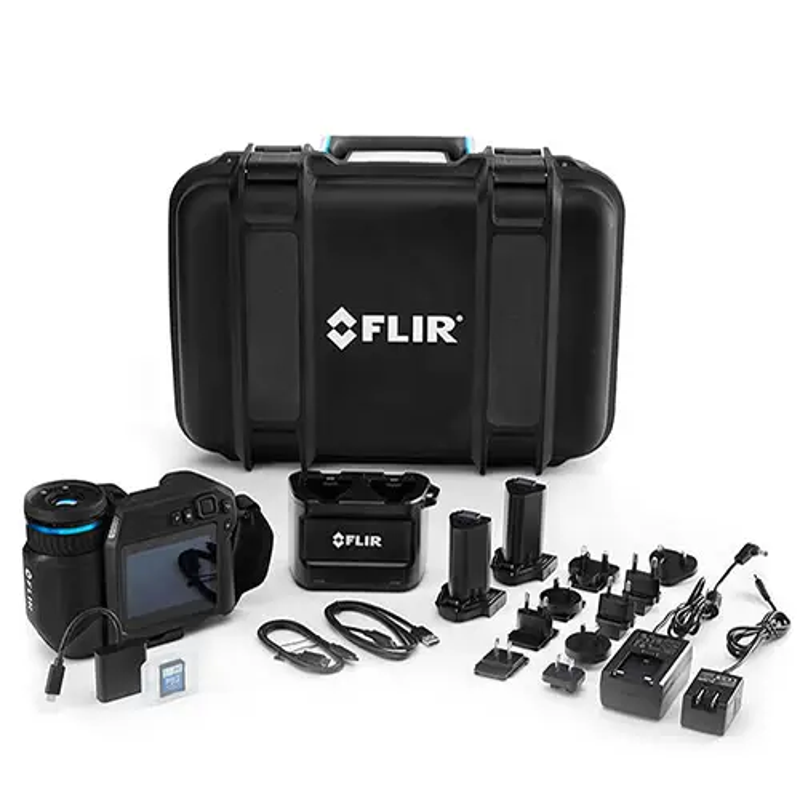

What's Included:
- FLIR T540 Thermal Imaging Camera
- 14° and 42° AutoCal Lenses
- Battery Pack
- Battery Charger
- USB Cable
- Hard Transport Case
- Neck Strap
- FLIR Thermal Studio Software License (Optional)
Features
Dual Lenses with High Resolution
Includes both 14° and 42° lenses for versatile field coverage, capturing 464 x 348 resolution thermal data.
Extensive Temperature Range
Measures object temperatures from -4 to 2732°F, making it suitable for extreme environments.
Laser-Assisted Autofocus
Ensures clear, precise thermal images by automatically focusing with laser guidance.
FLIR Vision Processing Suite
Delivers unmatched clarity using MSX, UltraMax, and adaptive filtering technologies.

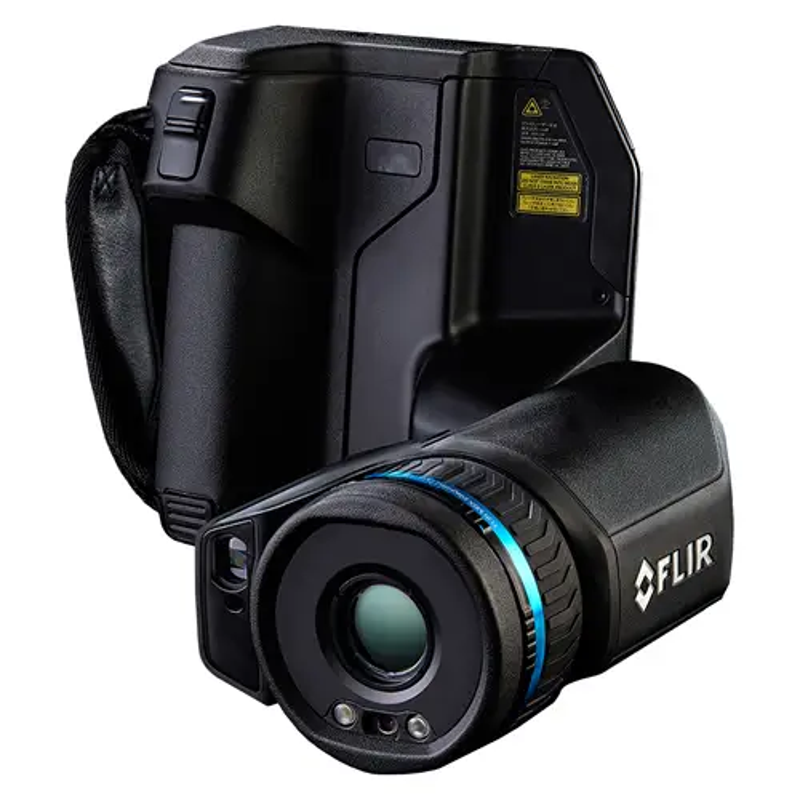

Rotating Optical Block
180° rotation makes it easier to capture overhead, low, or obstructed targets without physical strain.
Comprehensive Data Collection
Captures 161,472 non-contact measurement points for thorough inspection coverage.
Smart Lens Sharing
AutoCal lenses allow for seamless interchangeability between camera models across your fleet.
Laser Distance Measurement
On-screen laser tool helps identify object distances and plan repairs with precision.

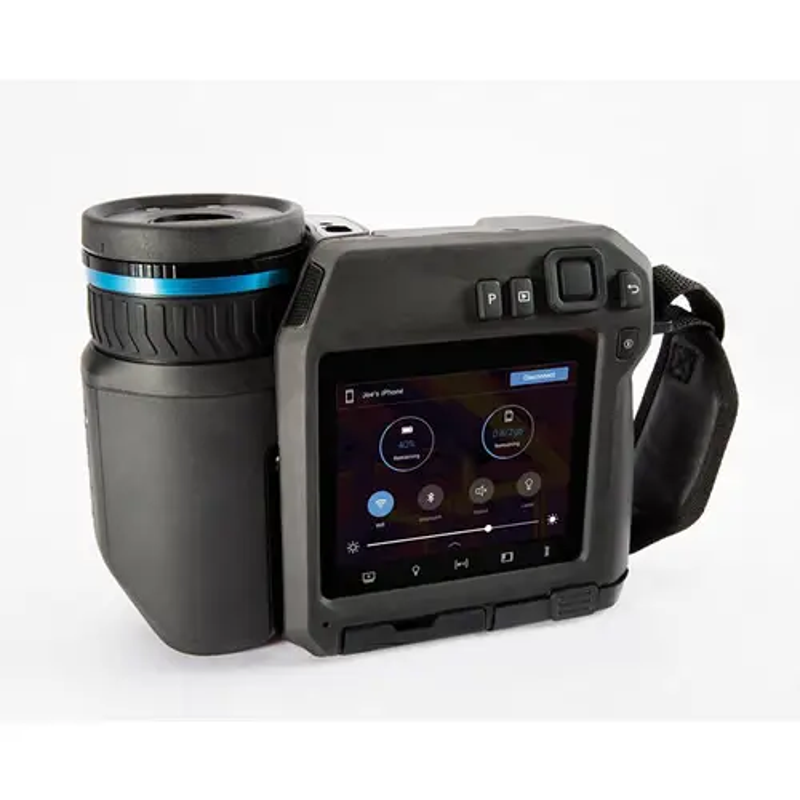

Intuitive Touch Controls
Access menus and settings quickly with a fast-responding touchscreen and two programmable buttons.
Enhanced Reporting Tools
Includes voice notes, text auto-fill, and image sketching for fast, accurate documentation.

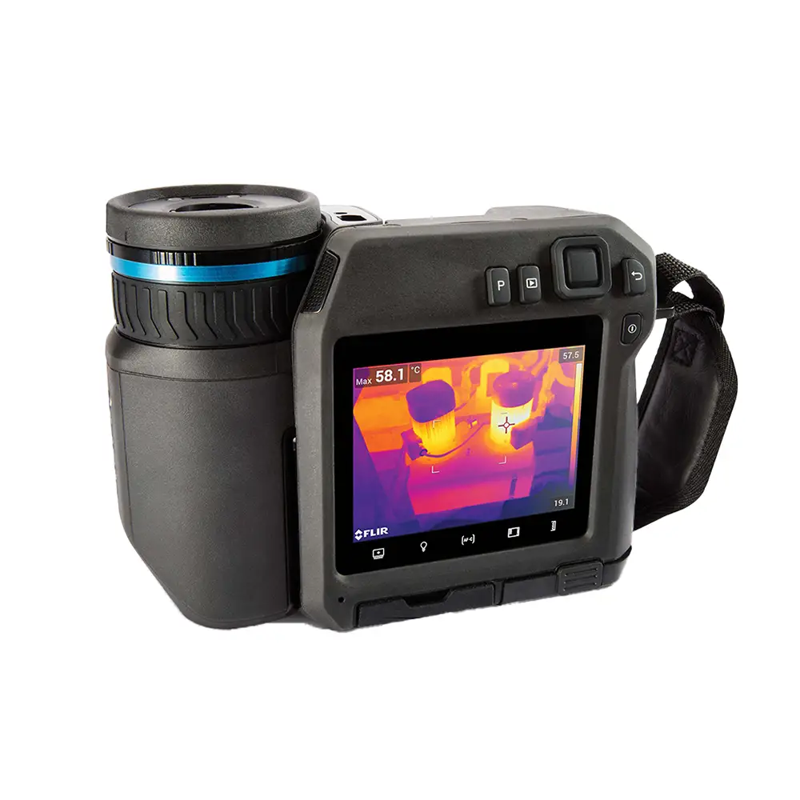

4-Inch Scratch-Resistant LCD
Bright, durable screen ensures visibility in harsh conditions.
What's Included
Included with Your Purchase:
- FLIR T540 Thermal Imaging Camera
- 14° and 42° AutoCal Lenses
- Battery Pack
- Battery Charger
- USB Cable
- Hard Transport Case
- Neck Strap
- FLIR Thermal Studio Software License (Optional)
Specifications
-
Infrared Resolution: 464 x 348
-
Temperature Range: -4 to 2732°F
-
Frame Rate: 30 Hz
-
Optical Zoom: 1–6x continuous zoom
-
Lenses Included: 14° and 42° AutoCal
-
Autofocus: Laser-assisted
-
Display: 4-inch scratch-resistant LCD
-
Image Processing: MSX, UltraMax, adaptive filtering
-
Data Points Captured: 161,472 non-contact points
-
Distance Measurement: Laser distance and on-screen area calculation
-
Connectivity: USB, METERLiNK, GPS
-
User Controls: Touchscreen + 2 programmable buttons
-
Software Support: Compatible with FLIR Thermal Studio
FAQ
Q: What is the resolution of the Teledyne FLIR T540?
A: The camera offers a resolution of 464 x 348 for high-detail thermal imaging.
Q: Does the T540 come with multiple lenses?
A: Yes, it includes both 14° and 42° AutoCal lenses for wide and narrow field applications.
Q: How does UltraMax enhance image quality?
A: UltraMax combines 16 thermal frames to quadruple the pixel count and reduce noise, resulting in sharper, more accurate thermal images.
Q: Can I use lenses from other FLIR cameras with the T540?
A: Yes, AutoCal lenses are intelligently designed to be compatible across different FLIR camera models.
