Truckmount suction without a gas engine.
Three LX vacuums (350 CFM), a 1,000 PSI pump and 250' hose runs, powered by a 230 V generator.
Three Mytee LX vacuum motors deliver the airflow and lift for long hose runs.
350 CFM airflow

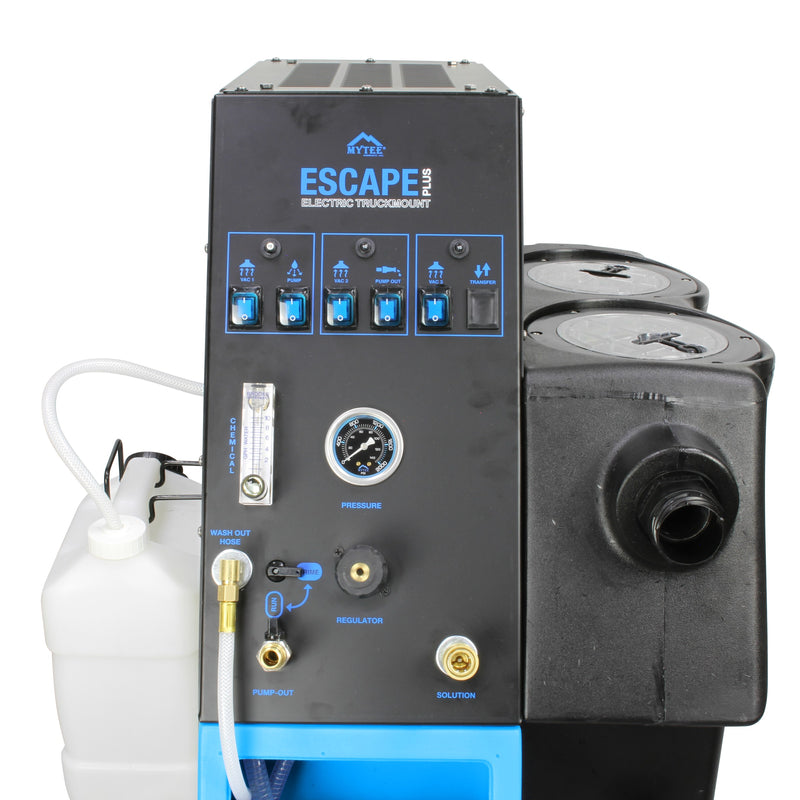

A 1,200 PSI piston pump, regulated to 1,000 PSI, delivers 2.2 GPM.
1,000 PSI regulated
Auto-fill, a 3.5 GPM pump-out and chemical injection come standard.
12 gal tanks
What it is

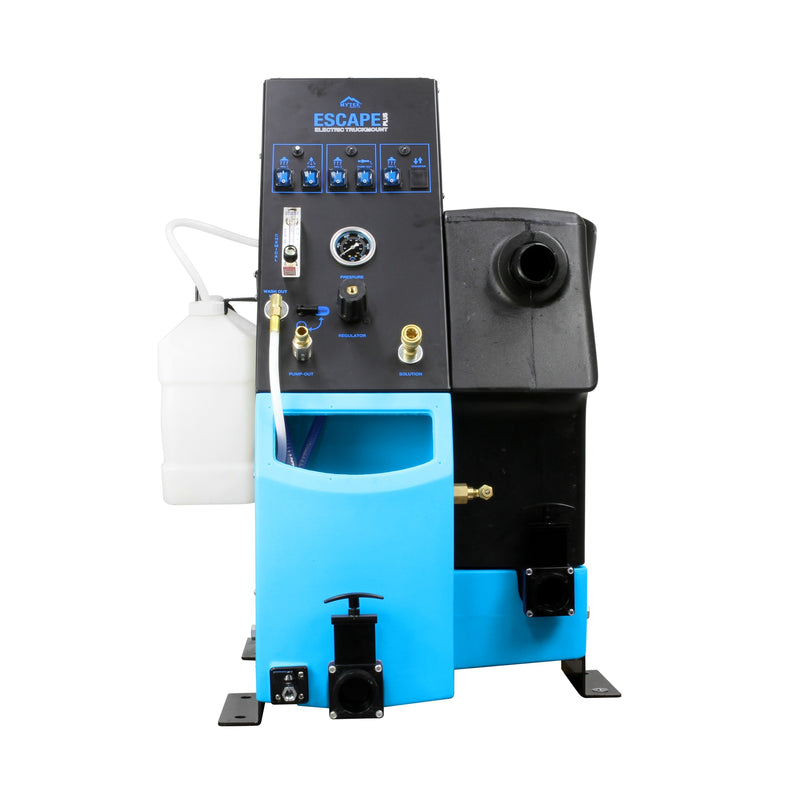

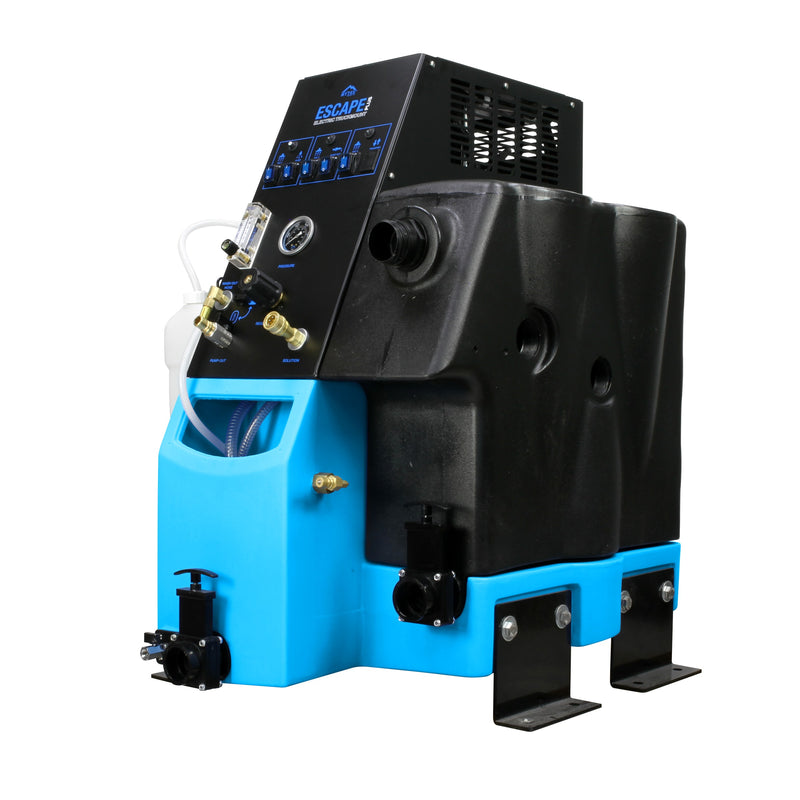

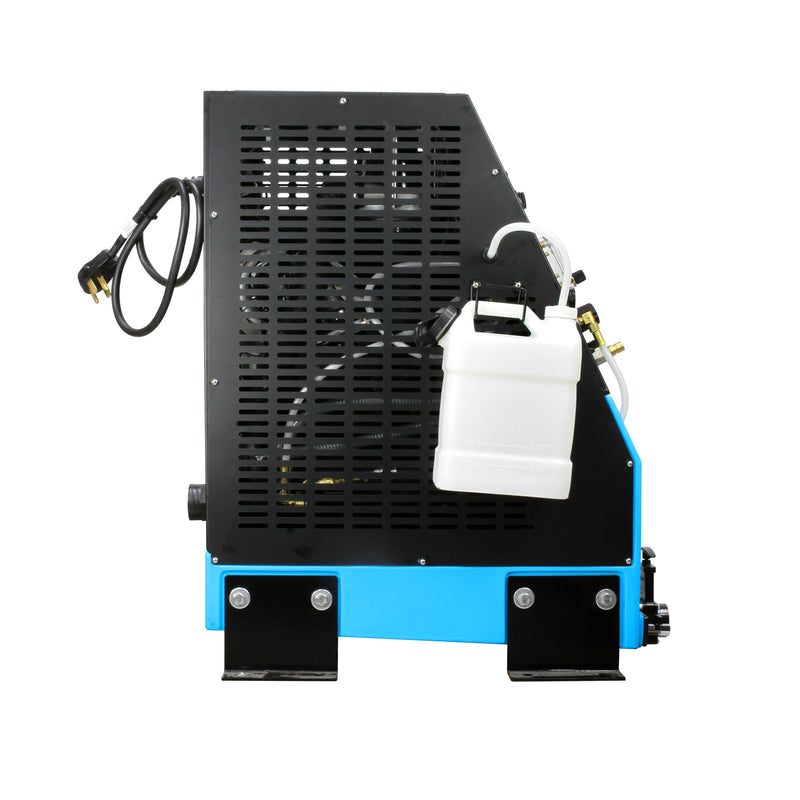

The Mytee ETM-LX-PLUS Escape Plus is an electric truckmount carpet extractor for residential and commercial carpet cleaning, hard-surface extraction and tile and grout cleaning. Three Mytee LX vacuum motors produce 350 CFM and about 17.5 in. Hg, enough to run up to 250' of hose, and a 1,200 PSI piston pump regulated to 1,000 PSI delivers 2.2 GPM.
Tanks and chemicals

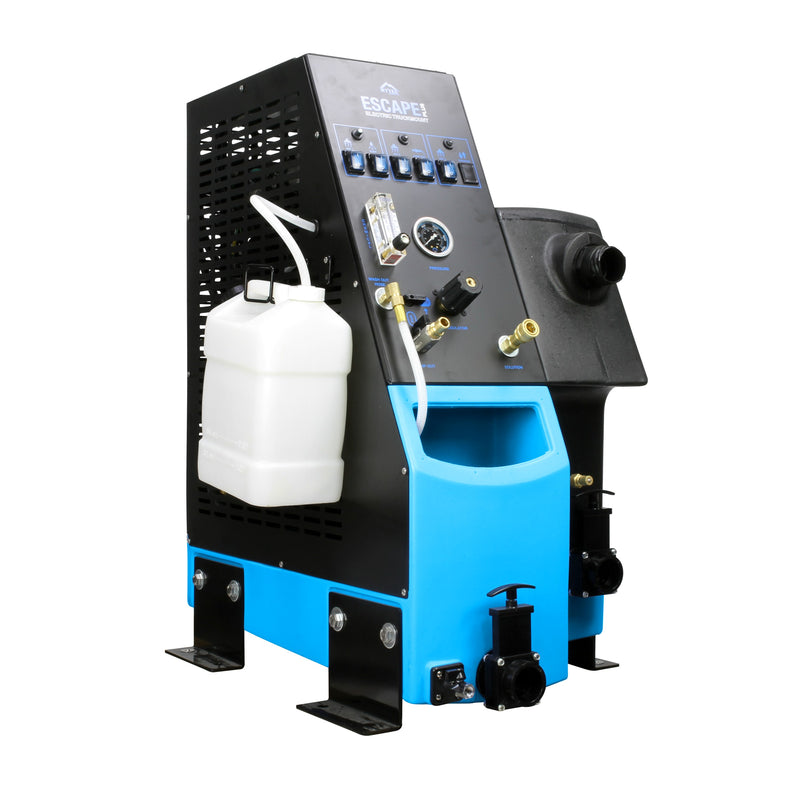

Its 12-gallon solution and recovery tanks work with auto-fill from a garden hose, an automatic pump-out at 3.5 GPM and on-board chemical injection from the included 7-quart bottle. The included F200 Lint Hog in-line filter catches debris before it reaches the vacuums. Extra 7-quart bottles come in the PAK4-7 four-pack.
Installation and power
Installation is simple: bolt it to the van floor and plug it into a generator. It runs on a single 5' 4-prong power cable with an adapter for generators (NEMA L14-30P) and draws 30 A at 230 V. Mytee lists a minimum running wattage of 8,625 watts and recommends 12,000 watts. With no engine or power take-off, there is very little to maintain. It weighs 190 lb and measures 37" x 25.5" x 38.5".
Heat and tools
It is unheated; for hot water, a Mytee Hot Turbo heater such as the 240-120 or 480-120 can run in the solution line. Mytee recommends the TREX-JR-115 T-Rex Jr. rotary extractor and the 8314SW Bentley Pro speed wand with it.
Warranty coverage
The ETM-LX-PLUS is covered by Mytee's warranty: 1 year parts and labor, 2 years on major components such as the pumps and vacuum motors, and 10 years on roto-molded tanks.
At a glance
-
Airflow350 CFM
-
Vacuum17.5 in. Hg
-
Pump1,000 PSI
-
Hose run250'
-
Tanks12 / 12 gal
-
Power30 A at 230 V
Three Mytee LX Vacuums
350 CFM and about 17.5 in. Hg, enough to run up to 250' of hose.
1,000 PSI Piston Pump
An adjustable 1,200 PSI pump regulated to 1,000 PSI, 2.2 GPM.
Auto-Fill and Pump-Out
Fills from a garden hose and pumps out at 3.5 GPM.
Chemical Injection
Siphons chemical from the included 7-quart bottle.
Lint Hog In-Line Filter
The included F200 catches debris before it reaches the vacuums.

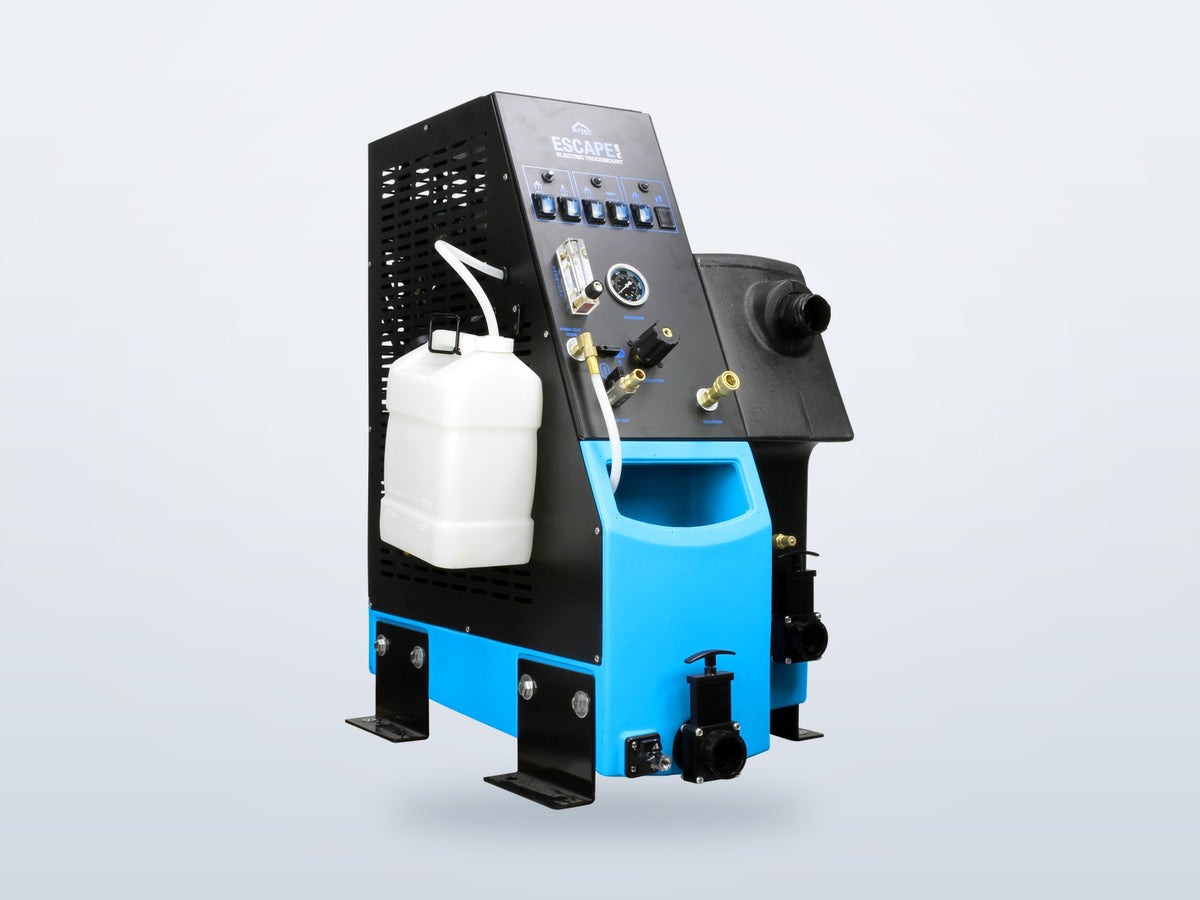

Bolt-In Installation
Bolt it to the van floor and plug it into a 230 V generator.
Low Maintenance
No engine or power take-off to service.
Performance
Vacuum MotorsThree Mytee LX, 350 CFM, approx. 17.5 in. Hg
Solution PumpAdjustable 1,200 PSI piston pump (regulated to 1,000 PSI), 2.2 GPM
Pump-Out3.5 GPM
AutomationAuto-fill, pump-out, chemical injection
HeaterNone (unheated)
Capacity
Solution Tank12 gal (45.4 L)
Recovery Tank12 gal (45.4 L)
Effective Hose RunUp to 250'
Electrical

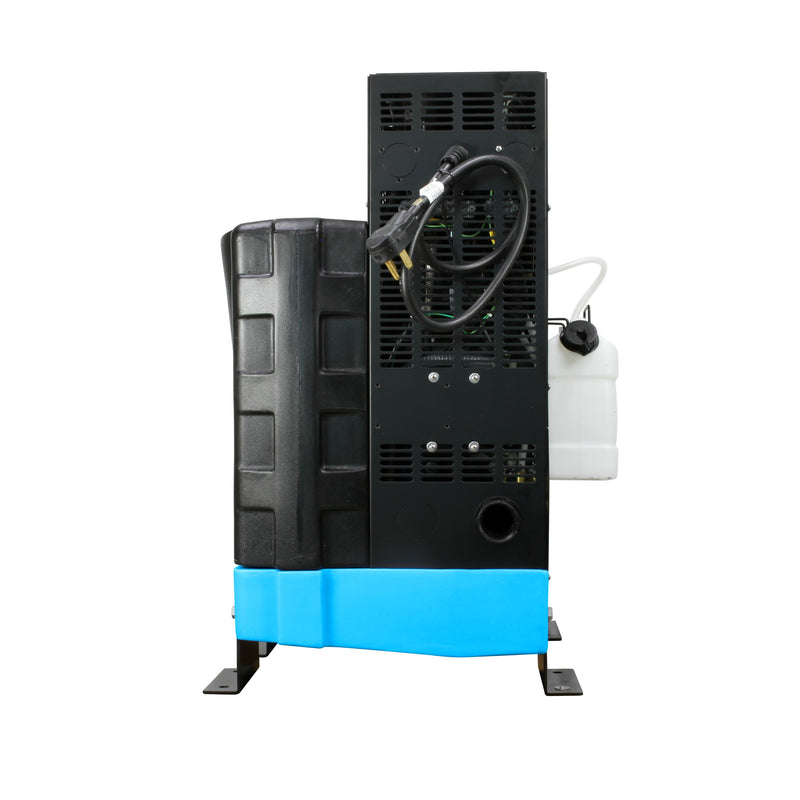

Power Cable5' 4-prong, with NEMA L14-30P generator adapter
Amp Draw30 A at 230 V
Generator8,625 watts minimum running, 12,000 watts recommended
Build
TanksRoto-molded polyethylene

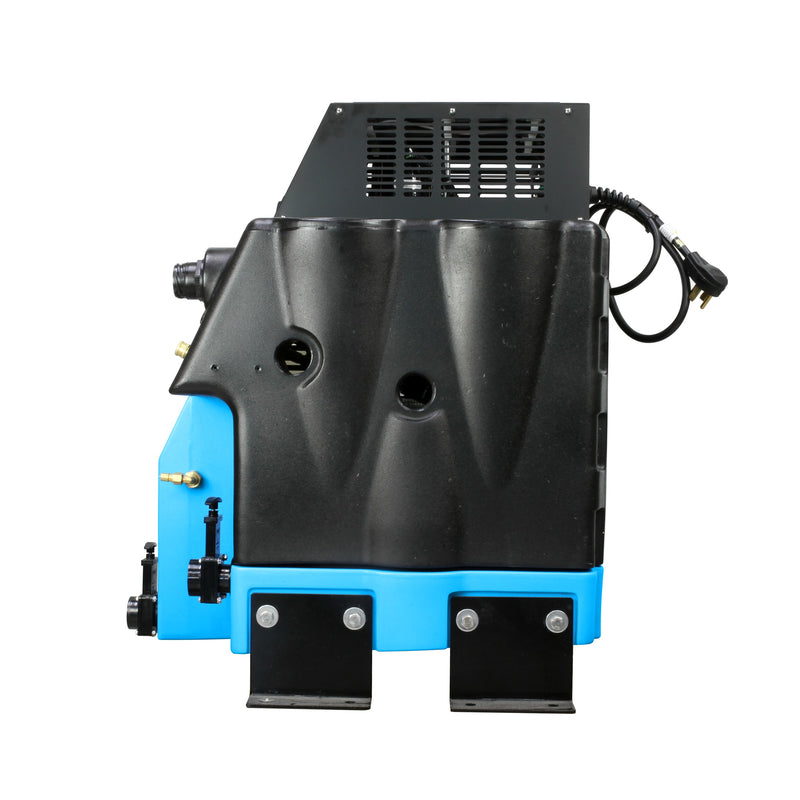

MountingBolts to the van floor
Dimensions37" x 25.5" x 38.5" (94 x 64.8 x 97.8 cm)
Weight190 lb (86.2 kg)
Model and use
Model No.ETM-LX-PLUS
SeriesEscape Plus
UsesResidential and commercial carpet cleaning, hard-surface extraction, tile and grout
In the box (6)
×1Mytee ETM-LX-PLUS Escape Plus electric truckmount
×1F200 Lint Hog in-line filter
×17-quart Big Mouth bottle (chemical injection)
×12" Cuff-Lynx connector
×1Auto-fill hose adapter
×1Power adapter for generators (NEMA L14-30P)
