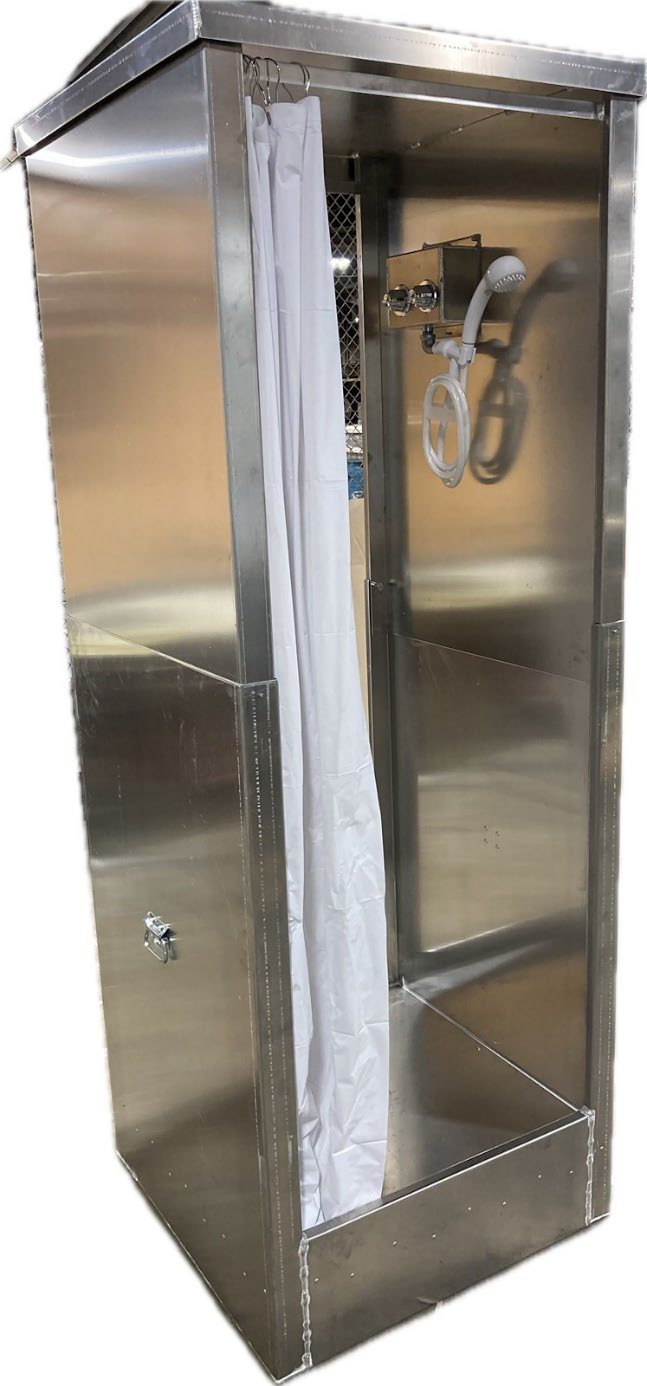

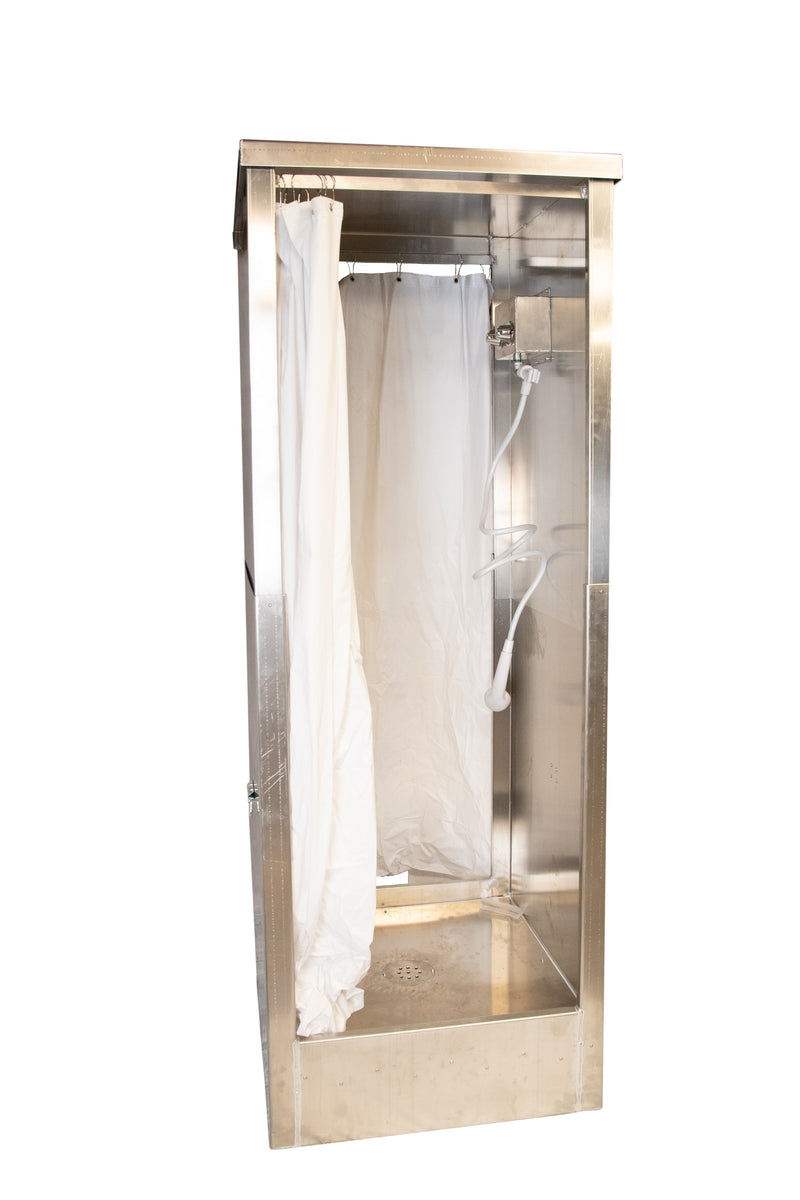

The Aerospace America 9105 Portable Decontamination Shower is a collapsible, telescoping aluminum shower stall for abatement decon lines. Pull the four spring-loaded corner pins and the upper section rises from its 48" collapsed height to a full 83" working height.
It arrives with the curtain installed, hot and cold fixtures, a detachable hand-held spray wand and a 27 gallon gray water holding tank that drains through a 100 micron sock filter. Pressurized hot and cold water connect at the back with standard garden hose fittings, and the tank pumps out through the Aerospace 9115 two-stage water filtration pump.
Features
Telescoping Collapsible Frame

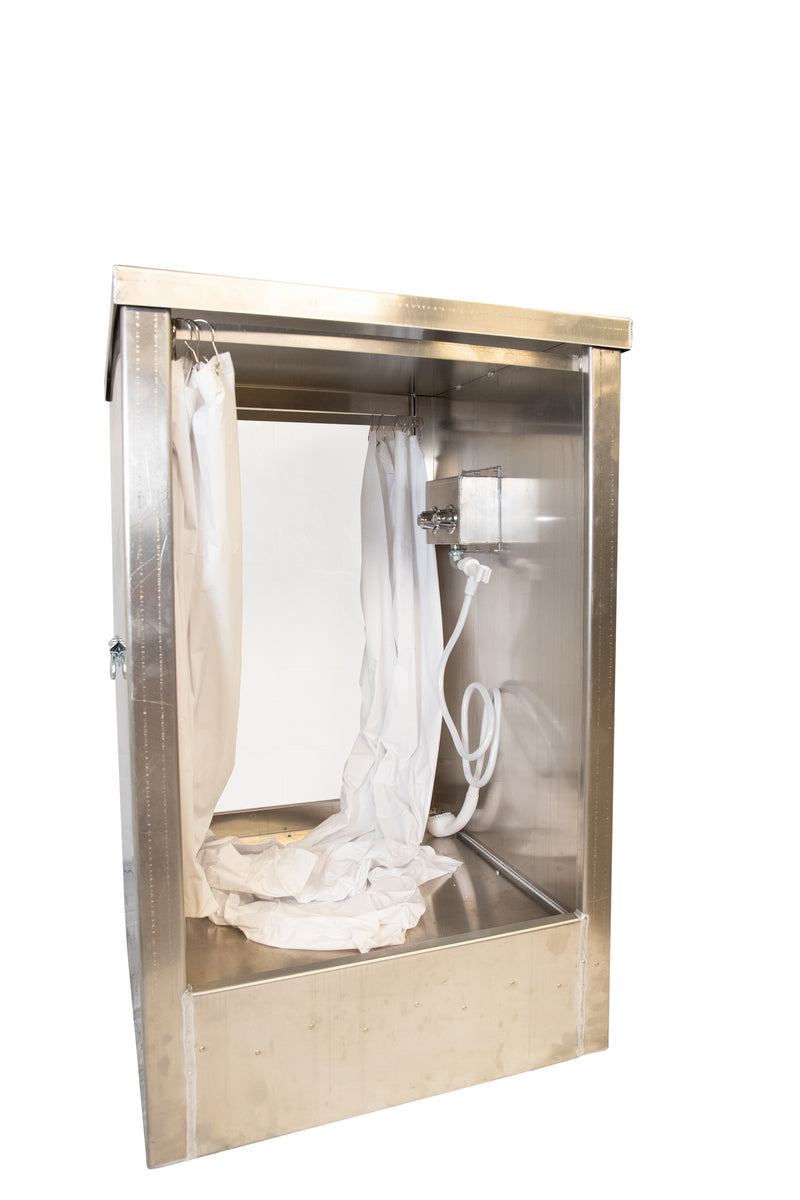

Four spring-loaded corner pins let the shower go from 48" collapsed to 83" working height.
Hot and Cold Fixtures

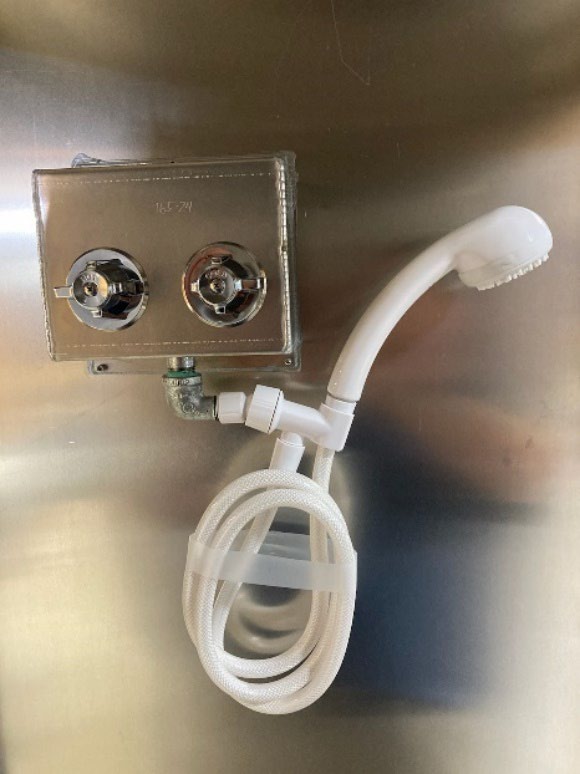

Standard hot and cold faucets feed a detachable hand-held spray wand.
27 Gallon Gray Water Tank
The basin holds 27 gallons of gray water for pumping out and filtering.
100 Micron Sock Filter

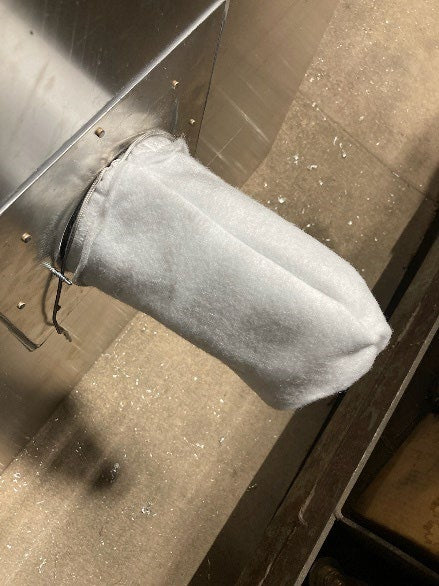

A sock filter on the drain catches debris before the water reaches the tank outlet.
Garden Hose Connections

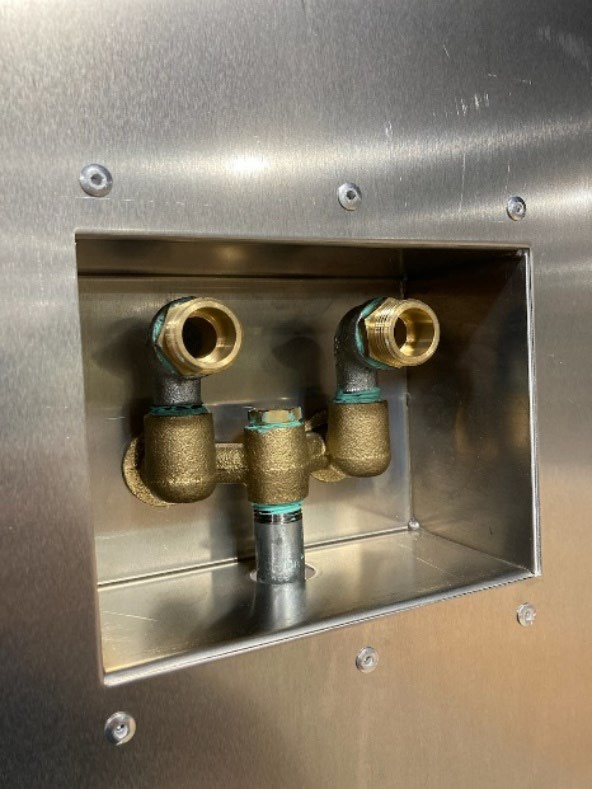

Pressurized hot and cold water connect at the back with standard garden hose fittings.
Aluminum Construction
Aircraft aluminum keeps the stall to 100 lbs, with lift handles for moving it.
Specifications
-
Model: 9105 Portable Decontamination Shower
-
Working Dimensions: 31" W x 83" H x 31" L
-
Collapsed Dimensions: 31" W x 48" H x 31" L
-
Gray Water Tank: 27 gal
-
Drain Filter: 100 micron sock filter (9105-01)
-
Fixtures: Hot and cold, with detachable hand-held spray wand
-
Water Connection: Standard garden hose, at the back
-
Construction: Aircraft aluminum
-
Weight: 100 lbs
What's Included
- 9105 Portable Decontamination Shower, assembled
- Shower curtain, installed
- Hot and cold fixtures with hand-held spray wand
- 100 micron sock filter, installed
- Specification sheet
Setup & Placement
Stand inside the shower, pull the four spring-loaded corner pins and raise the upper section until the pins click into place at full height. Connect pressurized hot and cold water to the back with standard garden hoses.
Pump the gray water basin out with the 9115 two-stage water filtration pump. Change the sock filter when flow into the basin slows; it sits under the floor, which is held by 8 sheet metal screws.
Resources
Shipping, Returns & Warranty
Shipping cost is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Aerospace America does not accept returns of units that have been used in the field, and it refuses any unit contaminated with hazardous or toxic material. Unused units in their original packaging can be returned within 21 days of delivery with a return authorization from us. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Special-order items can't be returned.
Aerospace America warrants its products to the original purchaser against defects in material and workmanship for 90 days, and will repair or replace any part that proves defective. Warranty service runs through a return authorization (RMA) number from Aerospace America. Products contaminated with hazardous material cannot be returned, and damage from misuse, accident or unauthorized repair is not covered.
About Aerospace America
Aerospace America, Inc. of Bay City, Michigan, has built air filtration and abatement equipment since 1981. Its Aeroclean HEPA air scrubbers are fabricated from aircraft-grade aluminum, and the range also covers collapsible decontamination showers, two-stage water filtration pumps and the replacement filters that keep them running.
The 9105 is the full-size Aerospace America decon shower. The 9106 Compact Portable Shower packs down to a case for stairs and confined spaces, and the 9115 and 9116 pumps filter the gray water.
