The Aerospace America 9115 Two Stage Water Filtration Pump empties a decontamination shower's gray water basin and filters the water on the way out. A 1/2 HP transfer pump moves 25 GPM through a 50 micron filter and then a 5 micron filter before it leaves through a standard garden hose.

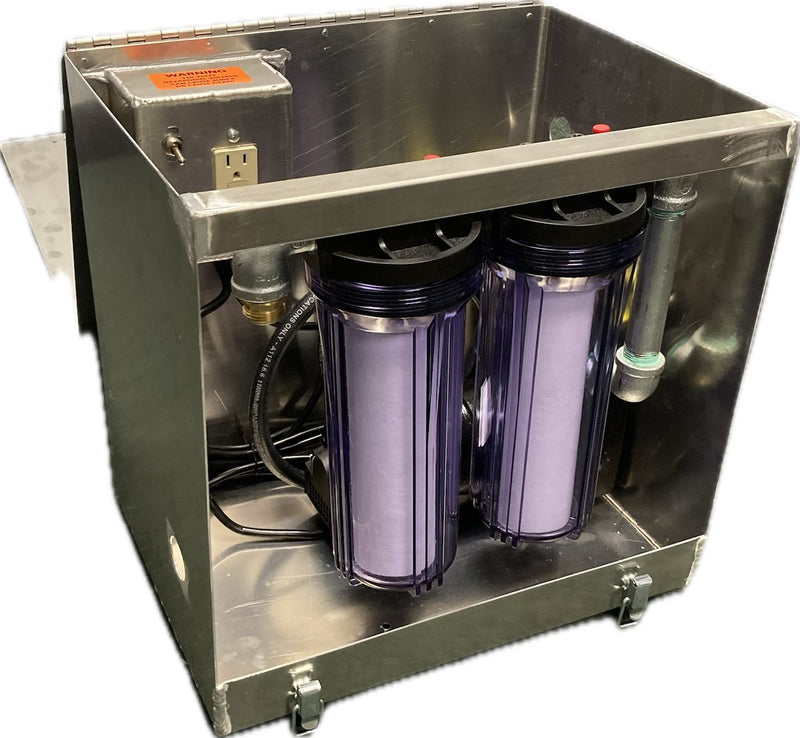

The pump, filters and GFI-protected power connection sit inside an enclosed high-strength aluminum case. It pairs with the Aerospace 9105 Portable Shower, and the filtered water can then be sent to the sanitary sewer system where local rules allow.
Features
25 GPM Transfer Pump
A 1/2 HP transfer pump empties the gray water basin at 25 GPM.

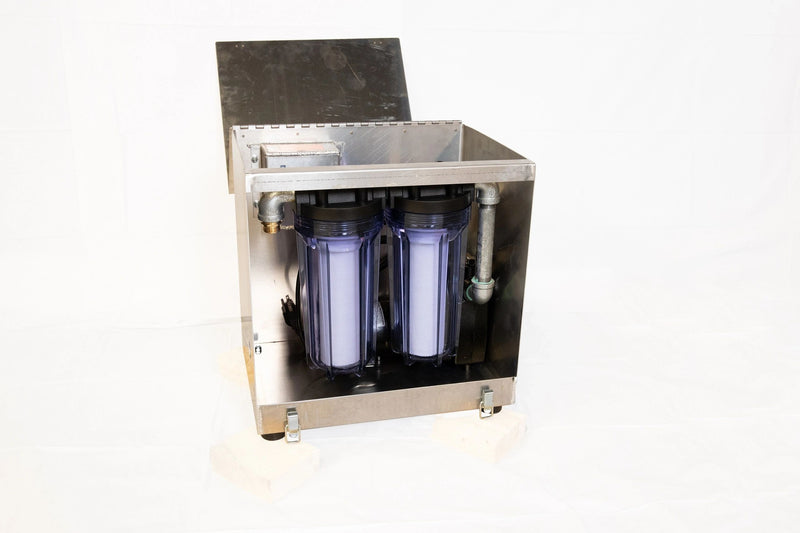

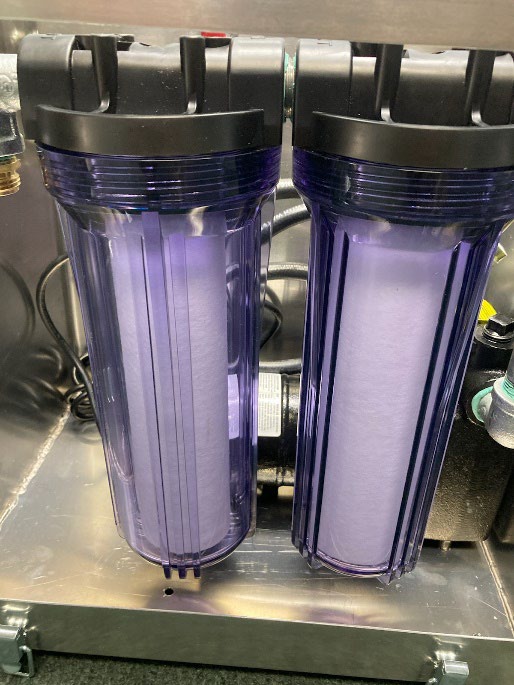

Two-Stage Filtration
Water passes a 50 micron filter and then a 5 micron filter, both 10" long x 2-3/4" cartridges.

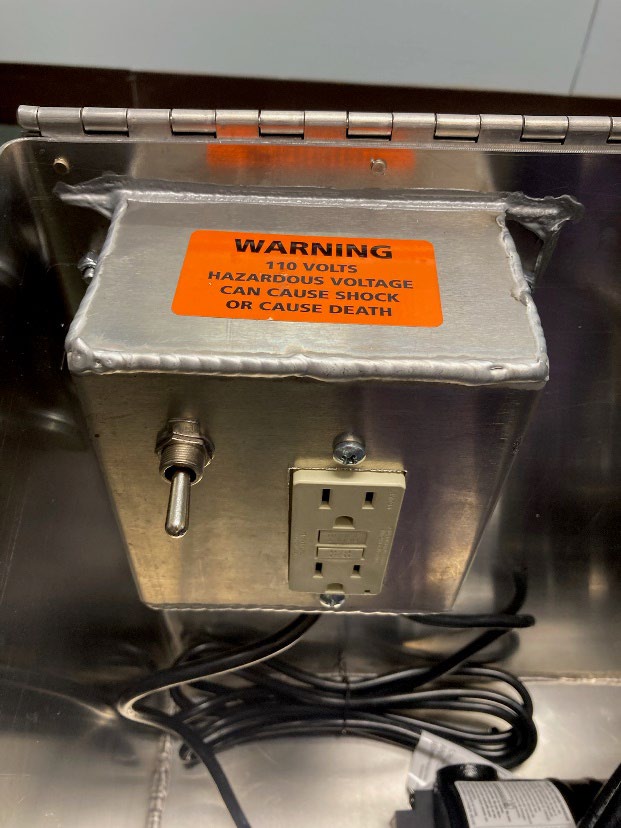

GFI Protection
The 115 V power connection is GFI protected, with an on/off switch on the case.
Garden Hose Connections
Intake and outlet take standard garden hoses; discharge reaches 25' by standard hose.

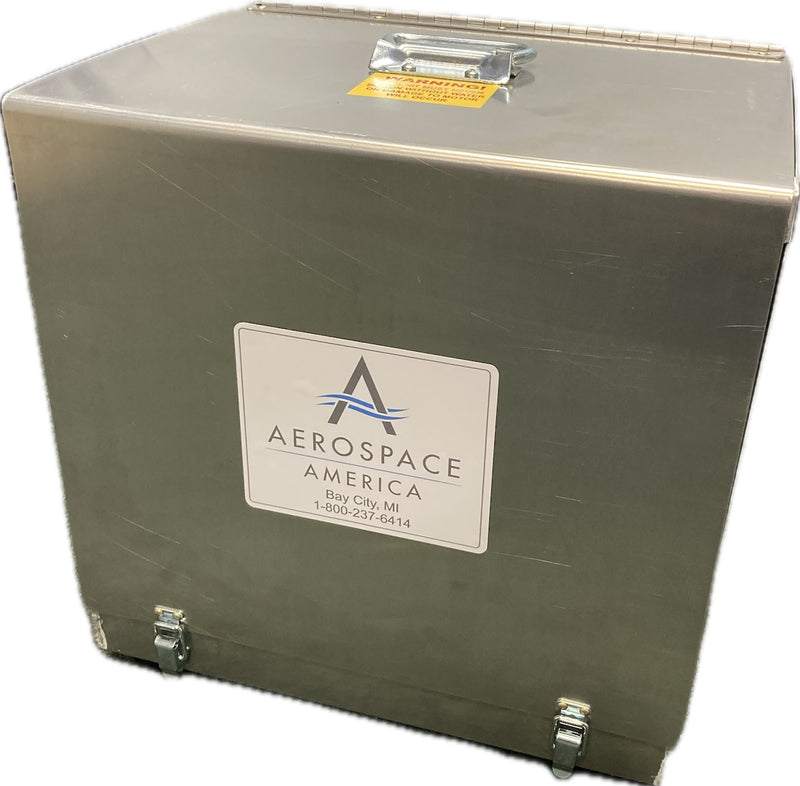

Enclosed Aluminum Case
The high-strength aluminum case protects the pump and filter housings, at 38 lbs.
Made in the U.S.A.
Aerospace America builds it in Bay City, Michigan.
Specifications
-
Model: 9115 Two Stage Water Filtration Pump
-
Pumping Capacity: 25 GPM
-
Power: 115 V, 8.5 amps, GFI protected
-
Motor: 1/2 HP transfer pump
-
Filters: 1st stage 50 micron (9115-01), 2nd stage 5 micron (9115-02); 10" long x 2-3/4" cartridges
-
Connections: Garden hose
-
Maximum Discharge: 25' by standard hose
-
Dimensions: 17" W x 14" L x 17" H
-
Weight: 38 lbs
What's Included
- 9115 Two Stage Water Filtration Pump in its aluminum case
- 50 micron and 5 micron filter cartridges, installed
- Transfer pump manual
- Specification sheet
Setup & Placement

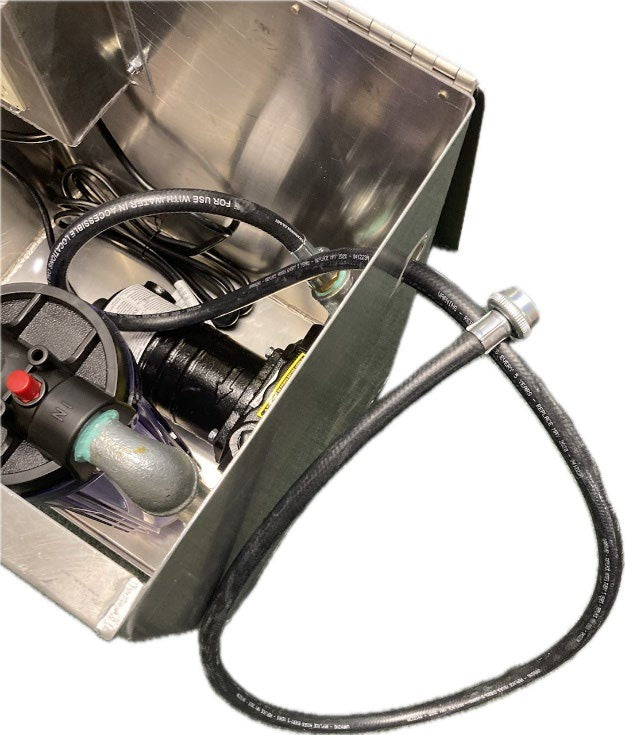

Connect the hose from the shower basin to the pump intake and run a standard garden hose from the outlet after the second filter. The 9115 must be primed before starting; follow the transfer pump manual that ships with it.
The pump is not submersible: keep the motor dry, plug it into a grounded outlet, and pump water only, never flammable or explosive liquids.
Resources
Shipping, Returns & Warranty
Shipping cost is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Aerospace America does not accept returns of units that have been used in the field, and it refuses any unit contaminated with hazardous or toxic material. Unused units in their original packaging can be returned within 21 days of delivery with a return authorization from us. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Special-order items can't be returned.
Aerospace America warrants its products to the original purchaser against defects in material and workmanship for 90 days, and will repair or replace any part that proves defective. Warranty service runs through a return authorization (RMA) number from Aerospace America. Products contaminated with hazardous material cannot be returned, and damage from misuse, accident or unauthorized repair is not covered.
About Aerospace America
Aerospace America, Inc. of Bay City, Michigan, has built air filtration and abatement equipment since 1981. Its Aeroclean HEPA air scrubbers are fabricated from aircraft-grade aluminum, and the range also covers collapsible decontamination showers, two-stage water filtration pumps and the replacement filters that keep them running.
The 9115 is the full-size Aerospace America water filtration pump. The 9116 Compact Pump uses the same filters at 6 GPM in a 22 lb case, and both pair with the 9105 and 9106 decon showers.
