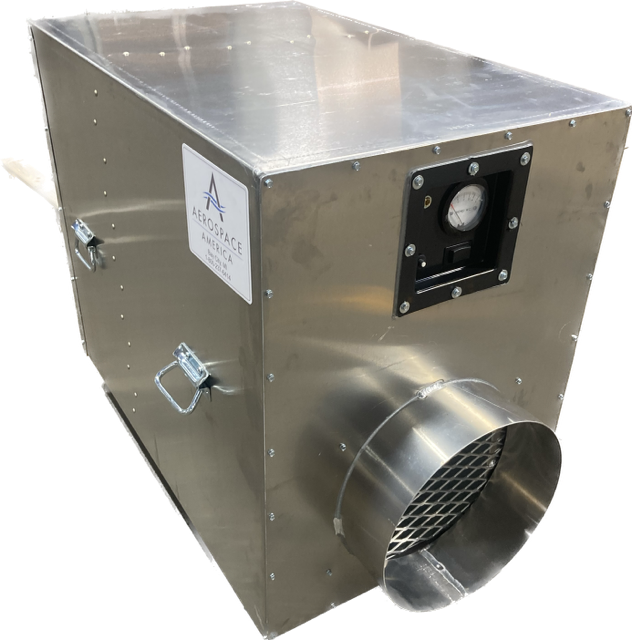

The Aerospace America Aeroclean 1900 Magnum is a 1900 CFM HEPA air scrubber in a 20" wide aluminum cabinet. Its 1 HP two-speed thermally protected motor drives an AMCA-rated direct-drive blower to 1900 CFM on high and 1200 CFM on low at 1.8" running static pressure.
The Magnum runs 24" x 18" filters in a cabinet 6" narrower than the 2000 CFM class units, which suits crews who want near full-size airflow in a footprint that clears more doorways. Four handles and four casters move it around the site.
Features
Two Airflow Settings
The rocker switch selects 1900 CFM on high or 1200 CFM on low.

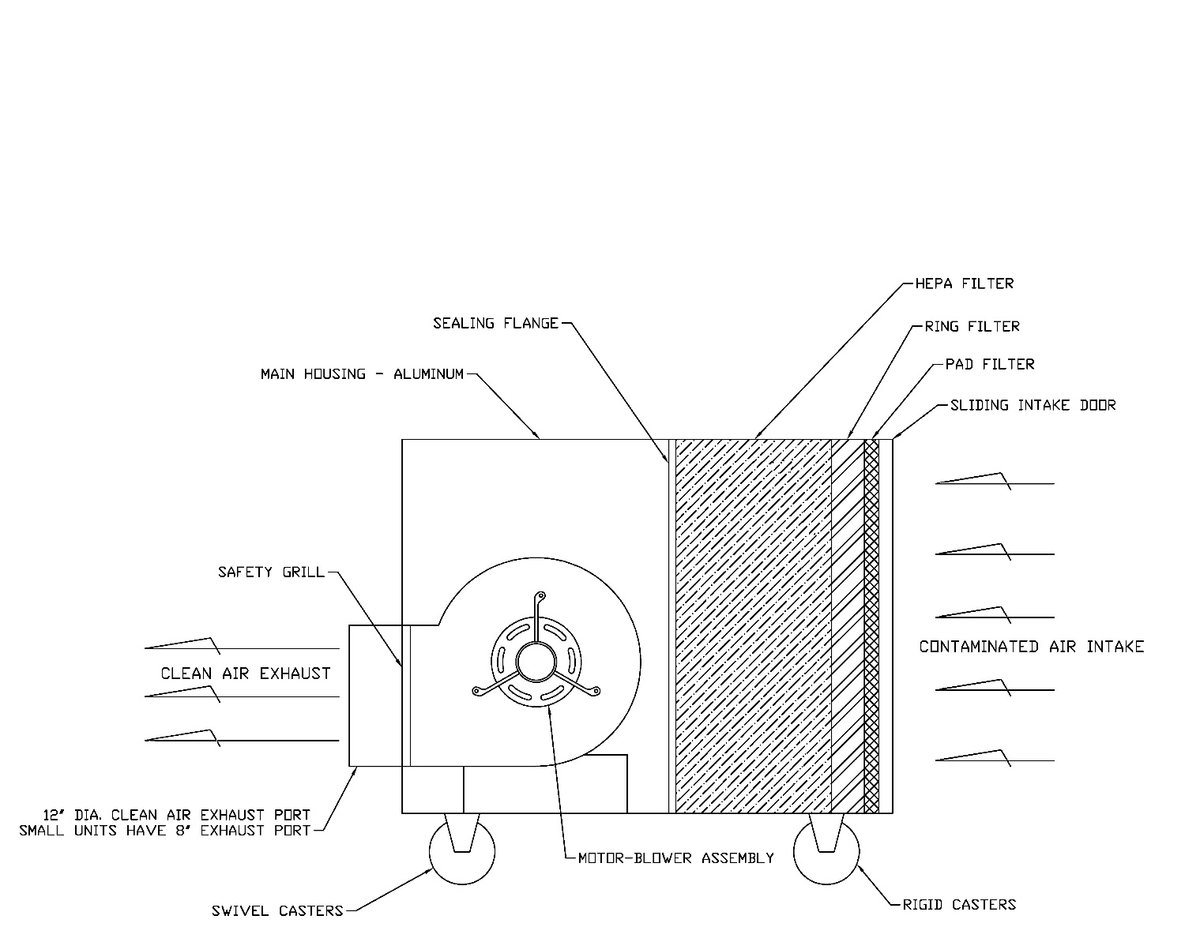

Three-Stage 24" x 18" Filtration
A pad pre-filter and a ring panel protect the 24" x 18" HEPA filter.
20" Wide Cabinet
At 20" W x 26" H x 33" L, it is 6" narrower than the full-size Aeroclean cabinets.
Gauge, Breaker and Switch
A differential pressure gauge, push-button circuit breaker and two-speed rocker switch sit on the panel.
Casters and Handles
Two swivel and two rigid casters and four handles move the aluminum cabinet.
Made in the U.S.A.
Aerospace America builds it in Bay City, Michigan.
Specifications
-
Model: Aeroclean 1900 Magnum
-
Airflow: 1900 CFM high, 1200 CFM low (1.8" running static pressure)
-
Power: 115 V, 9.4 running amps
-
Motor: 1 HP two-speed, thermal protected
-
Blower: Direct drive, AMCA rated
-
Filters: 24" x 18" pre-filter, 24" x 18" ring panel, 24" x 18" HEPA filter
-
Controls: differential pressure gauge, push-button circuit breaker, two-speed rocker switch
-
Casters: 2 swivel, 2 rigid
-
Handles: 4
-
Dimensions: 20" W x 26" H x 33" L
-
Weight: 97 lbs
What's Included
- Aeroclean 1900 Magnum air scrubber
- 24" x 18" pre-filter, ring panel and HEPA filter installed
Setup & Placement
Roll the Magnum into the work area and set it where it can draw from the space, or duct its exhaust out of the containment for negative air. Select high or low, then check the gauge and the pre-filters regularly.
Use a grounded 12 gauge or heavier extension cord no longer than 100', plugged straight into the power source.
Resources
Shipping, Returns & Warranty
Shipping cost is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Aerospace America does not accept returns of units that have been used in the field, and it refuses any unit contaminated with hazardous or toxic material. Unused units in their original packaging can be returned within 21 days of delivery with a return authorization from us. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Special-order items can't be returned.
Aerospace America warrants its products to the original purchaser against defects in material and workmanship for 90 days, and will repair or replace any part that proves defective. Warranty service runs through a return authorization (RMA) number from Aerospace America. Products contaminated with hazardous material cannot be returned, and damage from misuse, accident or unauthorized repair is not covered.
About Aerospace America
Aerospace America, Inc. of Bay City, Michigan, has built air filtration and abatement equipment since 1981. Its Aeroclean HEPA air scrubbers are fabricated from aircraft-grade aluminum, and the range also covers collapsible decontamination showers, two-stage water filtration pumps and the replacement filters that keep them running.
The 1900 Magnum sits between the slim Mighty Mite 9180 and the full-size ECONO 9143. All three run 1 HP two-speed motors; the difference is cabinet width and filter size.
