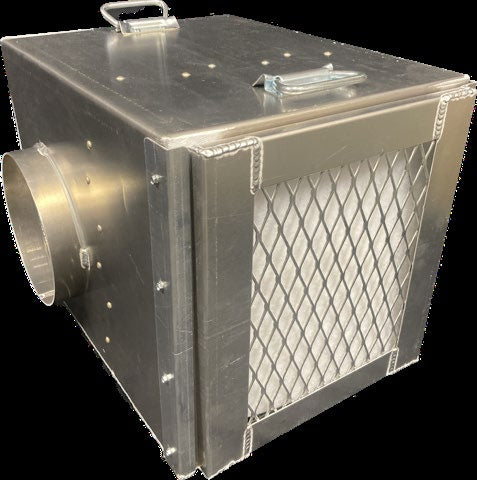

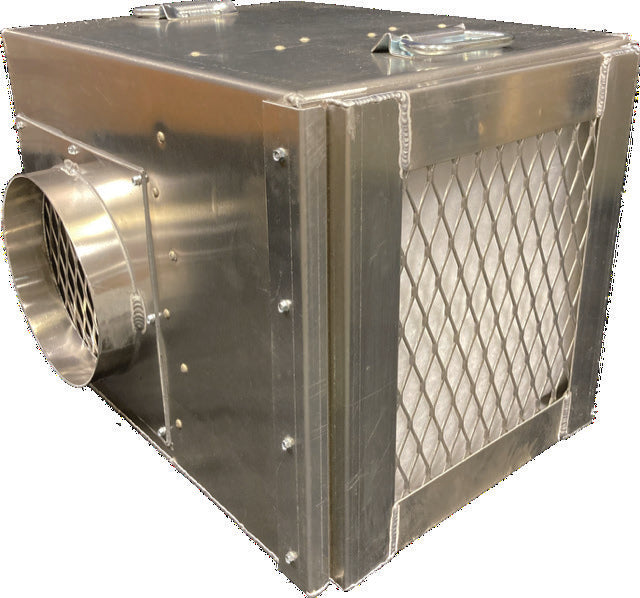

The Aerospace America Aeroclean 600EV 9160 is a 32 lb variable-speed HEPA air scrubber and negative air unit that draws only 1.67 amps on 110 V. A 1/2 HP motor and a quiet centrifugal fan let the crew set the airflow anywhere up to full speed.
The 600EV suits commercial, industrial and household work where a full-size unit is too big, too heavy or too loud, and its low amp draw leaves room on the circuit for other tools. Choose the Standard 9160 or the Full Feature 9160FF, which adds an alarm and red light when the HEPA filter is full.
Features

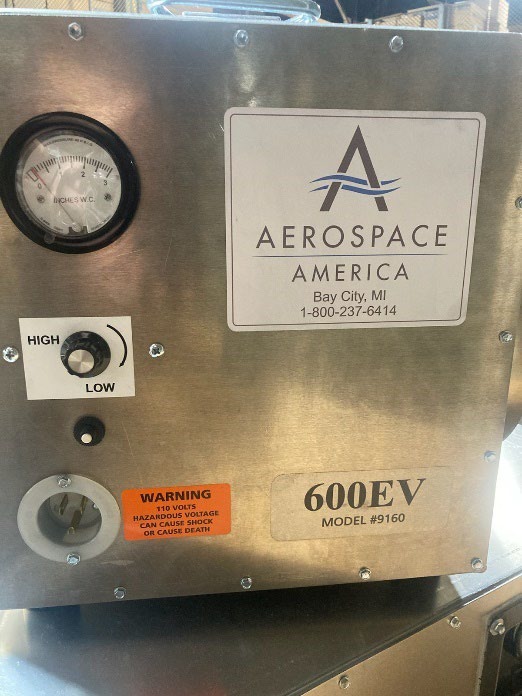

Variable Speed Dial
A speed control sets airflow anywhere across the range: up to 550 CFM (9160) or 600 CFM (9160FF).
Low 1.67 Amp Draw
High-efficiency 110 V operation at 1.67 amps leaves the circuit free for other equipment.
Quiet Centrifugal Fan
The Standard 9160 is rated 66 dB at 10' on high and 42 dB at 10' on low.

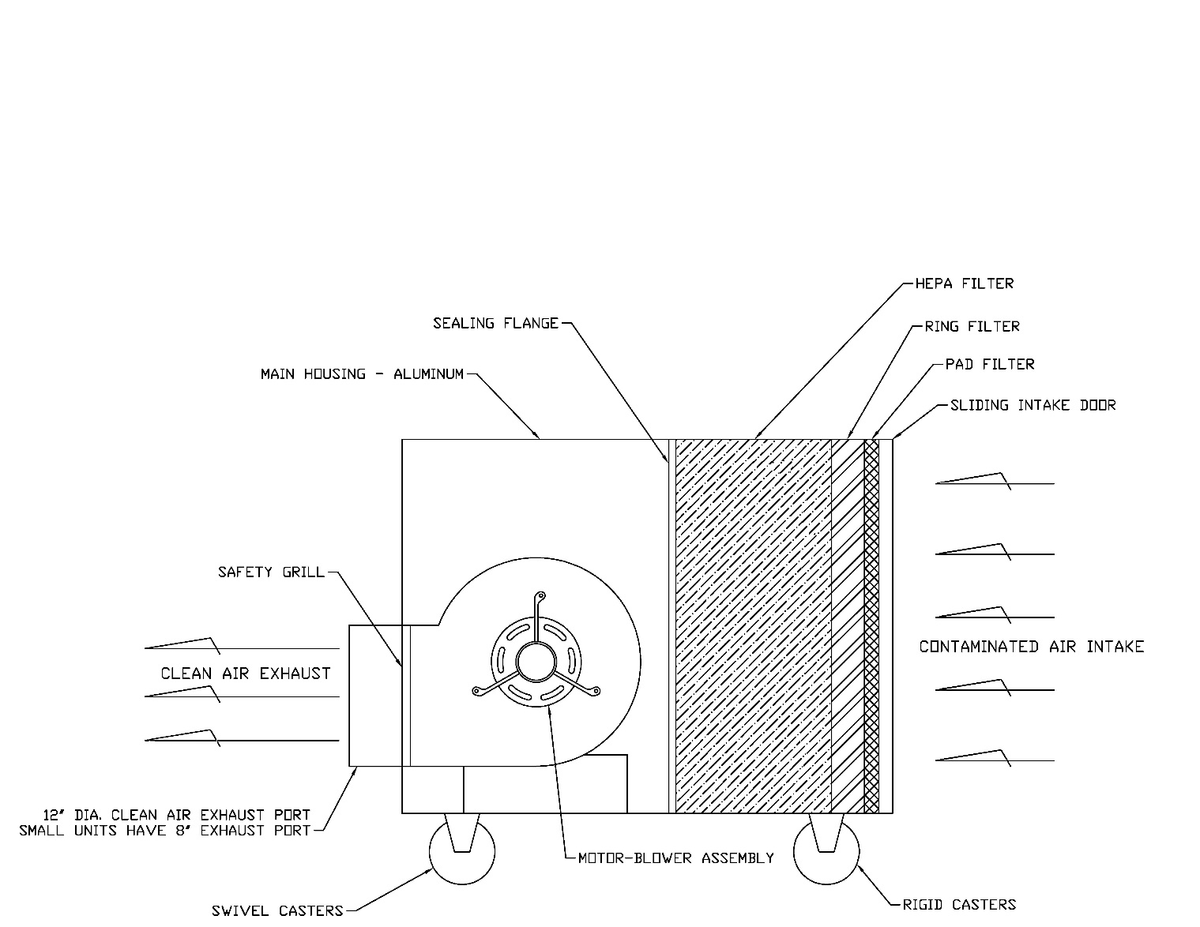

Three-Stage Filtration

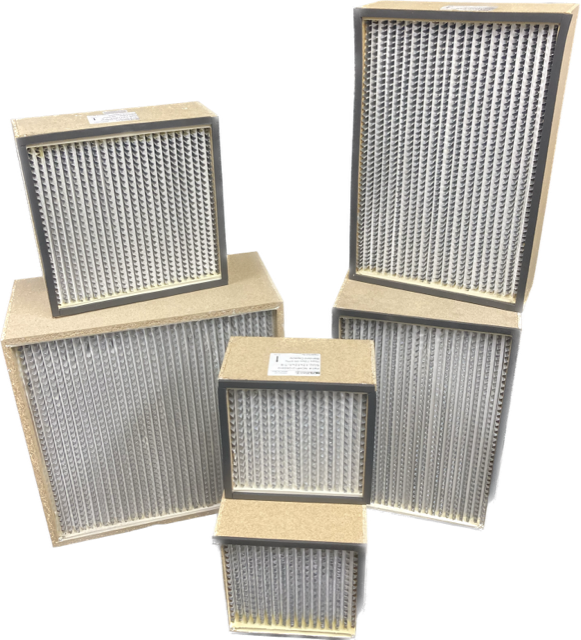

A pre-filter pad and a ring filter protect the 12" x 12" x 6" HEPA filter.
Pressure Gauge
A 0-3" differential pressure gauge reads about 1.9" at full speed with new filters; change filters at 2.4".
32 lb Aluminum Cabinet
The 14" W x 19" L x 15" T housing is light and compact.
Made in the U.S.A.
Aerospace America builds it in Bay City, Michigan.
Specifications
-
Model: Aeroclean 600EV 9160 (Standard) / 9160FF (Full Feature)
-
Airflow: Variable speed: 0-550 CFM (9160), 0-600 CFM (9160FF)
-
Power: 110 V, 1.67 amps
-
Motor: 1/2 HP
-
Blower: Centrifugal fan
-
Filters: Pre-filter (9150-01), ring filter (9150-02), 12" x 12" x 6" HEPA filter (9160-03)
-
Gauge: 0-3" differential pressure gauge; 1.9" at full speed with new filters, change filters at 2.4"
-
Full Feature Alarm: Alarm sounds and red light illuminates on HI when the HEPA filter is full (9160FF)
-

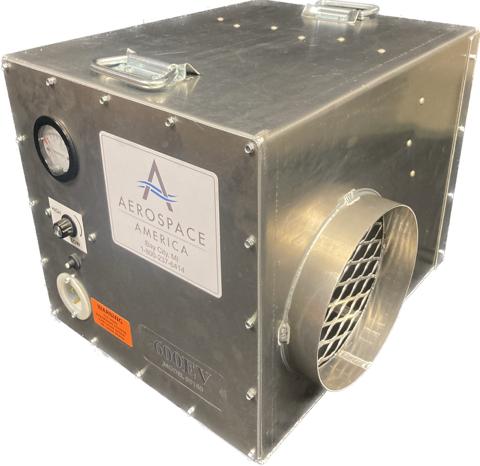

Exhaust: 8" side exhaust
-
Noise: 66 dB on high, 42 dB on low, at 10'
-
Dimensions: 14" W x 19" L x 15" T
-
Weight: 32 lbs
What's Included
- Aeroclean 600EV air scrubber in the package selected
- 12" x 12" pre-filter, ring filter and HEPA filter installed
Setup & Placement
Set the 600EV on a level surface in the work area, or connect 8" flex duct to the side exhaust and run it out of the containment for negative air. Start at full speed and turn the dial down once the air is clear.
With new filters the gauge reads about 1.9" at full speed. When it reaches 2.4", change the filters, starting with the pre-filter.
Resources
Shipping, Returns & Warranty
Shipping cost is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Aerospace America does not accept returns of units that have been used in the field, and it refuses any unit contaminated with hazardous or toxic material. Unused units in their original packaging can be returned within 21 days of delivery with a return authorization from us. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Special-order items can't be returned.
Aerospace America warrants its products to the original purchaser against defects in material and workmanship for 90 days, and will repair or replace any part that proves defective. Warranty service runs through a return authorization (RMA) number from Aerospace America. Products contaminated with hazardous material cannot be returned, and damage from misuse, accident or unauthorized repair is not covered.
About Aerospace America
Aerospace America, Inc. of Bay City, Michigan, has built air filtration and abatement equipment since 1981. Its Aeroclean HEPA air scrubbers are fabricated from aircraft-grade aluminum, and the range also covers collapsible decontamination showers, two-stage water filtration pumps and the replacement filters that keep them running.
At 32 lbs, the 600EV 9160 weighs less than any other Aeroclean. The 500 Variable 9150 shares its pre-filter and ring filter part numbers, and the 600 MAG 9145 and Aero 1000V step up to 16" x 16" filters and up to 1000 CFM.
