The Aerospace America Aeroclean 9169 is a HEPA air scrubber driven by compressed air instead of an electric motor. A 1.7 HP air motor runs an AMCA-rated direct-drive blower, and a pressure regulator on the front sets the airflow anywhere from 0 to 2000 CFM.
Aerospace America describes the 9169 as spark resistant and offers it for HEPA filtration where explosive vapors or materials are present, and the unit conforms to AMCA Standard 99-0401 Type C. It needs a compressed air supply at 100 PSI and takes the standard 24" x 24" filters.
Features
Compressed Air Drive
A 1.7 HP air motor runs on compressed air at 100 PSI instead of an electric motor and power cord.
Spark Resistant
Aerospace America rates the unit spark resistant, and it conforms to AMCA Standard 99-0401 Type C.
Variable 0-2000 CFM
Turning the front pressure regulator sets the blower speed anywhere in its range.
Inline Motor Oiler
A front-mounted lubricator feeds SAE 10W oil to the air motor and comes filled from the factory.
Two Gauges
An incoming air pressure gauge and a water column gauge sit on the panel.

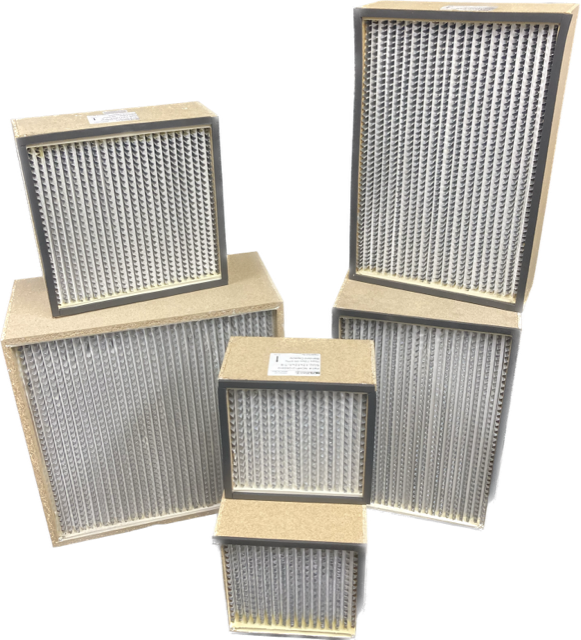

Standard 24" x 24" Filters
Takes the 2000-01 pad, 2000-02 ring filter and 2000-03 24" x 24" x 12" HEPA filter.
Made in the U.S.A.
Aerospace America builds it in Bay City, Michigan.
Specifications
-
Model: Aeroclean 9169 Pneumatic, Type C
-
Airflow: Variable, 0-2000 CFM
-
Drive: 1.7 HP air motor
-
Air Requirement: Compressed air at 100 PSI
-
Speed Adjustment: Pressure regulator on the front of the machine
-
Blower: 2000 CFM AMCA rated direct drive
-
Filters: 2000-01 24" x 24" pad pre-filter, 2000-02 24" x 24" ring filter, 2000-03 24" x 24" x 12" HEPA filter
-
Lubrication: Inline oiler, SAE 10W motor oil (prefilled)
-
Gauges: Pressure gauge and water column gauge
-
Standard: Conforms to AMCA Standard 99-0401 Type C
-
Exhaust: 12"
-
Casters: 4, 2 rigid and 2 swivel
-
Handles: 4
-
Dimensions: 26" x 26" x 32"
-
Weight: 119 lbs
-
Testing: DOP tested at the factory
What's Included
- Aeroclean 9169 pneumatic air scrubber with lubricator (prefilled with oil)
- 24" x 24" pad pre-filter, ring filter and HEPA filter installed
Setup & Placement
Connect a compressed air supply that can hold 100 PSI and adjust the pressure regulator on the front to set the speed. Check the oil level in the lubricator before each use and refill it with SAE 10W motor oil, high detergent or non-detergent, when it runs low.
The air consumption of the motor is not published, so confirm that your compressor can hold 100 PSI at full speed before relying on the full 2000 CFM. Duct the 12" exhaust out of the containment for negative air.
Resources
Shipping, Returns & Warranty
Shipping cost is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Aerospace America does not accept returns of units that have been used in the field, and it refuses any unit contaminated with hazardous or toxic material. Unused units in their original packaging can be returned within 21 days of delivery with a return authorization from us. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Special-order items can't be returned.
Aerospace America warrants its products to the original purchaser against defects in material and workmanship for 90 days, and will repair or replace any part that proves defective. Warranty service runs through a return authorization (RMA) number from Aerospace America. Products contaminated with hazardous material cannot be returned, and damage from misuse, accident or unauthorized repair is not covered.
About Aerospace America

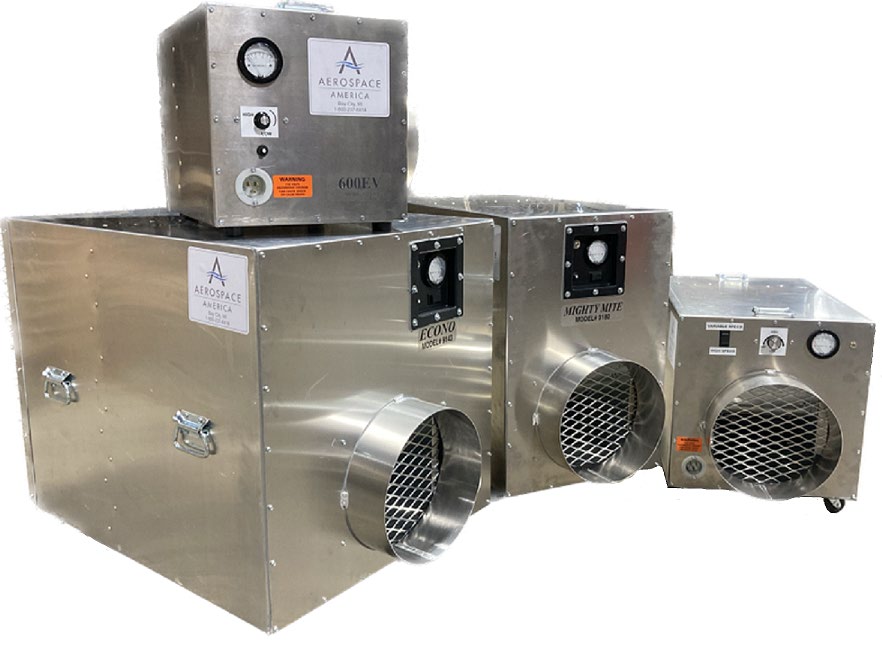

Aerospace America, Inc. of Bay City, Michigan, has built air filtration and abatement equipment since 1981. Its Aeroclean HEPA air scrubbers are fabricated from aircraft-grade aluminum, and the range also covers collapsible decontamination showers, two-stage water filtration pumps and the replacement filters that keep them running.
The 9169 is the compressed-air member of the Aeroclean range. The electric ECONO 9143, Turbo 9100 and Full Feature 9103 use the same 24" x 24" filters.
