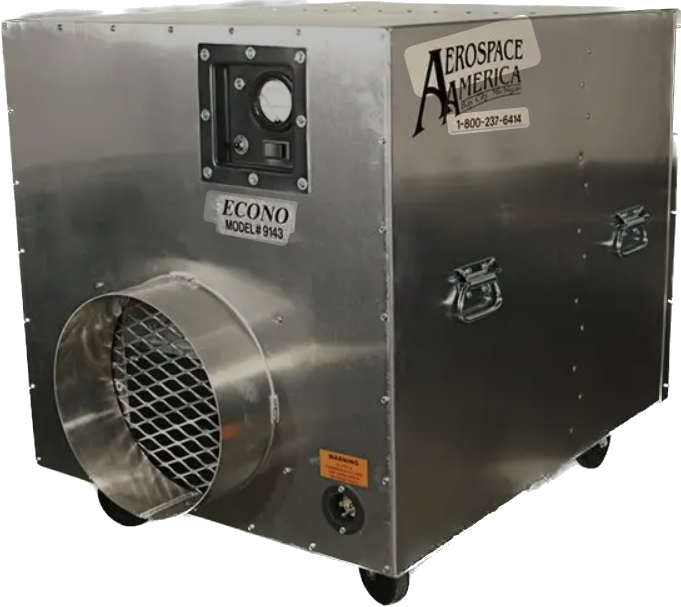

The Aerospace America Aeroclean ECONO 9143 is a two-speed HEPA air scrubber and negative air machine built around a 24" x 24" three-stage filter pack. Its 1 HP thermally protected motor drives a direct-drive blower to 1950 CFM on high and 1300 CFM on low at 1.9" running static pressure.
The ECONO is the cabinet Aerospace America first built in 1981, and it is still the straightforward choice for abatement and restoration crews who want a full-size 2000 CFM class unit without alarms or extras. The aluminum housing keeps it to 106 lbs on four casters, and a 12" exhaust takes standard flex duct for negative air.
Features
Two Airflow Settings
A rocker switch selects 1950 CFM on high or 1300 CFM on low, so one unit covers both a fast air change and a quieter overnight run.

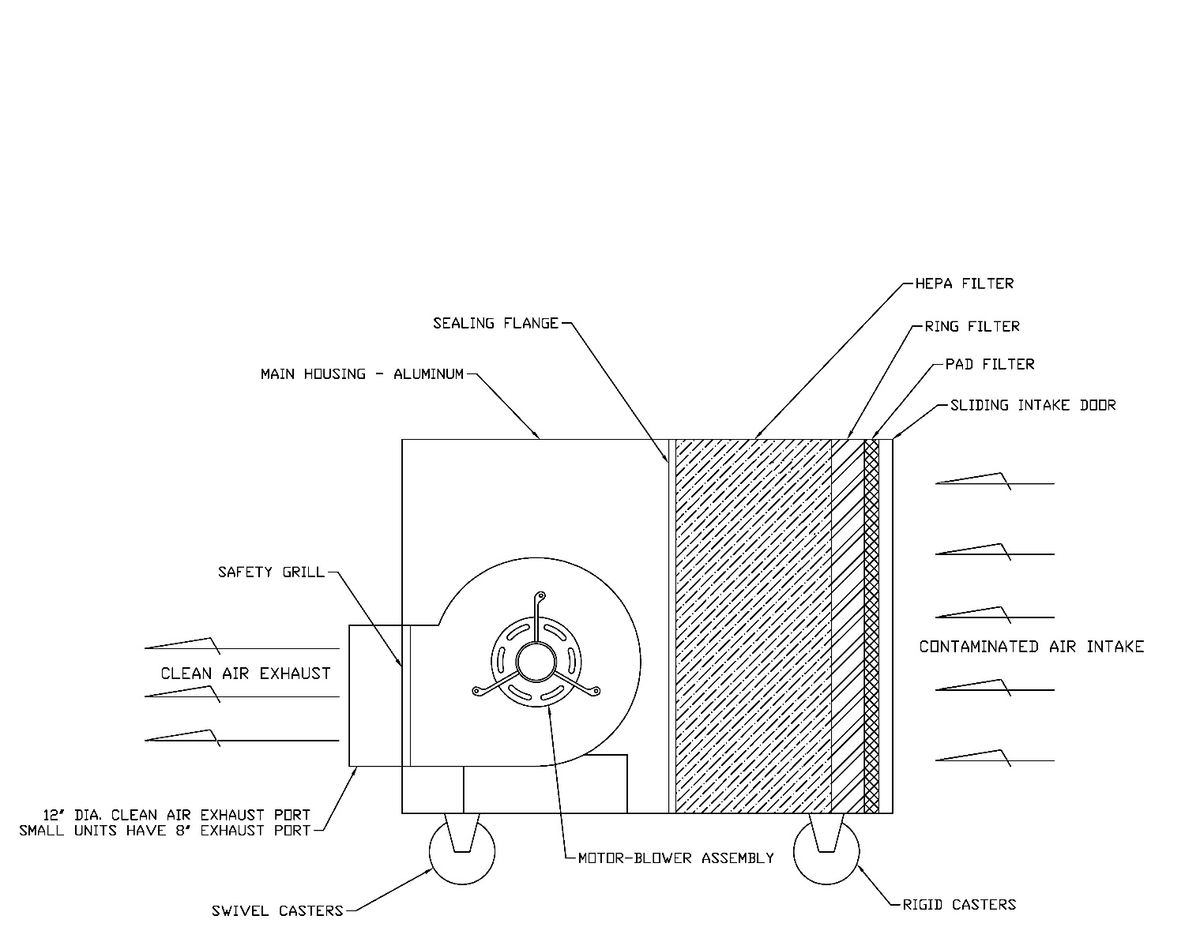

Three-Stage 24" x 24" Filtration
A pad pre-filter and a ring panel catch the bulk of the dust before air reaches the 24" x 24" HEPA filter.

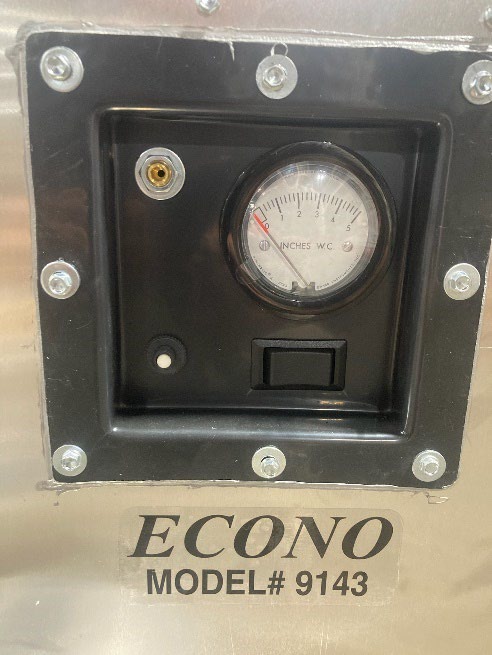

Pressure Gauge on the Panel
A differential pressure gauge shows filter loading at a glance, next to a push-button circuit breaker.
Aircraft-Grade Aluminum Cabinet
The aluminum housing holds weight down to 106 lbs, with four handles for lifting and loading.
Heavy-Duty Casters
Two swivel and two rigid casters roll the 26" x 26" x 33" cabinet across a job site.
Factory DOP Tested
Every Aerospace America unit is tested with dispersed oil particulate at the factory before it ships.
Made in the U.S.A.
Aerospace America builds it in Bay City, Michigan.
Specifications
-
Model: Aeroclean ECONO 9143
-
Airflow: 1950 CFM high, 1300 CFM low (1.9" running static pressure)
-
Power: 115 V, 9.4 running amps
-
Motor: 1 HP two-speed, thermal protected
-
Blower: Direct drive, AMCA rated
-
Filters: 24" x 24" pre-filter, 24" x 24" ring panel, 24" x 24" HEPA filter
-
Exhaust: 12"
-
Controls: differential pressure gauge, push-button circuit breaker, two-speed rocker switch
-
Casters: 2 swivel, 2 rigid, heavy duty
-
Handles: 4
-
Dimensions: 26" W x 26" H x 33" L
-
Weight: 106 lbs
-
Testing: DOP tested at the factory
What's Included
- Aeroclean ECONO 9143 air scrubber
- 24" x 24" pre-filter, ring panel and HEPA filter installed
Setup & Placement
Place the ECONO in an open area where it can exchange the room air, or run flex duct from the 12" exhaust out of the containment for negative air and secure it with duct tape or a wire tie. Select high or low on the rocker switch, then check the gauge and the filters regularly.
Use a grounded 12 gauge or heavier extension cord no longer than 100', and plug each unit directly into the power source rather than into another machine.
Resources
Shipping, Returns & Warranty
Shipping cost is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Aerospace America does not accept returns of units that have been used in the field, and it refuses any unit contaminated with hazardous or toxic material. Unused units in their original packaging can be returned within 21 days of delivery with a return authorization from us. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Special-order items can't be returned.
Aerospace America warrants its products to the original purchaser against defects in material and workmanship for 90 days, and will repair or replace any part that proves defective. Warranty service runs through a return authorization (RMA) number from Aerospace America. Products contaminated with hazardous material cannot be returned, and damage from misuse, accident or unauthorized repair is not covered.
About Aerospace America
Aerospace America, Inc. of Bay City, Michigan, has built air filtration and abatement equipment since 1981. Its Aeroclean HEPA air scrubbers are fabricated from aircraft-grade aluminum, and the range also covers collapsible decontamination showers, two-stage water filtration pumps and the replacement filters that keep them running.

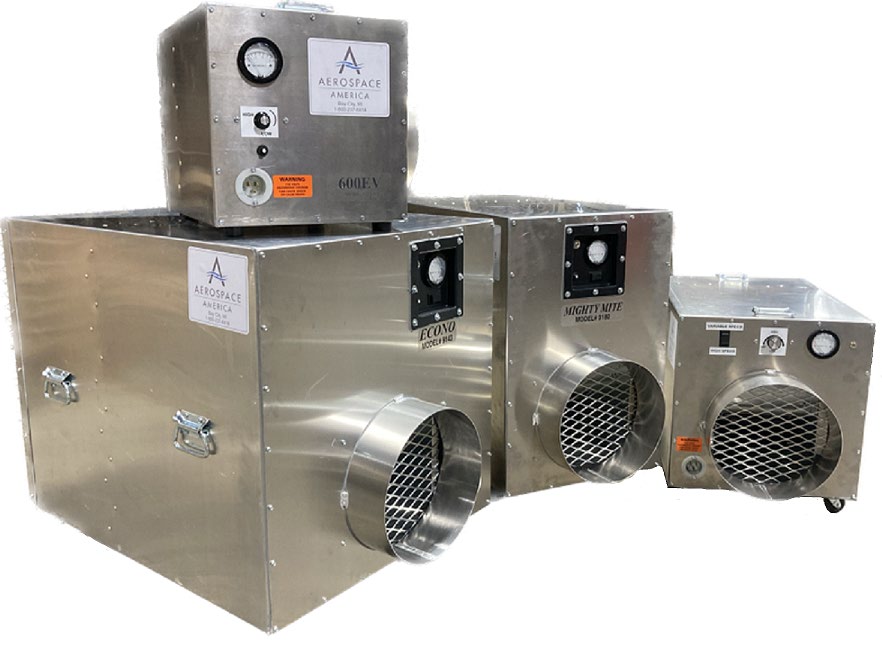

The ECONO 9143 is the original 2000 CFM class Aeroclean. The Turbo 9100 adds a 1.75 HP motor for more airflow, the Full Feature 9103 adds filter alarms, and the slimmer Mighty Mite 9180 fits tighter spaces.
