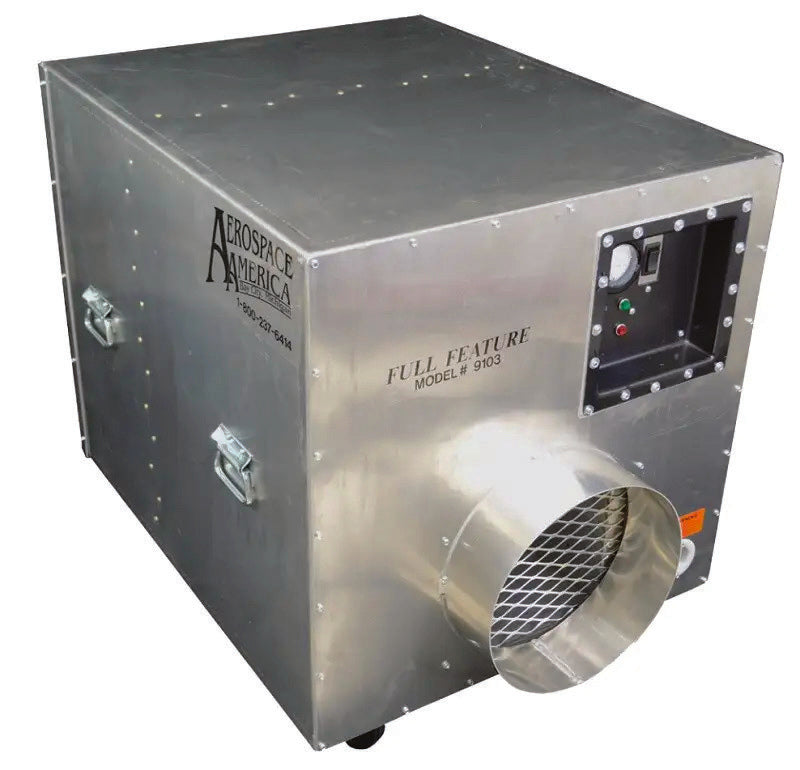

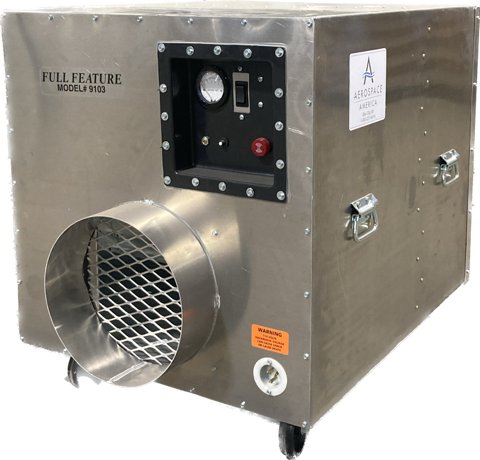

The Aerospace America Aeroclean Full Feature 9103 is a 2000 CFM class HEPA air scrubber with audio and visual alarms. A red high-pressure warning light and an audible alarm tell the crew when the filters are loaded, so nobody has to rely on reading a gauge.
Its 1 HP two-speed motor is rated 2000 CFM on high and 1500 CFM on low at 1.9" running static pressure, drawing 9.4 running amps on 115 V. The aluminum cabinet weighs 108 lbs, takes 24" x 24" filters and rolls on four heavy-duty casters, which makes it a fit for abatement specs that call for filter alarms.
Features
Audio and Visual Filter Alarm
A red high-pressure warning light and an audible alarm signal that the filters are full and need service.
Two Airflow Settings
The rocker switch selects 2000 CFM on high or 1500 CFM on low.

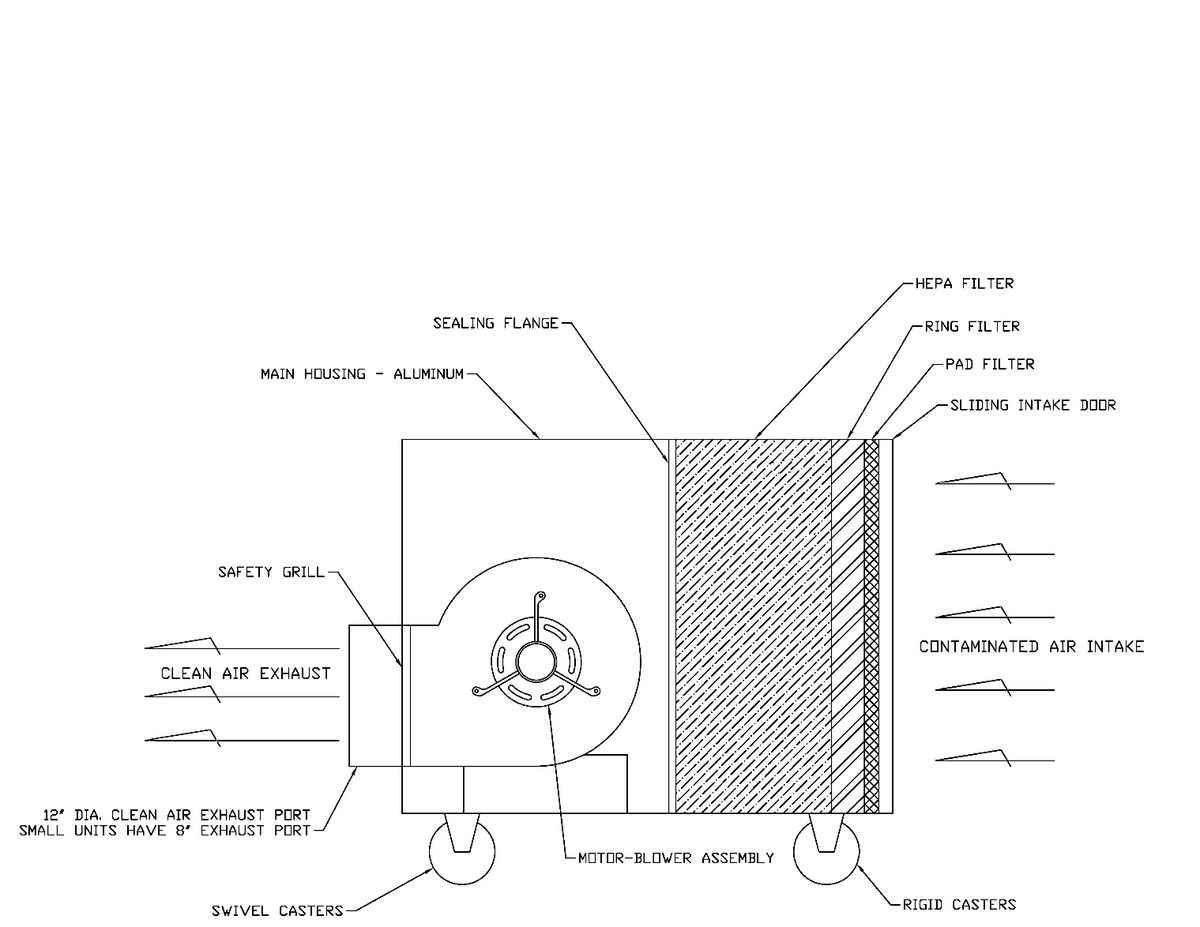

Three-Stage 24" x 24" Filtration
A pad pre-filter and a ring panel protect the 24" x 24" HEPA filter.

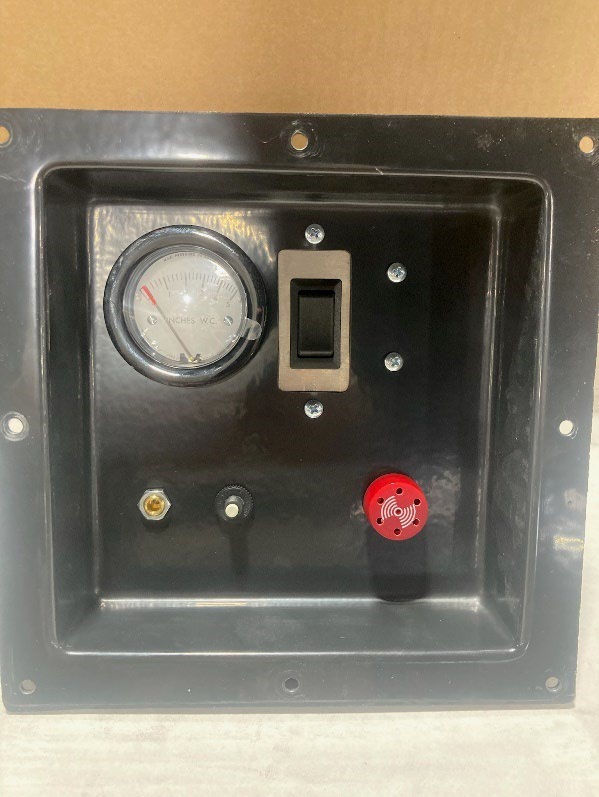

Full Control Panel
A differential pressure gauge and push-button circuit breaker sit beside the alarm light.
Aluminum Cabinet on Casters
At 108 lbs, the 26" x 26" x 33" cabinet rolls on two swivel and two rigid casters, with four handles.
Factory DOP Tested
Every Aerospace America unit is tested with dispersed oil particulate at the factory before it ships.
Made in the U.S.A.
Aerospace America builds it in Bay City, Michigan.
Specifications
-
Model: Aeroclean Full Feature 9103
-
Airflow: 2000 CFM high, 1500 CFM low (1.9" running static pressure)
-
Power: 115 V, 9.4 running amps
-
Motor: 1 HP two-speed, thermal protected
-
Blower: Direct drive, AMCA rated
-
Filters: 24" x 24" pre-filter, 24" x 24" ring panel, 24" x 24" HEPA filter
-
Exhaust: 12"
-
Controls: differential pressure gauge, push-button circuit breaker, two-speed rocker switch, red high-pressure warning light with audio alarm
-
Casters: 2 swivel, 2 rigid, heavy duty
-
Handles: 4
-
Dimensions: 26" W x 26" H x 33" L
-
Weight: 108 lbs
What's Included
- Aeroclean Full Feature 9103 air scrubber
- 24" x 24" pre-filter, ring panel and HEPA filter installed
Setup & Placement
Set the unit where it can draw from the work area, or duct the 12" exhaust out of the containment for negative air. When the alarm sounds or the red light comes on, check the pad and ring filters first, then the HEPA filter.
Use a grounded 12 gauge or heavier extension cord no longer than 100', plugged straight into the power source.
Resources
Shipping, Returns & Warranty
Shipping cost is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Aerospace America does not accept returns of units that have been used in the field, and it refuses any unit contaminated with hazardous or toxic material. Unused units in their original packaging can be returned within 21 days of delivery with a return authorization from us. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Special-order items can't be returned.
Aerospace America warrants its products to the original purchaser against defects in material and workmanship for 90 days, and will repair or replace any part that proves defective. Warranty service runs through a return authorization (RMA) number from Aerospace America. Products contaminated with hazardous material cannot be returned, and damage from misuse, accident or unauthorized repair is not covered.
About Aerospace America
Aerospace America, Inc. of Bay City, Michigan, has built air filtration and abatement equipment since 1981. Its Aeroclean HEPA air scrubbers are fabricated from aircraft-grade aluminum, and the range also covers collapsible decontamination showers, two-stage water filtration pumps and the replacement filters that keep them running.

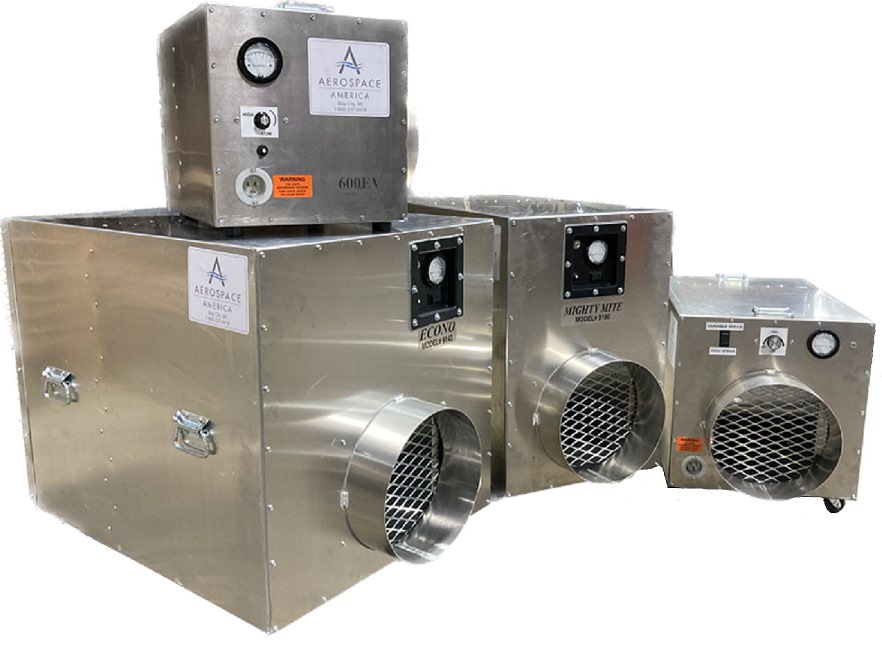

The Full Feature 9103 is the alarm-equipped version of the 2000 CFM class Aeroclean. The ECONO 9143 is the same size without alarms, and the Turbo 9100 steps up to a 1.75 HP motor.
