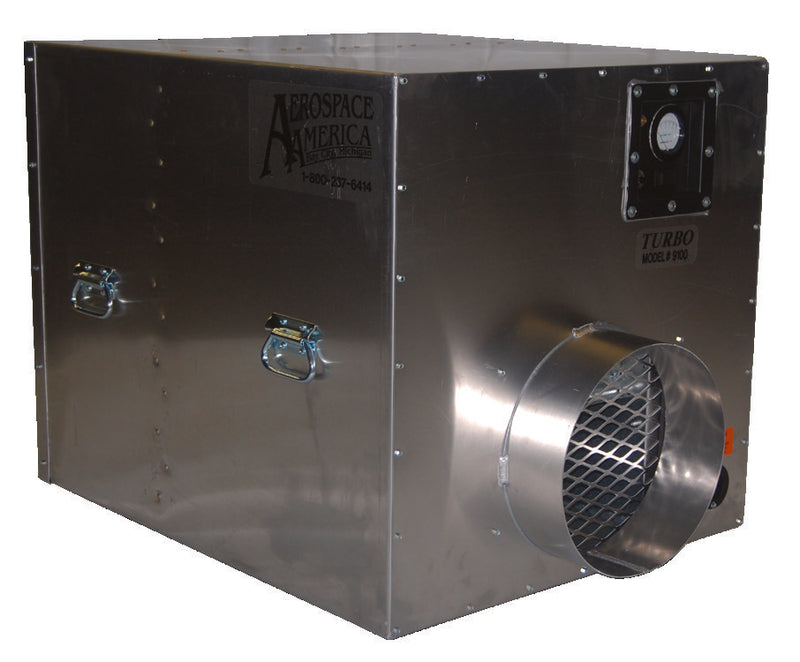

The Aerospace America Aeroclean Turbo 9100 puts a 1.75 HP two-speed motor behind a 24" x 24" three-stage filter pack. It is rated 2500 CFM on high and 2100 CFM on low at 2.2" static pressure, the most airflow in the electric Aeroclean range.
The Turbo suits long abatement and restoration jobs where a large containment needs more air changes than a 1 HP unit can give. It draws 15 amps at 115 V, so plan for a circuit with nothing else on it, and its aluminum cabinet weighs 116 lbs on four heavy-duty casters.
Features
1.75 HP Two-Speed Motor
A thermally protected 1.75 HP motor drives a high-volume blower to 2500 CFM on high or 2100 CFM on low.

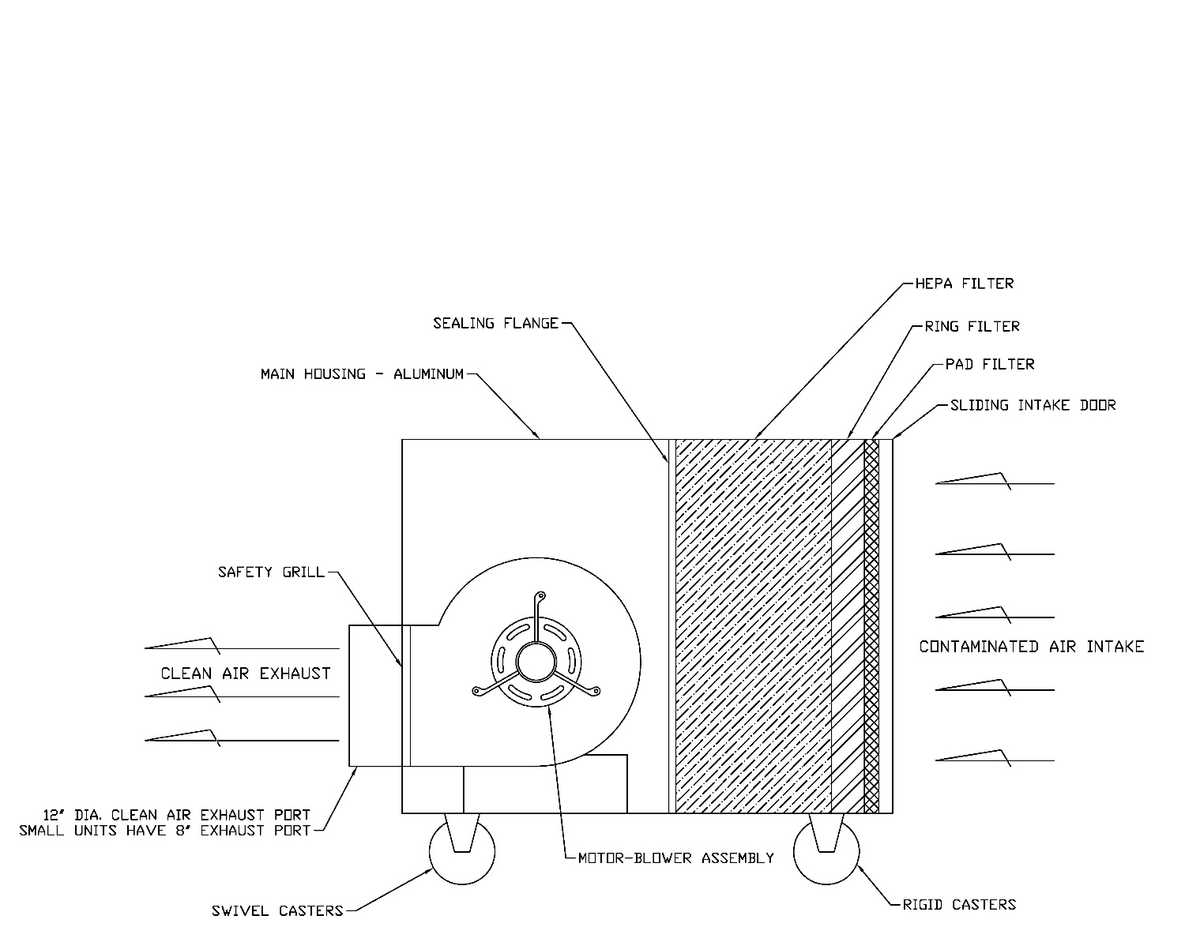

Three-Stage 24" x 24" Filtration
A pad pre-filter and a 24" x 24" x 1" ring panel protect a HEPA filter rated 99.97%.
Panel Gauge and Breaker
A differential pressure gauge, push-button circuit breaker and two-speed rocker switch sit on the control panel.
12" Exhaust for Negative Air
The 12" exhaust takes flex duct to vent filtered air out of a containment.
Heavy-Duty Casters and Handles
Two rigid and two swivel casters plus four heavy-duty handles move the 116 lb cabinet.
Factory DOP Tested
Every Aerospace America unit is tested with dispersed oil particulate at the factory before it ships.
Made in the U.S.A.
Aerospace America builds it in Bay City, Michigan.
Specifications
-
Model: Aeroclean Turbo 9100
-
Airflow: 2500 CFM high, 2100 CFM low (2.2" static pressure)
-
Power: 115 V, 15 amps
-
Motor: 1.75 HP two-speed, thermal protected
-
Blower: High volume, AMCA rated
-

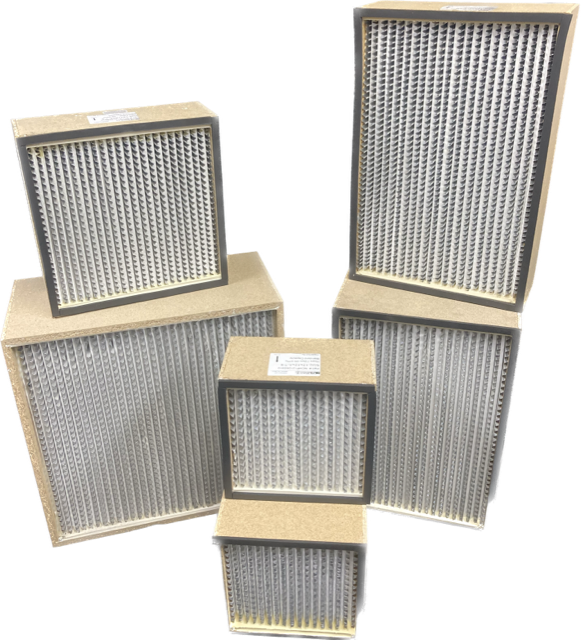

Filters: 24" x 24" pre-filter, 24" x 24" x 1" ring panel, HEPA filter rated 99.97%
-
Exhaust: 12"
-
Controls: differential pressure gauge, push-button circuit breaker, two-speed rocker switch
-
Casters: 2 rigid, 2 swivel, heavy duty
-
Handles: 4, heavy duty
-
Dimensions: 26" x 26" x 32"
-
Weight: 116 lbs
-
Testing: DOP tested at the factory
What's Included
- Aeroclean Turbo 9100 air scrubber
- 24" x 24" pre-filter, ring panel and HEPA filter installed
Setup & Placement
The Turbo draws 15 amps at 115 V. Plan a grounded circuit with nothing else on it, a 12 gauge or heavier extension cord no longer than 100', and never plug it into another unit.
For negative air, run flex duct from the 12" exhaust out of the containment and secure each joint with duct tape or a wire tie. Check the gauge and the pre-filters regularly once it is running.
Resources
Shipping, Returns & Warranty
Shipping cost is calculated at checkout.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Aerospace America does not accept returns of units that have been used in the field, and it refuses any unit contaminated with hazardous or toxic material. Unused units in their original packaging can be returned within 21 days of delivery with a return authorization from us. You pay the return shipping, and a restocking fee of up to 20% may be deducted along with payment processing fees. Special-order items can't be returned.
Aerospace America warrants its products to the original purchaser against defects in material and workmanship for 90 days, and will repair or replace any part that proves defective. Warranty service runs through a return authorization (RMA) number from Aerospace America. Products contaminated with hazardous material cannot be returned, and damage from misuse, accident or unauthorized repair is not covered.
About Aerospace America

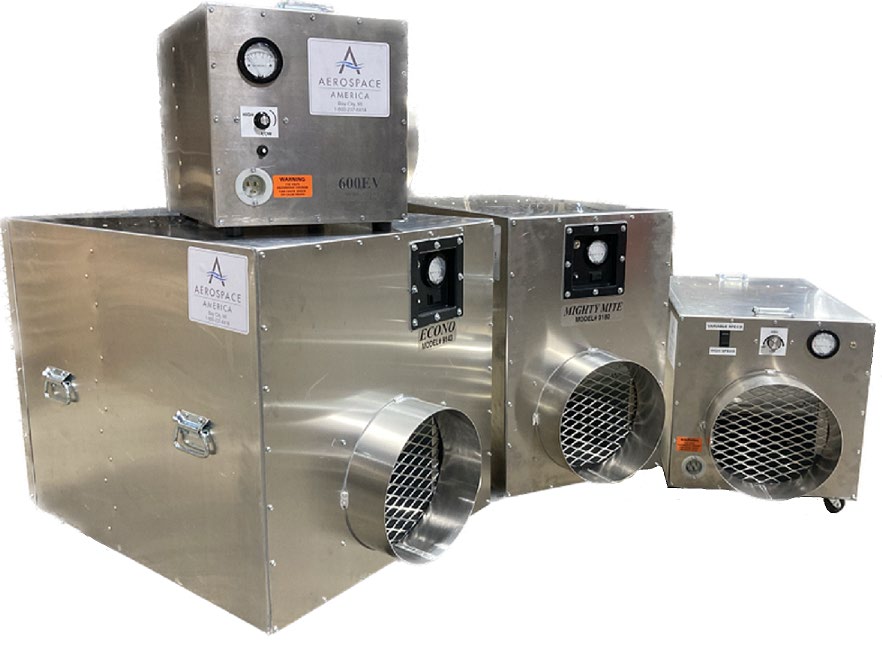

Aerospace America, Inc. of Bay City, Michigan, has built air filtration and abatement equipment since 1981. Its Aeroclean HEPA air scrubbers are fabricated from aircraft-grade aluminum, and the range also covers collapsible decontamination showers, two-stage water filtration pumps and the replacement filters that keep them running.
The Turbo 9100 is the highest-airflow electric Aeroclean. The ECONO 9143 and Full Feature 9103 use the same 24" x 24" filters on a 1 HP motor, and the Pneumatic 9169 runs on compressed air instead of electricity.
