The AlorAir CleanShield HEPA 550 is a portable air scrubber and negative air machine for water, fire and mold restoration. It pulls air through a MERV-10 pre-filter and a combined HEPA and activated carbon filter, at a variable 270 to 550 CFM on a 2.5 A draw, and AlorAir sizes it for spaces up to 800ft².
At 39.6 lbs, with a top handle and a rotomolded polyethylene body, it carries into basements and gutted rooms and stacks two high. Duct the 8" outlet out of a containment for negative air, chain up to three units from one outlet, and the CleanShield HEPA 550 keeps dust, spores and odors down while the crew works.

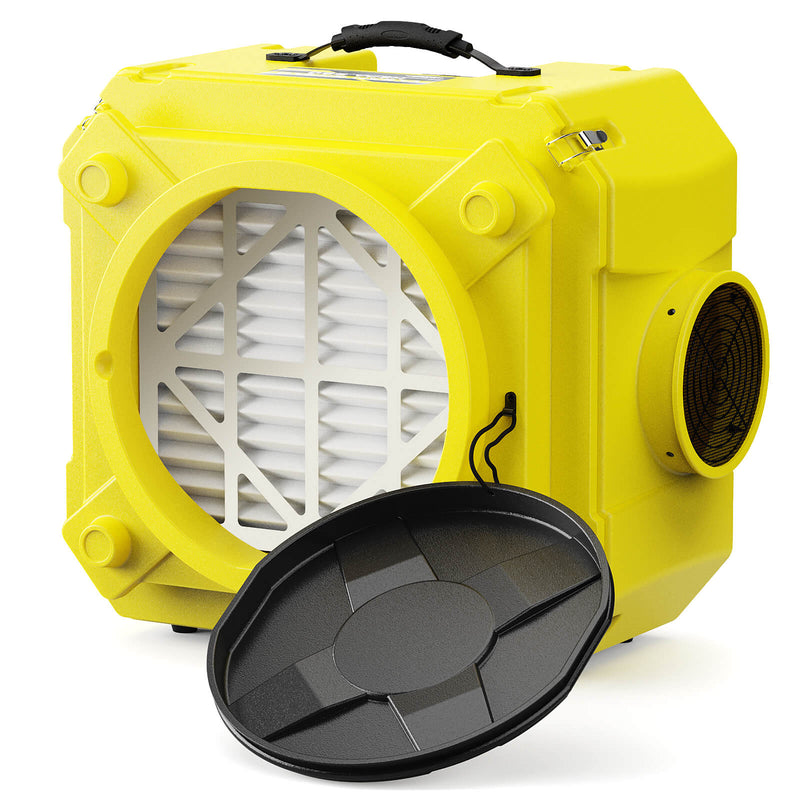

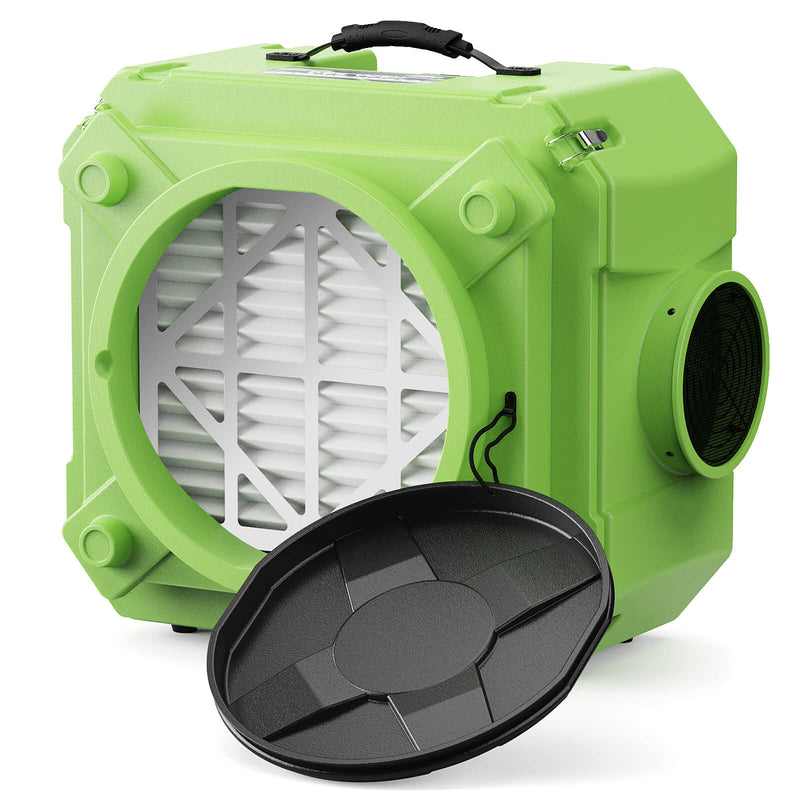

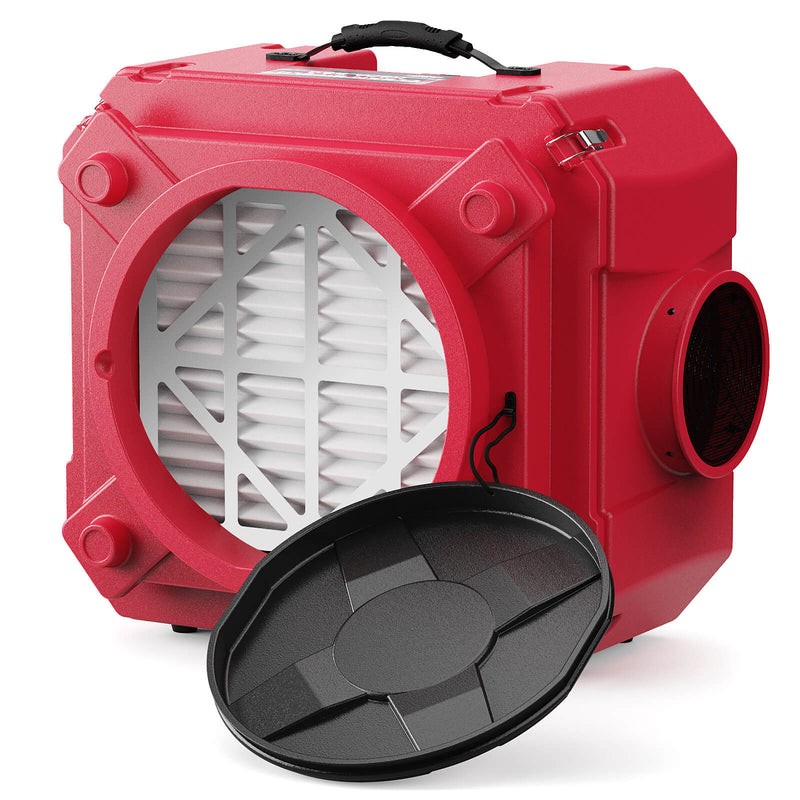

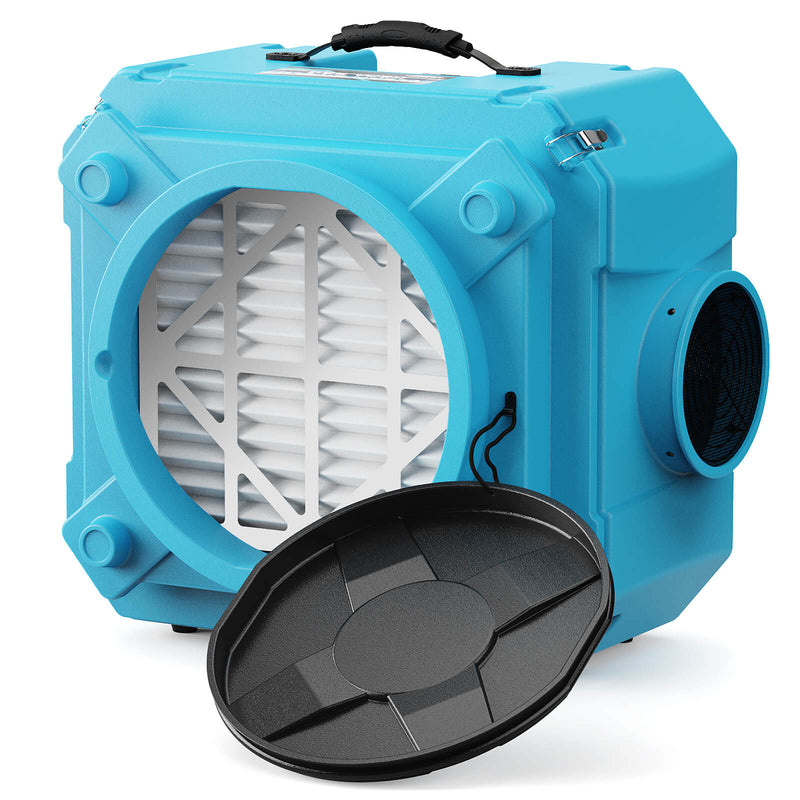

Available in yellow, red, green and blue, all the same machine.
Features

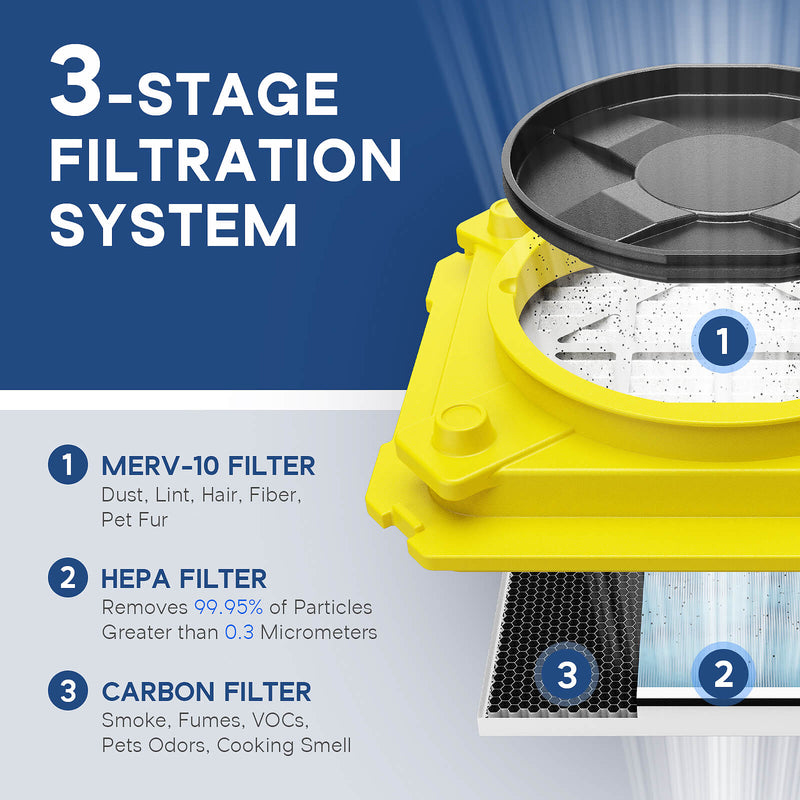

3-Stage Filtration
A MERV-10 pre-filter stops dust, lint and hair, and a combined HEPA and activated carbon filter captures particles down to 0.3 microns plus smoke, paint fumes and other odors.
Variable 270 to 550 CFM
A speed knob on the control panel sets airflow anywhere across the range, drawing 2.5 A at full speed.
Negative Air Ready
Remove the plastic cap and duct the 8" outlet out of the work area. The 16" inlet can be ducted too.

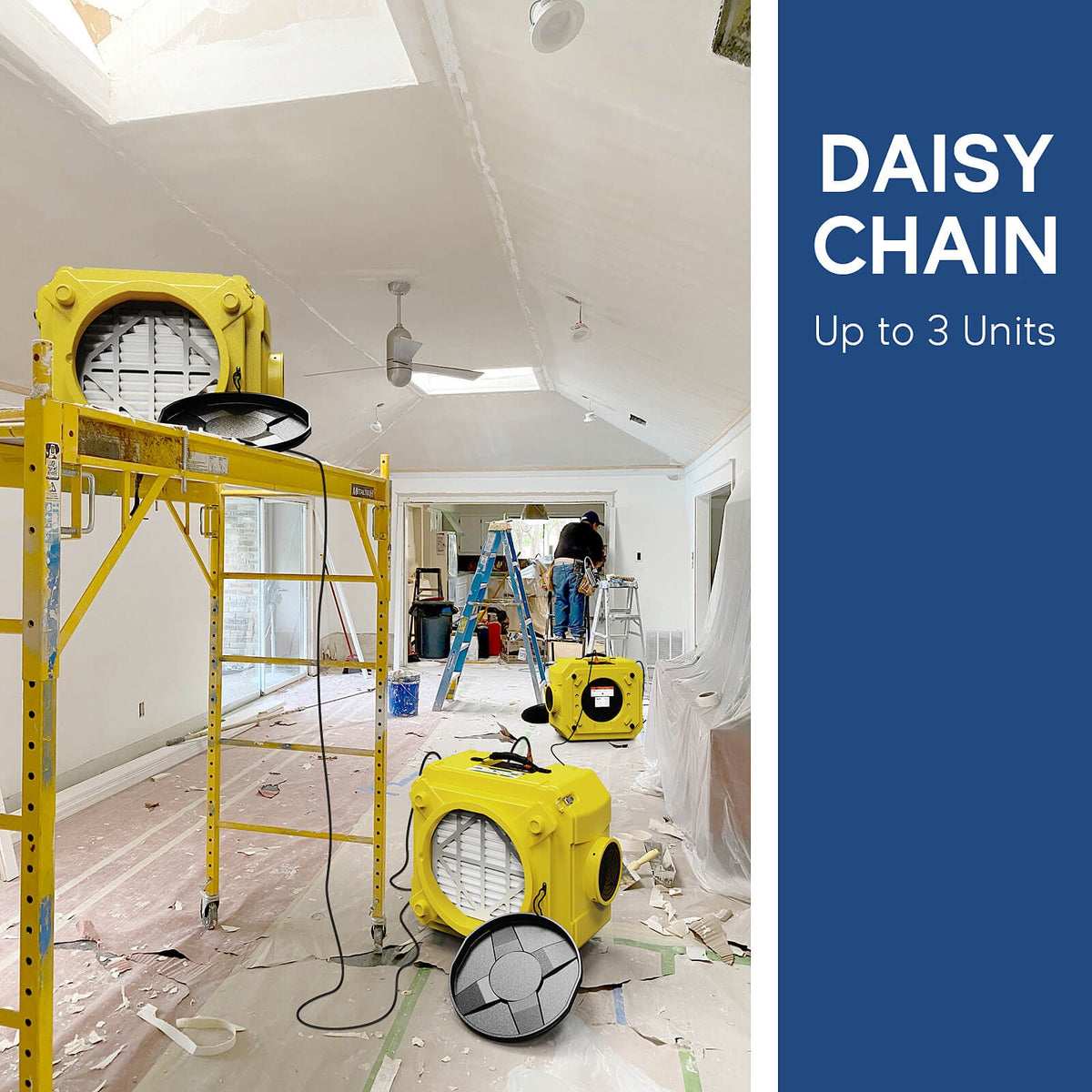

Daisy Chain Up to Three Units
A GFCI auxiliary outlet powers up to three scrubbers from one wall outlet, under 9 A with all running.
Filter Change Light

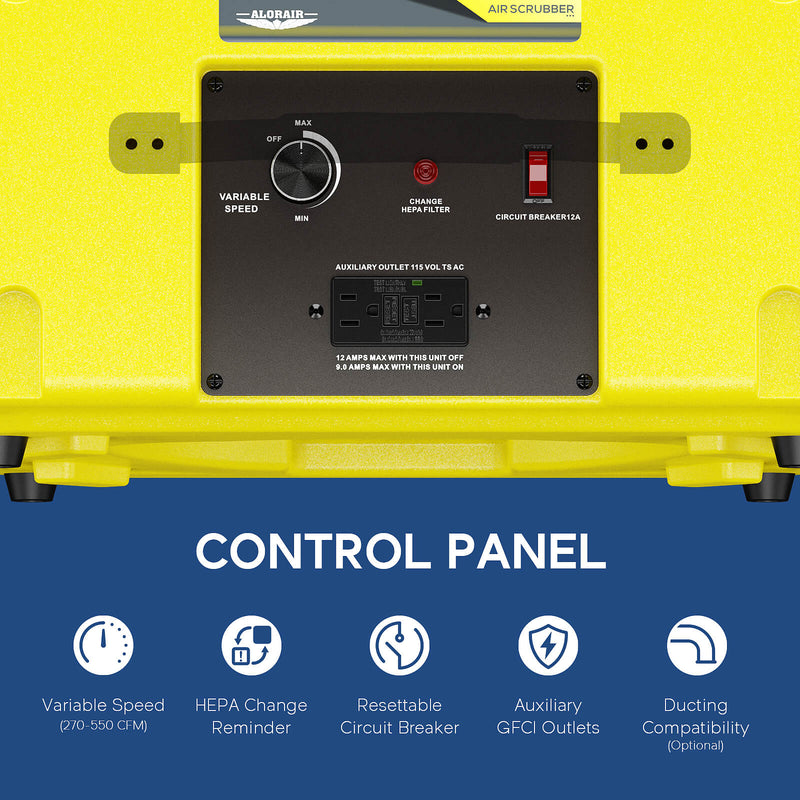

A light on the control panel tells you when the HEPA carbon filter needs replacing.
12 A Circuit Breaker
Cuts power to the unit and anything plugged into it if the load goes over 12 A.
Stackable Rotomolded Housing
The polyethylene body stacks two high in operation and lies flat in a stack for storage, with a 23' power cord.
Specifications
-
Model: CleanShield HEPA 550
-
Airflow: 270 to 550 CFM, variable speed
-
Filtration Stages: MERV-10 pre-filter; combined HEPA and activated carbon filter
-
HEPA Efficiency: Up to 99.95% of particles 0.3 µm and larger
-
Coverage: Up to 800ft² (5,500ft³)
-
Negative Air / Duct Size: Yes; 16" inlet, 8" outlet, both ductable
-
Static Pressure: 2.8" H2O
-
Power: 115 V, 60 Hz, 2.5 A
-
Auxiliary Outlet: 15 A GFCI duplex, daisy chain up to 3 units
-
Circuit Breaker: 12 A
-
Power Cord: 23'
-
Housing: Rotomolded polyethylene
-
Noise: Less than 65 dBA
-
Dimensions: 20.87"W x 24.8"D x 14.96"H
-
Weight: 39.6 lbs
-
Certifications: ETL
What's Included
- AlorAir CleanShield HEPA 550 air scrubber
- MERV-10 pre-filter
- HEPA and activated carbon filter
- Power cord
- User manual
Setup & Placement
Stand the unit upright on a level, steady surface in the middle of the affected area. Plug it straight into a grounded outlet with GFCI protection, with no adapter, and set the speed with the variable speed knob. Stack no more than two units while running.
For containment work, seal the area, duct the 8" outlet outside the containment and turn off open combustion appliances such as furnaces, water heaters and fireplaces to avoid backdrafting carbon monoxide.
Resources
Warranty & Shipping
Warranty. Backed by AlorAir's 12-month limited warranty from the date of delivery, covering defects in materials and workmanship. AlorAir handles warranty service directly, so keep your proof of purchase and the original packaging.
Shipping. Ships direct from AlorAir's U.S. warehouse, with free shipping on orders over $100.
Inspect on delivery. Check the carton and the unit when it arrives and note any damage on the delivery receipt before signing.
About AlorAir
AlorAir Solutions is based in Chino, California, and supplies dehumidifiers, air movers and air scrubbers for water damage restoration, mold remediation, crawl spaces and basements. Its restoration equipment is built to be carried from job to job and run for days at a time.
The CleanShield HEPA 550 is AlorAir's compact 550 CFM air scrubber. The PureAiro HEPA Max and Pro 770, 870 and 970 use larger intakes, add UV-C light on the 870 and 970, and reach 750 CFM on the 970 models. For drying the same jobs, AlorAir pairs its scrubbers with Zeus air movers and Storm dehumidifiers.
