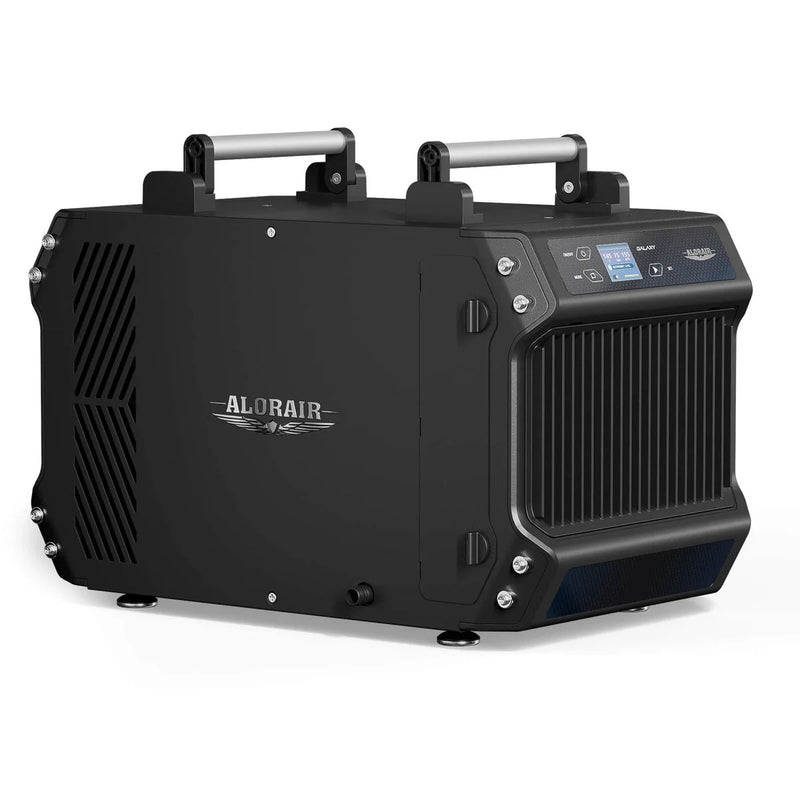

The AlorAir Galaxy 60 is a gravity-drain crawl space dehumidifier that removes 60 pints of water a day at AHAM conditions (80°F, 60% RH) and up to 145 pints a day at saturation (90°F, 90% RH), for spaces up to 1,800ft², on a 4.5 A draw.
Its 14.1"-tall, 47.5 lbs cabinet fits low crawl spaces and small basements, and the included 6.5' hose drains it continuously to a floor drain or sump below the unit. The Galaxy 60 is the simplest Galaxy model: no pump to maintain where gravity drainage is available.
Features
High Capacity, Low Profile
60 pints a day at AHAM from a cabinet only 14.1" tall, sized for low crawl spaces and small basements.
Continuous Gravity Drainage
The included 6.5' hose drains the unit to a floor drain or sump below it, with no pump to maintain.

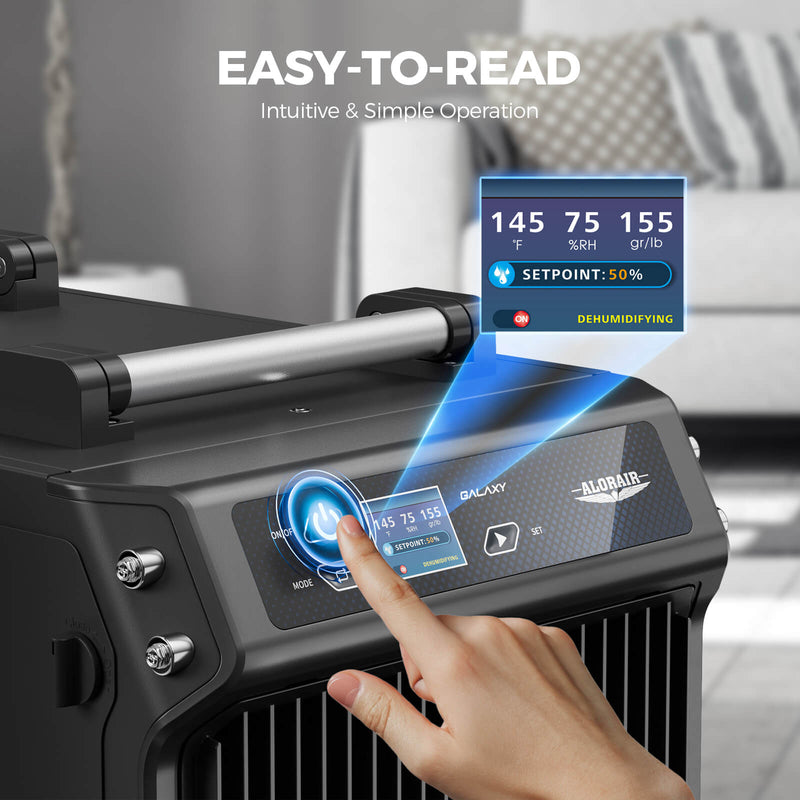

%RH or GPP Control
Set humidity from 35% to 90% in 1% steps, or grains per pound from 20 to 200, with continuous mode for drying out.
Auto Defrost Down to 37.4°F
Automatic defrost clears ice from the coil so the unit keeps working at its minimum operating temperature.
Memory Restart
After a power cut it comes back on its last settings without anyone going under the house.

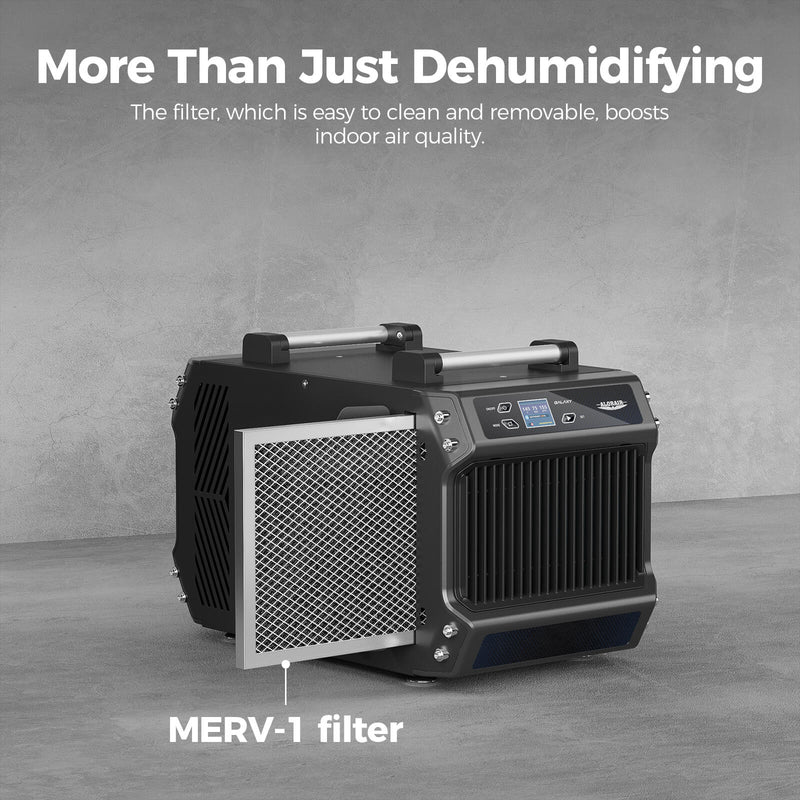

Side-Sliding MERV-1 Filter
Turn one knob, lift the cover and slide the filter out for cleaning.
Rotary Compressor and R32
A rotary compressor, a rare earth alloy tube evaporator and R32 refrigerant, in a cETL certified unit.
Remote Ready
A controller socket takes AlorAir's optional remote control, sold separately.
Specifications
-
Model: Galaxy 60
-
Water Removal at AHAM (80°F, 60% RH): 60 pints/day
-
Water Removal at Saturation (90°F, 90% RH): 145 pints/day
-
Coverage: Up to 1,800ft²
-
Airflow: 165 CFM
-
Operating Temperature: 37.4°F to 100.4°F
-
Humidity Setpoint Range: 35% to 90% in 1% steps; GPP mode 20 to 200 gr/lb; continuous mode
-
Drainage: Gravity drain with 6.5' hose (no pump)
-
Power: 115 V, 60 Hz, 4.5 A
-
Electrical Requirement: Grounded 3-prong GFCI outlet, 15 A circuit
-
Efficiency: 2.4 L/kWh
-
Filter: MERV-1
-
Refrigerant: R32
-
Noise: 49 dBA or less
-

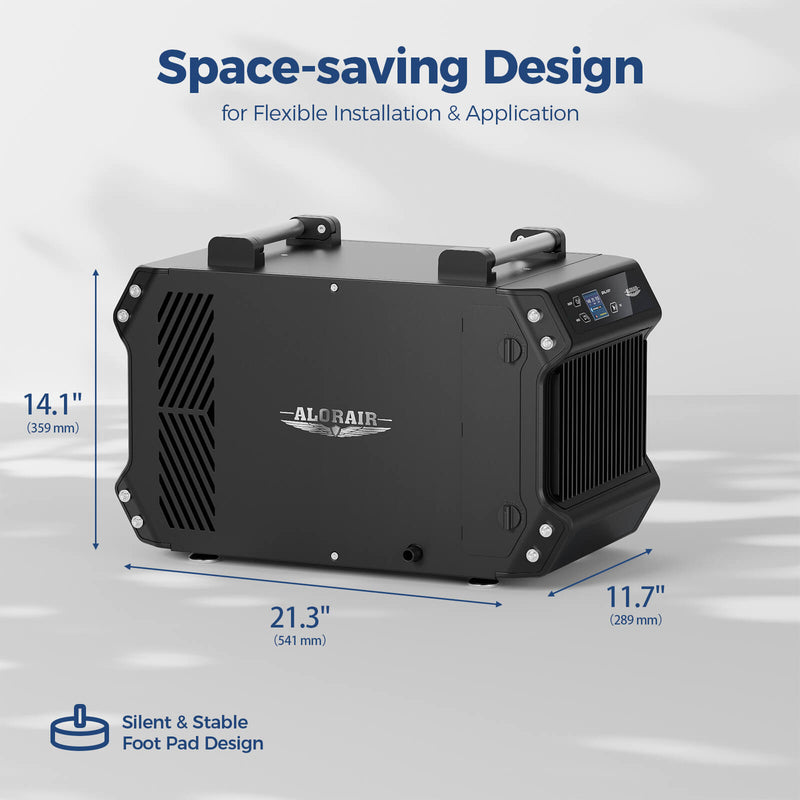

Dimensions: 21.3"L x 11.7"W x 14.1"H
-

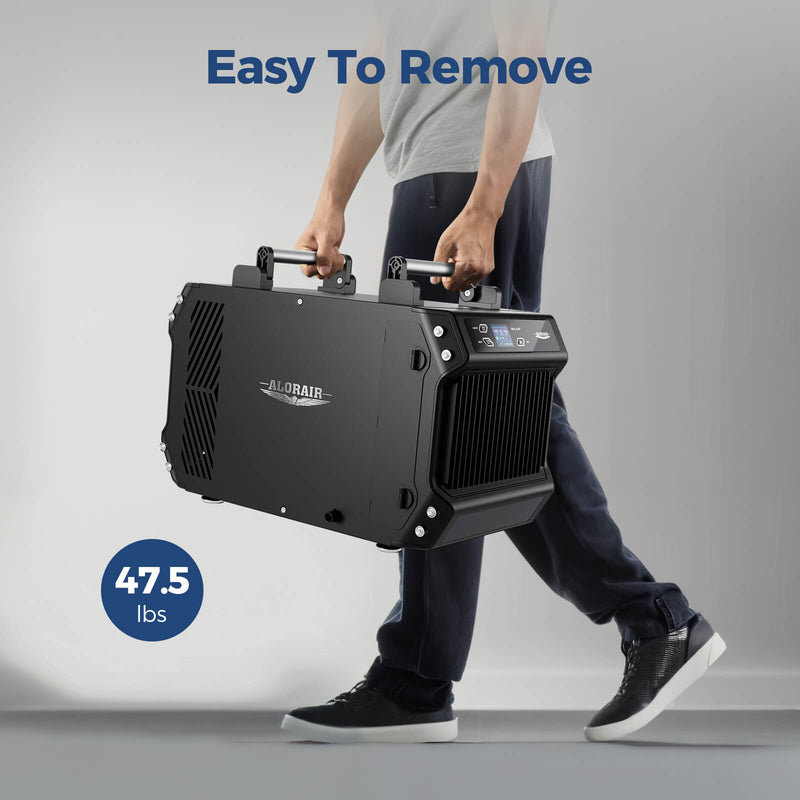

Weight: 47.5 lbs
-
Certifications: cETL
What's Included
- AlorAir Galaxy 60 dehumidifier
- MERV-1 filter (installed)
- 6.5' drain hose
- User manual
Setup & Placement

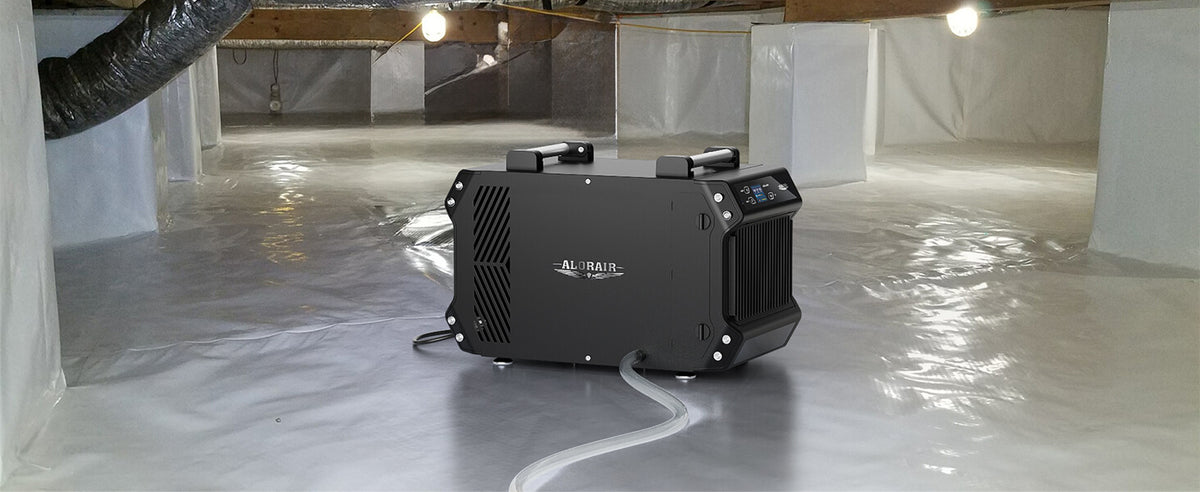

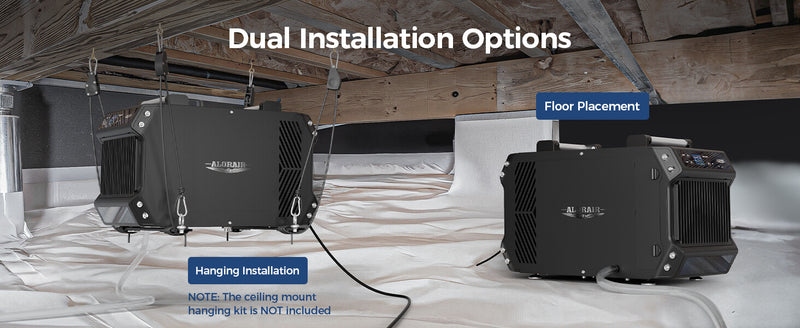

Seal the space first: AlorAir specifies a vapor barrier and closed vents in crawl spaces, and a fully dry, ventilated area if a liquid vapor barrier was used. Stand the unit level on blocks or spacers, or hang it from joists with the optional kit. If it was not kept upright in transit, wait 2 hours before switching on.
Run the drain hose from the gravity outlet downhill to a drain. On the 60P and 85P, you can instead block the gravity outlet with its rubber plug and connect the pump outlet. Plug into a grounded 15 A GFCI outlet with no extension cord.
Resources
Shipping, Returns & Warranty
Ships direct from AlorAir's U.S. warehouse, with free shipping on orders over $100.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused AlorAir equipment in its original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. Returns that aren't due to a defect carry AlorAir's 20% restocking fee, and you pay the return shipping. If the unit is defective, AlorAir covers the return shipping. Payment processing fees are not refunded. Used or contaminated units and special-order items can't be returned.
Backed by AlorAir's 12-month limited warranty from the date of delivery, covering defects in materials and workmanship. AlorAir handles warranty service directly, so keep your proof of purchase and the original packaging.
About AlorAir
AlorAir Solutions is based in Chino, California, and supplies dehumidifiers, air movers and air scrubbers for crawl spaces, basements and water damage restoration. Its Galaxy series covers crawl spaces, basements and light commercial spaces with a compact, low-profile cabinet.
The Galaxy series sits between AlorAir's compact Helios units and its larger Sentinel models. The Galaxy 60 drains by gravity, the Galaxy 60P adds a built-in pump at the same 60 pints a day at AHAM, and the Galaxy 85P raises that to 85 pints a day for up to 2,300ft². For ducted, whole-home drying, the Sentinel WHD series is the better fit.
