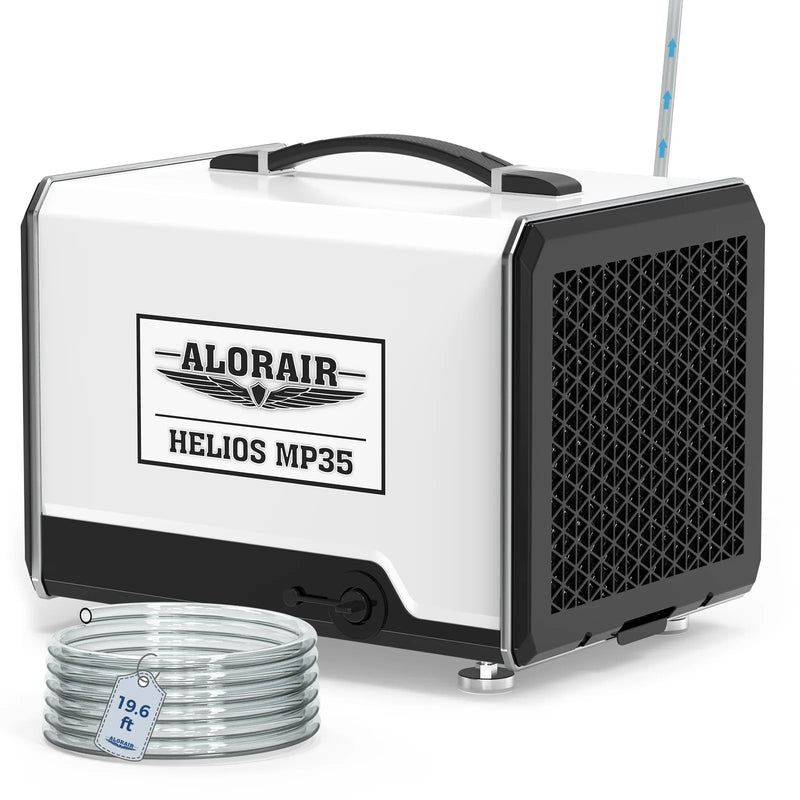

The AlorAir Helios MP35 is a crawl space dehumidifier with a built-in condensate pump, rated at 35 pints a day at AHAM conditions (80°F, 60% RH) and 70 pints a day at saturation (90°F, 90% RH) for spaces up to 1,000ft².
Pump water up to 19.6' through the included pump hose, or drain it by gravity with the 6.5' hose. At 35.94 lbs with a carry handle and leveling feet, the Helios MP35 sets up in a crawl space, basement or garage and holds the humidity you choose in %RH or GPP mode.
Features
Sized for Up to 1,000ft²
35 pints a day at AHAM and up to 70 at saturation, from 126 CFM at a rated 55 dBA, in the lighter 35.94 lb cabinet.

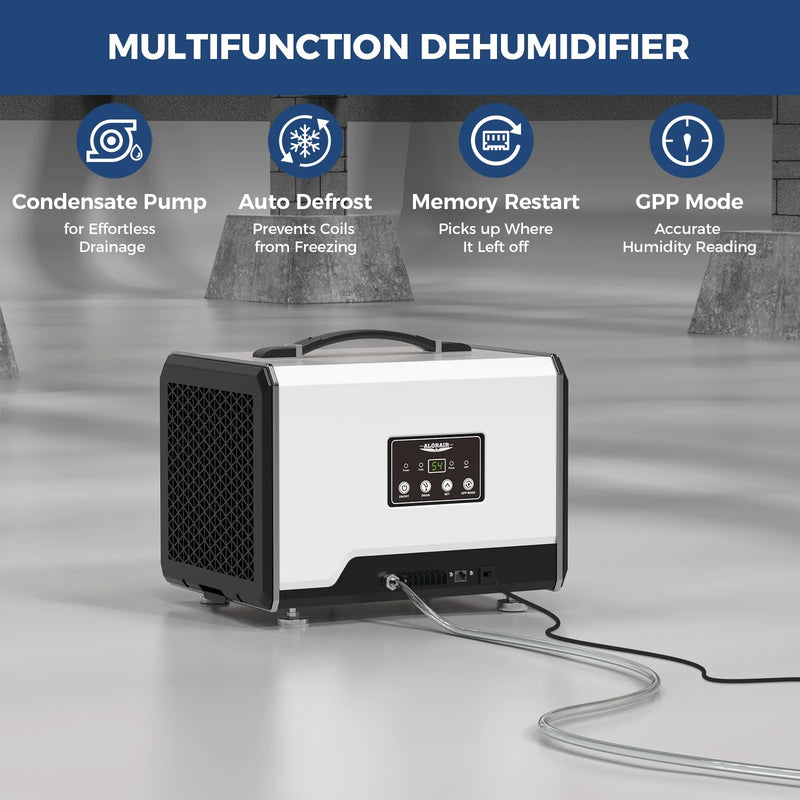

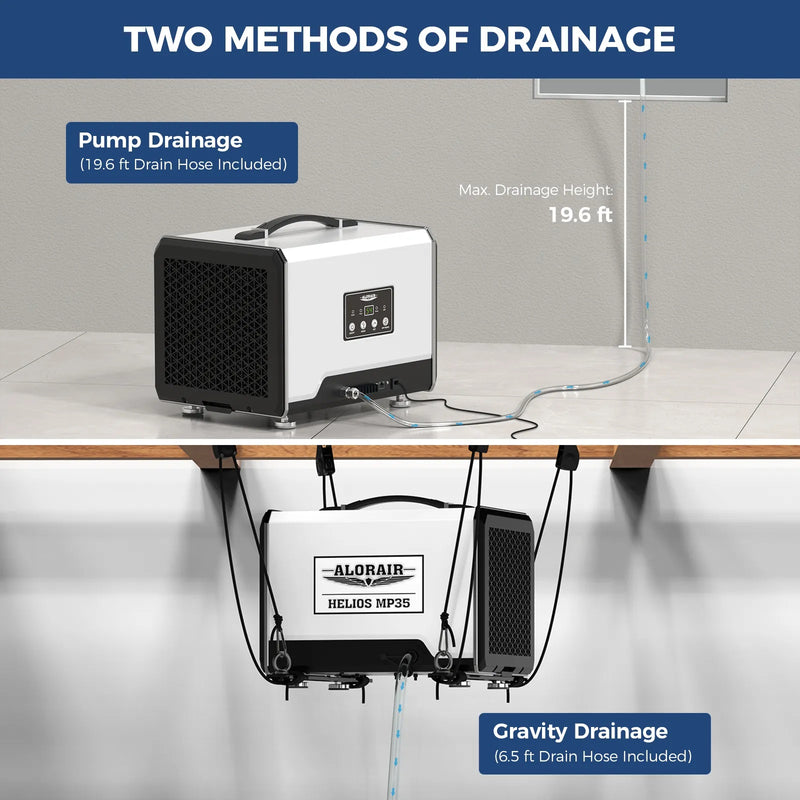

Built-In Condensate Pump
Lifts water up to 19.6' through the included 19.6' pump hose to a sink, window or sump. The one-touch Drain button runs the pump on demand.

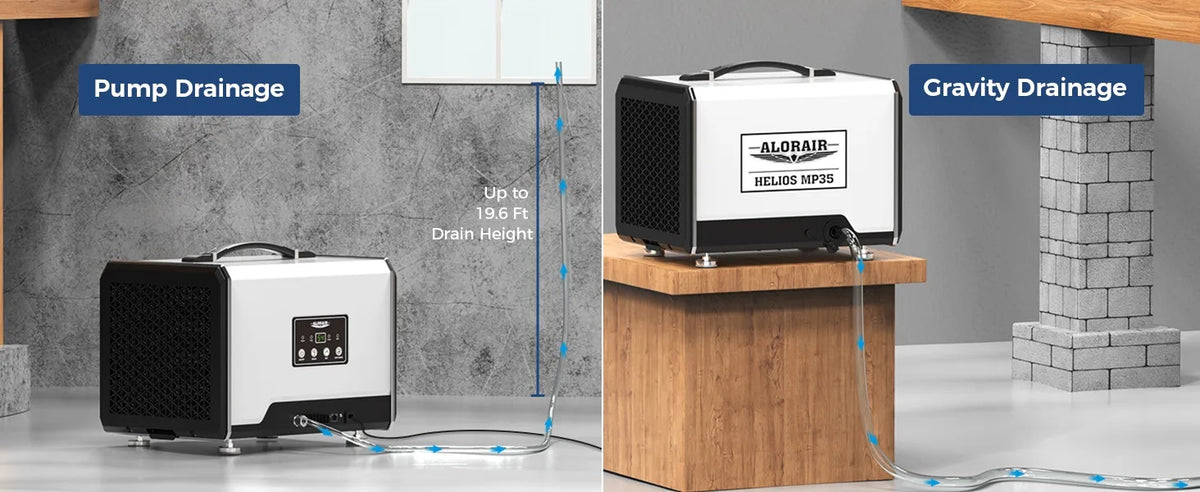

Gravity Drain Option
Where a drain sits below the unit, remove the water plug and use the included 6.5' hose instead.

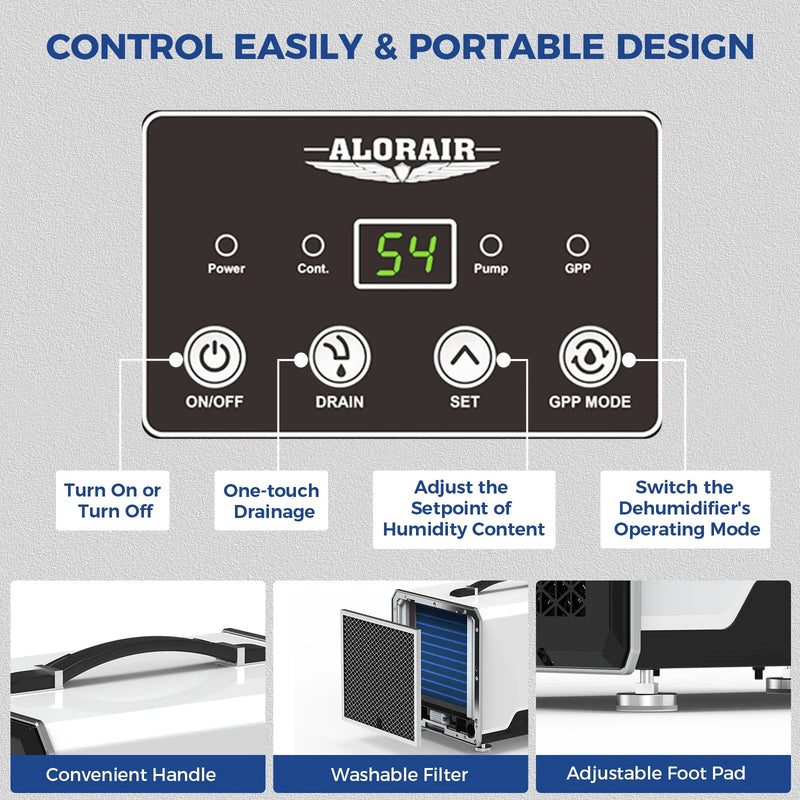

%RH or GPP Control
Set humidity from 20% to 80% in 5% steps, or grains per pound from 20 to 200, with a CO setting for continuous running.
Automatic Defrost
Clears frost from the coil in cool crawl spaces so drying continues through the cold months.
Memory Restart
After a power cut it returns to its last mode and setting on its own, after a three-minute compressor delay.
Leveling Feet and Carry Handle
Adjustable leveling feet steady it on uneven floors, and the top handle makes it easy to carry into a crawl space.

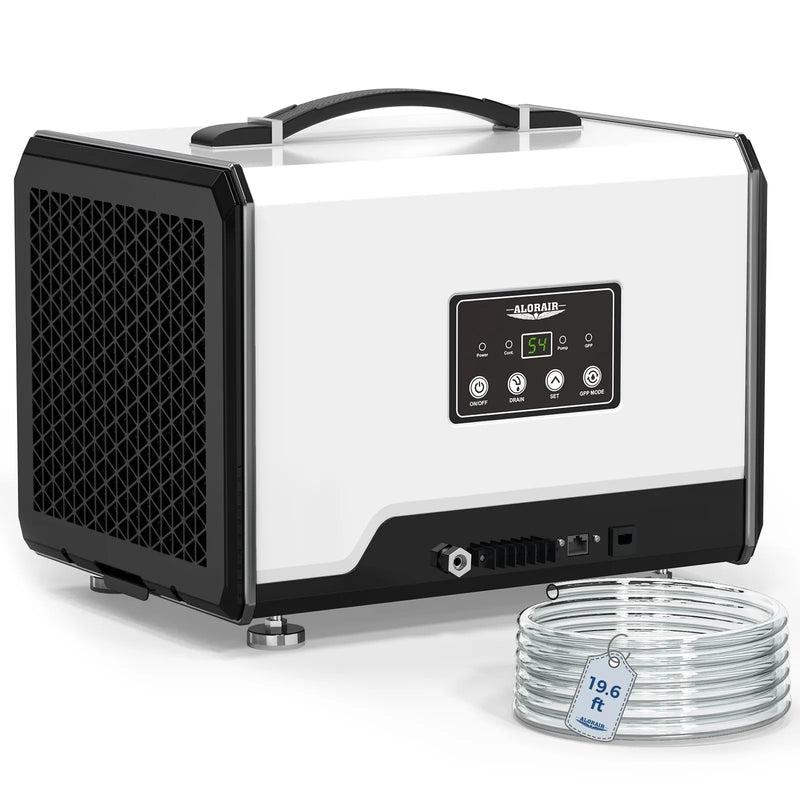

Remote and Terminal Ready
A controller port takes AlorAir's optional remote control (sold separately), and an A1-A6 auxiliary terminal connects external devices.
Specifications
-
Model: Helios MP35
-
Water Removal at AHAM (80°F, 60% RH): 35 pints/day
-
Water Removal at Saturation (90°F, 90% RH): 70 pints/day
-
Coverage: Up to 1,000ft²
-
Airflow: 126 CFM
-
Operating Temperature: 35.6°F to 102.2°F
-
Humidity Setpoint Range: 20% to 80% in 5% steps; GPP mode 20 to 200 gr/lb; continuous mode
-
Drainage: Built-in condensate pump, up to 19.6' lift with 19.6' hose; gravity drain with 6.5' hose
-
Power: 115 V, 60 Hz
-
Electrical Requirement: Dedicated, grounded 3-prong GFCI outlet, 15 A circuit
-
Efficiency: 2.12 L/kWh
-
Filter: MERV-1
-
Refrigerant: R32
-
Noise: 55 dBA
-
Weight: 35.94 lbs (16.3 kg)
-
Certifications: ETL
What's Included
- AlorAir Helios MP35 dehumidifier
- Air filter (installed)
- 19.6' pump drain hose
- 6.5' gravity drain hose
- User manual
Setup & Placement
Place the unit in an enclosed space, upright near the floor and central to the area, with at least 6" of clearance around the air intake and exhaust. Level it on its adjustable feet, or hang it from joists with a hanging kit (sold separately). Leave it upright and out of the box for 24 hours before first use.
For pump drainage, fit the 19.6' hose to the pump outlet and run it to a sink, sump or outside. For gravity drainage, remove the water plug, fit the 6.5' hose and keep its end below the outlet. Plug into a dedicated, grounded 15 A GFCI circuit.
Resources
Warranty & Shipping
Warranty. Backed by AlorAir's 12-month limited warranty from the date of delivery, covering defects in materials and workmanship. AlorAir handles warranty service directly, so keep your proof of purchase and the original packaging.
Shipping. Ships direct from AlorAir's U.S. warehouse, with free shipping on orders over $100.
Inspect on delivery. Check the carton and the unit when it arrives and note any damage on the delivery receipt before signing.
About AlorAir
AlorAir Solutions is based in Chino, California, and supplies dehumidifiers, air movers and air scrubbers for crawl spaces, basements and water damage restoration. Its Helios line covers compact crawl space and basement dehumidifiers for homes and light commercial spaces.
The Helios MP35 and MP55 are AlorAir's white-cabinet pump models: the MP35 is rated at 35 pints a day at AHAM for up to 1,000ft², and the MP55 at 55 pints a day for up to 1,500ft². The gravity-drain Helios D35 covers smaller spaces, and the Galaxy and Sentinel lines step up in capacity.
