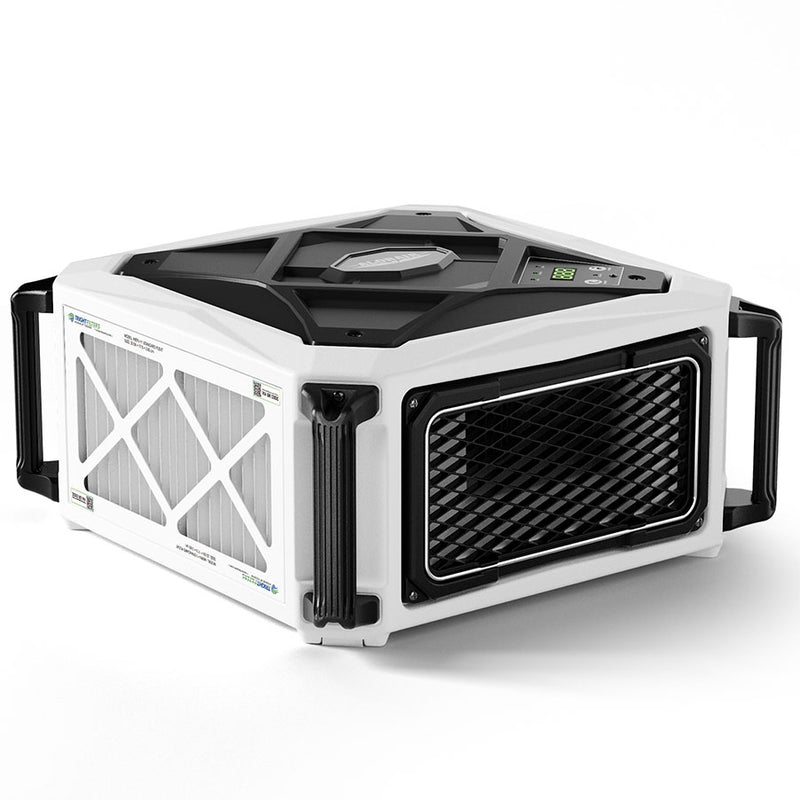

The AlorAir PureCare 780 is a compact shop air filtration system for garages, hobby shops and small woodworking rooms. Three MERV-11 filters around a vortex fan draw air in from three sides at 580 or 780 CFM, on just 0.6 A, and AlorAir rates it for spaces up to 800ft² at 50 dBA.
At 20 lbs, the PureCare 780 hangs from the ceiling on chains or sits on a bench (wall brackets are not in the box), and the infrared remote sets its speed and a 1 to 9 hour timer from across the room.
Choose the standard 780 or the 780IG with a built-in ionizer.
Features

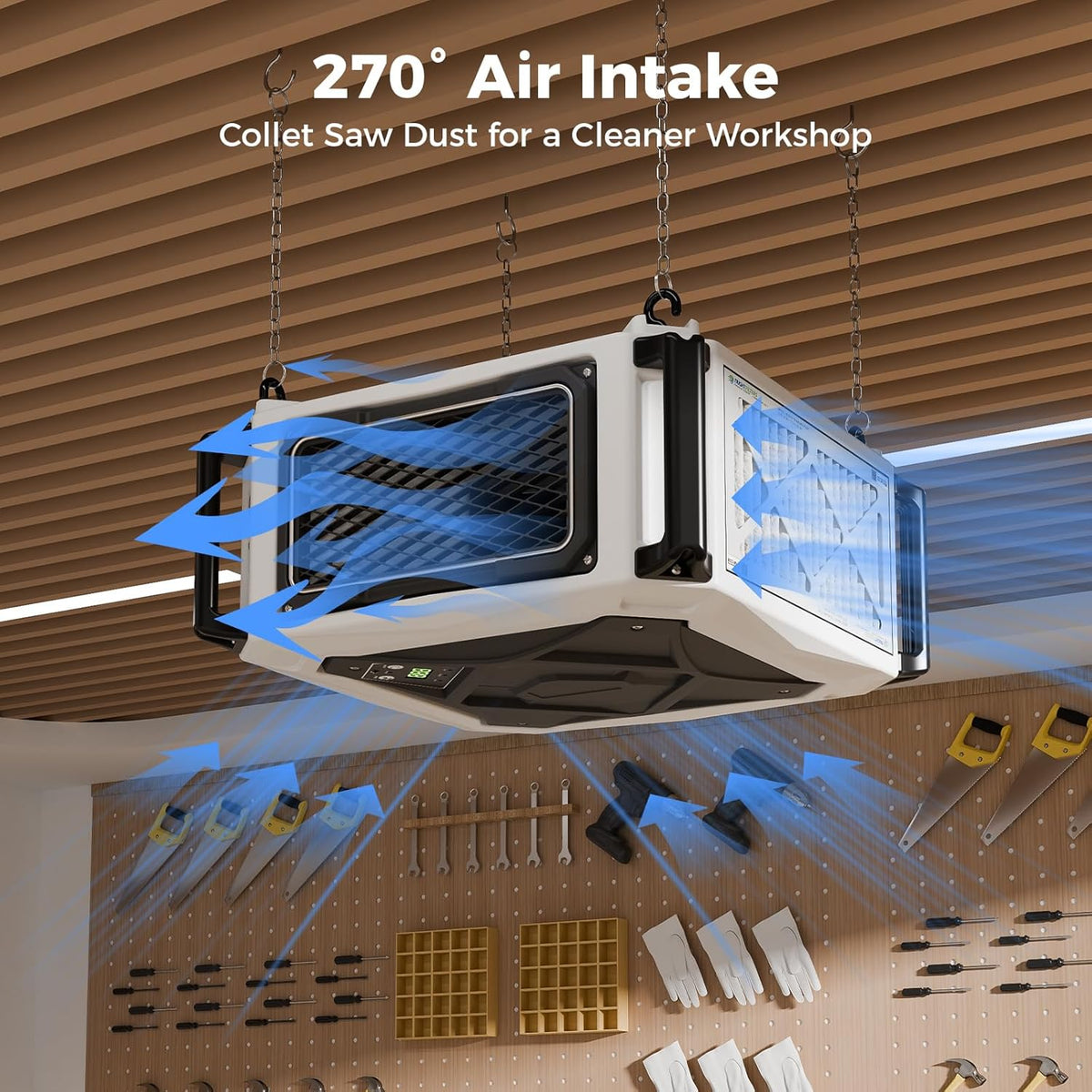

270° Intake
Three MERV-11 filters wrap around the vortex fan and pull air in from three sides. AlorAir rates them at 90% of 3-10 µm and 85% of 1 µm particles.

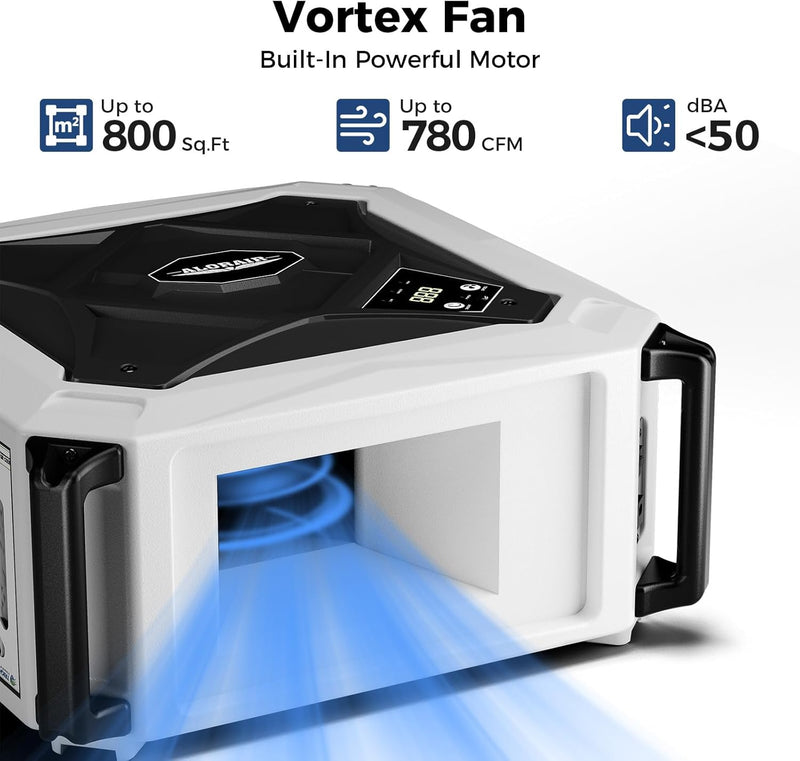

Two Speeds up to 780 CFM
Choose 580 or 780 CFM from the panel or the remote, on a 0.6 A max draw.

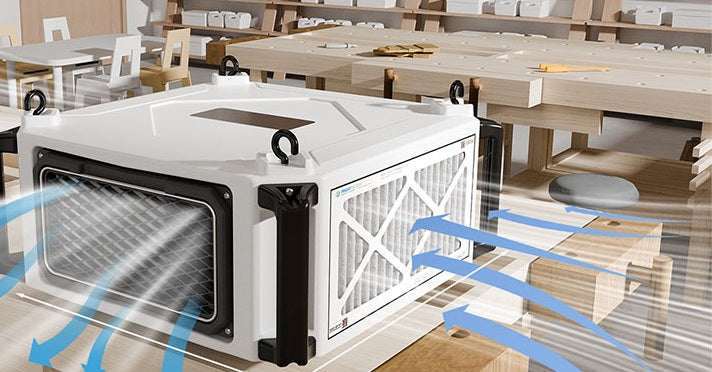

Ceiling, Wall or Bench
Hang it from four chains on hooks rated for 80 lbs or set it on a workbench. Wall mounting uses two brackets that are not in the box.
Infrared Remote and Timer
The remote works from up to 27' and sets a shutdown timer from 1 to 9 hours.
Memory Restart
Returns to its last setting after a power cut.
Optional Ionizer (780IG)
The 780IG adds an ionizer that charges particles so the filters catch them more easily, switched from the remote.
Specifications
-
Model: PureCare 780 (standard) / PureCare 780IG (ionizer)
-
Airflow: 580 / 780 CFM (2 speeds)
-
Coverage: Up to 800ft²
-
Filter Type: 3 x MERV-11 (90% of 3-10 µm, 85% of 1 µm)
-
Intake: 270°, three sides
-
Ionizer: 780IG only
-
Timer: 1 to 9 hours
-
Remote: Infrared, up to 27'
-
Voltage / Amps: 115 V, 60 Hz, 0.6 A max
-
Noise: 50 dBA
-
Dimensions: 18.3"W x 18.3"H x 9.3"D
-
Weight: 20 lbs
What's Included
- AlorAir PureCare 780 or 780IG air filtration system
- 3 MERV-11 filters (installed)
- Infrared remote control with 2 AAA batteries
- 4 hanging chains
- 4 hanging pieces and 4 nuts
- 4 screw hooks and 4 tapping screw hooks
- 4 expansion bolts and 4 screws
- User manual
Setup & Placement
Pick a spot near a grounded outlet, at least 3' from corners and heating or air vents, with 2' of open space around the inlet and outlet. To hang it, thread the four hangers into the top of the cabinet, screw the hooks into the building structure and hang the unit on the chains. Wall mounting needs two mounting brackets, which are not in the box: fit them with M6 screws and fix them to the wall with the expansion bolts.
Two people are needed for either method. Never run the unit without its filters installed.
Resources
Warranty & Shipping
Warranty. Backed by AlorAir's 12-month limited warranty from the date of delivery, covering defects in materials and workmanship. AlorAir handles warranty service directly, so keep your proof of purchase and the original packaging.
Shipping. Ships direct from AlorAir's U.S. warehouse, with free shipping on orders over $100.
Inspect on delivery. Check the carton and the unit when it arrives and note any damage on the delivery receipt before signing.
About AlorAir
AlorAir Solutions is based in Chino, California, and supplies dehumidifiers, air movers, air scrubbers and shop air filtration systems. The PureCare line is its range of air cleaners for woodworking shops, garages and other dusty workspaces.
The PureCare 780 and 1080 share a 270° intake with three MERV-11 filters, and each comes as a standard model or an IG model with a built-in ionizer. The PureCare 1350 steps up to a 360° intake and 1,350 CFM, while the PureCare 780S and 1050 are portable units that stand on the floor or a bench.
