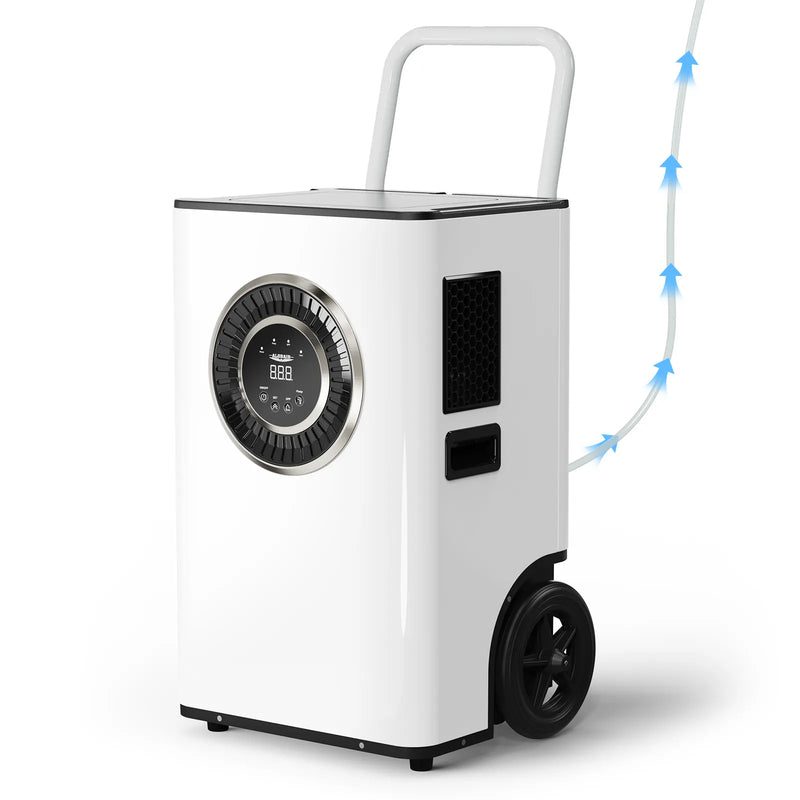

The AlorAir Sentinel Elite 80X is the largest of the Elite X series: a wheeled SLGR dehumidifier with a built-in pump for spaces up to 2,100ft². It removes 80 pints a day at AHAM conditions (80°F, 60% RH) and up to 170 pints a day at saturation (90°F, 90% RH), moving 210 CFM on 576 W.
The same compact cabinet as the 50X and 60X carries a bigger airflow for warehouses, large garages and commercial basements. With pump or gravity drainage and GPP control, the Sentinel Elite 80X can hold a large space at a steady moisture level without supervision.

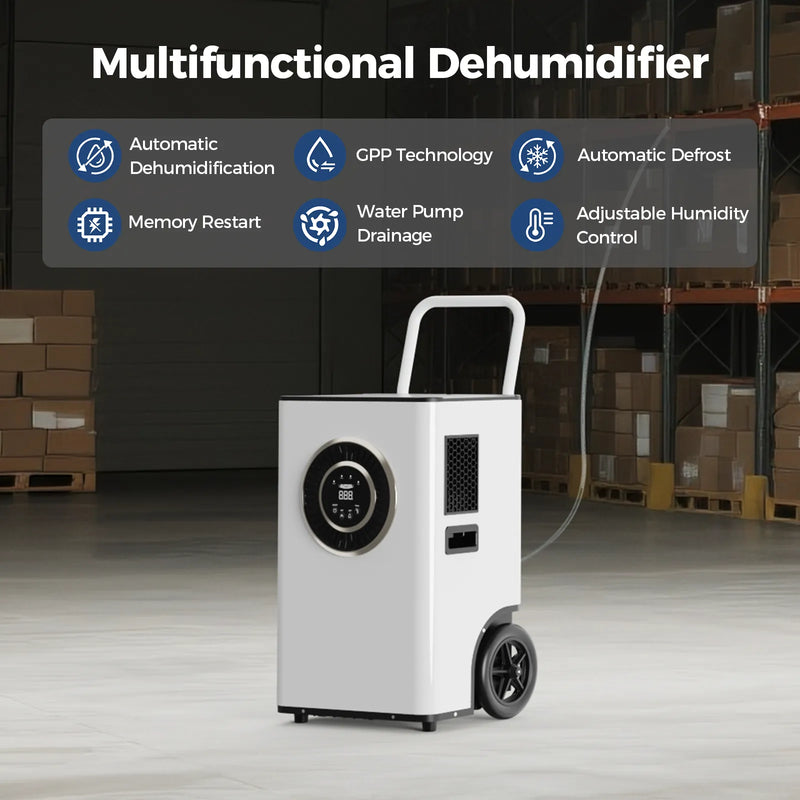

Features
SLGR Technology
AlorAir's super low grain refrigerant design, with 80 pints a day at AHAM and up to 170 at saturation, at 2.74 L/kWh.

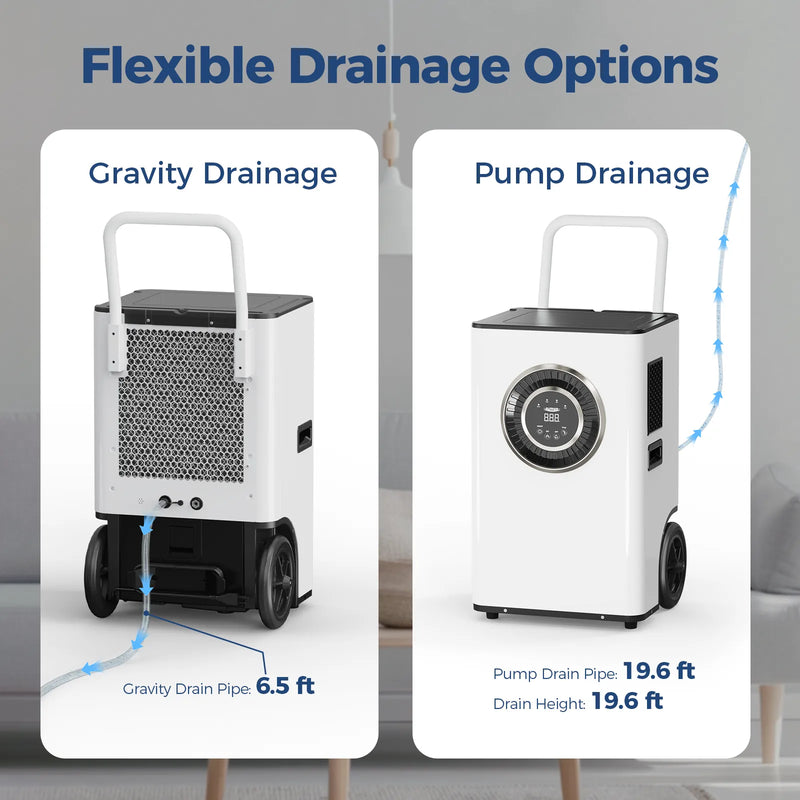

Pump or Gravity Drainage
The built-in pump lifts water up to 19.6' through the 19.6' hose, or drain by gravity through the 6.5' hose.

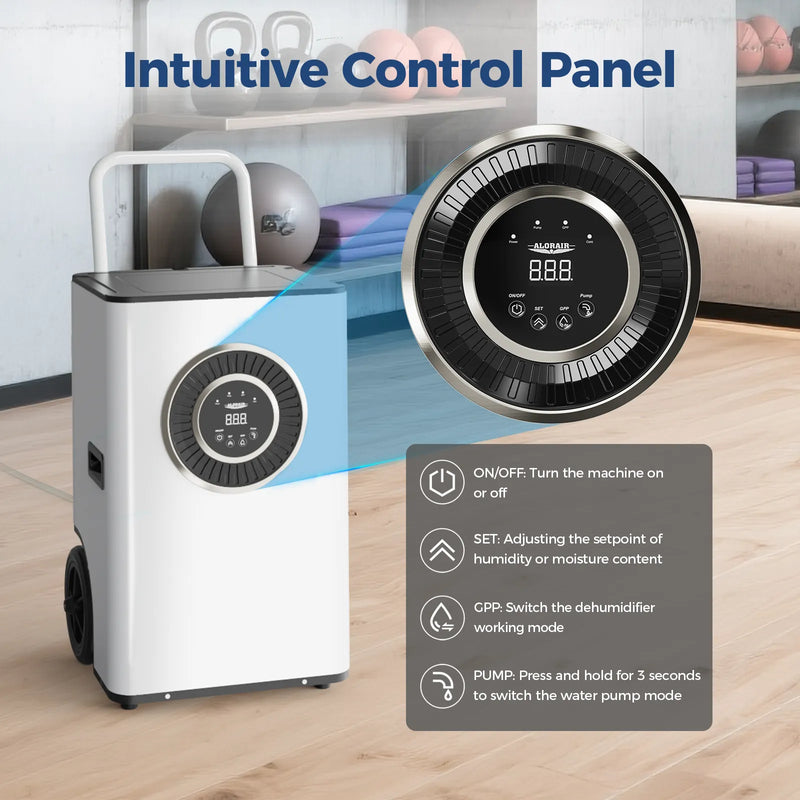

Humidity or GPP Control
Set 35% to 90% RH in 1% steps, or a moisture content target from 25 to 200 grains per pound.
Continuous Mode
Runs nonstop regardless of room humidity when you need a full drying run.
Memory Restart and Auto Defrost
Resumes its setpoint, mode and pump setting after a power cut, and clears coil ice in cool rooms.

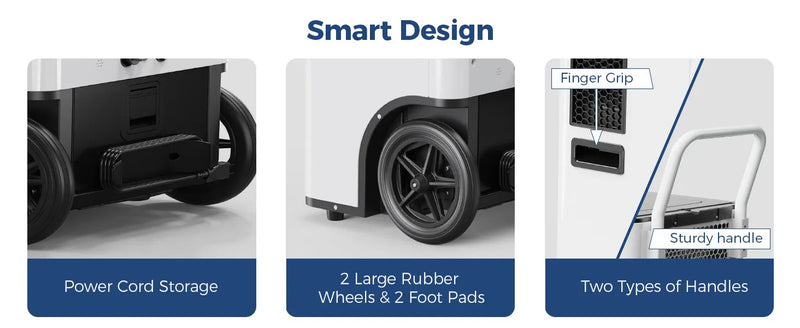

Portable Cabinet

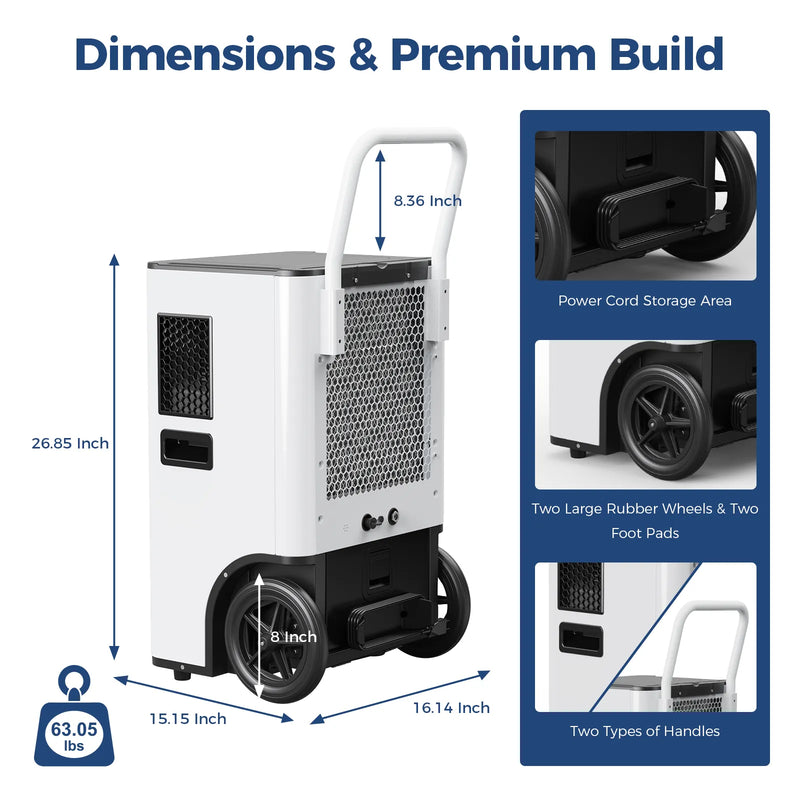

16.14" x 15.15" x 26.85" and 63.05 lbs, on two large wheels and two foot pads with a pull handle.
Cord Wrap and Storage Compartment
The power cord wraps on the back, and a latched compartment at the base holds small accessories.
Specifications
-
Model: Sentinel Elite 80X
-
Water Removal at AHAM (80°F, 60% RH): 80 pints/day
-
Water Removal at Saturation (90°F, 90% RH): 170 pints/day
-
Coverage: Up to 2,100ft²
-
Airflow: 210 CFM
-
Operating Temperature: 37.4°F to 100.4°F
-
Humidity Setpoint Range: 35% to 90% RH in 1% steps; GPP mode 25 to 200; continuous mode
-
Refrigerant: R32
-
Drainage: Built-in pump, up to 19.6' lift (19.6' hose); gravity drain (6.5' hose)
-
Power: 115 V, 60 Hz, 576 W (5.05 A)
-
Electrical Requirement: Grounded 3-prong GFCI outlet, 15 A circuit
-
Power Cord: 11.48'
-
Efficiency: 2.74 L/kWh
-
Noise: 57.5 dB
-
Dimensions: 16.14"L x 15.15"W x 26.85"H
-
Weight: 63.05 lbs (28.6 kg)
What's Included
- AlorAir Sentinel Elite 80X dehumidifier
- Handle and mounting screws
- 19.6' pump drain hose
- 6.5' gravity drain hose
- Air filter (installed)
- User manual
Setup & Placement
Use the unit in an enclosed space, near the center of the room, with the inlet and outlet clear of walls. After unpacking, fit the handle to the rear air intake panel with the screws provided, then let the unit stand upright for at least 24 hours before plugging it in.
For pump drainage, plug the gravity outlet and connect the 19.6' hose to the pump outlet; for gravity drainage, fit the 6.5' hose to the lower outlet and run it downhill. Plug into a grounded 3-prong GFCI outlet on a 15 A circuit.
Resources
Warranty & Shipping
Warranty. Backed by AlorAir's 12-month limited warranty from the date of delivery, covering defects in materials and workmanship. AlorAir handles warranty service directly, so keep your proof of purchase and the original packaging.
Shipping. Ships direct from AlorAir's U.S. warehouse, with free shipping on orders over $100.
Inspect on delivery. Check the carton and the unit when it arrives and note any damage on the delivery receipt before signing.
