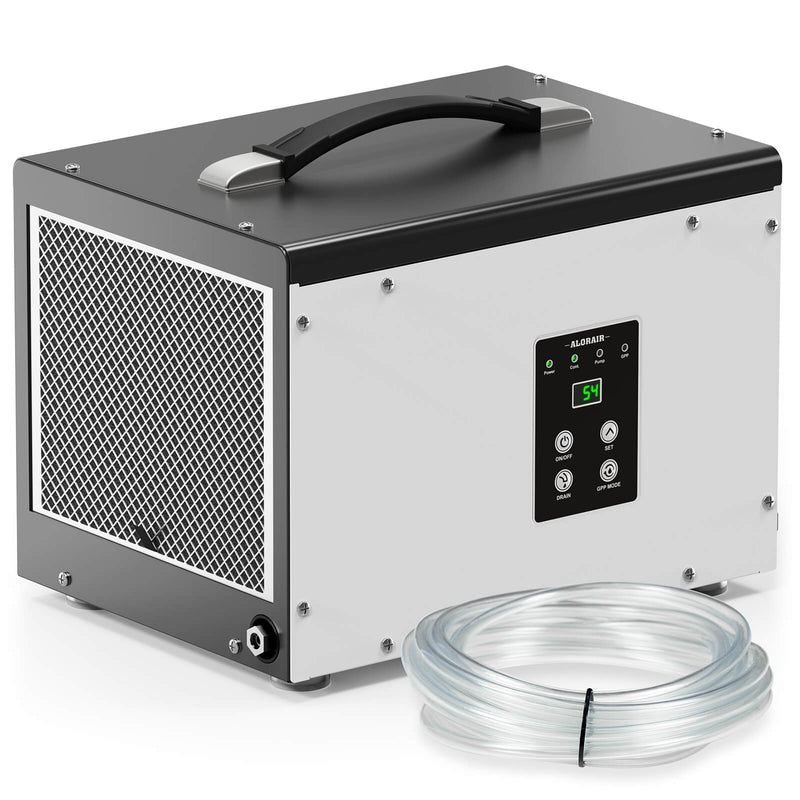

The AlorAir Sentinel HD35P is a compact crawl space dehumidifier with a built-in condensate pump. It removes 35 pints of water a day at AHAM conditions (80°F, 60% RH) and up to 70 pints a day at saturation (90°F, 90% RH) in spaces up to 1,000ft², on a 2.9 A draw.

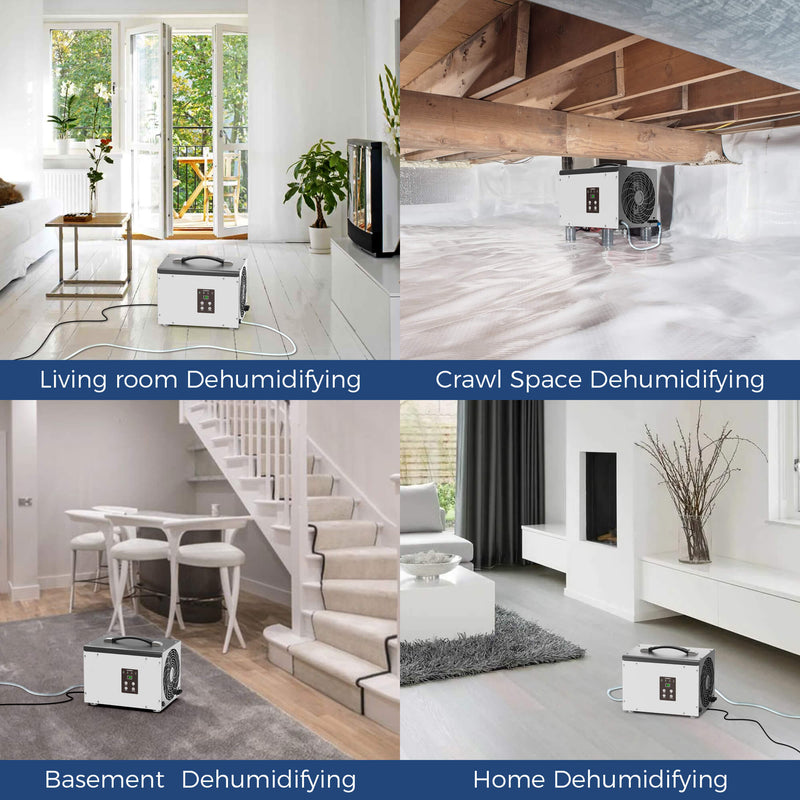

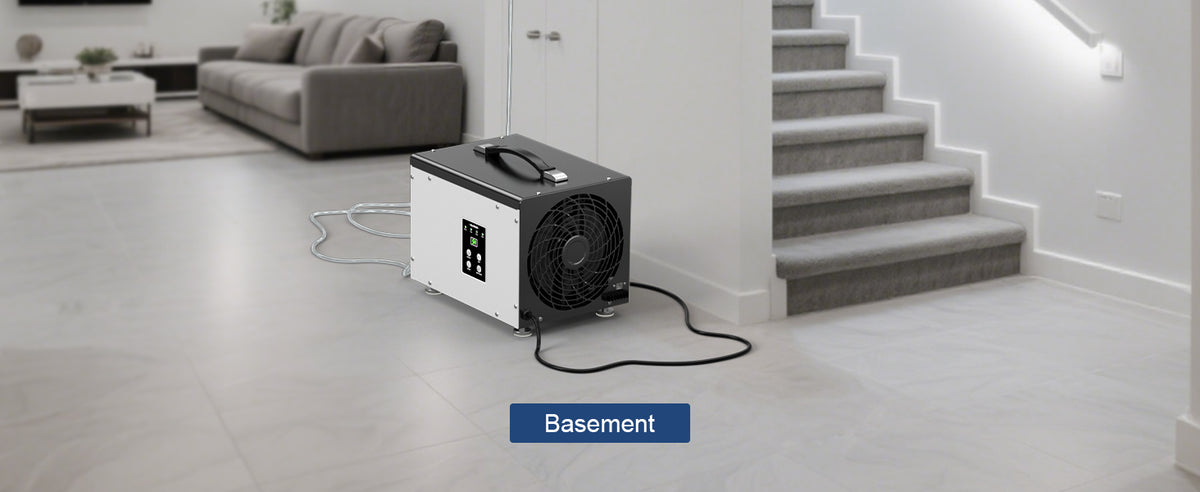

Because it can pump water up to 19.6' to a sink, window or sump, the HD35P can sit anywhere in a small crawl space or basement rather than next to a floor drain. A digital panel with a GPP mode, auto defrost and memory restart let the Sentinel HD35P look after itself between visits.
Choose the standard model, or the WiFi model to check and adjust it from the AlorAir-C app.
Features
Built-In Condensate Pump
Lifts water up to 19.6' through the pump hose, or switches to gravity drainage through the 6.5' hose. A pump fault shows as an E4 code and stops the unit.
Compact Steel Cabinet

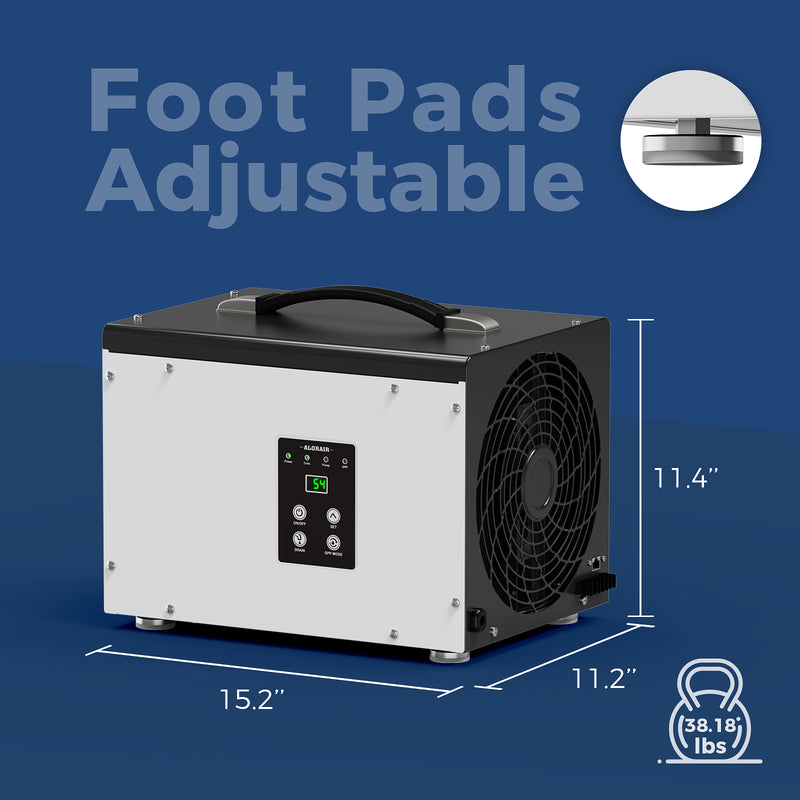

15.2" x 11.2" x 11.4" and 38.18 lbs, with a top handle and adjustable feet for leveling on uneven ground.

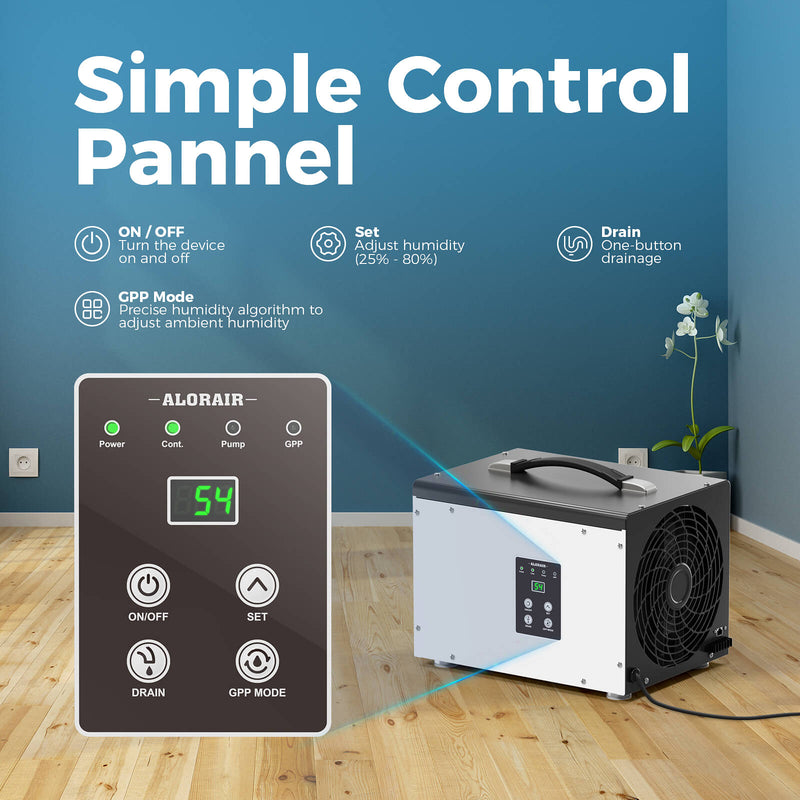

Digital Humidity Control
Set the target from 25% to 80% in 5% steps on the standard model, or choose continuous mode. The humidistat runs the compressor only when needed.
GPP Mode
Switch the readout from relative humidity to grains per pound, a direct measure of the moisture in the air.

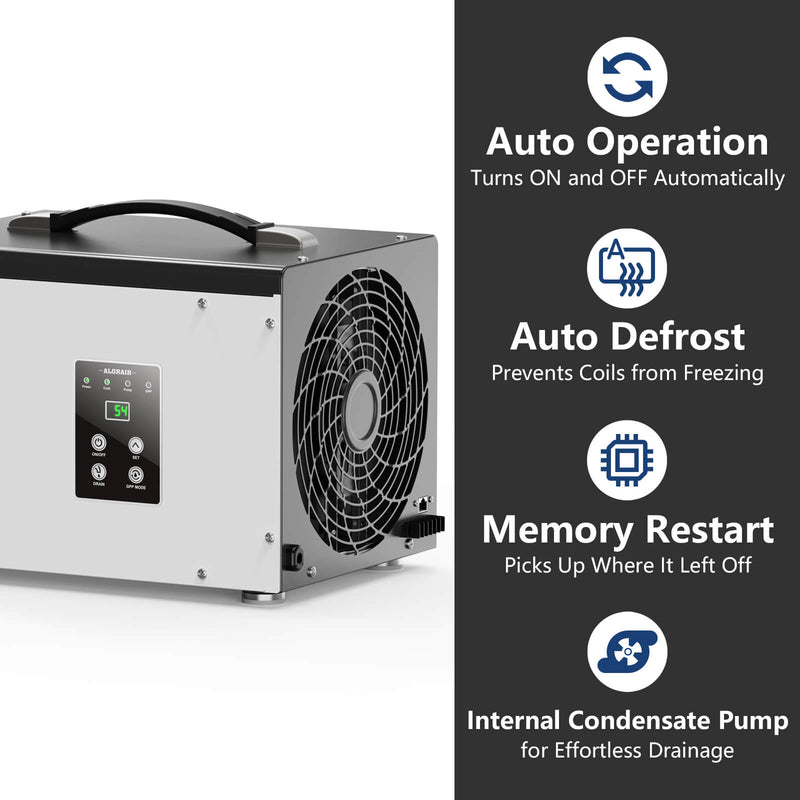

Auto Defrost and Memory Restart
Clears ice from the coil in cool spaces down to 33°F, and resumes on its last setting after a power cut.
Low 2.9 A Draw
Rated at 2.0 L/kWh with a rotary compressor and a rare earth alloy tube evaporator, at less than 50 dBA.
Optional Wired Remote
Both versions accept AlorAir's optional remote on a 25' CAT 5 cable, with its own humidity sensor for control from a living space.

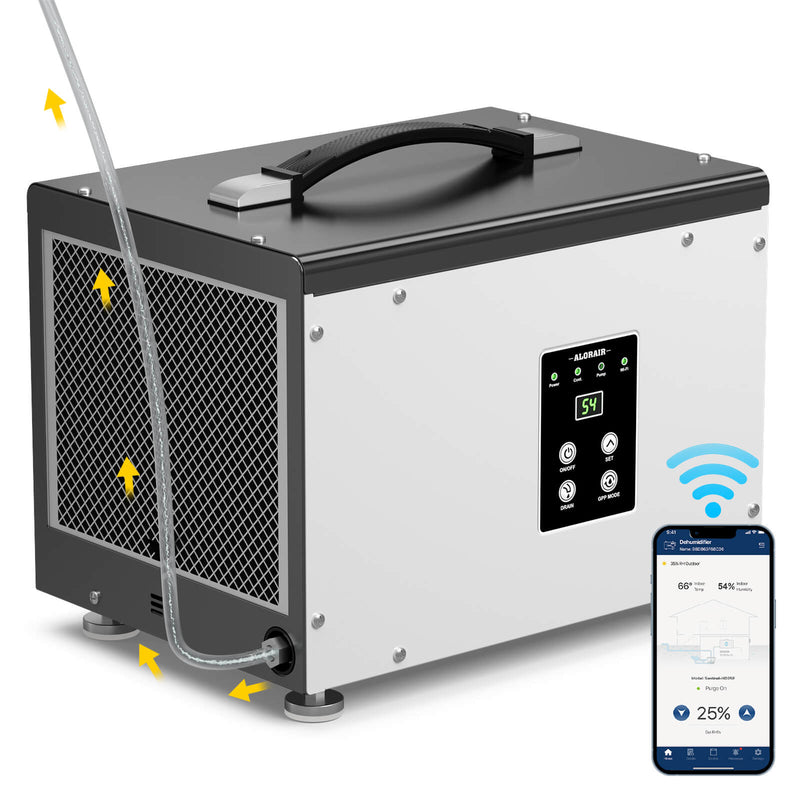

WiFi App Control
The WiFi model connects to the AlorAir-C app, so you can switch it on or off, change the setting and check humidity from your phone.
Specifications
-
Model: Sentinel HD35P (standard) / Sentinel HD35P WiFi
-
Water Removal at AHAM (80°F, 60% RH): 35 pints/day
-
Water Removal at Saturation (90°F, 90% RH): 70 pints/day
-
Coverage: Up to 1,000ft²
-
Airflow: 115 CFM
-
Operating Temperature: 33°F to 105°F
-
Humidity Setpoint Range: 25% to 80% in 5% steps, plus continuous mode (standard model)
-
Drainage: Built-in condensate pump, up to 19.6' lift; gravity drain option
-
Drain Hoses: 19.6' pump hose; 6.5' gravity hose
-
Power: 115 V, 60 Hz, 2.9 A
-
Electrical Requirement: Grounded 3-prong GFCI outlet, 15 A circuit
-
Efficiency: 2.0 L/kWh
-
Refrigerant: R32
-
Filter: MERV-1
-
Noise: Less than 50 dBA
-
Dimensions: 15.2"L x 11.2"W x 11.4"H
-
Weight: 38.18 lbs
-
Certifications: cETL
What's Included
- AlorAir Sentinel HD35P dehumidifier
- MERV-1 filter (installed)
- 19.6' pump drain hose
- 6.5' gravity drain hose
- User manual
Setup & Placement

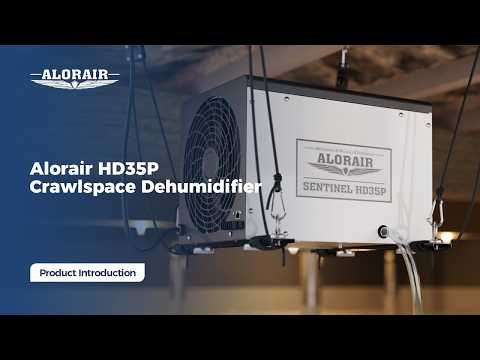

Seal the space first: AlorAir specifies a vapor barrier on the ground and closed vents. Stand the unit level on blocks or pavers, off the vapor barrier, or hang it from joists with a hanging kit (sold separately). If it has been tipped in transit, leave it upright for at least 2 hours before switching on.

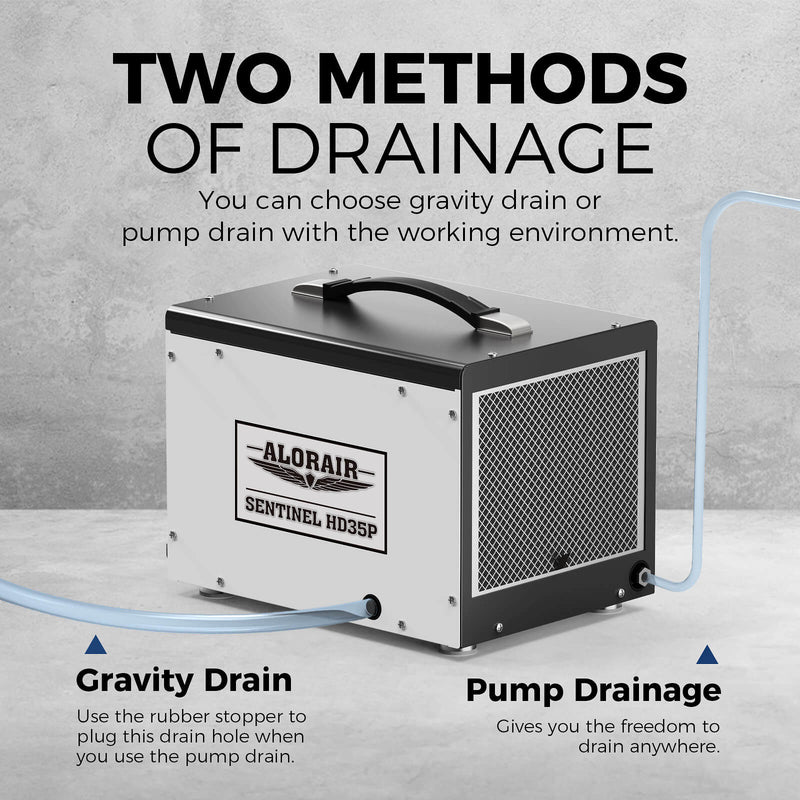

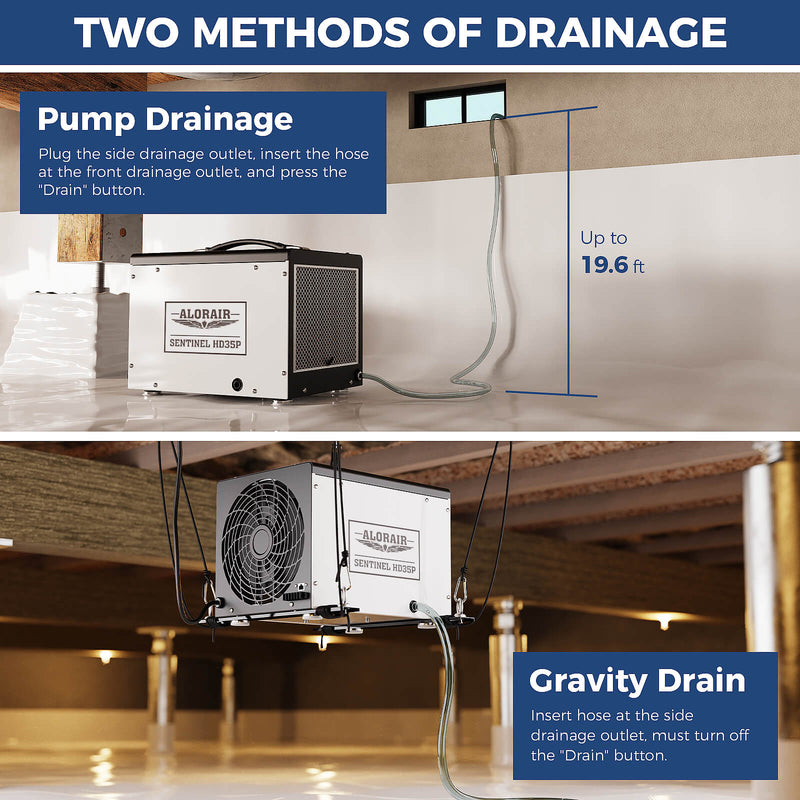

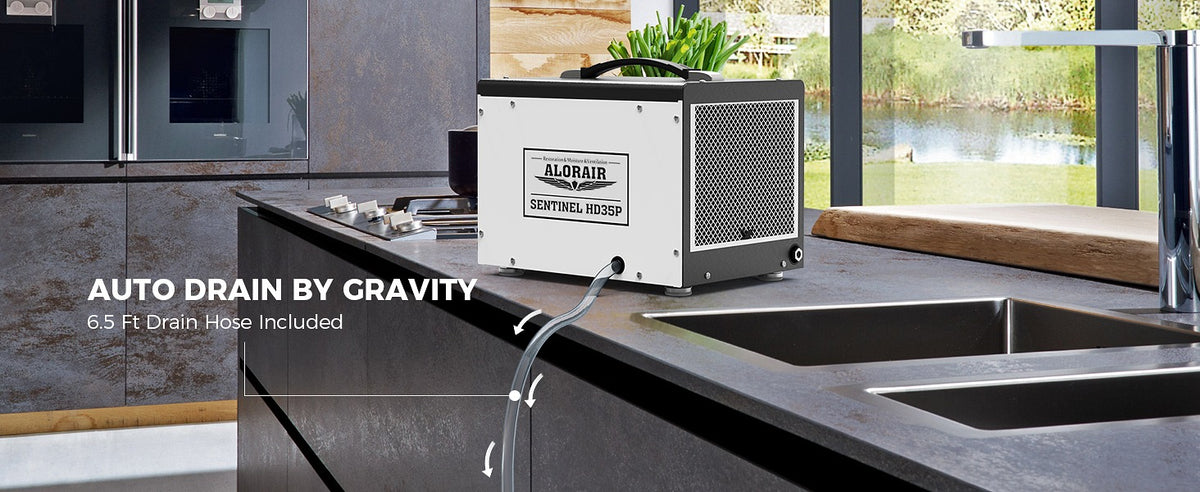

For pump drainage, attach the pump hose with the compression fitting, plug the gravity outlet and switch the unit to pump mode. For gravity, run the 6.5' hose downhill to a drain. Keep the inlet and outlet clear of walls and plug into a grounded 15 A GFCI outlet.
Resources
Warranty & Shipping
Warranty. Backed by AlorAir's 12-month limited warranty from the date of delivery, covering defects in materials and workmanship. AlorAir handles warranty service directly, so keep your proof of purchase and the original packaging.
Shipping. Ships direct from AlorAir's U.S. warehouse, with free shipping on orders over $100.
Inspect on delivery. Check the carton and the unit when it arrives and note any damage on the delivery receipt before signing.
About AlorAir
AlorAir Solutions is based in Chino, California, and supplies dehumidifiers, air movers and air scrubbers for crawl spaces, basements and water damage restoration. Its Sentinel line is built for permanent installation in the spaces under and around a home.
The HD35P shares the compact cabinet of the Sentinel HS35 but adds the pump and a digital panel. The HD55, HD55S and HDi65S cover mid-size crawl spaces, and the HDi90, HDi100 and HDi120 handle larger crawl spaces and basements.
