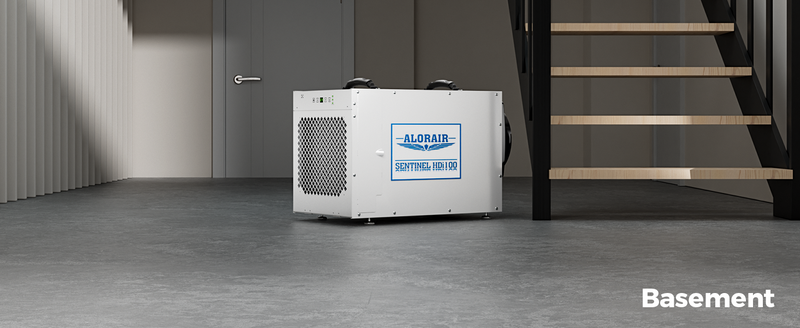

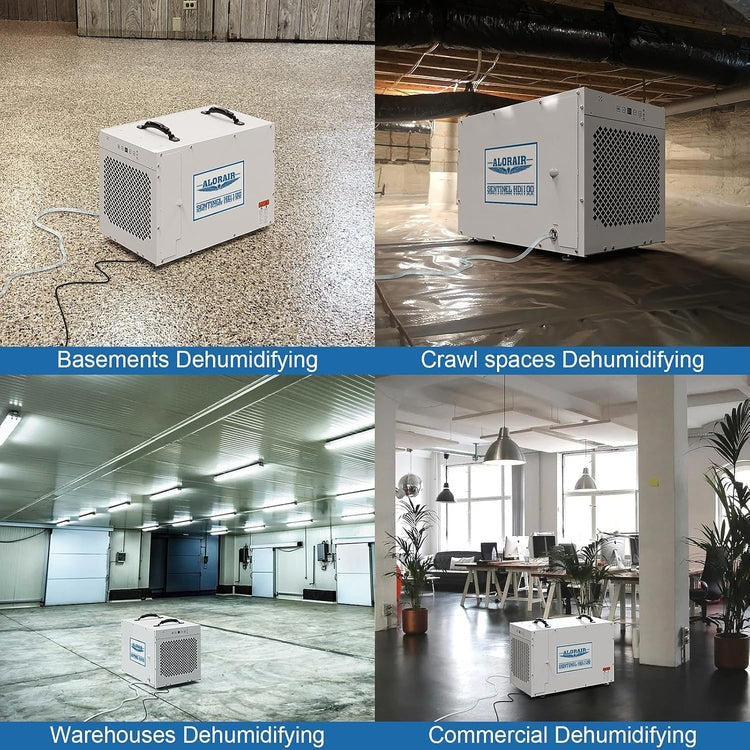

The AlorAir Sentinel HDi100 is a crawl space, basement and whole-home dehumidifier with a built-in condensate pump. It removes 100 pints of water a day at AHAM conditions (80°F, 60% RH) and 78 pints a day at DOE conditions (73°F, 60% RH), covering up to 2,900ft² with 250 CFM of airflow.
A MERV-1 pre-filter and a MERV-10 filter protect the coils, and both ends of the cabinet can be ducted with 10" flex. For a large sealed crawl space or an open basement, the Sentinel HDi100 pumps its own condensate out and runs on its humidistat through the damp months.
Features
100 Pints a Day at AHAM
Removes 100 pints a day at 80°F and 60% RH, and 78 pints at 73°F and 60% RH, from a rotary compressor and 250 CFM of airflow.
Built-In Condensate Pump
Pumps water out through the drain hose automatically. The Drain button empties the reservoir before a move, and an E4 alarm flags a pump problem.

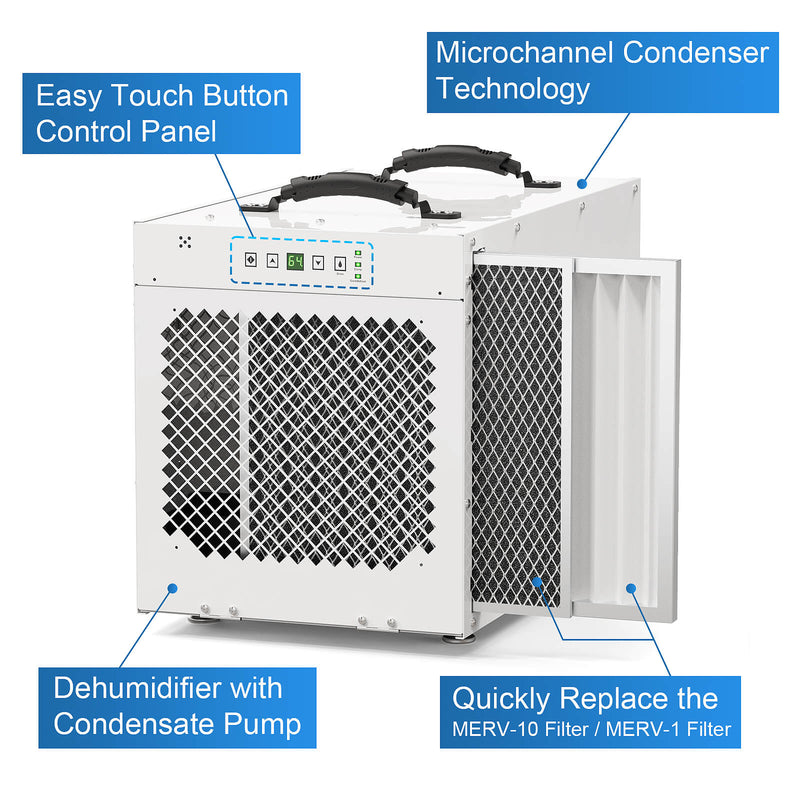

Two-Stage Filtration
Ships with a washable MERV-1 pre-filter and a MERV-10 filter, both reached from the intake side.
Microchannel Condenser
A microchannel condenser and a rare earth alloy tube evaporator, rated at 2.7 L/kWh on a 6.82 A draw.

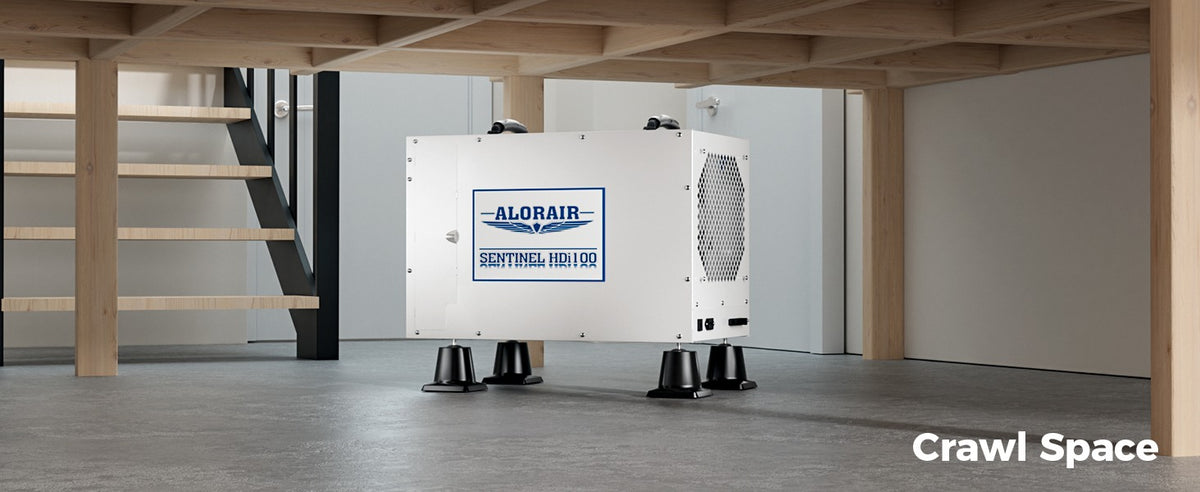

Ducting on Both Ends
Inlet and supply each take 10" flex duct through optional adapters, up to a 10' total duct run.

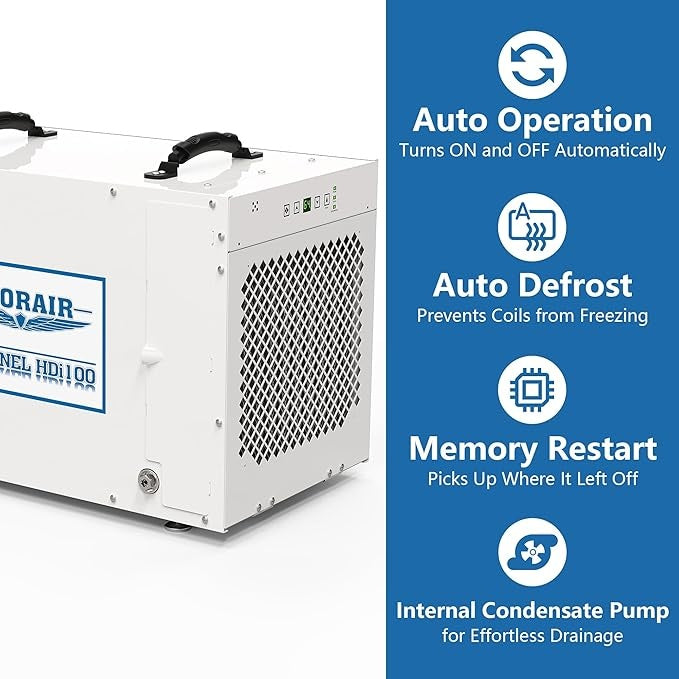

Automatic Humidity Control
Holds any setpoint from 36% to 90%, switches to continuous mode below 36%, defrosts automatically down to 33.8°F and restarts on its last settings after a power cut.
Optional Wired Remote
AlorAir's remote runs on a 25' CAT 5 cable with its own humidity sensor, so you can control the unit from a living space.
Specifications
-
Model: Sentinel HDi100
-
Water Removal at AHAM (80°F, 60% RH): 100 pints/day
-
Water Removal at DOE (73°F, 60% RH): 78 pints/day
-
Coverage: Up to 2,900ft²
-
Airflow: 250 CFM
-
Operating Temperature: 33.8°F to 104°F
-
Humidity Setpoint Range: 36% to 90%, plus continuous mode
-
Drainage: Built-in condensate pump with manual drain button; 19.6' drain hose
-
Duct Connections: 10" flex duct on inlet and supply (adapters optional), 10' maximum total run
-
Power: 115 V, 60 Hz, 6.82 A
-
Electrical Requirement: Grounded 3-prong GFCI outlet, 15 A circuit
-
Efficiency: 2.7 L/kWh
-
Compressor: Rotary
-
Filters: MERV-1 pre-filter and MERV-10 filter
-
Noise: Less than 60 dBA
-

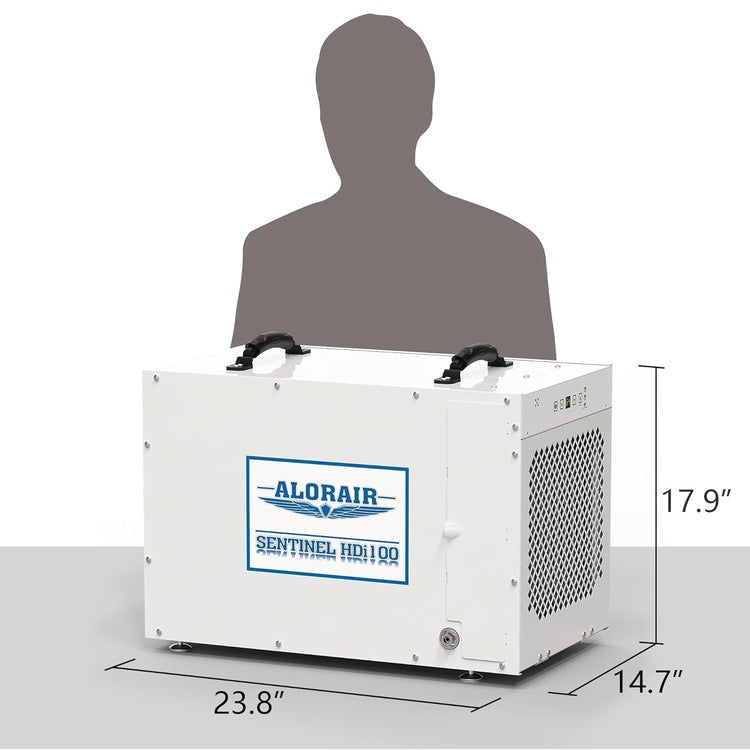

Dimensions: 23.8"L x 14.7"W x 17.9"H
-
Weight: 88 lbs (40 kg)
-
Certifications: cETL
What's Included
- AlorAir Sentinel HDi100 dehumidifier
- MERV-1 pre-filter and MERV-10 filter
- Drain hose
- User manual
Setup & Placement
Seal the space first: AlorAir specifies a vapor barrier and sealed vents in a crawl space. Stand the unit level on blocks or pavers rather than directly on the barrier, with 6' clear in front of the inlet and discharge. If it was tipped in transit, leave it upright for 2 hours before switching on.
Slide the compression nut over the drain hose, push the hose fully onto the fitting and tighten the nut, then route it to a drain, sump or outside. For ducted installs, keep the total duct run within 10'. Plug into a grounded 15 A GFCI circuit.
Resources
Warranty & Shipping
Warranty. Backed by AlorAir's 12-month limited warranty from the date of delivery, covering defects in materials and workmanship. AlorAir handles warranty service directly, so keep your proof of purchase and the original packaging.
Shipping. Ships direct from AlorAir's U.S. warehouse, with free shipping on orders over $100.
Inspect on delivery. Check the carton and the unit when it arrives and note any damage on the delivery receipt before signing.
About AlorAir
AlorAir Solutions is based in Chino, California, and supplies dehumidifiers, air movers and air scrubbers for crawl spaces, basements and water damage restoration. Its Sentinel line is built for permanent installation in the spaces under and around a home.
The HDi100 and HDi120 are rated at 100 and 120 pints a day at AHAM, a step up from the Sentinel HDi90 and HD90, which remove 90 pints a day on a 5.56 A draw. For smaller crawl spaces, the Sentinel HDi65S covers up to 1,300ft².
