The AlorAir Sentinel HDi120 is a crawl space, basement and whole-home dehumidifier that steps up from the HDi100, with a built-in condensate pump. It removes 120 pints of water a day at AHAM conditions (80°F, 60% RH) and 93 pints a day at DOE conditions (73°F, 60% RH), and is rated for up to 3,300ft² with 290 CFM of airflow.

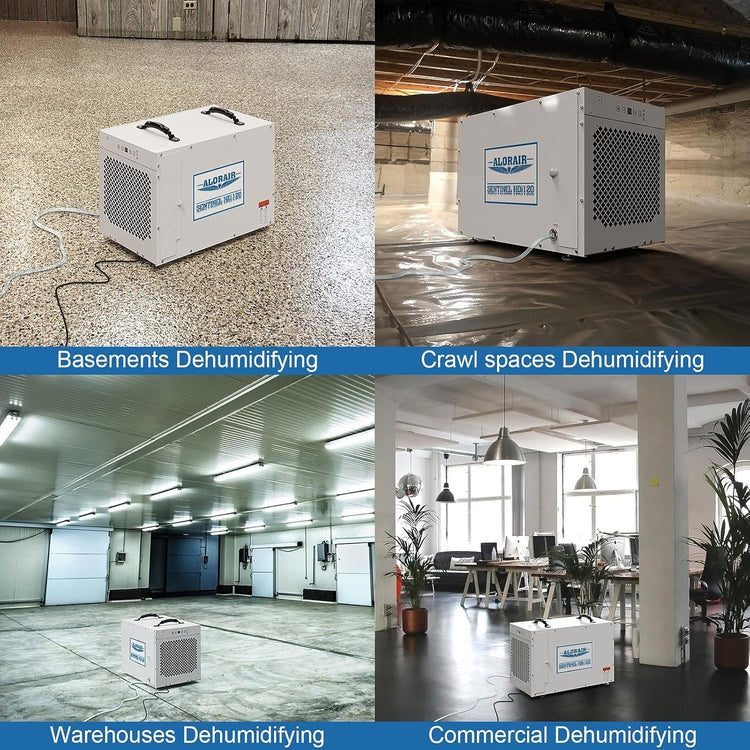

That capacity comes in the same 23.8" x 14.7" x 17.9" cabinet as the HDi100, drawing 7.8 A. It is sized for large basements, whole homes and big sealed crawl spaces, where the Sentinel HDi120 can be ducted at both ends and left to hold humidity on its own humidistat.
Features
120 Pints a Day at AHAM
Removes 120 pints a day at 80°F and 60% RH, and 93 pints at 73°F and 60% RH, with 290 CFM of airflow from a rotary compressor.
Covers Up to 3,300ft²
Sized for large basements, whole homes and extensive sealed crawl spaces, on a 7.8 A draw from a 15 A GFCI circuit.
Built-In Condensate Pump
Pumps water out through the drain hose automatically, with a Drain button to empty the reservoir and an E4 alarm if the pump stops.

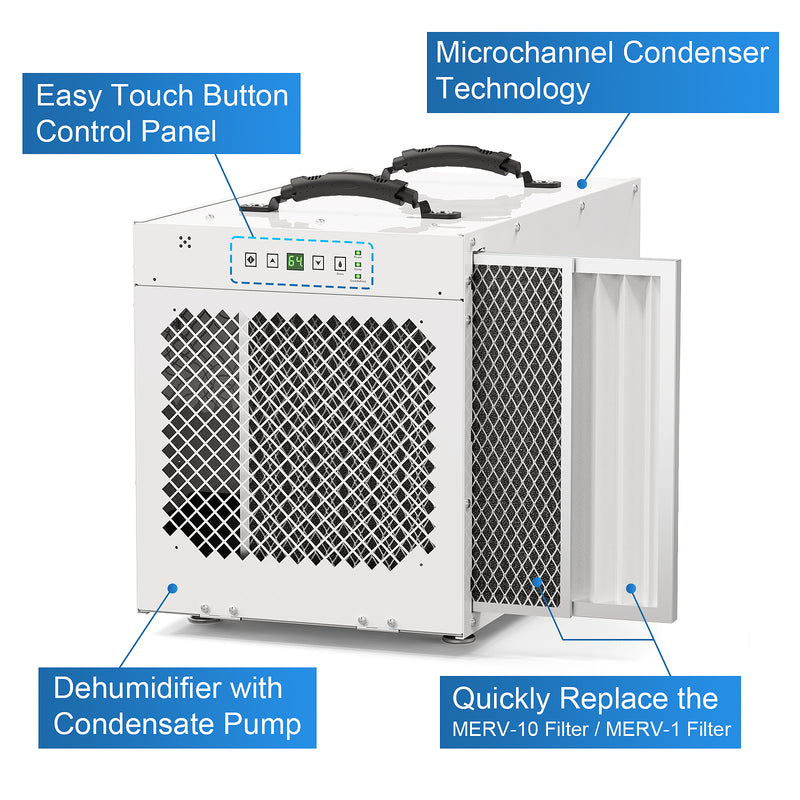

Two-Stage Filtration
A washable MERV-1 pre-filter and a replaceable MERV-10 filter slide out of the intake side.
Microchannel Condenser
Pairs a microchannel condenser with a rare earth alloy tube evaporator, rated at 2.7 L/kWh.
Ducting on Both Ends
Inlet and supply each take 10" flex duct through optional adapters, with a 10' maximum total run. An optional wired remote on a 25' CAT 5 cable adds its own humidity sensor.

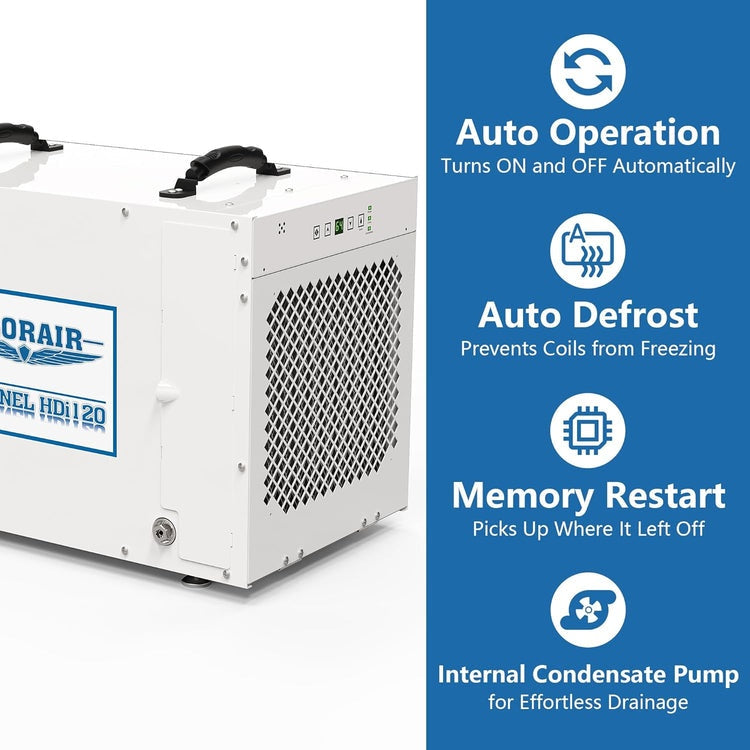

Automatic Humidity Control
Holds any setpoint from 36% to 90%, runs continuously below 36%, defrosts automatically down to 33.8°F and restarts on its last settings after a power cut.
Specifications
-
Model: Sentinel HDi120
-
Water Removal at AHAM (80°F, 60% RH): 120 pints/day
-
Water Removal at DOE (73°F, 60% RH): 93 pints/day
-
Coverage: Up to 3,300ft²
-
Airflow: 290 CFM
-
Operating Temperature: 33.8°F to 104°F
-
Humidity Setpoint Range: 36% to 90%, plus continuous mode
-
Drainage: Built-in condensate pump with manual drain button; 19.6' drain hose
-
Duct Connections: 10" flex duct on inlet and supply (adapters optional), 10' maximum total run
-
Power: 115 V, 60 Hz, 7.8 A
-
Electrical Requirement: Grounded 3-prong GFCI outlet, 15 A circuit
-
Efficiency: 2.7 L/kWh
-
Compressor: Rotary
-
Filters: MERV-1 pre-filter and MERV-10 filter
-
Noise: Less than 60 dBA
-

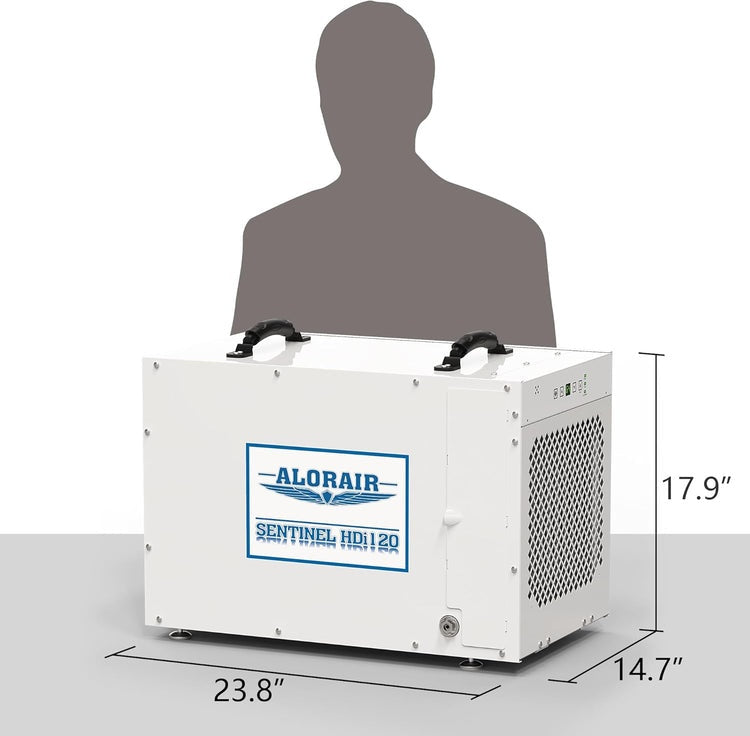

Dimensions: 23.8"L x 14.7"W x 17.9"H
-
Weight: 88 lbs (40 kg)
-
Certifications: cETL
What's Included
- AlorAir Sentinel HDi120 dehumidifier
- MERV-1 pre-filter and MERV-10 filter
- Drain hose
- User manual
Setup & Placement

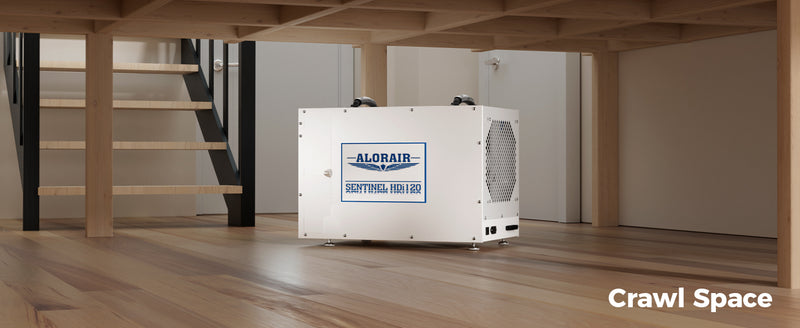

Seal the space first: AlorAir specifies a vapor barrier and sealed vents in a crawl space. Stand the unit level on blocks or pavers rather than directly on the barrier, with 6' clear in front of the inlet and discharge. If it was tipped in transit, leave it upright for 2 hours before switching on.
Slide the compression nut over the drain hose, push the hose fully onto the fitting and tighten the nut, then route it to a drain, sump or outside. For ducted installs, keep the total duct run within 10'. Plug into a grounded 15 A GFCI circuit.
Resources
Warranty & Shipping
Warranty. Backed by AlorAir's 12-month limited warranty from the date of delivery, covering defects in materials and workmanship. AlorAir handles warranty service directly, so keep your proof of purchase and the original packaging.
Shipping. Ships direct from AlorAir's U.S. warehouse, with free shipping on orders over $100.
Inspect on delivery. Check the carton and the unit when it arrives and note any damage on the delivery receipt before signing.
About AlorAir
AlorAir Solutions is based in Chino, California, and supplies dehumidifiers, air movers and air scrubbers for crawl spaces, basements and water damage restoration. Its Sentinel line is built for permanent installation in the spaces under and around a home.
The HDi100 and HDi120 are rated at 100 and 120 pints a day at AHAM, a step up from the Sentinel HDi90 and HD90, which remove 90 pints a day on a 5.56 A draw. For smaller crawl spaces, the Sentinel HDi65S covers up to 1,300ft².
