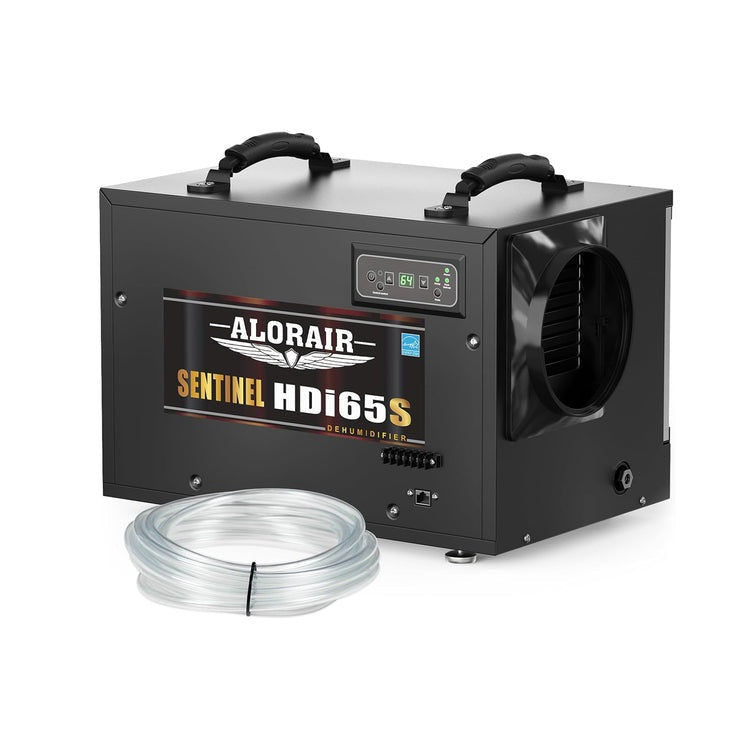

The AlorAir Sentinel HDi65S is a compact crawl space dehumidifier with a built-in condensate pump. It removes 55 pints of water a day at AHAM conditions (80°F, 60% RH) and up to 120 pints a day at saturation (90°F, 90% RH), covering spaces up to 1,300ft² on a 4.1 A draw.

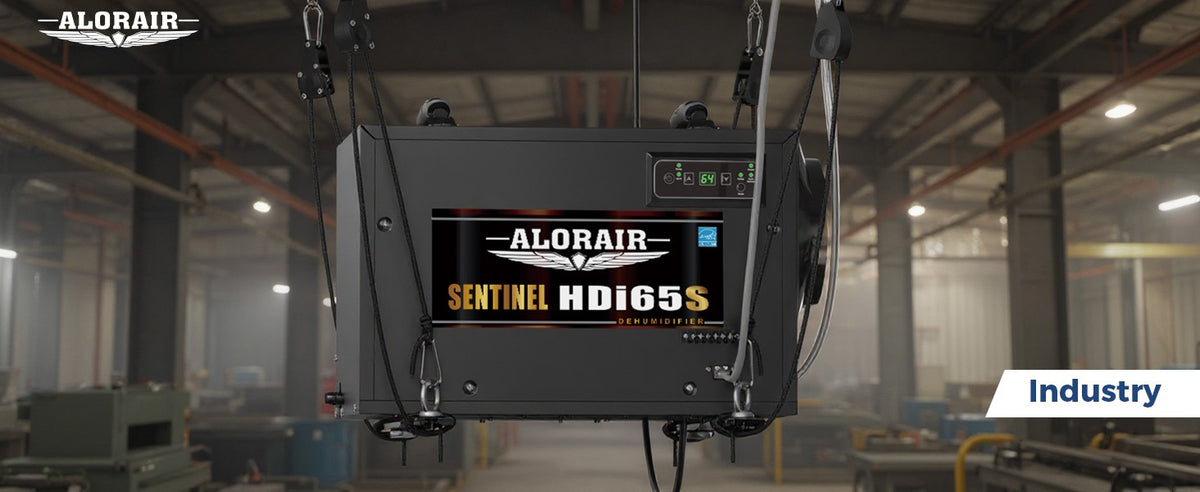

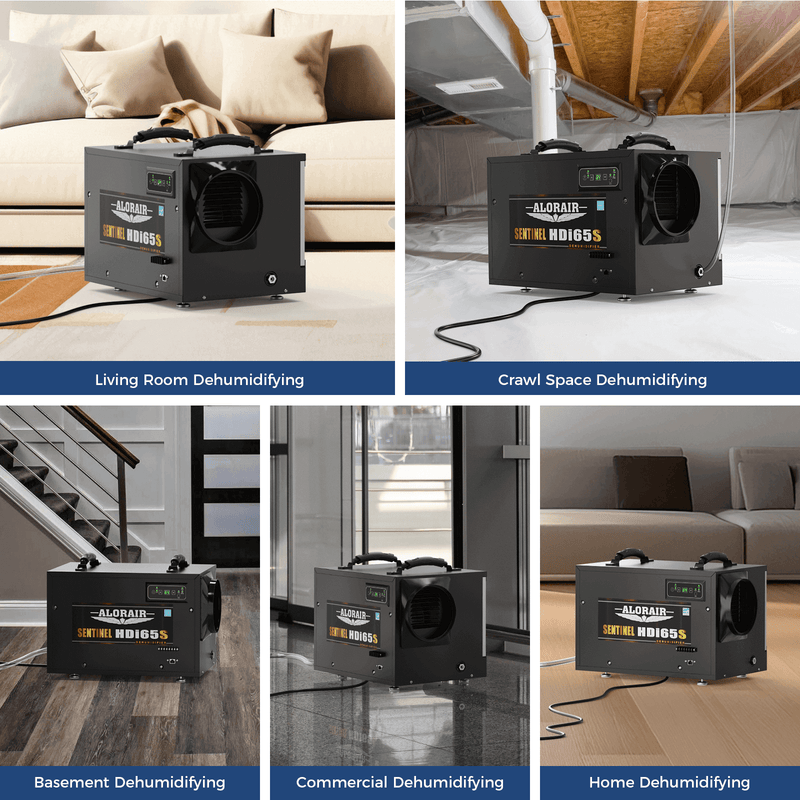

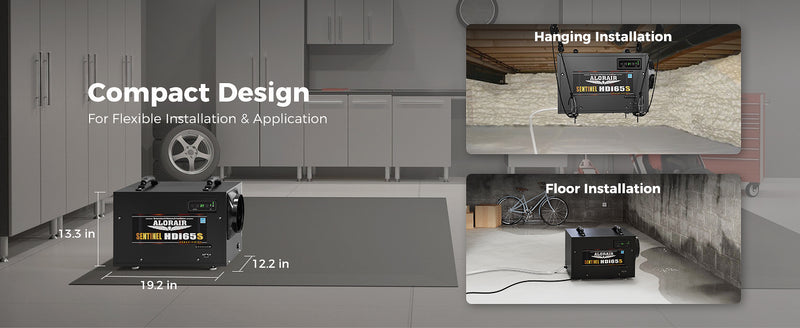

Its low, 13.3"-tall steel cabinet fits under floor joists in crawl spaces and the unfinished side of a basement, where it can stand on its adjustable feet or hang from a kit. Pump the condensate up to 19.6' to a drain, or drain by gravity, and the Sentinel HDi65S holds the humidity you set through the damp seasons.
Choose the standard model, or the WiFi model to check and adjust it from the AlorAir app.
Features

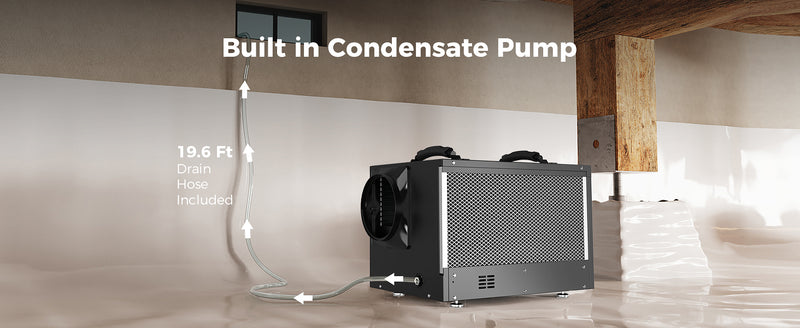

Built-In Condensate Pump

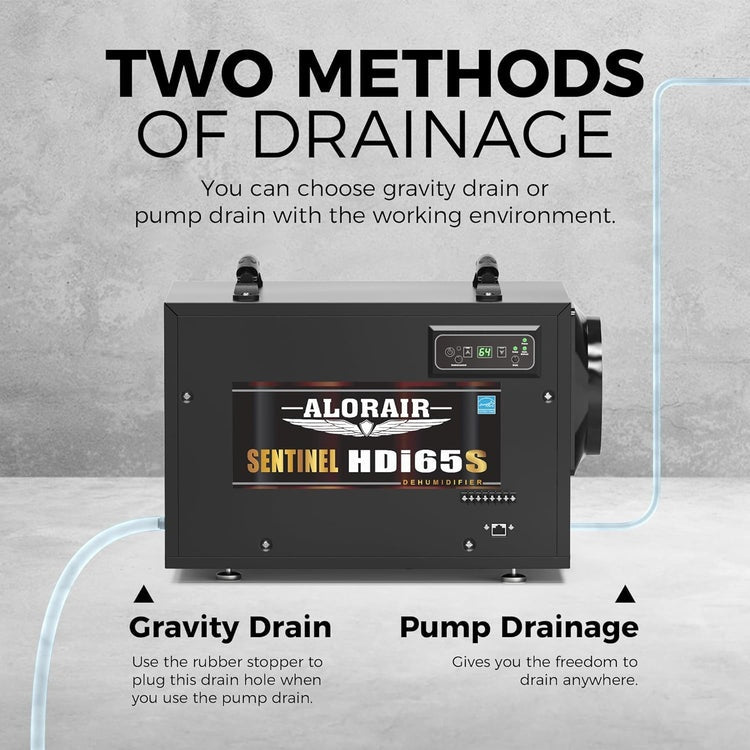

Pumps water up to 19.6' through the included drain hose, or switches to gravity drainage with the rubber drain plug. A pump fault shows as an E4 code.
Fits Low Crawl Spaces

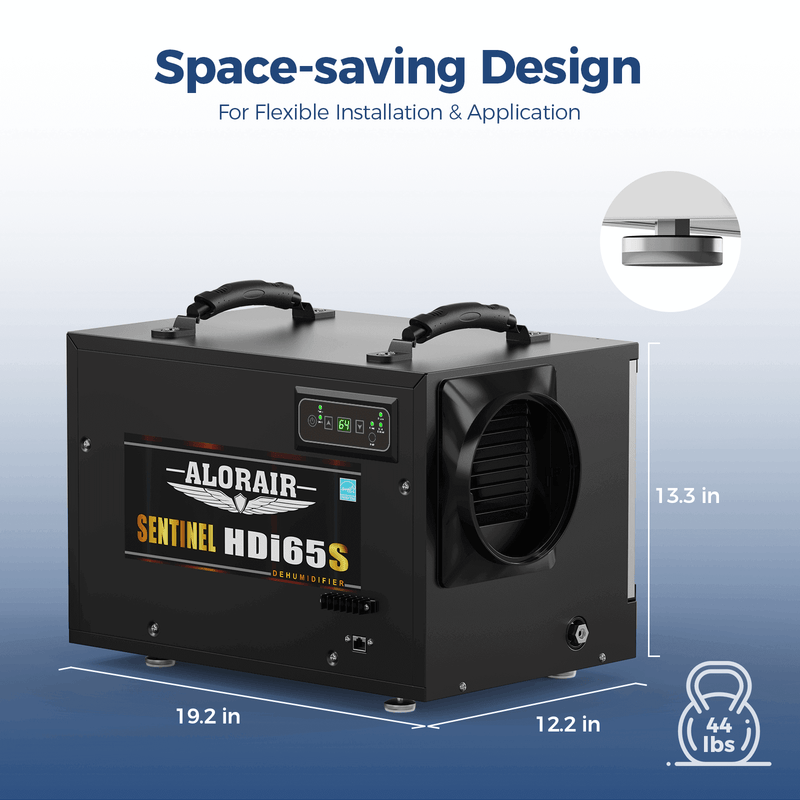

At 19.2" x 12.2" x 13.3" and 44 lbs, it slides under floor joists and stands level on adjustable feet.

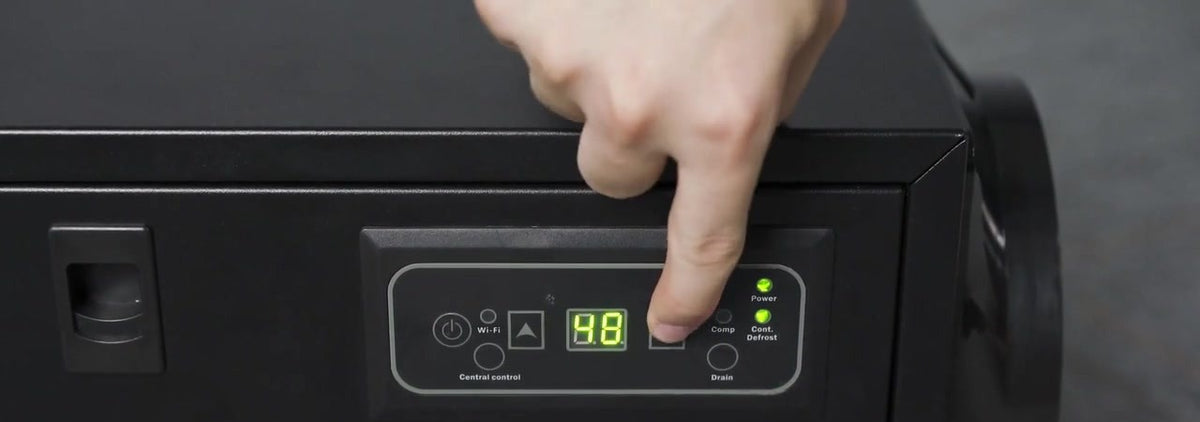

Automatic Humidity Control
The integral humidistat runs the compressor only when the space is above your setpoint. Continuous mode is there for drying out after a leak.
Auto Defrost Down to 33.8°F
Automatic defrost clears ice from the evaporator coil so the unit keeps working in a cool crawl space.
Memory Restart
After a power cut, the unit restarts on its last setting without anyone going under the house.
Energy Star Certified
Rated at 2.4 L/kWh, with a rotary compressor and a rare earth alloy tube evaporator. cETL listed.
Ducting and Remote Options

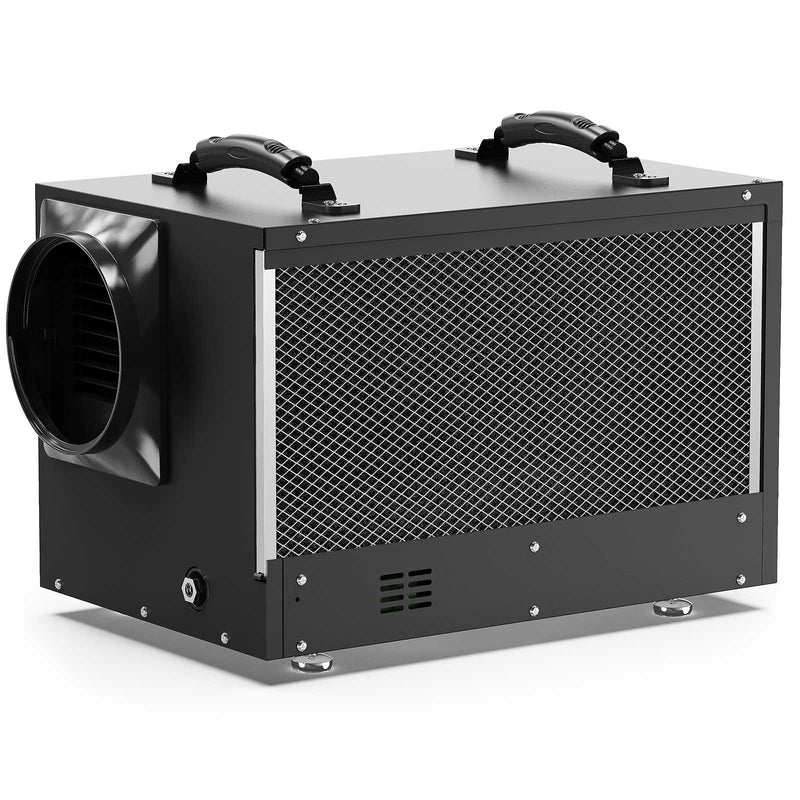

Duct dry air into a finished room through the 6" supply collar. Both versions also work with AlorAir's optional wired remote on a 25' CAT 5 cable, which has its own humidity sensor.

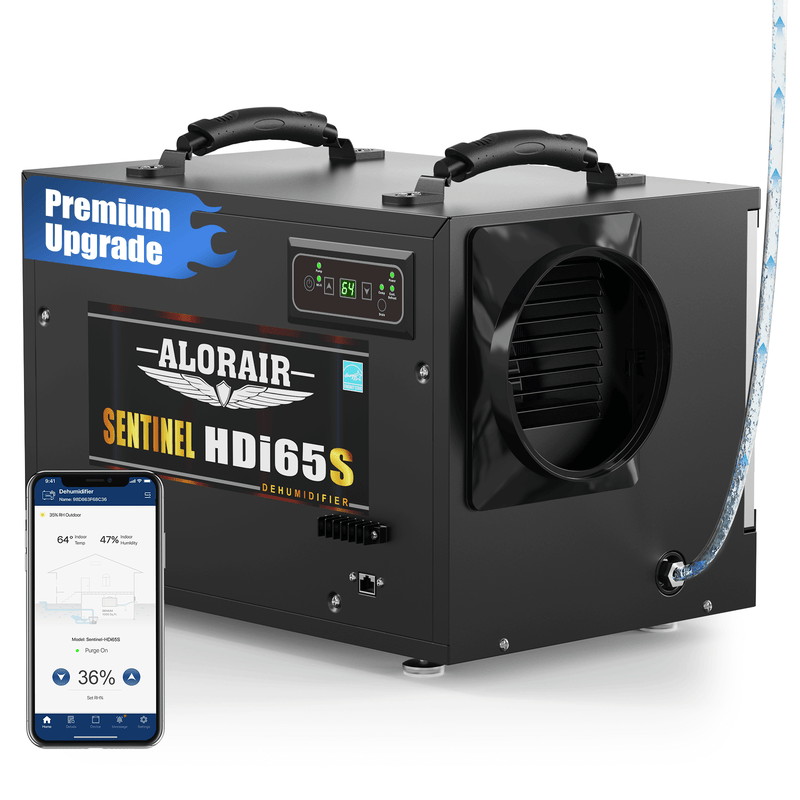

WiFi App Control
The WiFi model connects to the AlorAir app to monitor and adjust humidity from your phone. It ships set to gravity drainage; hold the Drain button for 3 seconds to switch to the pump.
Specifications
-
Model: Sentinel HDi65S (standard) / Sentinel HDi65S WiFi
-
Water Removal at AHAM (80°F, 60% RH): 55 pints/day
-
Water Removal at Saturation (90°F, 90% RH): 120 pints/day
-
Coverage: Up to 1,300ft²
-
Airflow: 130 CFM
-
Operating Temperature: 33.8°F to 104°F
-
Humidity Setpoint Range: 25% to 80% (standard); 35% to 90% (WiFi)
-
Drainage: Built-in condensate pump, up to 19.6' lift; gravity drain option
-
Duct Connection: 6" supply collar, 6' maximum duct length
-
Power: 115 V, 60 Hz, 4.1 A
-
Electrical Requirement: Grounded 3-prong GFCI outlet, 15 A circuit
-
Efficiency: 2.4 L/kWh
-
Refrigerant: R32
-
Noise: Less than 52 dBA
-
Dimensions: 19.2"L x 12.2"W x 13.3"H
-
Weight: 44 lbs (20 kg)
-
Certifications: Energy Star, cETL
What's Included
- AlorAir Sentinel HDi65S dehumidifier
- Air filter (installed)
- Drain hose
- User manual
Setup & Placement
Seal the space first: AlorAir specifies a vapor barrier on the ground and closed vents. Stand the unit on blocks or pavers so it sits level and off the vapor barrier, or hang it from joists with a hanging kit (sold separately). If it has been tipped in transit, leave it upright for at least 2 hours before switching on.
Connect the drain hose to the compression fitting on the discharge end, then run it to a sump, drain or outside. Keep 36" of clear space in front of the discharge. Plug into a grounded 15 A circuit with a GFCI outlet.
Resources
Warranty & Shipping
Warranty. Backed by AlorAir's 12-month limited warranty from the date of delivery, covering defects in materials and workmanship. AlorAir handles warranty service directly, so keep your proof of purchase and the original packaging.
Shipping. Ships direct from AlorAir's U.S. warehouse, with free shipping on orders over $100.
Inspect on delivery. Check the carton and the unit when it arrives and note any damage on the delivery receipt before signing.
