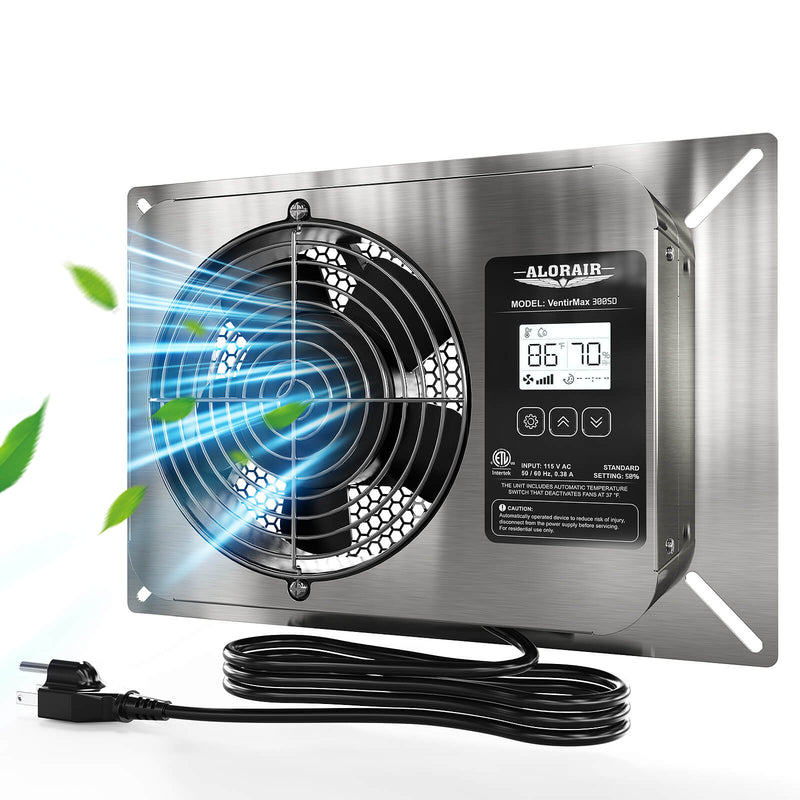

The AlorAir VentirMax 300SD is a programmable crawl space ventilation fan: a stainless steel, 300 CFM unit with a digital controller that runs on humidity, temperature or a timed cycle. AlorAir rates it for up to 550ft², at under 40 dBA.
Set a humidity trigger from 1% to 99% and a temperature trigger from 37°F to 158°F, step the airflow through five levels, and it remembers everything after a power cut. It draws 0.38 A at 115 V and shuts down below 37°F.
Features

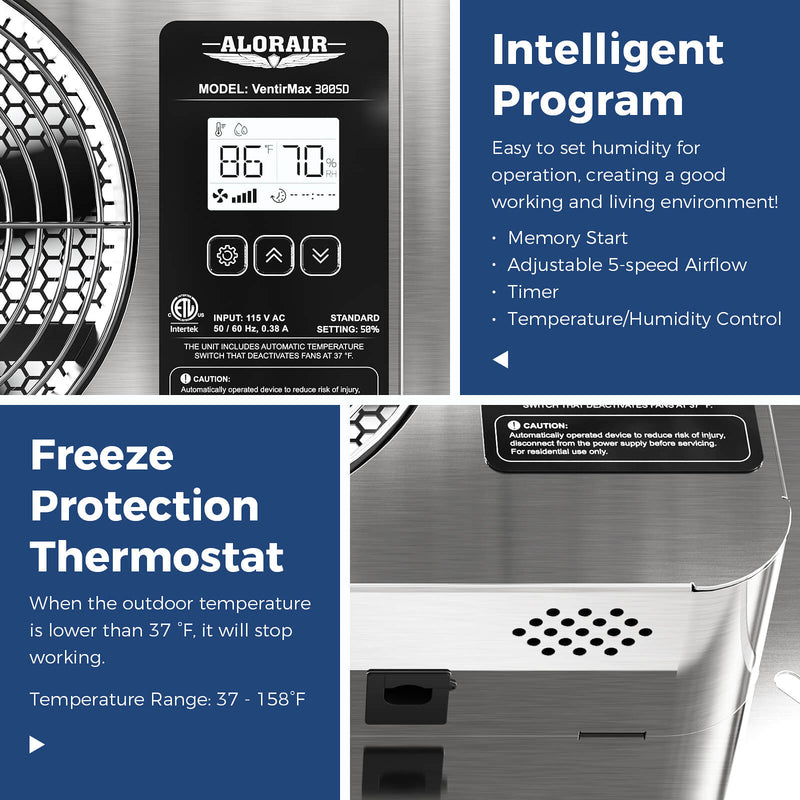

Programmable Digital Controller
Set a humidity trigger (1% to 99%) and a temperature trigger (37°F to 158°F); the fan starts when either is exceeded.
Timing Cycle and 5 Airflow Levels
Run the fan on a timed cycle, and step the airflow through five levels with the up and down buttons.
300 CFM Exhaust
Moves 300 CFM on 0.38 A at 115 V, rated by AlorAir for up to 550ft² of crawl space.
Memory and Cold Shutdown
Returns to its settings after a power cut, and shuts down showing LO below 37°F to protect the unit.
Stainless Steel Housing

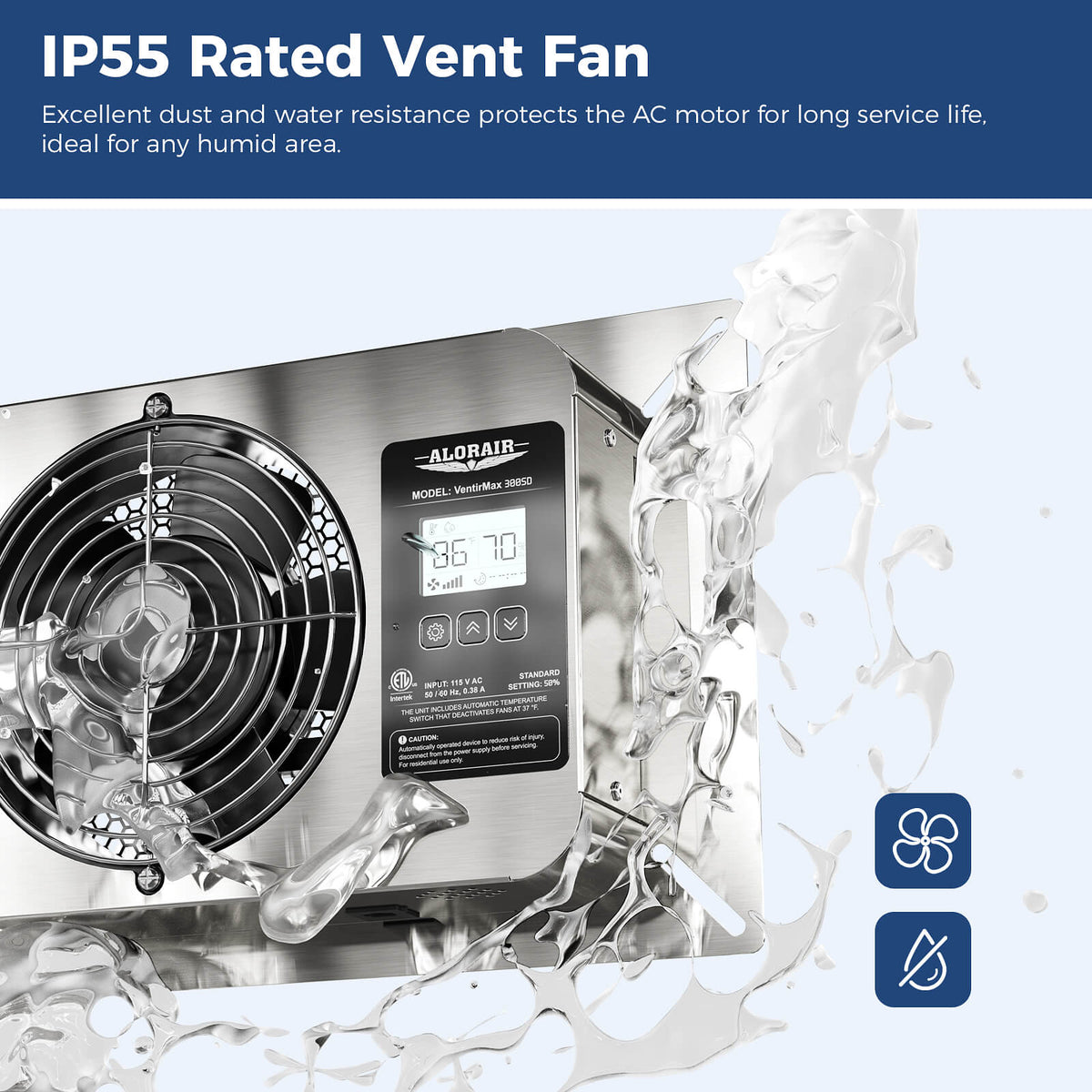

A stainless body and IP55 rated motor made for the constant humidity of a crawl space or basement.
Stainless Insect Screen
Keeps pests larger than 0.3" out of the fan and the crawl space.
Mounts Over the Vent
The metal plate fixes over an existing foundation vent with four screws, and can be trimmed to fit the opening.
Specifications
-
Model: VentirMax 300SD
-
Airflow: 300 CFM
-
Coverage: Up to 550ft²
-
Voltage: 115 V, 60 Hz
-
Rated Current: 0.38 A
-
Controls: Digital display with menu, up and down buttons
-
Humidity Trigger: 1% to 99% RH, or off
-
Temperature Trigger: 37°F to 158°F, or off
-
Timing Cycle: Yes
-
Airflow Levels: 5
-
Low-Temperature Shutdown: Below 37°F (shows LO)
-
Memory Restart: Yes
-
Motor Protection: IP55
-
Insect Screen: Stainless steel
-
Housing: Stainless steel
-
Power Cord: 6'
-
Noise: Less than 40 dBA
-

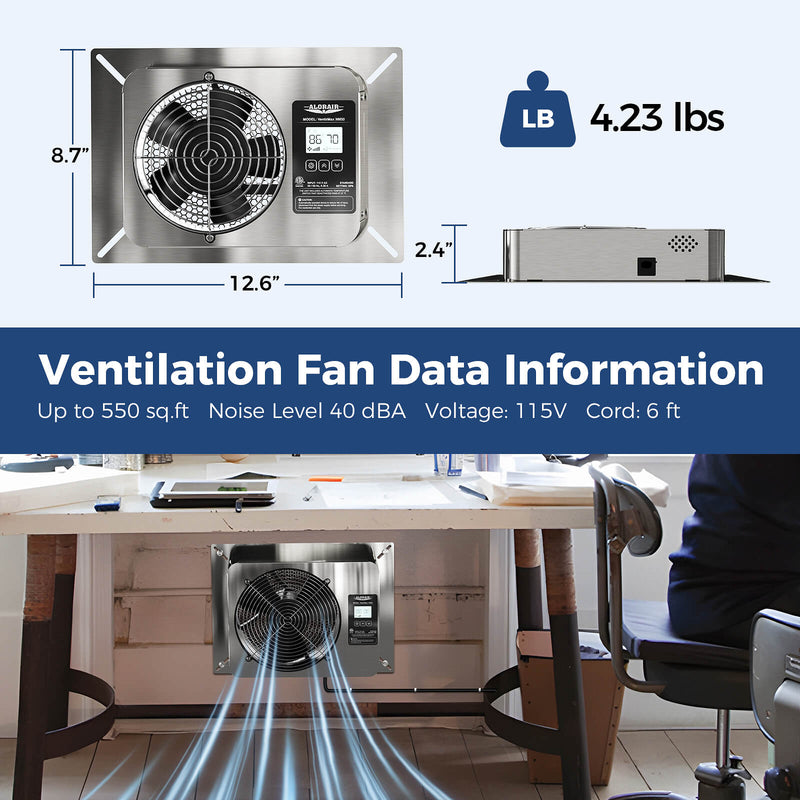

Dimensions: 12.6"L x 8.7"W x 2.4"H
-
Weight: 4.23 lbs
-
Certifications: ETL
What's Included
- AlorAir VentirMax 300SD ventilation fan with mounting plate
- 4 wall anchors and 4 machine screws
- Installation and user manual
Setup & Placement
Install it behind an existing foundation vent, at least 3' from a corner of the building, with the control box and motor facing into the crawl space. You need a grounded outlet within 6' and a 5/16" nut driver; add a drill with a 5/16" masonry bit for brick or block.
Remove the existing vent cover, place the fan in front of the vent and mark the four corners of the metal plate. On block or brick, drill 5/16" holes, fit the wall anchors and fix the plate with four screws; on wood framing or an existing vent, use screws and nuts. On SD models, set the humidity and temperature triggers after power-up: they ship at 50% RH and 86°F.
Resources
Warranty & Shipping
Warranty. Backed by AlorAir's 12-month limited warranty from the date of delivery, covering defects in materials and workmanship. AlorAir handles warranty service directly, so keep your proof of purchase and the original packaging.
Shipping. Ships direct from AlorAir's U.S. warehouse, with free shipping on orders over $100.
Inspect on delivery. Check the carton and the unit when it arrives and note any damage on the delivery receipt before signing.
About AlorAir
AlorAir Solutions is based in Chino, California, and supplies dehumidifiers, ventilation fans and air scrubbers for crawl spaces, basements and restoration work. Its crawl space ventilation fans mount over an existing foundation vent and run on their own controls to move damp air out from under the house.
The VentirMax series is AlorAir's stainless steel crawl space fan line, in knob-controlled S and programmable SD versions. The VentirPro series offers knob control in aluminum-zinc or stainless housings, and the VentirPro-S2 uses two DC fans with an external probe. For a sealed, encapsulated crawl space, AlorAir's Sentinel dehumidifiers are the alternative to ventilation.
