The AlorAir X-Force is a structural drying system that dries the inside of wet walls, ceilings and cabinets without tearing out drywall. A blower drives air through a hose to manifolds, and from each manifold 12 supply lines feed nozzles set into holes smaller than 1/4", either pulling moist air out of the cavities or pushing dry air in.
The X-Force ships as a complete kit with 100 nozzles, 8 manifolds and the fittings to join them, packed in two wheeled duffel bags that carry from job to job. It treats walls, ceilings, headers and the spaces under and behind cabinets, in either injection or extraction mode.
Features
Injection and Extraction Modes
Pull moist air out of cavities under negative pressure, then push dry air in to finish, by moving the hose from intake to outlet.
Covers Over 90' of Wall
One complete X-Force system is rated to treat more than 90' of 2x4 constructed wall.
Holes Smaller Than 1/4"
Nozzles fit holes made with a carpet awl or a 3/16" bit, easy to patch after the job.
100 Nozzles and 8 Manifolds
Each manifold feeds 12 supply lines, with end caps, connector fittings, T fittings and sleeves to build the run.

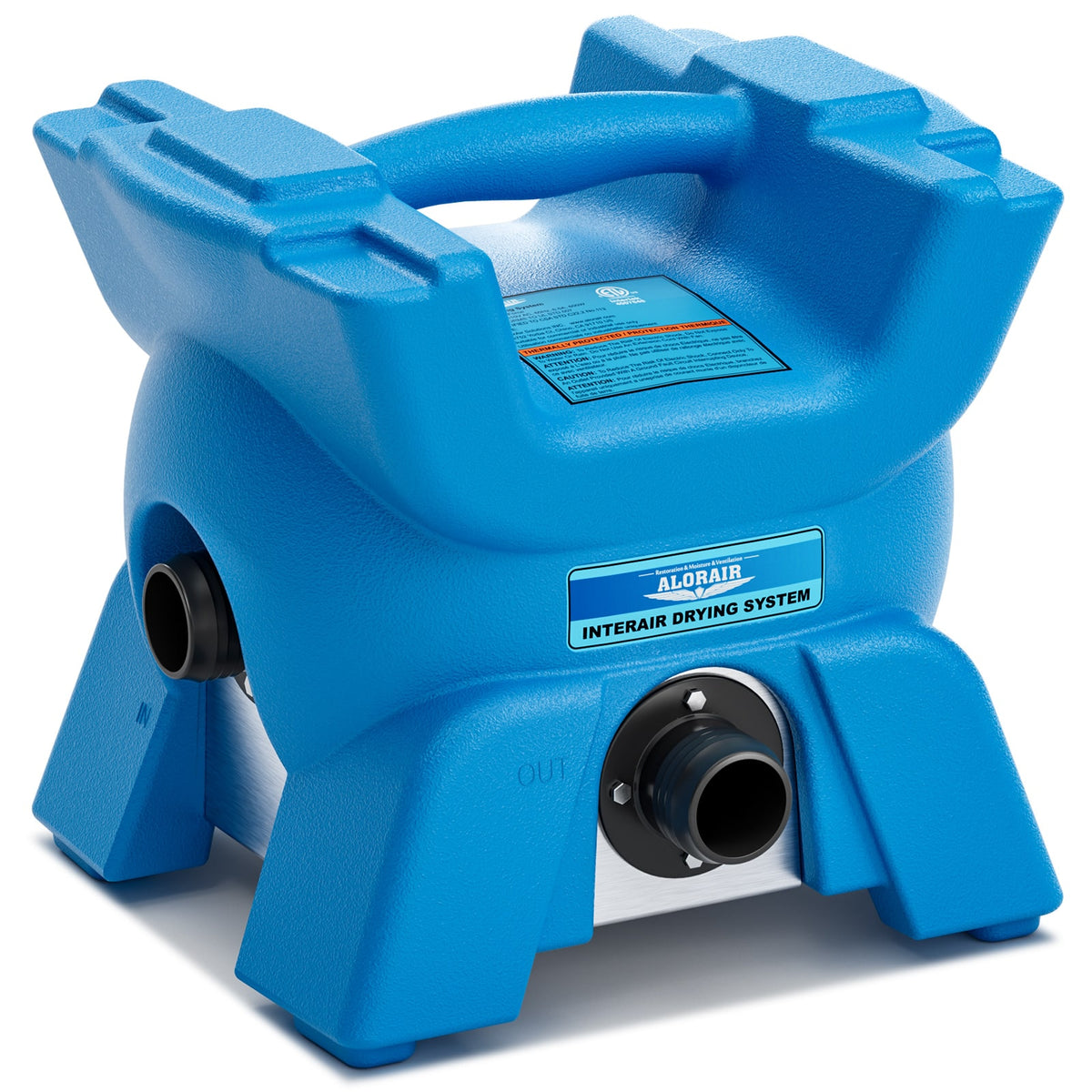

Stainless Steel Base
The blower pairs a stainless steel base with a double-walled polyethylene housing.
Two Wheeled Duffel Bags
The whole kit packs into two duffel bags with handles and wheels for transport and storage.
Specifications
-
Model: X-Force Air Drying System
-
Drying Modes: Positive (injection) or negative (extraction) pressure
-
Nozzle Hole Size: Less than 1/4"
-
Manifolds: 8, with 12 outlets each
-
Air Nozzles: 100
-
Fittings: 4 manifold end caps, 4 connector fittings, 6 hose clamps, 2 T fittings, 13 sleeves
-
Blower Construction: Stainless steel base, double-walled polyethylene housing
-
Power: 115 V, GFCI-protected receptacle required
-
Storage: 2 duffel bags with handles and wheels
-
Certifications: UL, C-UL, ETL (per manual)

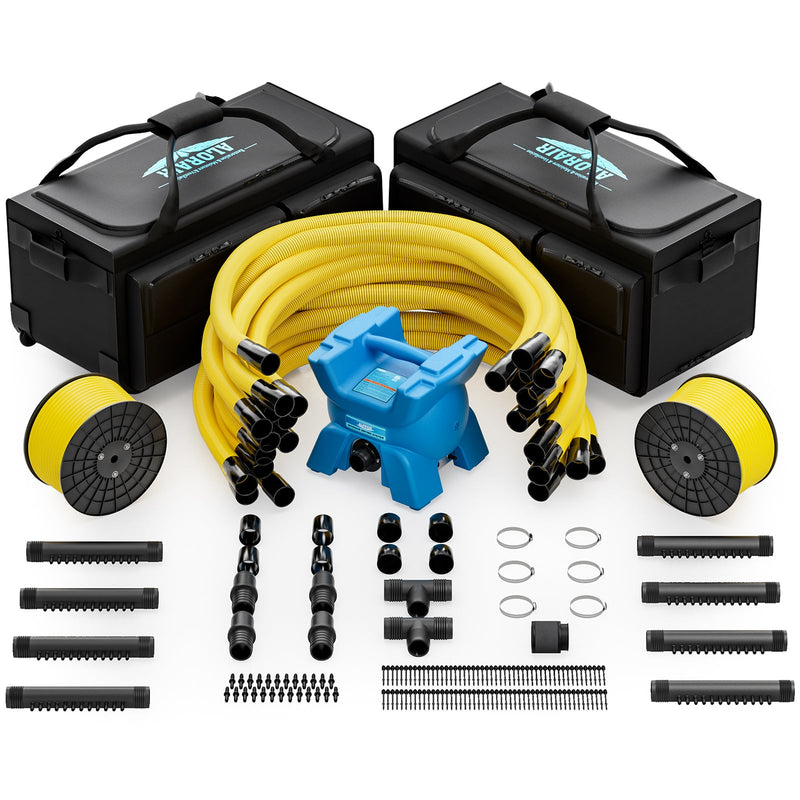

What's Included
- AlorAir X-Force blower
- 100 air nozzles
- 8 manifolds (12 outlets each)
- 4 manifold end caps
- 4 connector fittings
- 6 hose clamps
- 2 T fittings
- 13 sleeves
- Air delivery hose and PVC supply lines
- 2 wheeled duffel bags
- Owner's manual

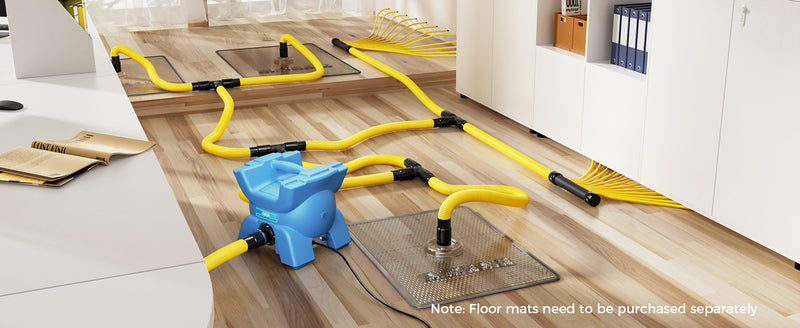

Setup & Placement

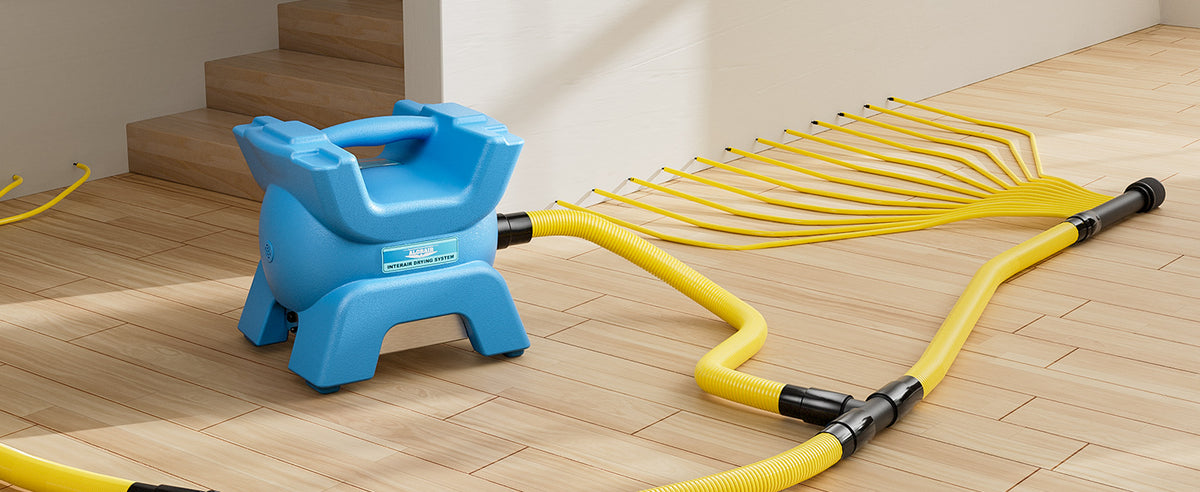

Mark the wall 8" from the corner and every 16" after that, lift the baseboard, and make the nozzle holes about 2" above the floor with a carpet awl or a 3/16" bit. Connect the air delivery hose from the blower to the manifolds with locking hose clamps, push a nozzle into each hole, and plug the last manifold with its end cap.
Set the blower away from foot traffic, keep the vents under its stainless steel base clear, and plug it into a grounded GFCI-protected outlet.
Resources
Warranty & Shipping
Warranty. Backed by AlorAir's 12-month limited warranty from the date of delivery, covering defects in materials and workmanship. AlorAir handles warranty service directly, so keep your proof of purchase and the original packaging.
Shipping. Ships direct from AlorAir's U.S. warehouse, with free shipping on orders over $100.
Inspect on delivery. Check the carton and the unit when it arrives and note any damage on the delivery receipt before signing.
About AlorAir
AlorAir Solutions is based in Chino, California, and supplies dehumidifiers, air movers and air scrubbers for water damage restoration, mold remediation, crawl spaces and basements. Its restoration equipment is built to be carried from job to job and run for days at a time.
The X-Force is AlorAir's system for drying inside walls, ceilings and cabinets without tearing out drywall. On the same jobs, Zeus air movers dry the exposed surfaces, Storm LGR dehumidifiers take the moisture out of the air, and CleanShield or PureAiro HEPA scrubbers keep the air clean.
