AnteRoom 48 Double Door Mobile Isolation Anteroom

Two-door anteroom

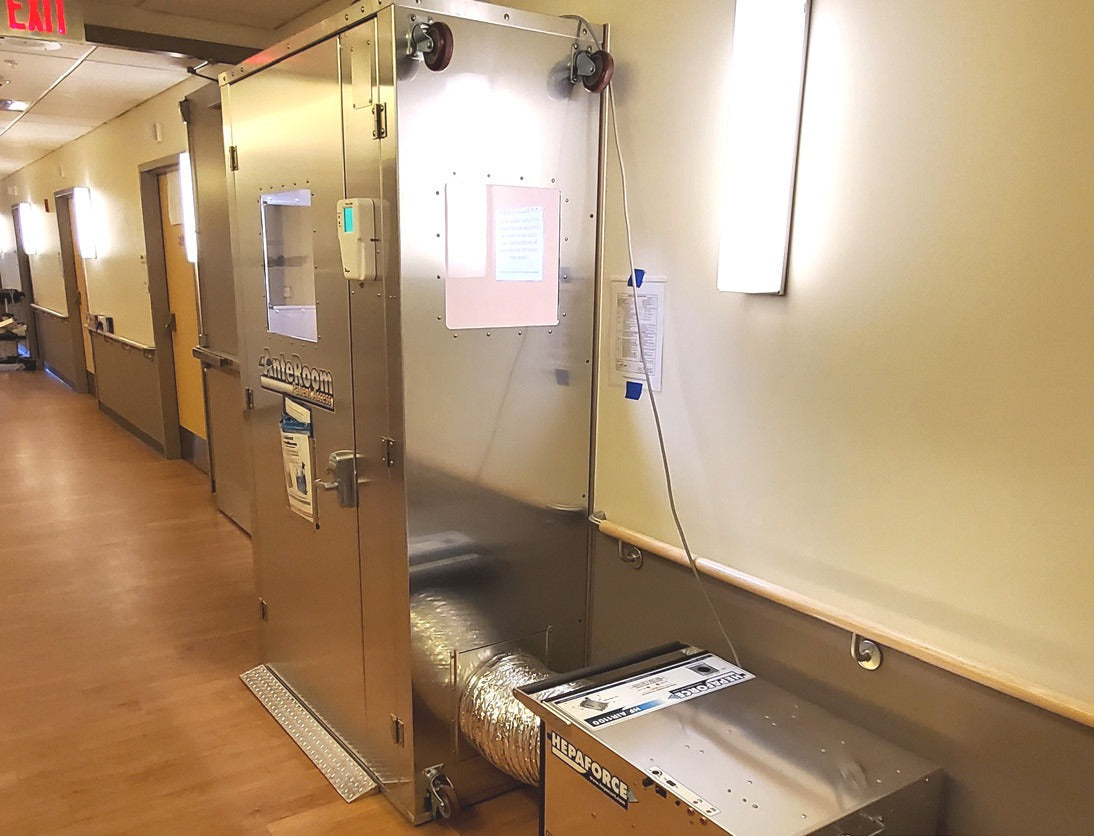

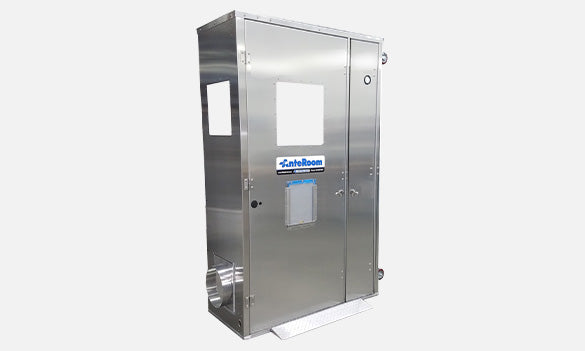

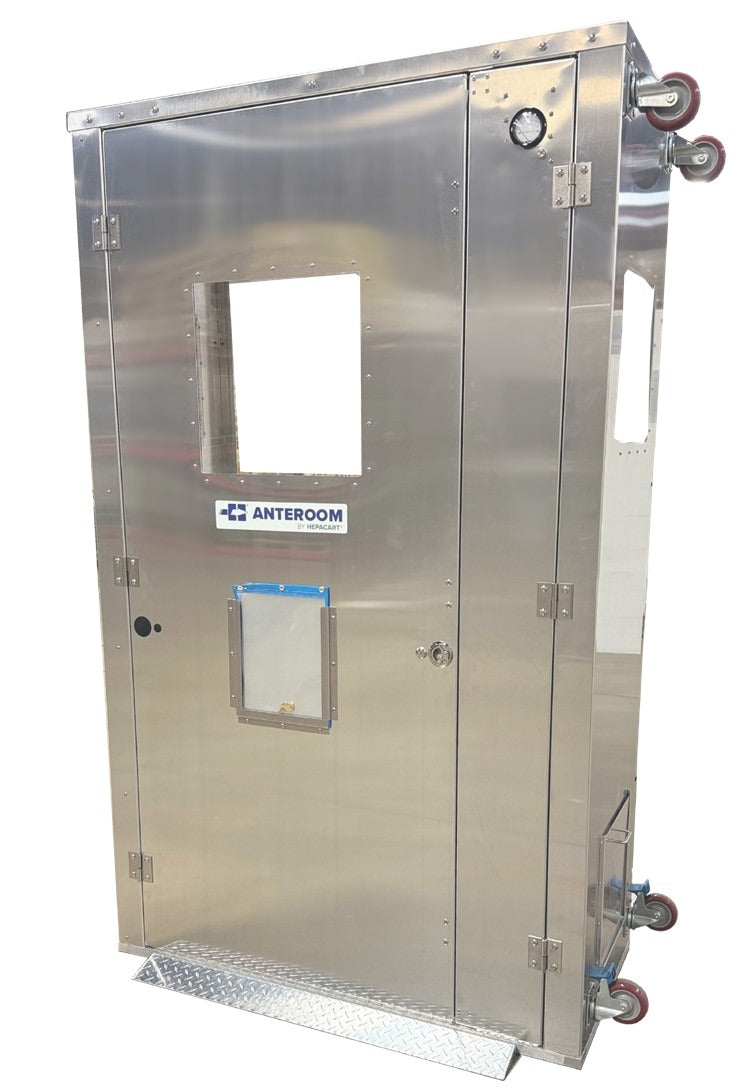

The AnteRoom 48 Double Door is the HEPACART anteroom for doorways where hospital beds or large equipment must come through. Its front carries one main hinged door and a second hinged door that locks in place; with both open, the entry is 43" W x 81.5" H. Like every AnteRoom it rolls to the doorway and seals magnetically to the frame, and it ducts to a separate negative air machine, with which HEPACART publishes the AnteRoom for ICRA compliance levels I to V.

Openings and fit

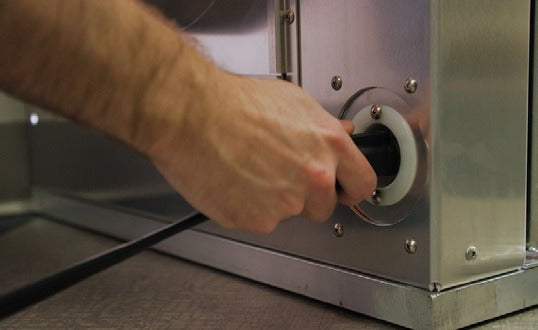

The module keeps the AnteRoom 48 working dimensions of 51.5" W x 24" D x 85.5" H at a 160 lbs working weight. It natively fits 48" doors, HEPACART reducers and extenders fit door frames from 36" to 68", and AnteRoom 48 reducers suit narrower frames. Four casters, four integrated floor levelers, an interchangeable flex-duct adapter with shut-off plate and an exterior plug for LED lighting and outlets are standard.

Hardware options

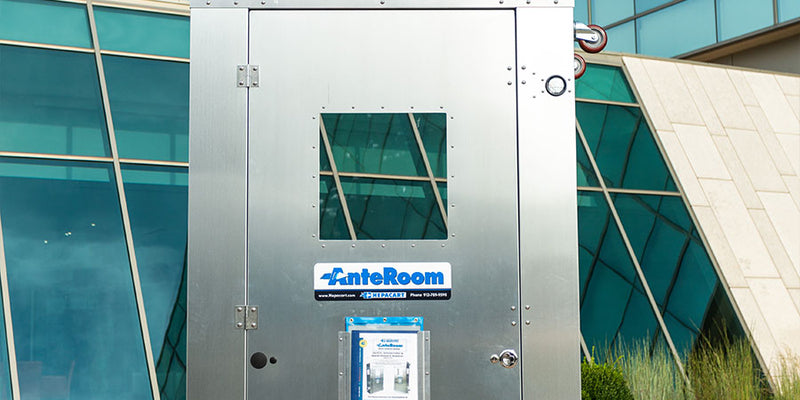

The magnehelic gauge is mounted externally. Door hardware is a standard handle with lock and key, an SFIC 7-pin lever, a digital keypad with auto-lock, or, with the digital pressure monitor, no handle set at all for facilities that fit their own hardware. The digital pressure monitor gives visible and audible alarms.

• DoorsMain + lock-in-place second door
• Opening43" W x 81.5" H
• Working size51.5" W x 24" D x 85.5" H
• Fits doors48" natively
• ICRA levelsI to V (with NAM)

Orders are processed in 1 to 2 business days, then HEPACART ships in-stock units from Lenexa, Kansas, within 2 to 4 business days, fully assembled on a pallet by LTL freight, and they spend about 1 to 6 business days in transit depending on your region. Custom or out-of-stock items can take 2 to 4 weeks. Freight is calculated at checkout and shown before you pay. It goes to a business address in the lower 48 states with a loading dock or forklift; contact us before you order if you need residential, liftgate, inside or appointment delivery, or delivery to Alaska or Hawaii. You'll get tracking by email as soon as it leaves HEPACART.

Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.

Unused HEPACART products in their original packaging can be returned within 7 days of delivery, if HEPACART approves the return. Ask us for a return authorization before you ship. Returns carry HEPACART's 30% restocking fee, you pay the return freight, and the shipping we paid to deliver it and payment processing fees are not refunded. Custom and special-order items are final sale, and used or contaminated units can't be returned.

HEPACART covers the AnteRoom 48 Double Door under its own manufacturer warranty, on HEPACART's terms; we don't add a separate warranty. Complete the warranty activation when HEPACART's Warranty Activation Email arrives, and keep the model and serial number from the unit's label with your records.

Warranty claims. Contact us with your order number, model and serial number, and report any fault present on arrival within 10 days of delivery. We file the claim with HEPACART, which repairs or replaces equipment that was defective when it shipped.

HEPACART was founded in 2006 to solve one problem: doing construction and maintenance work in an occupied hospital without letting dust and airborne contaminants spread into the rooms around it. Its product line is assembled at its factory in Lenexa, Kansas, and HEPACART reports that carts it sold in 2006 are still in service.

Among HEPACART's AnteRooms, the 48 Double Door is the one built for patient beds and wide equipment, with the same footprint as the single-door AnteRoom 48. The AnteRoom 36 covers recessed 36" doors, the HEPAROOM 48 adds an embedded negative air machine, and the AnteRoom ICRA Bundle pairs this module with a HEPAFORCE AIR 1100 and duct kit.
