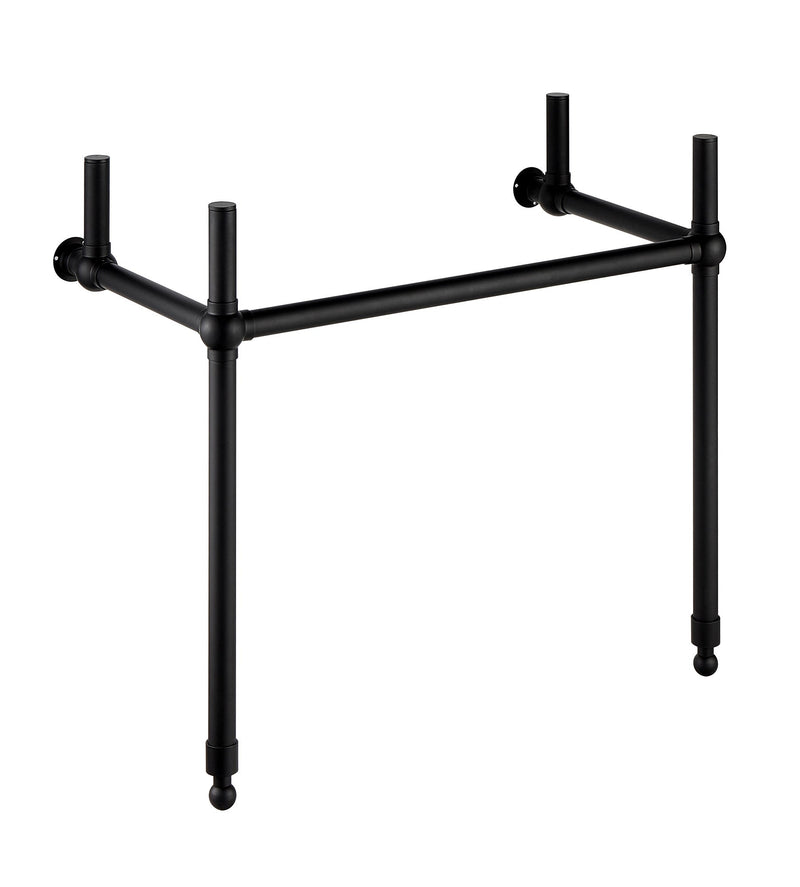

The CS-FRKD01MB Verona is an ANZZI 34.5" console sink base in Matte Black, a rust-resistant stainless steel frame for wall mounted installation that ANZZI sells without a top for a customized console. It includes the frame and the mounting hardware, and the counter top is sold separately.
The base measures 34.5" W x 34" H x 22" D, and the product title repeats the 34" height. ANZZI's console manual for the Verona (PDF f1cf4a46) gives the overall dimensions of the assembled console as 36" L x 22" W x 34" H.
The base suits a DIY bathroom project: choose a base to match your existing top, or mix and match its console bases and counter tops. The frame is rust-resistant stainless steel finished in Matte Black, with front legs, a front crossbar and support bars that anchor to the wall, plus L mounting brackets that support the sink.
Assembling the Verona Base
ANZZI's console manual (PDF f1cf4a46) notes that silicone and tools are not included. The frame is assembled first: connect the front legs (A) and the front crossbar (B), line up the bolt holes and install the bolts without tightening them, then connect the support bars (C) to the front legs, line up the bolt holes, install those bolts and tighten all the bolts. Place the stand upright in the desired location and level it with the height adjusters built into the bottom of the legs. Mark the mounting hardware locations on the wall through the pre-drilled holes at the end of the support bars, drill the holes (the manual marks Φ 1/4", 6 mm), insert the anchors and secure the stand to the wall with the screws. Then mark and fix the L mounting brackets on the wall through the pre-drilled holes between the support bars, to support the sink.
Once the base is fixed to the wall, the top goes on with silicone. For the top, apply a thin coat of silicone adhesive to the back of the sink where it meets the wall and to the stand's top frame where the sink will rest, carefully place the sink on the frame and center it, and allow the silicone adhesive to dry for 24 hours.
Pairing the Base With a Top
ANZZI's matching top is the Verona 36" Carrara White counter top with single basin, CS-CTRSS01WH. The counter top measures 36" W x 8" H x 22" D in scratch-resistant Carrara White stone with a built-in backsplash, and the white ceramic sink at 18.1" W x 12.9" D. Its console manual gives the basin as 18 1/8" L x 12 7/8" W with a 5 1/8" water depth, a 1 3/4" drain hole and three 1 3/8" faucet holes. The spread between the three holes is not stated, so check your faucet's spread against the top.
The Verona base also comes in Brushed Gold (CS-FRKD01BG), Brushed Nickel (CS-FRKD01BN), Rose Gold (CS-FRKD01RG). As an ANZZI 34.5" console sink base with wall mounting hardware and leveling legs, the CS-FRKD01MB carries ANZZI's CS-CTRSS01WH Carrara White top, or a top you already own, on a Matte Black stainless steel frame.
Features
Matte Black Stainless Steel
ANZZI makes the base from rust-resistant stainless steel, finished on the CS-FRKD01MB in Matte Black.
34.5" x 22" Base
The base measures 34.5" W x 34" H x 22" D, and ANZZI pairs it with its 36" W x 22" D Verona counter top.
Counter Top Sold Separately
The base includes the frame and mounting hardware; ANZZI sells the CS-CTRSS01WH Carrara White top separately.
Built for Mix and Match
ANZZI offers the base for a fully customized DIY bathroom project, with the freedom to mix and match it with a top.
Wall Mounted Installation
The support bars anchor to the wall with screws, and L mounting brackets on the wall support the sink.
Leveling Legs
Height adjusters built into the bottom of the legs level the stand before it is fixed to the wall.
Four Frame Finishes
The Verona base comes in Matte Black (CS-FRKD01MB) as well as Brushed Gold (CS-FRKD01BG), Brushed Nickel (CS-FRKD01BN), Rose Gold (CS-FRKD01RG).
Specifications
-
Model: CS-FRKD01MB
-
Dimensions: 34.5" W x 34" H x 22" D
-
Material: Rust-resistant stainless steel
-
Finish: Matte Black
-
Installation: Wall mounted, leveling legs
-
Counter Top: Sold separately (CS-CTRSS01WH)
-
Series: Verona
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- CS-FRKD01MB Verona console sink base in Matte Black
- Mounting hardware
Sold separately: Counter top, Silicone and installation tools
Installation & Care
Installation
Floor-standing and anchored to the wall. Bolt the front legs to the front crossbar and the support bars to the legs, level the stand with the leg height adjusters, mark the wall through the holes at the end of the support bars, drill (Φ 1/4", 6 mm), insert the anchors and screw the stand to the wall, then fix the L brackets between the support bars to support the sink. Fix the top with a thin coat of silicone adhesive, centered, and let it dry for 24 hours. Silicone and tools are not included.
Care
Clean regularly with regular soap and hot water and a non-abrasive cloth or sponge to avoid build-up. Test any stronger cleaner on an inconspicuous area first, wipe and rinse completely with water immediately after, rinse and dry overspray on nearby surfaces, and do not allow the cleaner to soak.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by UPS, FedEx or USPS, usually within 1 to 2 business days of your order. Shipping is free within the lower 48 states on orders of $101 or more (orders under $101 ship for a flat $15); for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this product to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
The Verona base comes in brushed gold, brushed nickel, matte black and rose gold (CS-FRKD01BG, BN, MB, RG). It carries the Verona Carrara White top (CS-CTRSS01WH); ANZZI also sells the assembled Verona console (CS-FGC004-BG, -BN, -MB).
