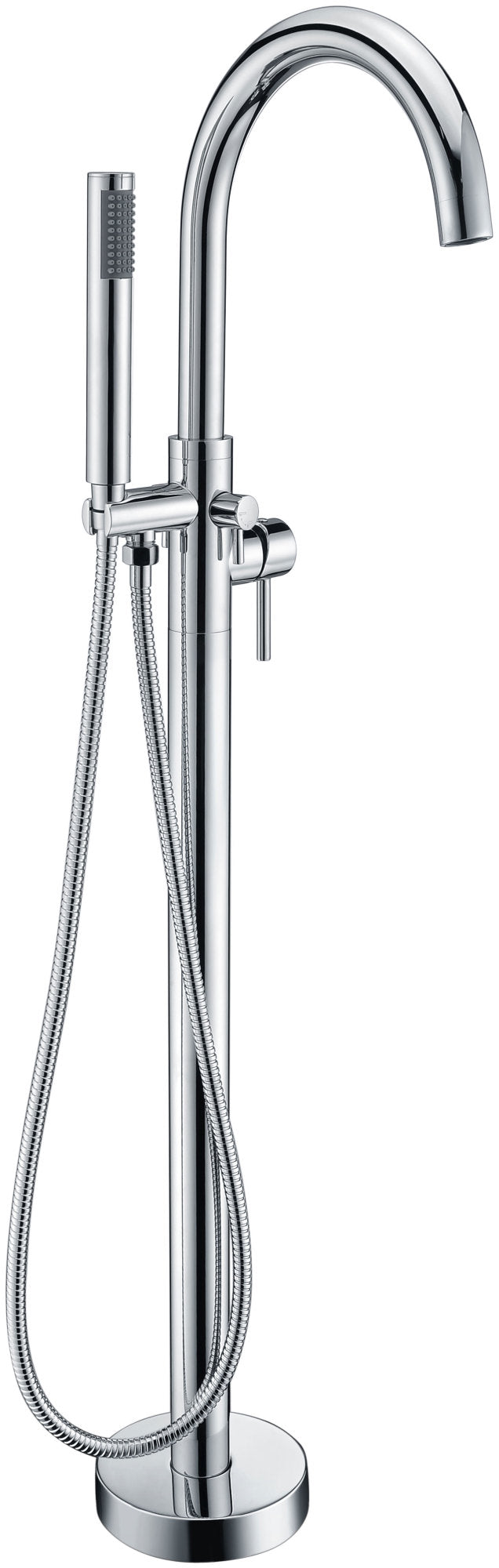

The ANZZI FS-AZ0047CH is a Coral Series floor-mounted freestanding tub faucet in polished chrome, with a 60" Euro-Grip hand sprayer. It is made for a freestanding or claw foot bathtub: the filler is floor mounted beside the tub and arches its spout over the rim.
A Swan-Neck Filler for Freestanding Tubs
The swan-neck spout stands 36" high with a 9" reach. A lever handle sets temperature and flow, and a separate diverter handle sends the water to the hand shower.
The handheld sprayer pulls out on a 60" hose, which reaches across the tub from one side. The lever handles are ADA compliant for ease of operation.
The faucet has solid brass valves and is Rhino Alloy certified. Assembled, it measures 46" H x 8" L x 6.3" W and weighs 13 lbs, anchored to the floor with an escutcheon that hides the fixing. Inlet hoses marked hot and cold connect to supply lines coming up through the floor.
What the Floor Rough-In Needs
The Coral installs through a single hole in the floor. ANZZI's manual has you mark the center point, drill a 2" hole for the supplies, then drill three 25/64" holes for the anchors if the floor is concrete; on a wood floor the anchor fixes with #14 Phillips pan head self-tapping screws, which are not provided. The hot and cold supply lines should come up through the floor with male threads, and the inlet hoses labeled Hot and Cold connect to the faucet inlets marked H and C. The parts list includes a flow regulator and check valves, and the manual asks for household water pressure between 20 and 125 PSI.
The supply lines come up through the floor at the filler position, and the 46" column is fixed in place over them. ANZZI suggests a professional plumber if you run into difficulty.
The FS-AZ0047CH is one of five Coral finishes.
The manual builds in a leak test: with the post unscrewed, turn on the hot and cold supplies and check the hose connections before fitting the post again. On a concrete floor the faucet is held by expansion screws with washers and nuts. Fit the hand shower and its hose with a washer at each connection, then open the handle and turn the diverter to check the flow at the spout and the hand shower. To protect the metal finish, ANZZI suggests a non-abrasive wax such as car wax and rinsing any cleaner off straight away, and the flow regulator should be cleaned regularly to clear calcium build-up that reduces the flow.
The ANZZI FS-AZ0047CH Coral freestanding tub faucet in polished chrome combines a tall spout, a 60" Euro-Grip hand sprayer and everlasting solid brass valves.
Features
Floor Mount for Freestanding Tubs
The filler stands on its own column and anchors to the floor through a single 2" hole.
36" Spout With 9" Reach
The high arched spout stands 36" tall and reaches 9", clearing a tall tub rim and placing the stream inside the bowl to cut down splashing on the floor.
60" Euro-Grip Hand Sprayer
A pull-out Euro-Grip handheld sprayer sits on a 60" hose beside the floor mounted spout.
Lever and Diverter Controls
One lever handle mixes temperature and flow and a diverter handle switches between the spout and the hand shower, keeping both functions in easy reach from the tub.
ADA Compliant Lever Handles
The lever handles are ADA compliant for ease of operation, and one lever sets both the temperature and the flow of the bath.
Solid Brass Valves
Solid brass valves and Rhino Alloy certified construction give a 13 lb assembled filler that stands firm on its anchor when the handles are turned.
Concrete or Wood Floor Fixing
Expansion screws are supplied for a concrete floor; on a wood subfloor the base fixes with #14 self-tapping screws (not provided), and the escutcheon slides down to cover the anchor.
Polished Chrome Finish
The polished chrome finish covers a floor mounted tub faucet crafted for durability and RHINO ALLOY certified.
Specifications
-
Model: FS-AZ0047CH
-
Overall Dimensions: 46" H x 8" L x 6.3" W
-
Assembled Weight: 13 lbs
-
Material: Solid brass valves, Rhino Alloy certified
-
Finish: Polished Chrome
-
Installation: Floor mount, single hole
-
Spout Height: 36"
-
Spout Reach: 9"
-
Handles: Lever handle plus diverter handle
-
Hand Shower: Euro-Grip pull-out hand sprayer
-
Hose Length: 60"
-
Supply Connection: Inlet hoses to 3/8" compression male thread supply lines
-
Floor Hole: 2"
-
Water Pressure: 20 to 125 PSI
-
Certifications: ADA compliant lever handles
-
Series: Coral
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- FS-AZ0047CH freestanding tub filler with spout, post and escutcheon
- Euro-Grip hand shower with 60" shower hose
- Hot and cold inlet hoses
- Floor anchor and expansion screws for concrete floors
Sold separately: Freestanding bathtub, #14 Phillips pan head self-tapping screws for wood floors (not provided)
Installation & Care
Installation
Floor mount beside a freestanding tub. Mark the center point, drill a 2" hole in the floor and, on concrete, three 25/64" holes for the expansion screws; on a wood floor fix the anchor with #14 self-tapping screws, which are not provided. The hot and cold supply lines must come up through the floor with 3/8" compression male threads to meet the inlet hoses. Water pressure must be between 20 and 125 PSI. ANZZI's manual advises a professional plumber if you have difficulty. Before installing, make sure the supply lines are free of debris and the supply stops are installed.
Care
Wipe the column and spout with mild soap and water on a soft, non-abrasive cloth and dry them. ANZZI's manual recommends a non-abrasive wax, such as car wax, to preserve the finish on the metal parts, and says any cleaner should be rinsed off immediately; avoid abrasive pads. Clean the flow regulator regularly to clear calcium build-up that reduces flow.
