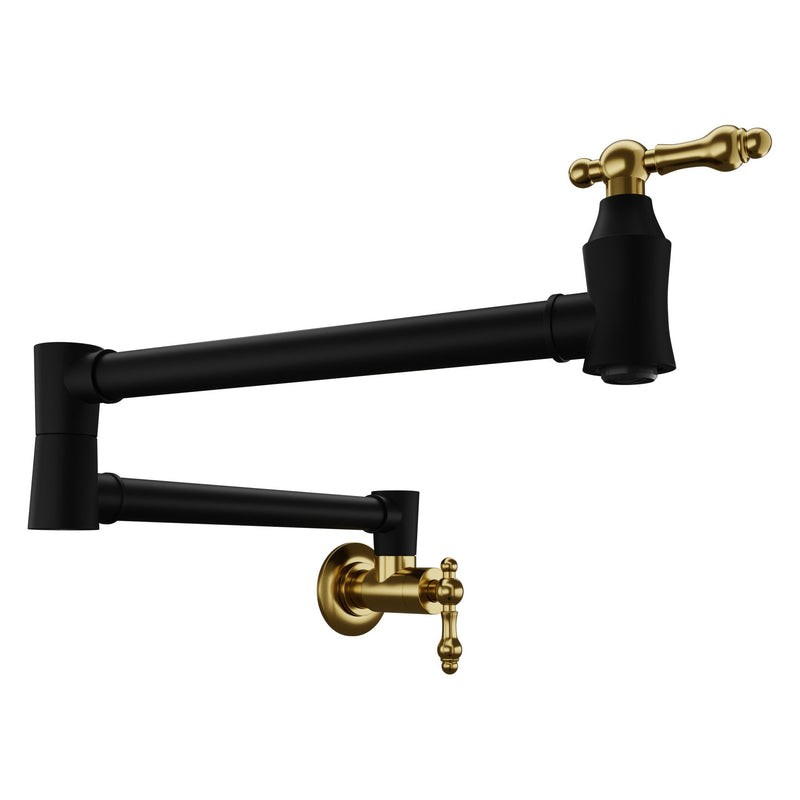

The ANZZI KF-AZ259MBBG is a Marca 360-degree 24" wall mounted pot filler with dual swivel in matte black brushed gold. It mounts on the wall above the range.
Fill the Pot Where You Cook
Two joints each swivel a full 360°, and the spout gives a total reach of 24". Water flows at 4 GPM.
A double valve system controls the flow: one shut-off at the wall base activates the water, and a second on the spout gives water flow control on the spout itself.
Wall Rough-In Above the Range
The Marca is built with a solid brass interior and Rhino Alloy certified steel and brass. It is a cold water only fixture with no hot and cold mixing. It installs through a single hole in the wall on a 1/2" NPT connection.
For the rough-in, connect to a 1/2" IPS cold water supply line that extends 1/2" past the finished wall surface, using the included connector if needed. Mark and drill 15/64" (6 mm) holes for the four plugs, wrap the pipe threads with plumber's tape, and fix the anchor with its four screws. The faucet threads onto the pipe with the flange over the wall anchor, and a hex screw locks it in place.
Shut off both handles when it is not in use or left unattended; improper use or inadequate drainage below the faucet may cause water damage.
The Marca blends traditional design and reliability with classical elegance and grace, and it comes in six finishes.
The ANZZI KF-AZ259MBBG Marca 24" pot filler in matte black brushed gold gives a 4 GPM fill, two 360° swivel joints and dual shut-off valves.
Features
Wall Mount Above the Range
The pot filler mounts above the range through a single hole in the wall on a 1/2" NPT connection.
24" Reach on Two Joints
Two swivel joints give the spout a total reach of 24" from the wall-mounted base of the Marca pot filler.
360° Swivel on Both Joints
Each of the two joints turns a full 360°, for a dual swivel on the 24" arm.
Dual Shut-Off Valves
A shut-off at the base and another on the spout give independent flow control; shut off both handles when it is not in use or left unattended.
4 GPM Flow
The pot filler flows at 4 GPM, with a solid brass interior and Rhino Alloy certified steel and brass.
Cold Water Only, Single Supply
The filler is cold water only with no hot and cold mixing, and it connects to one supply line on a 1/2" NPT connection.
Solid Brass Interior
The Marca has a solid brass interior with Rhino Alloy certified steel and brass for strength and reliability.
Matte Black Brushed Gold Finish
This two-tone finish combines matte black with brushed gold, one of six finishes ANZZI offers for the Marca pot filler.
Specifications
-
Model: KF-AZ259MBBG
-
Spout Reach: 24" total
-
Material: Solid brass interior, Rhino Alloy certified steel and brass
-
Finish: Matte Black Brushed Gold
-
Installation: Wall mount, single hole
-
Handles: Two: base shut-off and spout shut-off
-
Swivel: Dual joint, 360° at each joint
-
Flow Rate: 4 GPM
-
Water Supply: Cold water only, no mixing
-
Supply Connection: 1/2" NPT
-
Series: Marca
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- KF-AZ259MBBG pot filler faucet
- Flange
- Connector
- Anchor, screws and plugs
- Hex screw and Allen wrench
Installation & Care
Installation
Wall mount through a single hole above the range, on a cold water supply line ending in a 1/2" NPT connection; there is no hot water inlet. Turn the water supply off before removing an old faucet and open the handle to relieve pressure. Fit the connector to the supply, fix the flange with the supplied anchor, screws and plugs, then mount the faucet and secure it with the hex screw using the Allen wrench. Flush the water line for one minute to clear debris that could damage internal parts, then check all connections for leaks without over tightening.
Care
Wipe the arm and spout with mild soap and warm water on a soft, non-abrasive cloth and dry them. If you need a stronger cleaner, test it on an inconspicuous area first, rinse it off completely and do not let it soak.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by UPS, FedEx or USPS, usually within 1 to 2 business days of your order. Shipping is free within the lower 48 states on orders of $101 or more (orders under $101 ship for a flat $15); for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this product to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
The Marca pot filler comes in Brushed Gold (KF-AZ259BG), Brushed Nickel (KF-AZ259BN), Polished Chrome (KF-AZ259CH), Matte Black (KF-AZ259MB), Matte Black with Brushed Gold (KF-AZ259MBBG) and Matte White (KF-AZ259WH).
