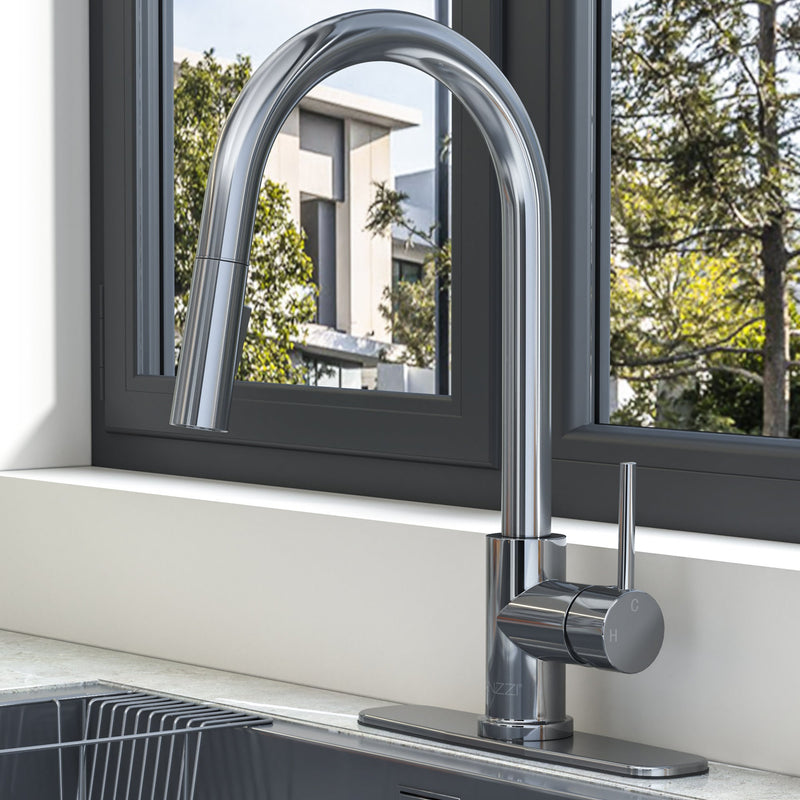

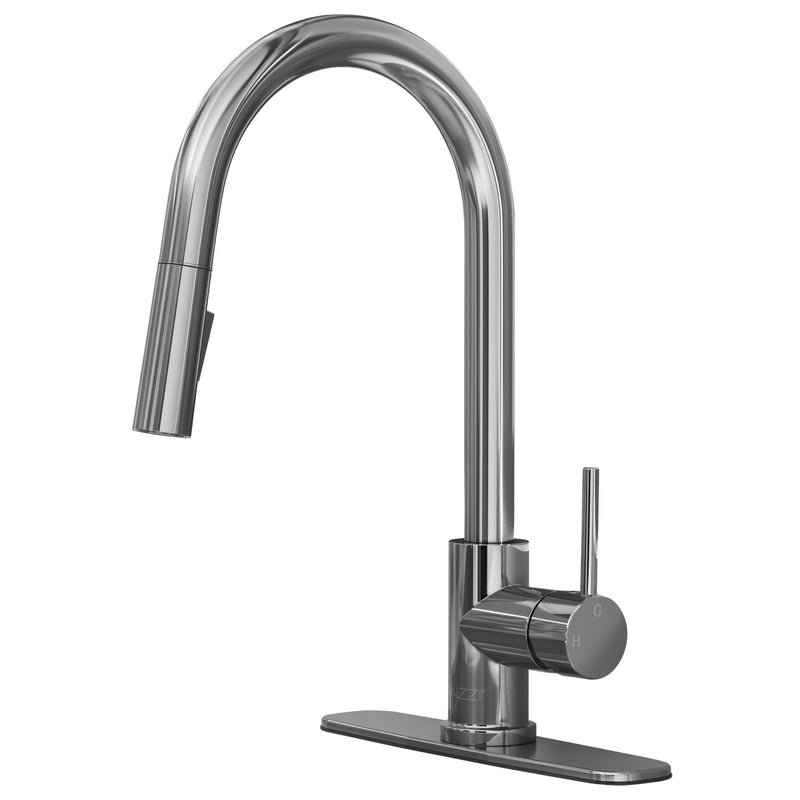

The ANZZI KF-AZ601CH is an Expedition Series 16" single-handle pull-down sprayer kitchen faucet in polished chrome.
A Pull-Down Sprayer With Dual Spray Modes
The high-arc spout swivels a full 360°. Pull the sprayer down for extended reach, and switch between spray and stream. A weight on the hose returns the head to the spout when you let go.
The faucet stands 15.75" tall with a 7.24" spout height and a 9.92" reach. One handle sets temperature and flow.
Fits a Single-Hole or Three-Hole Sink
The faucet is lead-free and certified to cUPC and NSF 61, and its 1.8 GPM flow meets EPA and NSF standards for water use. It mounts through a single hole, or through three holes with the included deck plate, using a 1.26" to 1.5" mounting hole and 3/8" compression connections.
For a single-hole sink the faucet drops straight through the hole; for a three-hole sink it goes through the escutcheon and gasket that cover the outer holes. The handle should always sit on the right-hand side, and the rubber washer, metal washer and mounting nut secure it from below. The weight clips onto the sprayer hose so the head docks back in the spout, and an Allen key and service key come in the box.
Before you start, install supply stops, flush the lines free of debris and check that household water pressure is between 20 and 125 PSI; call a professional plumber if you run into difficulty. The faucet connects to the supply stops with 3/8" compression fittings.
Its streamlined design blends seamlessly into contemporary, transitional or classic kitchen settings.
The sprayer starts in stream mode each time the faucet is turned on; press its button to switch to spray, and it returns to stream automatically when the water is shut off. To protect the finish, apply a non-abrasive wax such as car wax and rinse any cleaner off right away. If the flow slows, take the aerator off the sprayer with the included service key, brush it clean under running water and refit it.
Standing 15.75" tall on a 10.23" wide deck plate, the ANZZI KF-AZ601CH Expedition pull-down kitchen faucet in polished chrome has a 9.92" reach and a two-function pull-down sprayer.
Features
Pull-Down Sprayer With Two Modes
The pull-down head has two functions: water runs as a stream by default and a button switches it to spray.
360° Swivel High-Arc Spout
The high-arc spout swivels a full 360°, standing 7.24" high with a 9.92" reach.
Single Handle Control
A single handle controls both temperature and flow and sits on the right-hand side of the spout.
1.8 GPM Water Saving Flow
The 1.8 GPM flow conserves water and meets EPA and NSF standards for water use.
Lead-Free, cUPC and NSF 61
Lead-free construction is certified to cUPC and NSF 61 standards, made with safe materials.
One or Three Hole Install
The included deck plate covers a three-hole sink, and without it the faucet mounts through a single 1.26" to 1.5" hole.
Specifications
-
Model: KF-AZ601CH
-
Faucet Dimensions: 10.23" W (deck plate) x 15.75" H
-
Material: Lead-free construction
-
Finish: Polished Chrome
-
Installation: Deck mount, single hole or three holes with deck plate
-
Handles: Single handle
-
Sprayer: Pull-down, dual spray modes
-
Spout: High arc, 360° swivel
-
Spout Height: 7.24"
-
Spout Reach: 9.92"
-
Flow Rate: 1.8 GPM
-
Mounting Hole: 1.26" to 1.5"
-
Supply Connection: 3/8" compression
-
Water Pressure: 20 to 125 PSI
-
Certifications: cUPC, NSF/ANSI/CAN 61
-
Series: Expedition
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- KF-AZ601CH pull-down kitchen faucet with sprayer
- Escutcheon deck plate and gasket
- Mounting hardware: washers, mounting nut and screws
- Hose weight and C-clips
- Allen key and service key
Sold separately: Supply valves (not provided)
Installation & Care
Installation
Deck mount through a single 1.26" to 1.5" hole, or through three holes using the included escutcheon and gasket; the handle should sit on the right-hand side. Secure from below with the rubber washer, metal washer and mounting nut, click the sprayer hose into the outlet hose and lock it with the C-clips, then fit the weight at the marked point on the hose. Connect to supply stops with 3/8" compression fittings; water pressure must be 20 to 125 PSI, and lines should be free of debris. Call a professional plumber if you have difficulty. Warning: Do not use pipe dope or other sealants on water connections. When leaving home or not using the faucet for an extended period, please close all water supply lines.
Care
Wipe the faucet with mild soap and warm water on a soft, non-abrasive cloth and dry it. If you need a stronger cleaner, test it on an inconspicuous area first, rinse it off completely and do not let it soak.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by UPS, FedEx or USPS, usually within 1 to 2 business days of your order. Shipping is free within the lower 48 states on orders of $101 or more (orders under $101 ship for a flat $15); for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this faucet to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.

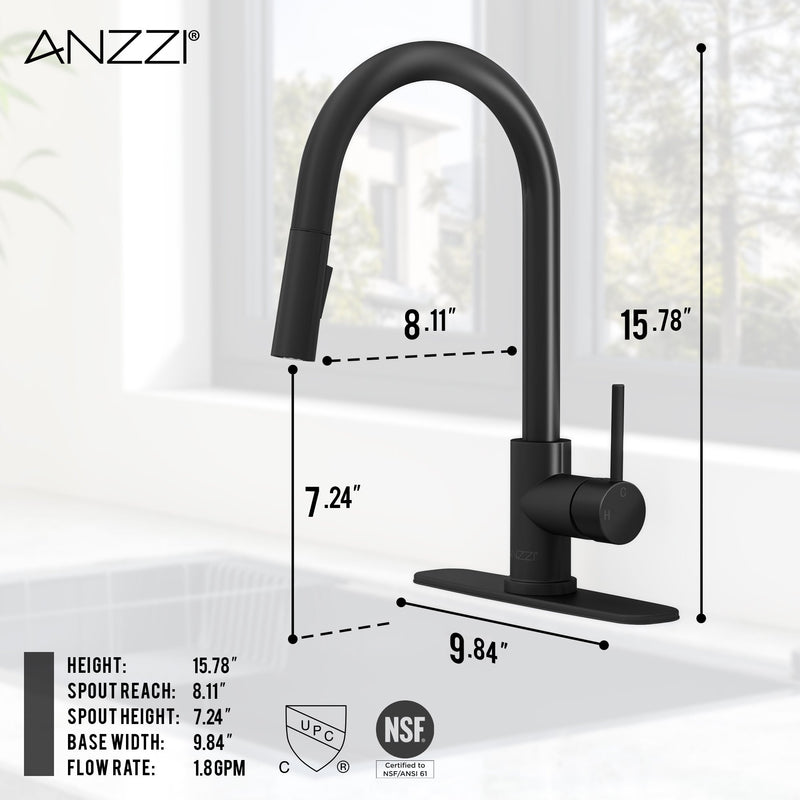

The Expedition pull-down faucet comes in Brushed Nickel (KF-AZ601BN), Polished Chrome (KF-AZ601CH) and Matte Black (KF-AZ601MB). ANZZI's kitchen range also includes commercial-style, pull-out and pot filler faucets.
