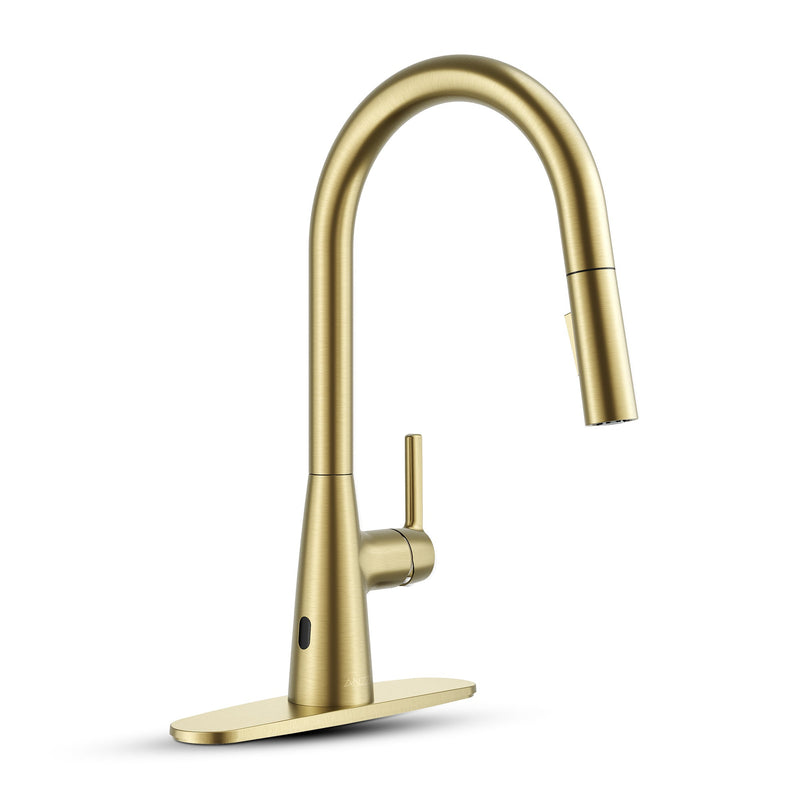

The ANZZI KF-AZ701SB is an Adela series touchless pull-down kitchen faucet in satin brass, with a touchless motion sensor. Wave a hand at the motion sensor when your fingers are covered in raw chicken or dough, the water comes on, and the faucet stays clean.
Hands-Free When You Need It
You can still run it the traditional way. The Adela offers a choice of hands-free sensor activation or manual operation, with a single handle and a ceramic disc valve controlling flow and temperature for smooth, drip-free shut-off. The high-arc spout swivels 360° and gives clearance for filling large pots.
The pull-down spray head provides extended reach, and it switches between two modes: an aerated stream for filling and a stronger spray for cleaning. The design is water efficient.
That two-mode spray head is what turns a faucet into a cleaning tool. The spray head has two modes, an aerated stream and a powerful spray. Because the spout swivels a full 360°, the head can cover both sides of a double sink or be pushed out of the way when you are working on the counter.
Build, Certifications and Fit
The body is solid zinc for strength and stability, finished in satin brass. The faucet meets cUPC, NSF 61 and lead-free standards. The flexible supply lines come pre-attached and connect with 3/8" compression fittings, and a deck plate is included.
The Adela is offered in four finishes, brushed nickel, polished chrome, matte black and satin brass. The finish is long-lasting with gentle care. Wipe it with mild soap and water on a soft cloth and keep abrasive pads away from it.
For a kitchen that sees a lot of raw food, baking or little hands, this ANZZI touchless pull-down kitchen faucet is the practical upgrade: the KF-AZ701SB starts the water with a wave, keeps the handle clean and still fills a stock pot under its high-arc, 360° spout.
Features
Touchless Motion Sensor
A wave of the hand starts and stops the water, so messy hands never touch the handle. The sensor is powered by 4 AA batteries (not provided) in an under-sink battery box.
Sensor or Manual Control
Choose between manual operation with the single handle and hands-free activation through the built-in motion sensor.
Pull-Down Spray Head, Two Modes
The pull-down head extends your reach around the basin and switches between an aerated stream and a powerful spray for efficient cleaning.
High-Arc 360° Swivel Spout
The tall arc clears large pots for filling, and the full swivel moves the spout between the bowls of a double sink or out of the way when you need room.
Ceramic Disc Valve
A ceramic disc valve controls flow and temperature from the single handle and gives long-lasting, drip-free operation.
Deck Plate Included
A deck plate is included to cover extra holes in the sink deck around the single-hole Adela.
3/8" Compression, Pre-Attached Lines
Flexible supply lines come pre-attached to the faucet and connect to 3/8" compression supply stops.
Solid Zinc Body, cUPC and NSF 61
The solid zinc body adds strength and stability, and the faucet meets cUPC, NSF 61 and lead-free standards.
Specifications
-
Model: KF-AZ701SB
-
Material: Solid zinc body
-
Finish: Satin Brass
-
Activation: Touchless motion sensor or manual
-
Installation: Deck mount, single hole; deck plate included for 3-hole sinks
-
Mounting Hole: 1.26" to 1.5"
-
Maximum Deck Thickness: 1.97"
-
Handles: Single handle
-
Spout: High arc, 360° swivel
-
Sprayer: Pull-down, 2 modes (aerated stream, spray)
-
Valve: Ceramic disc
-
Supply Connection: 3/8" compression, pre-attached flexible supply lines
-
Water Pressure: 20 to 125 PSI
-
Certifications: cUPC, NSF 61, lead-free
-
Series: Adela
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- KF-AZ701SB touchless pull-down kitchen faucet with spray head
- Deck plate (escutcheon) and gasket
- Mounting nut, metal and rubber washers
- Control box and battery box
- Hose weight and pre-attached flexible supply lines
Sold separately: 4 AA batteries for the sensor battery box (not provided), Supply valves (not provided)
Installation & Care
Installation
Single-hole deck mount through a 1.26" to 1.5" hole in a deck up to 1.97" thick; use the included deck plate on a three-hole sink. Supply stops must already be installed and lines flushed of debris, and water pressure must be 20 to 125 PSI. The pre-attached lines connect with 3/8" compression. Tools needed are a wrench, drill with 1/4" and 7/64" bits, screwdriver, marker and silicone sealant; call a professional plumber if you have difficulty. The touchless sensor runs on 4 AA batteries, which are not provided: fit them in the battery box with matching polarity (do not mix old and new, or alkaline, carbon zinc and rechargeable types), fix the battery box bracket to the cabinet wall with its screw (7/64" pilot hole, or a 1/4" hole and anchor in tile), connect the battery box cable to the control box, and click the control box onto the outlet hose. Connect the HOT and COLD labeled hoses to supply valves, which are also not provided. WARNING: Do not use pipe dope or other sealants on water connections.
Care
The finish keeps its shine with gentle care. Clean with mild soap and water on a soft, non-abrasive cloth, then rinse and wipe dry. Do not use abrasive pads or powders on the satin brass finish, test any stronger cleaner on a hidden spot first and never let cleaner soak on the surface.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by UPS, FedEx or USPS, usually within 1 to 2 business days of your order. Shipping is free within the lower 48 states on orders of $101 or more (orders under $101 ship for a flat $15); for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this faucet to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
The Adela touchless faucet comes in four finishes: brushed nickel (KF-AZ701BN), polished chrome (KF-AZ701CH), matte black (KF-AZ701MB) and satin brass (KF-AZ701SB).
