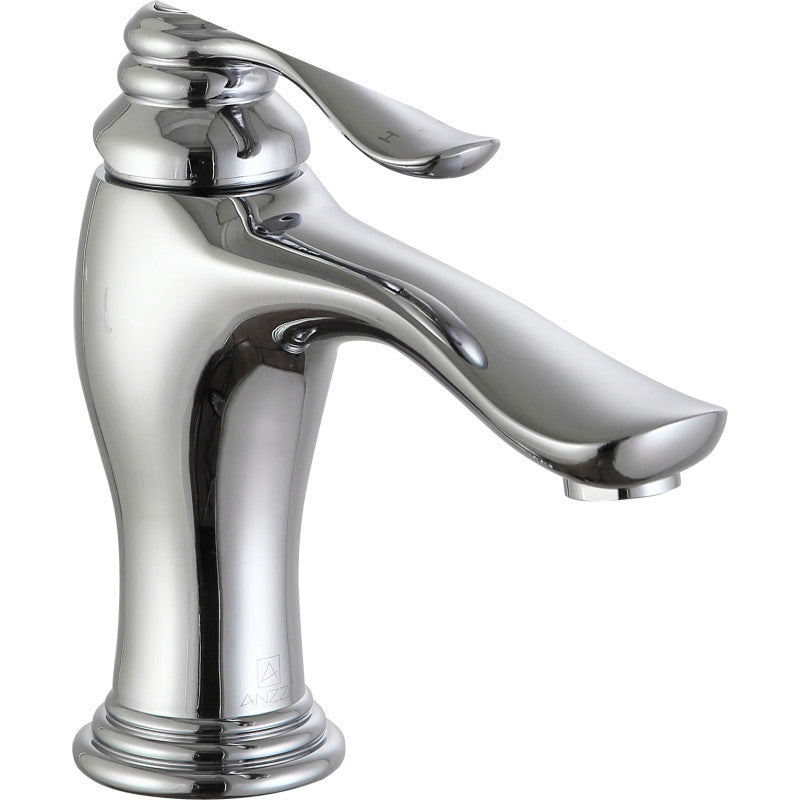

The ANZZI L-AZ104CH is an Anfore series single handle, single hole bathroom faucet in polished chrome, with a low spout 3.25" high.
A Low Spout That Still Reaches the Bowl
Even with a low outlet, the spout reaches 4.92" over the sink.
A single handle sets both the flow and the temperature with one hand, and a marine grade ceramic disc valve sits inside the RHINO ALLOY certified brass body.
The Anfore needs one faucet hole.
Solid Brass Construction
ANZZI builds the body from RHINO ALLOY certified lead-free solid brass and finishes it in a rust resistant polished chrome that is also lead-free. The faucet flows at 1.2 GPM and carries cUPC, NSF, AB1953 and WaterSense certification.
The Anfore comes in polished chrome (L-AZ104CH) and oil rubbed bronze (L-AZ104ORB). Clean either with regular soap and warm water on a soft, non-abrasive cloth, and use only a non-abrasive cloth or sponge.
The L-AZ104CH connects with a 3/8" supply connection and installs through a single hole.
Among ANZZI's single hole bathroom faucets, the Bravo (L-AZ030) spout stands 1.87", the Alto (L-AZ012) 2.09", the Clavier (L-AZ011) 2.75", the Anfore (L-AZ104CH, L-AZ104ORB) 3.25" and the Arc (L-AZ009) 3.94".

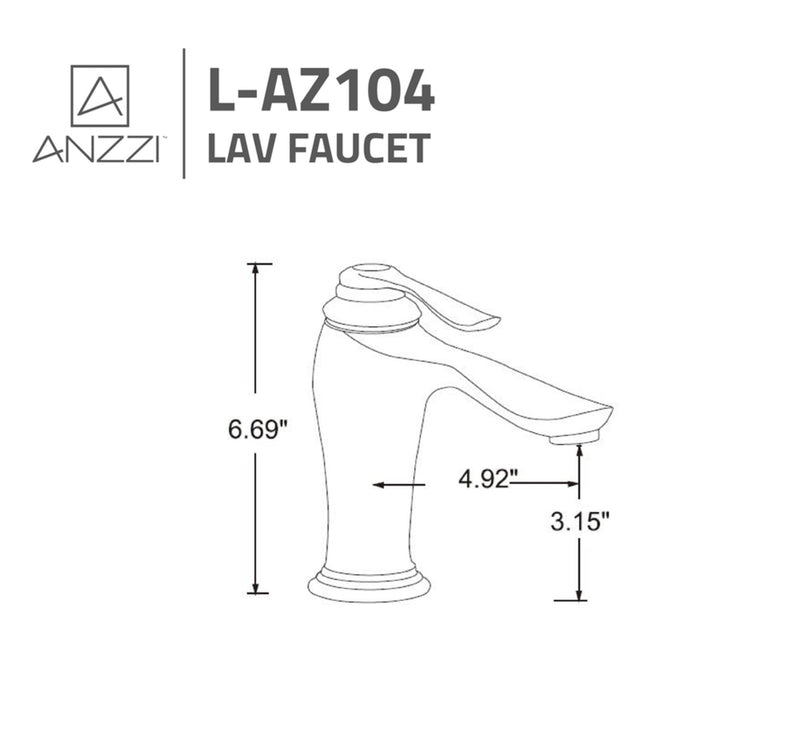

The outlet ends in an aerator nozzle. ANZZI's dimension drawing gives 6.69" overall.
The L-AZ104CH is an ANZZI single-hole bathroom faucet that keeps things simple: one handle, a ceramic disc valve, a 4.92" reach and a 1.2 GPM WaterSense flow in polished chrome.
Features

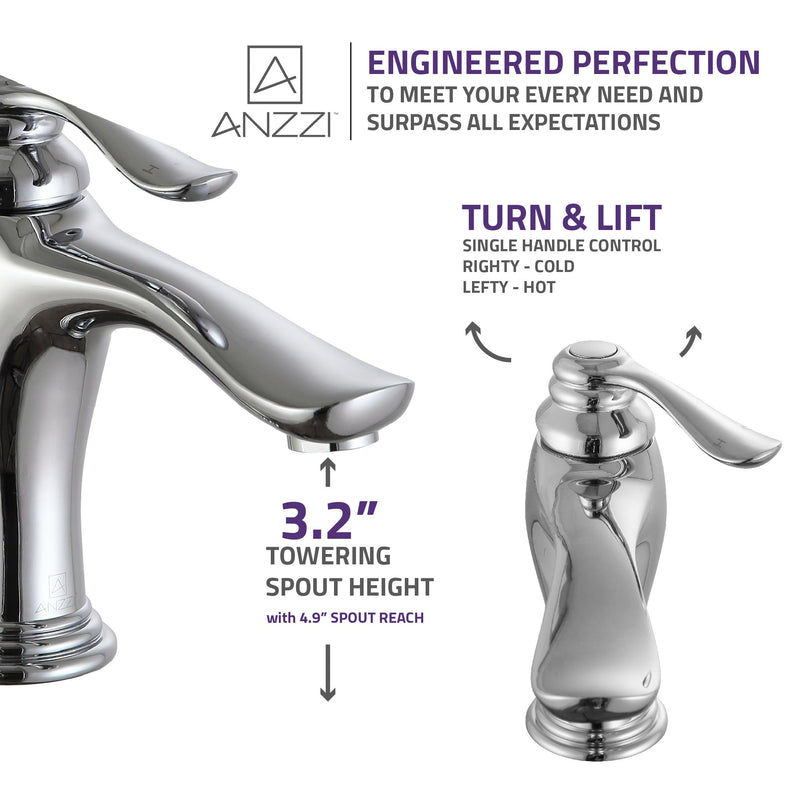

Low 3.25" Spout
The spout stands 3.25" above the deck and reaches 4.92" over the sink, a compact outlet on a single-handle faucet.
4.92" Reach
The spout reaches 4.92" into the basin from a 3.25" spout height, and the faucet flows at 1.2 gpm.
One-Hand Single Lever
One handle controls both water flow and temperature, and the faucet installs through a single hole.
Marine Grade Ceramic Disc
A marine grade ceramic disk sits inside a RHINO ALLOY certified lead-free brass body with a rust resistant finish.
Lead-Free Solid Brass
The body is RHINO ALLOY certified lead-free solid brass, and the faucet is cUPC, NSF and AB1953 certified.
3/8" Single Hole Install
It mounts through one hole and connects with a 3/8" supply connection to the hot and cold supply stops under the sink.
Specifications
-
Model: L-AZ104CH
-
Spout Height: 3.25"
-
Spout Reach: 4.92"
-
Material: RHINO ALLOY certified lead-free solid brass
-
Finish: Polished Chrome
-
Installation: Deck mount, single hole
-
Handles: Single handle
-
Flow Rate: 1.2 GPM
-
Supply Connection: 3/8"
-
Valve: Marine grade ceramic disc
-
Certifications: cUPC, NSF, AB1953, WaterSense
-
Series: Anfore
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- L-AZ104CH single hole bathroom faucet with ceramic disc valve
Installation & Care
Installation
Deck mounted through a single hole in the sink or vanity top. Shut off the water at the supply stops, set the faucet and gasket on the deck, tighten the mounting hardware from below, and connect the hot and cold lines with the 3/8" supply connection. Open the water slowly and check for leaks before using the faucet.
Care
Wash the polished chrome finish with regular soap and warm water on a soft, non-abrasive cloth or sponge, then rinse and wipe dry. Do not use abrasive pads. Test any stronger cleaner on an inconspicuous spot and never allow it to soak on the finish.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by UPS, FedEx or USPS, usually within 1 to 2 business days of your order. Shipping is free within the lower 48 states on orders of $101 or more (orders under $101 ship for a flat $15); for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this product to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
The Anfore faucet is offered in polished chrome (L-AZ104CH) and oil rubbed bronze (L-AZ104ORB). For a raised vessel bowl, ANZZI makes taller single hole vessel faucets.
