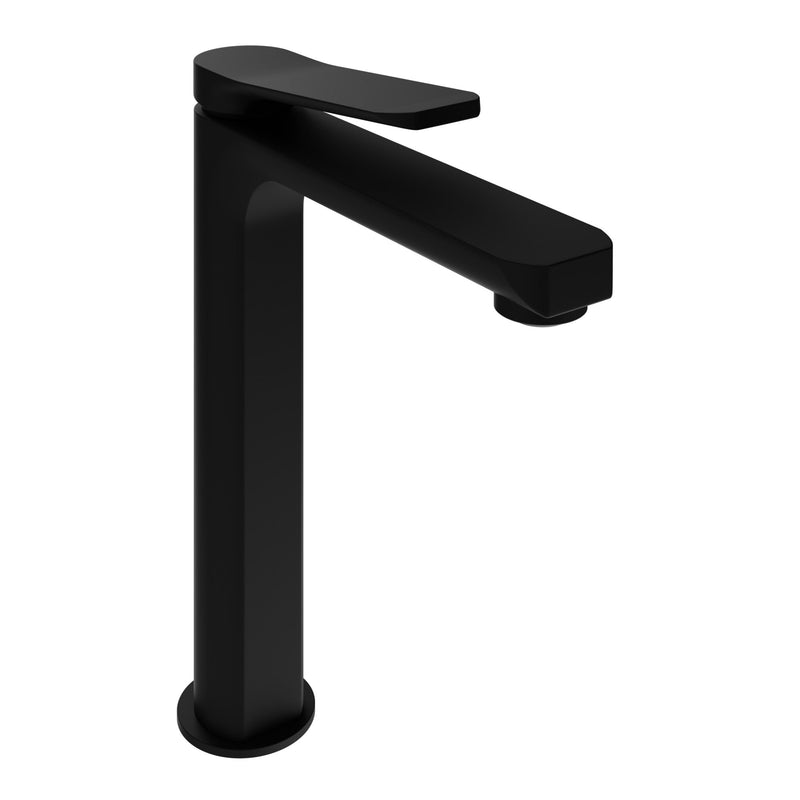

The L-AZ901MB Ultra-Modern is an ANZZI 9.76" high arc vessel sink faucet in Matte Black, a single hole, single lever faucet defined by sharp angles and crisp lines, with a 1.2 GPM water-saving aerator and a pop-up drain included. The high arc spout suits larger sinks, delivering a strong flow that won't splash out of the sink.
The faucet stands 9.76" high, with a spout 8.66" high, 8" long and a 6.42" reach. ANZZI's own vessel sinks list bowl heights from 4" (Viace LS-AZ056) and 4.3" (Solstice LS-AZ906MB and LS-AZ912) up to 5.9" (Scepter LS-AZ187), 6.25" (Vitruvius LS-AZ130) and 6.3" (Sona LS-AZ276).
The Ultra-Modern is built from RHINO-ALLOY certified brass, finished in Matte Black, and is lead free and NSF/ANSI/CAN 61. One sleek handle gives easy, instant control of water volume and temperature, and the 1.2 GPM rate minimizes water usage while still delivering a strong flow.
A matte black pop-up drain without an overflow hole is included. The 3/8" connection fits most common water lines.
Installing the Ultra-Modern
Installation calls for a wrench and a screwdriver and a sink faucet hole of 1.3" to 1.38" (33 to 35 mm). Before installation, make sure all components are included, that the supply lines are free of debris with supply stops installed, and that water pressure is between 20 and 125 PSI; if you have difficulties, contact a professional plumber. Remove the rubber gasket, metal gasket and mounting kit, set the faucet with its O-ring into the faucet hole, slide the gaskets up from below and secure the mounting kit, hand tight and then with a screwdriver.
Turn off the supply valves, which are not provided, and connect the red braided HOT hose to the hot valve and the blue braided COLD hose to the cold valve, hand tight and then with a wrench; do not overtighten, and do not use pipe dope or other sealants on the water connections. Turn the water on and check every connection for leaks. Using the key, remove the aerator, run the handle fully on for one minute to flush the lines, then reinstall the aerator. The push pop-up drain goes through the sink's drain hole with its gasket, and is secured from below with the washer, plastic washer and lock nut before the outlet pipe and its gasket are fitted.
Keeping the Finish
Preserve the finish on the metal parts with a non-abrasive wax, such as car wax, rinse off any cleaner immediately, and clean the aerator regularly to remove calcium build-up and any blockage that could reduce water flow.
The Ultra-Modern also comes in Brushed Nickel (L-AZ901BN), Matte Black-Brushed Gold (L-AZ901MB-BG), Matte Black-Brushed Nickel (L-AZ901MB-BN), Matte Black-Polished Chrome (L-AZ901MB-CH). As an ANZZI 9.76" high arc vessel sink faucet with a 6.42" reach, a 1.2 GPM aerator and a pop-up drain in the box, the L-AZ901MB gives a vessel sink a single lever faucet in Matte Black.
Features
Matte Black Finish
The Ultra-Modern comes in Matte Black (L-AZ901MB) and four other finishes, all on the same brass body.
9.76" High Arc Spout
The faucet stands 9.76" high with an 8.66" spout height, and the high arc spout suits larger sinks without splashing out.
6.42" Reach
The spout is 8" long and has a 6.42" reach, ending in the 1.2 GPM water-saving aerator.
1.2 GPM Water-Saving Aerator
The 1.2 GPM water-saving aerator minimizes water usage while still delivering a strong flow from the high arc spout.
Pop-Up Drain Included
A matte black pop-up drain without an overflow hole is included, fitted from below with its washers, lock nut and outlet pipe.
Lead Free, NSF/ANSI/CAN 61
The Ultra-Modern is lead free and NSF/ANSI/CAN 61 listed, and its brass body is RHINO-ALLOY certified.
Single Lever, Single Hole
One lever controls water volume and temperature, and the single hole mount needs a 1.3" to 1.38" faucet hole.
3/8" Connection
The 3/8" connection fits most common water lines, and the faucet uses 3/8" compression supply hoses for hot and cold.
Specifications
-
Model: L-AZ901MB
-
Faucet Height: 9.76"
-
Spout Height: 8.66"
-
Spout Length: 8"
-
Spout Reach: 6.42"
-
Material: Brass (ANZZI RHINO-ALLOY certified)
-
Finish: Matte Black
-
Installation: Single hole
-
Faucet Hole: 1.3" to 1.38" (33 to 35 mm)
-
Handles: Single lever
-
Flow Rate: 1.2 GPM
-
Connection: 3/8" compression
-
Water Pressure: 20 to 125 PSI
-
Drain: Pop-up drain without overflow, included
-
Certifications: Lead free, NSF/ANSI/CAN 61
-
Series: Ultra-Modern
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- L-AZ901MB Ultra-Modern vessel sink faucet in Matte Black
- Hot and cold braided supply hoses
- Mounting kit with rubber gasket and metal gasket
- Aerator and key
- Pop-up drain without overflow hole
Sold separately: Supply valves
Installation & Care
Installation
Professional installation is highly recommended. Requirements: single hole of 1.3" to 1.38"; supply lines free of debris with supply stops installed; water pressure 20 to 125 PSI. Secure the faucet with the gaskets and mounting kit, connect the red HOT and blue COLD braided hoses to the supply valves (not provided), hand tight then with a wrench, without overtightening and without pipe dope or sealant. Check for leaks, flush the lines for one minute with the aerator removed, and fit the push pop-up drain from below with its washers, lock nut and outlet pipe. If you have difficulties, contact a professional plumber.
Care
Preserve the finish on the metal parts with a non-abrasive wax, such as car wax, rinse off any cleaner immediately, and clean the aerator regularly to remove calcium build-up and blockages that could reduce water flow.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by UPS, FedEx or USPS, usually within 1 to 2 business days of your order. Shipping is free within the lower 48 states on orders of $101 or more (orders under $101 ship for a flat $15); for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this product to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
The Ultra-Modern comes in brushed nickel (L-AZ901BN), matte black (L-AZ901MB), and two-tone matte black with brushed gold (L-AZ901MB-BG), brushed nickel (L-AZ901MB-BN) or polished chrome (L-AZ901MB-CH).
