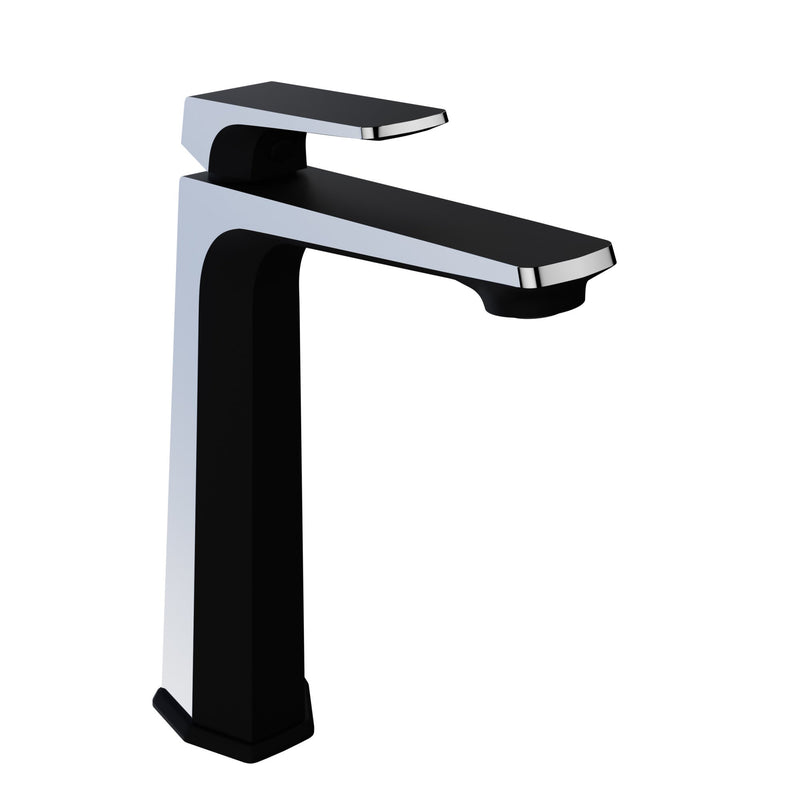

The ANZZI L-AZ904MB-CH Contemporary is a single hole vessel sink faucet in matte black and polished chrome, 9.41" tall with a high arc spout and a 1.2 GPM water-saving aerator. Its bold, minimalist design has sharp angles and crisp lines, and the high arc spout is made for larger sinks, delivering a strong flow that will not splash out of the sink.

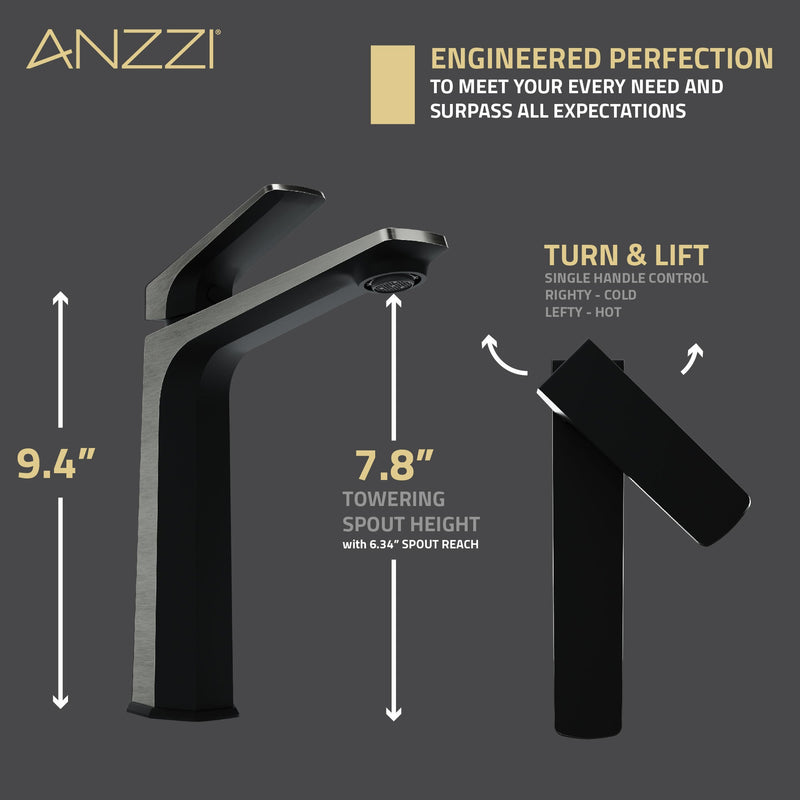

9.41" Tall With a 6.34" Reach
The faucet is 9.41" high, with the spout at 8.62" high, 8.16" long and a 6.34" reach. It installs through a single hole for a clean, uncluttered look, and a single lever handle gives instant control of water volume and temperature.
The 1.2 GPM water-saving aerator uses less water while still delivering a strong flow. The faucet is built in durable RHINO-ALLOY certified brass, and the installation manual marks it lead free and certified to NSF/ANSI/CAN 61.
A pop-up drain without an overflow hole is included, so the faucet is ready to install out of the box, and the 3/8" connection fits most common water lines.
For a vessel sink that needs a tall single hole faucet, the L-AZ904MB-CH is an ANZZI 9.41" vessel sink faucet in matte black and polished chrome, with a 6.34" reach, a 1.2 GPM aerator, lead-free brass and a pop-up drain in the box.
Features
Matte Black-Polished Chrome Finish
This Contemporary model is finished in Matte Black-Polished Chrome, and the same faucet also comes in Brushed Nickel (L-AZ904BN), Matte Black (L-AZ904MB), Matte Black-Brushed Gold (L-AZ904MB-BG) and Matte Black-Brushed Nickel (L-AZ904MB-BN).
9.41" High Arc Spout
The faucet is 9.41" tall, with the spout 8.62" high, and the high arc spout is made for larger sinks.
6.34" Spout Reach
The spout is 8.16" long with a 6.34" reach, delivering a strong flow that will not splash out of the sink.
1.2 GPM Water-Saving Aerator
A 1.2 GPM water-saving aerator is fitted, using less water while still delivering a strong flow.
Single Lever, Single Hole
One lever handle controls water volume and temperature, and the faucet mounts through a single hole for an uncluttered, minimalist look.
Durable Brass Construction
The Contemporary is built in durable RHINO-ALLOY certified brass, marked lead free and certified to NSF/ANSI/CAN 61 in its installation manual.
Pop-Up Drain Included
A pop-up drain without an overflow hole is included, so the faucet is ready to install out of the box.
Professional Installation Recommended
ANZZI's page highly recommends professional installation, and its manual asks for supply stops and 20 to 125 PSI water pressure first.
3/8" Connection
The 3/8" compression connection fits most common water lines, and water pressure must be between 20 and 125 PSI.
Specifications
-
Model: L-AZ904MB-CH
-
Faucet Height: 9.41"
-
Spout Height: 8.62"
-
Spout Length: 8.16"
-
Spout Reach: 6.34"
-
Material: Brass (ANZZI RHINO-ALLOY certified)
-
Finish: Matte Black-Polished Chrome
-
Mounting: Deck mount, single hole
-
Handles: Single lever
-
Flow Rate: 1.2 GPM
-
Supply Connection: 3/8" compression
-
Mounting Hole: 1.3" to 1.38"
-
Water Pressure: 20 to 125 PSI
-
Drain: Pop-up drain without overflow hole, included
-
Certifications: Lead free, NSF/ANSI/CAN 61
-
Series: Contemporary
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- L-AZ904MB-CH Contemporary single hole vessel sink faucet in matte black and polished chrome
- Hot and cold braided supply hoses
- Rubber gasket, metal gasket and mounting kit
- Aerator and aerator key
- Pop-up drain without overflow hole
Sold separately: Supply valves
Installation & Care
Installation
Deck mount through a single 1.3" to 1.38" hole. Tools are a wrench and a screwdriver; check that all components are included, supply lines are free of debris with supply stops installed, and water pressure is between 20 and 125 PSI. Fit the faucet with its O-ring, slide up the rubber and metal gaskets and secure the mounting kit, hand tight then a screwdriver. With the supply valves (not provided) off, connect the red HOT and blue COLD braided hoses, hand tight then a wrench, without overtightening, and do not use pipe dope or other sealants on water connections. Install the pop-up drain, check for leaks, then remove the aerator and flush the lines at full flow for one minute. ANZZI highly recommends professional installation, and the manual says to contact a professional plumber if installation is difficult.
Care
To preserve the finish on the metal parts, apply a non-abrasive wax such as car wax, and rinse off any cleaner immediately. Clean the aerator regularly to remove calcium build-up and any blockages that could reduce the water flow.
