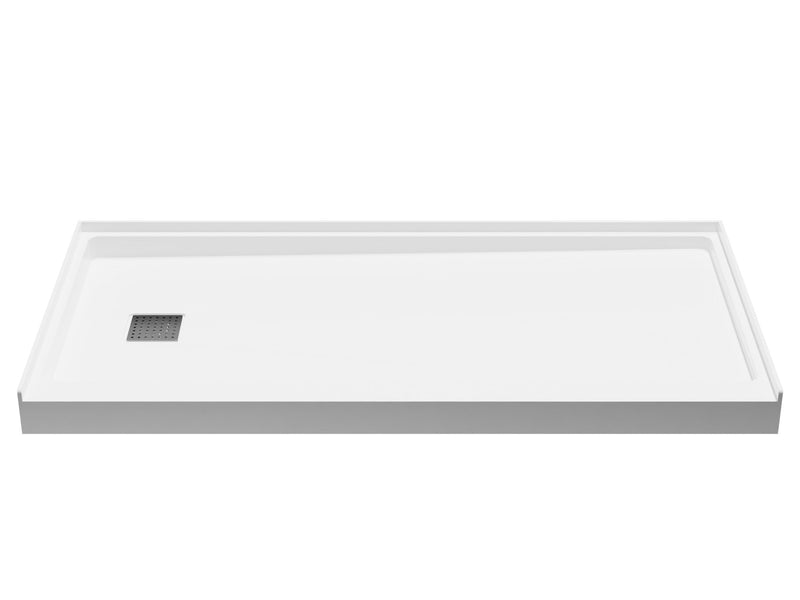

The ANZZI SB-AZ101L is the 60" x 30" Alexander Series ANR alcove shower base with a left drain. It gives a three-wall alcove a solid, low-threshold floor that does not flex underfoot, molded from ANZZI's ANR stone composite rather than thin acrylic.
Alexander bases are compression molded from ANR, ANZZI's blend of resin, fiberglass and stone filler, which ANZZI rates stronger and lighter than both artificial stone and acrylic. ANZZI builds them with twice the material thickness, so no extra layers of reinforcement are needed, and the solid surface construction is made not to crack, discolor or delaminate over years of use.
Underfoot, the difference is rigidity. ANZZI rates the ANR at 3X compressive strength, so it holds high levels of weight without sagging, and its tensile strength means it won't flex beneath your feet the way a thin pan can. A solid surface grid on the underside gives strong support and structural integrity, and the moisture-resistant construction protects against odor, mold and mildew.
The low threshold is designed to make stepping in and out effortless, a real help for children, older family members and anyone with stiff knees, and a stainless steel drain cover resists corrosion so it keeps looking good for a long lifetime of use.
Overall the base measures 60" W x 30" D x 4" H. The drain sits toward the left end, so the drain line under the floor must match that position. It is an alcove base: measure the framed opening stud to stud on all three walls before ordering, so the base sits snugly against the walls.
Alexander is offered here in 5 sizes (36" x 36", 48" x 32", 60" x 30", 60" x 32" and 60" x 36") and center, left and right drain positions, so you can match the base to your space and your fixtures; the SB-AZ101L is the 60" x 30" with the left drain.
Plan the rest of the shower around the base: you will need a drain assembly, sold separately, mortar and sealant for the install, and a sliding or hinged glass door, or an ANZZI wall surround to finish the space. Day to day the floor needs little more than a rinse and a wipe with a soft cloth after showering, and a wash with mild soap now and then keeps the surface bright; skip abrasive pads and scrapers, which dull the finish.
Alexander suits a tub-to-shower conversion, a new walk-in alcove or a dated pan replacement in a family bathroom, and anyone who wants a stone-solid floor with a low step. ANZZI highly recommends professional installation.
Features
Compression-Molded ANR
A blend of resin, fiberglass and stone filler, ANR is rated by ANZZI stronger and lighter than both artificial stone and acrylic.
Twice the Material Thickness
ANZZI molds the base with twice the material thickness, so no extra layers of reinforcement are needed under the floor.
3X Compressive Strength
The ANR holds high levels of weight without sagging, and a solid surface grid underneath adds strong support.
Won't Flex Underfoot
ANR's tensile strength keeps the floor sturdy so it won't flex beneath your feet, a solid feel that thin pans lack.
Low Threshold
A low threshold makes stepping in and out effortless, helpful for children, older bathers and anyone with limited mobility.
Stainless Steel Drain Cover
The stainless steel drain cover resists corrosion, so it keeps looking good through a long lifetime of use.
Left Drain
The drain sits toward the left end of the base, matched to a left-side drain line in the floor.
60" x 30" Footprint
Overall the base measures 60" W x 30" D x 4" H, so measure the framed alcove before ordering and allow for the wall finish over the flange.
Specifications
-
Model: SB-AZ101L
-
Series: Alexander
-
Dimensions: 60" W x 30" D x 4" H
-
Drain Location: Left
-
Material: Compression molded ANR (resin, fiberglass and stone filler)
-
Installation Type: Alcove
-
Threshold: Low threshold
-
Drain Cover: Stainless steel
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- Alexander shower base, 60" x 30"
- Stainless steel drain cover
Sold separately: Drain assembly
Installation & Care
Installation
Frame the alcove so the walls and subfloor are solid, plumb and square, and confirm the left drain position before you begin. The shower drain is not included: ANZZI's manual calls for a 2" PVC waste pipe, a drain hole in the subfloor about 6" in diameter, and a sealant or gasket at the drain, never plumber's putty. Set the base on a bed of thick mortar, level it in two directions with the apron touching the floor along its length, and wait 24 hours before using the shower. Install the base before the door or wall panels; ANZZI highly recommends professional installation. ANZZI's specification sheet is in Resources.
Care
ANZZI's base manual says to wipe the base after each use with a soft cloth and to clean it with non-abrasive sprays or cream-based cleaners; never use abrasive cleansers, metal brushes or scrapers, which can scratch or dull the surface. ANZZI's care guide says to clean with regular soap and hot water on a non-abrasive cloth or sponge, to test any stronger cleaner on an inconspicuous area first, to rinse every surface completely right after cleaning, and never to let a cleaner soak.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by UPS, FedEx or USPS, usually within 1 to 2 business days of your order. Shipping is free within the lower 48 states on orders of $101 or more (orders under $101 ship for a flat $15); for Alaska or Hawaii, contact us before you order. You'll get tracking by email as soon as it ships.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this product to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
Alexander is ANZZI's ANR alcove shower base line: 36" x 36" and 60" x 36" with a center drain, 48" x 32" and 60" x 30" with left, center or right drains, 60" x 32" with a center, left or right drain, and 60" x 36" with a left or right drain. ANZZI's Kahn and Stellar packages pair similar ANR bases with frameless sliding doors.
