The ANZZI SD-AZ09-02BG is the 30" x 72" Fellow Series frameless hinged shower door in Brushed Gold. Sized for a 30" wide opening, it hangs a single glass door on two high forged hinges for a clean, frameless entry. Brushed gold gives the hardware a warm satin glow that suits gold or brass faucets, warm wood vanities and marble-look tile.
Fellow is the simplest way into a frameless shower: one panel of glass, two hinges and a handle. The Rhino Alloy certified stainless steel high forged hinges swing the door with 90 degree action, and with no track or bottom rail there is nowhere for water and soap to collect at the threshold. The frameless swinging design keeps the look minimal, with the glass edge left clean.
The door is ANSI certified tempered Deco-Glass, clear as standard, and ANZZI's Tsunami Guard shielding repels water and moisture for pristine, crystal clear glass. In the 24" x 70" size the door is also offered with frosted glass (SD-AZ09-01BN-F) for privacy; ANZZI's manual notes that the Tsunami Guard coated side of a frosted panel faces into the shower.
A stainless steel door handle comes in the box with the two hinges and the glass. Because a hinged frameless door hangs its whole weight on the wall, ANZZI's manual requires it to be attached to the studs or to 2x6 wood reinforcement installed behind the wall, and it cautions that doors under 30" have no out-of-plumb adjustment, so the hinge wall must be truly plumb and square. The clever symmetrical design allows reversible left or right installation.
The SD-AZ09-02BG measures 30" wide and 72" tall. Check the space in front of the shower before you order: a hinged door needs room to swing open into the bathroom, clear of the vanity, the toilet and any towel bars.
Fellow is offered here in 2 sizes (24" x 70" and 30" x 72"), 5 finishes (brushed gold, brushed nickel, polished chrome, gunmetal and matte black) and a choice of clear glass and frosted glass, so you can match the glass to your space and your fixtures; the SD-AZ09-02BG is the 30" x 72" door in Brushed Gold.
The door is sold on its own, so it needs a finished shower base, tub or tiled threshold and finished, plumb walls to mount against. Day to day the glass takes very little work: squeegee or wipe it after the last shower of the day so drops do not dry into spots, and wash it with soap and hot water on a soft cloth when it needs more. Skipping abrasive pads and harsh cleaners protects both the glass coating and the brushed gold finish.
Fellow suits a tiled shower stall, a niche opening or the door beside fixed glass, wherever a sliding door would leave too narrow an entry, and anyone who wants frameless glass without a track to clean. ANZZI highly recommends professional installation.
Features
Forged Hinges With 90 Degree Action
Two Rhino Alloy certified stainless steel high forged hinges swing the door with 90 degree action, so the whole door width opens for an easy entry.
No Track to Clean
The frameless swinging design has no bottom track, so there is no rail for soap and water to collect in and the threshold wipes clean in one pass.
Tsunami Guard Deco-Glass
ANSI certified tempered Deco-Glass with Tsunami Guard shielding repels water and moisture, keeping the glass clear with a quick squeegee or soft-cloth wipe.

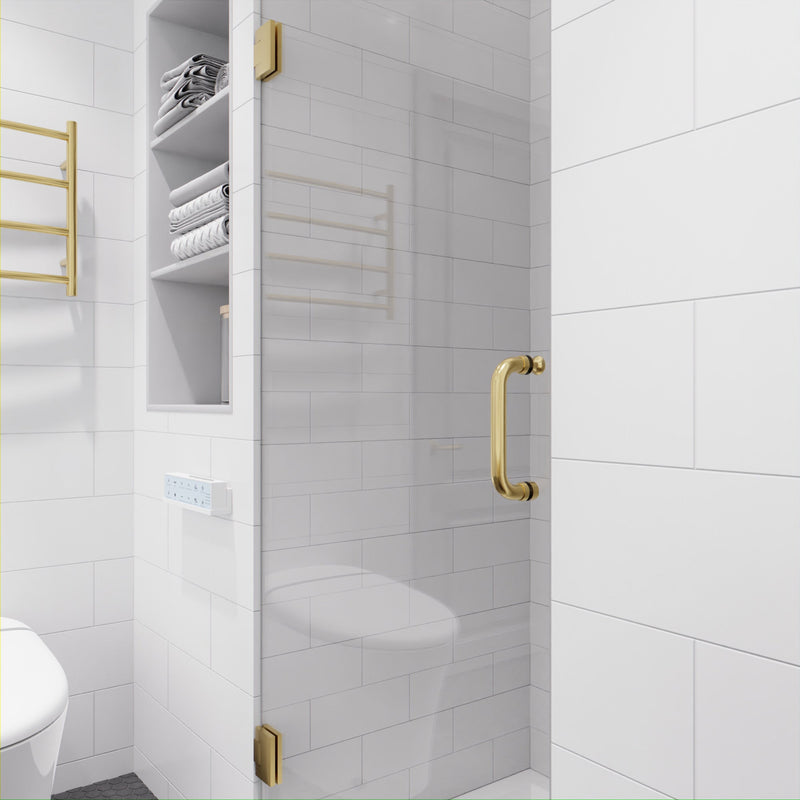

Stainless Steel Handle Included
The package includes 2 high forged hinges, 1 stainless steel door handle and the tempered Deco-Glass door, ready to hang on a prepared wall.
Reversible Installation
The symmetrical design allows reversible left or right installation, so the door can open away from a toilet or vanity on either side.
Brushed Gold Finish
The hardware is finished in brushed gold, a warm satin tone that pairs with gold or brass faucets and warm wood or marble-look finishes.
30" x 72" Size
At 30" wide and 72" tall, the door is sized for a 30" opening, so measure the finished opening before ordering.
Specifications
-
Model: SD-AZ09-02BG
-
Series: Fellow
-
Type: Frameless hinged shower door
-
Overall Width: 30"
-
Height: 72"
-
Hardware Finish: Brushed Gold
-
Glass: Tempered Deco-Glass, ANSI certified
-
Glass Coating: Tsunami Guard
-
Hardware Material: Stainless steel, Rhino Alloy certified
-
Operation: Hinged, 2 high forged hinges with 90 degree action
-
Reversible: Yes, left or right installation
-
Warranty: Limited lifetime (register within 90 days)
What's Included
- Tempered Deco-Glass door
- 2 high forged hinges
- Stainless steel door handle
Installation & Care
Installation
Fits a finished opening 30" wide and 72" tall, installed on a finished threshold between finished walls that are plumb and at right angles. Fasten the hinge side to the studs or to 2x6 wood reinforcement installed behind the wall, as ANZZI's manual requires; doors under 30" have no out-of-plumb adjustment, so the wall must be plumb. The hardware is reversible for a left or right opening. ANZZI recommends professional installation. ANZZI's installation manual and specification sheet are in Resources.
Care
ANZZI's care guide says to clean with regular soap and hot water on a non-abrasive cloth or sponge, to test any stronger cleaner on an inconspicuous area first, to rinse every surface completely right after cleaning, and never to let a cleaner soak. Because the Tsunami Guard coating makes water bead and run off, a squeegee or soft-cloth wipe after each shower clears the drops before they dry into spots; skip scouring cleaners, bristle brushes and abrasive sponges, which can scratch the glass and its coating. Wipe the metal hardware dry with a soft cloth and keep ammonia, bleach and acid cleaners off the finish.
Resources
Shipping, Returns & Warranty
ANZZI ships this item from the SW Corp warehouse by LTL freight with curbside delivery: the carrier contacts you to schedule the delivery, and you move the item from the curb to its final spot. Orders usually leave the warehouse within 1 to 2 business days, and you'll get tracking by email as soon as it ships. Shipping is free within the lower 48 states; for Alaska or Hawaii, contact us before you order.
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Unused ANZZI products in their original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. You pay the return shipping, which for a freight item means the freight cost, and a 20% restocking fee is deducted along with payment processing fees. Installed, used or damaged products and special-order items can't be returned.
ANZZI warrants this product to the original purchaser against defects in materials and workmanship for its lifetime, for residential use, and replaces a defective product or part free of charge. Register it at anzzi.com/register within 90 days of delivery to activate the warranty, and report any surface damage within 5 days of delivery, before installation. Shipping, handling and labor costs, commercial use, improper installation or maintenance, misuse, hard-water or mineral deposits and corrosive cleaners are not covered.
Warranty claims. Call ANZZI at 1-844-442-6994 (1-844-44-ANZZI) with your proof of purchase to submit a claim and get a return authorization (RMA). Register the product at anzzi.com/register within 90 days of delivery, or the warranty is not active. Contact us with your order number if you would like help with the claim.
About ANZZI
ANZZI is a kitchen and bath brand from SW Corp, a Miami, Florida company that also makes SteamSpa and MediTub. It designs freestanding and walk-in bathtubs, shower doors and bases, faucets, sinks, toilets and kitchen fixtures, bringing European bath design to North American homes.
Fellow is ANZZI's single frameless hinged door, offered 24" x 70" (clear or frosted glass) and 30" x 72" in brushed gold, brushed nickel, polished chrome, matte black and gunmetal. Consort uses the same forged hinges on a 60" wide frameless door.
